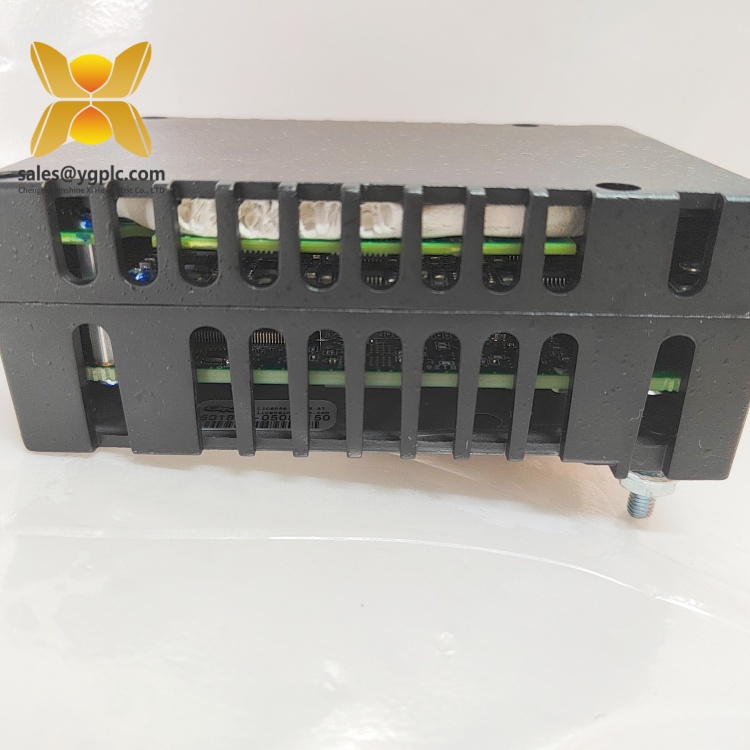

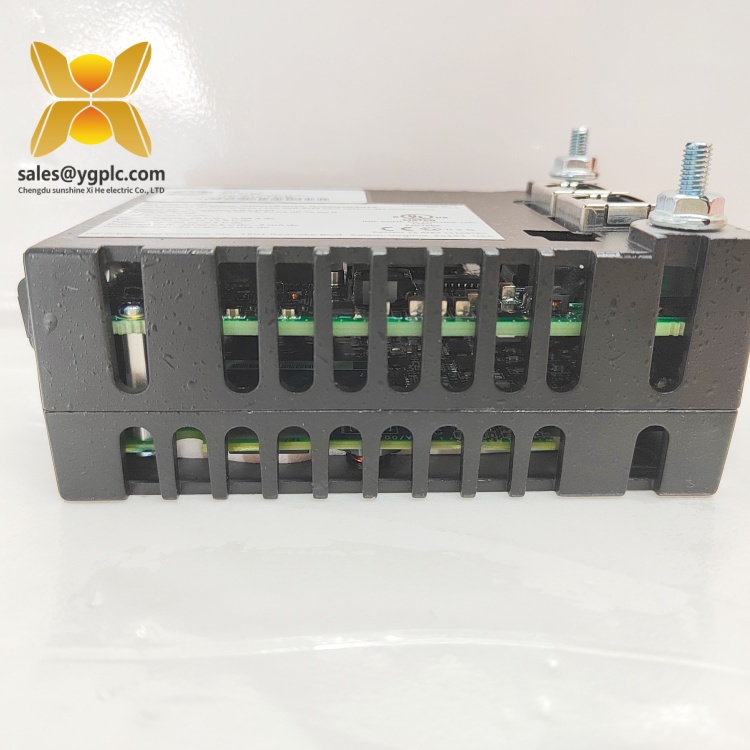

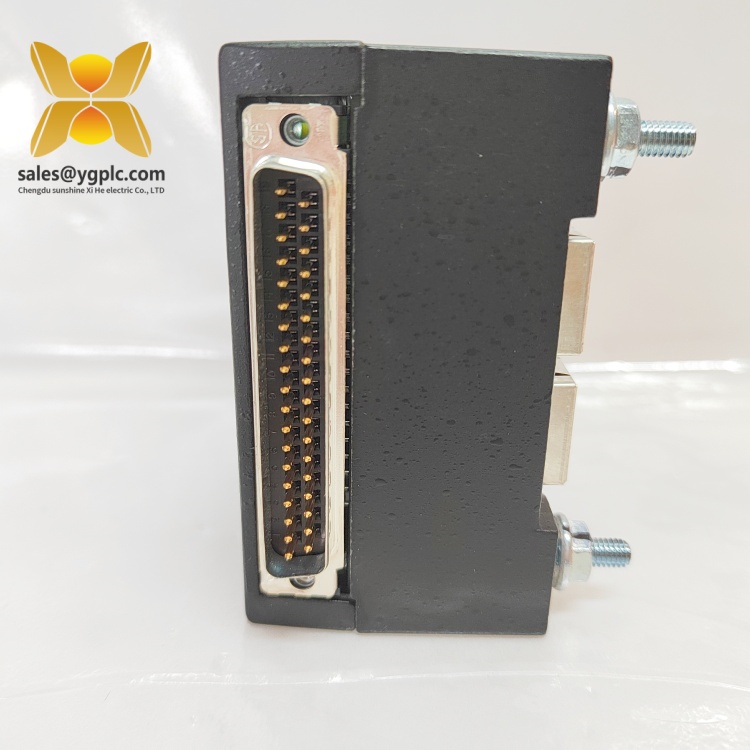

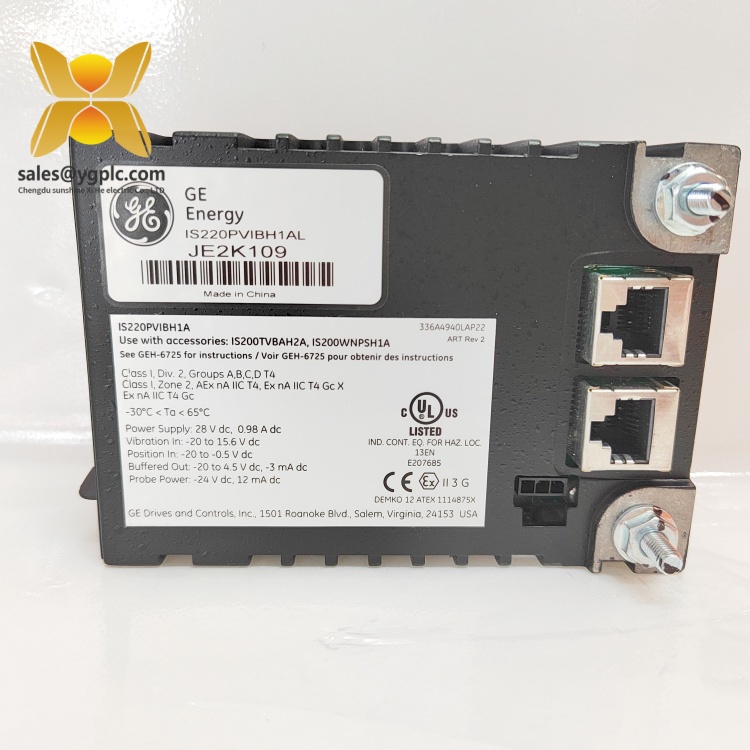

GE IS220PVIBH1A 336A4940CSP16 Product Specification
Product Overview:GE IS220PVIBH1A 336A4940CSP1
The GE IS220PVIBH1A 336A4940CSP16 is a high-performance vibration monitoring I/O module designed for GE’s Mark VIe Speedtronic Turbine Control System, serving as a critical component in real-time machinery health assessment across industrial sectors. Engineered to interface with proximity probes, accelerometers, and velocity sensors, this module delivers precision vibration analysis to safeguard gas turbines, steam turbines, and rotating equipment in power generation, oil and gas, and heavy manufacturing.
As part of the Mark VIe distributed control architecture, the GE IS220PVIBH1A supports 13 independent channels for simultaneous vibration and proximity measurements, with ±0.5% accuracy and 0.01g resolution across a frequency range of 0.5 Hz to 20 kHz 3. Its dual redundant 100 Mbps Ethernet ports ensure seamless data transmission to the Mark VIe controller, while hot-swappable design allows module replacement without system downtime. The module’s rugged construction—featuring a triple-layer conformal coating and IP20-rated enclosure—ensures reliable operation in harsh environments with high vibration, humidity, and temperature fluctuations (-30°C to +65°C) 1.
In automation systems, the GE IS220PVIBH1A acts as the backbone for predictive maintenance programs, providing critical data for turbine bearing monitoring, shaft alignment analysis, and early fault detection. Its compatibility with TVBA vibration terminal boards and IS220PDIOH1B discrete I/O modules enables deployment in hazardous locations, adhering to industry standards for safety and reliability 1.
Technical Specifications:GE IS220PVIBH1A 336A4940CSP1
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS220PVIBH1A 336A4940CSP16 |
| Manufacturer | General Electric (GE) |
| Product Type | Vibration Monitoring I/O Module |
| Series | Mark VIe Speedtronic Turbine Control System |
| Input Channels | 13-channel (proximity and vibration sensors) |
| Frequency Range | 0.5 Hz to 20 kHz |
| Accuracy | ±0.5% full scale |
| Resolution | 0.01g |
| Analog-to-Digital Converter | 16-bit |
| Communication Interface | Dual 100 Mbps Ethernet ports (IONET protocol) |
| Physical Dimensions | 82.55 mm (H) × 41.91 mm (W) × 121.41 mm (D) |
| Weight | 0.38 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Power Supply | -24 VDC, 12 mA load per channel |
| Frame Rates | 3.125, 6.25, 12.5, 25, 50, 100 Hz |
| Certifications | CE, UL 61010-1 (compliant with industrial automation standards) |
Main Features and Advantages:GE IS220PVIBH1A 336A4940CSP1
Multi-Channel Vibration Analysis:
The GE IS220PVIBH1A supports 13 channels for simultaneous monitoring of proximity probes (e.g., shaft displacement) and vibration sensors (e.g., accelerometers), enabling comprehensive assessment of turbine health. Channels 1–3 are dedicated to accelerometers, while channels 9–13 handle proximity and keyphasor signals, providing granular data for predictive maintenance 1.
The GE IS220PVIBH1A supports 13 channels for simultaneous monitoring of proximity probes (e.g., shaft displacement) and vibration sensors (e.g., accelerometers), enabling comprehensive assessment of turbine health. Channels 1–3 are dedicated to accelerometers, while channels 9–13 handle proximity and keyphasor signals, providing granular data for predictive maintenance 1.
Redundant Communication Architecture:
Dual Ethernet ports ensure uninterrupted data transmission to the Mark VIe controller, with automatic failover in <10 ms. This redundancy minimizes downtime risks in safety-critical systems, such as turbine emergency shutdowns triggered by 异常振动 1.
Dual Ethernet ports ensure uninterrupted data transmission to the Mark VIe controller, with automatic failover in <10 ms. This redundancy minimizes downtime risks in safety-critical systems, such as turbine emergency shutdowns triggered by 异常振动 1.
Precision Signal Conditioning:
Integrated DAC bias adjustment eliminates DC offsets from sensor signals, optimizing analog-to-digital conversion and ensuring accurate vibration amplitude and frequency measurements. This feature is critical for detecting subtle changes in machinery performance, such as bearing wear or misalignment 1.
Integrated DAC bias adjustment eliminates DC offsets from sensor signals, optimizing analog-to-digital conversion and ensuring accurate vibration amplitude and frequency measurements. This feature is critical for detecting subtle changes in machinery performance, such as bearing wear or misalignment 1.
Rugged Industrial Design:
A triple-layer conformal coating protects against dust, moisture, and chemical exposure, while the module’s vibration resistance (10–2000 Hz, 10 G rms) and wide operating temperature range make it suitable for offshore platforms, refineries, and power plants 1.
A triple-layer conformal coating protects against dust, moisture, and chemical exposure, while the module’s vibration resistance (10–2000 Hz, 10 G rms) and wide operating temperature range make it suitable for offshore platforms, refineries, and power plants 1.
Hot-Swappable Operation:
The GE IS220PVIBH1A supports hot swapping, allowing replacement of a faulty unit without powering down the control system. This feature reduces mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications 1.
The GE IS220PVIBH1A supports hot swapping, allowing replacement of a faulty unit without powering down the control system. This feature reduces mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications 1.
Application Areas:GE IS220PVIBH1A 336A4940CSP1
-
Power Generation:
- Monitors turbine bearing vibrations to detect early signs of mechanical wear, preventing catastrophic failures in combined cycle plants.
- Analyzes shaft displacement in steam turbines to ensure optimal alignment and reduce energy losses.
-
Oil and Gas:
- Supports compressor train monitoring in offshore platforms, providing real-time vibration data to optimize maintenance schedules and prevent unplanned shutdowns.
- Measures pipeline pump vibrations to ensure compliance with safety standards in remote locations.
-
Manufacturing:
- Regulates robotic arm vibrations in automotive assembly lines to maintain precision and reduce production errors.
- Monitors conveyor belt motor vibrations in food processing facilities to ensure continuous operation and product quality.
-
Renewable Energy:
- Tracks wind turbine gearbox vibrations to enable predictive maintenance and extend component lifespan.
- Measures solar panel inverter vibrations to optimize energy production in utility-scale solar farms.
Related Products:GE IS220PVIBH1A 336A4940CSP1
- GE TVBA Vibration Terminal Board: Integrates with the IS220PVIBH1A to interface with field sensors, providing signal conditioning and isolation for hazardous environments.
- GE IS220PDIOH1B: Discrete I/O module often paired with IS220PVIBH1A to trigger alarms or shutdowns based on vibration thresholds.
- GE IS220PAICH1A: Analog input module used alongside IS220PVIBH1A to handle additional process variables like temperature and pressure.
- GE IS220VCMIH1A: Communication module ensuring seamless data transmission between IS220PVIBH1A and the Mark VIe controller.
- GE IS220PPROS1B: Redundant power supply module that powers the IS220PVIBH1A, ensuring stable operation in mission-critical systems.
- GE IS200TRTDH2D: RTD terminal board compatible with IS220PVIBH1A, supporting temperature monitoring in integrated turbine control loops.
Installation and Maintenance:GE IS220PVIBH1A 336A4940CSP1
Pre-installation Preparation:
Before installing the GE IS220PVIBH1A, verify the input voltage matches the module’s requirements (-24 VDC ±5%) and ensure the control cabinet is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling. Mount the module in a 3U VME rack with at least 50 mm clearance for airflow, securing it with anti-vibration brackets to minimize mechanical stress. Connect the TVBA terminal board to the module, ensuring proper wiring for sensor inputs and Ethernet links to the Mark VIe controller 1.
Before installing the GE IS220PVIBH1A, verify the input voltage matches the module’s requirements (-24 VDC ±5%) and ensure the control cabinet is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling. Mount the module in a 3U VME rack with at least 50 mm clearance for airflow, securing it with anti-vibration brackets to minimize mechanical stress. Connect the TVBA terminal board to the module, ensuring proper wiring for sensor inputs and Ethernet links to the Mark VIe controller 1.
Maintenance Recommendations:

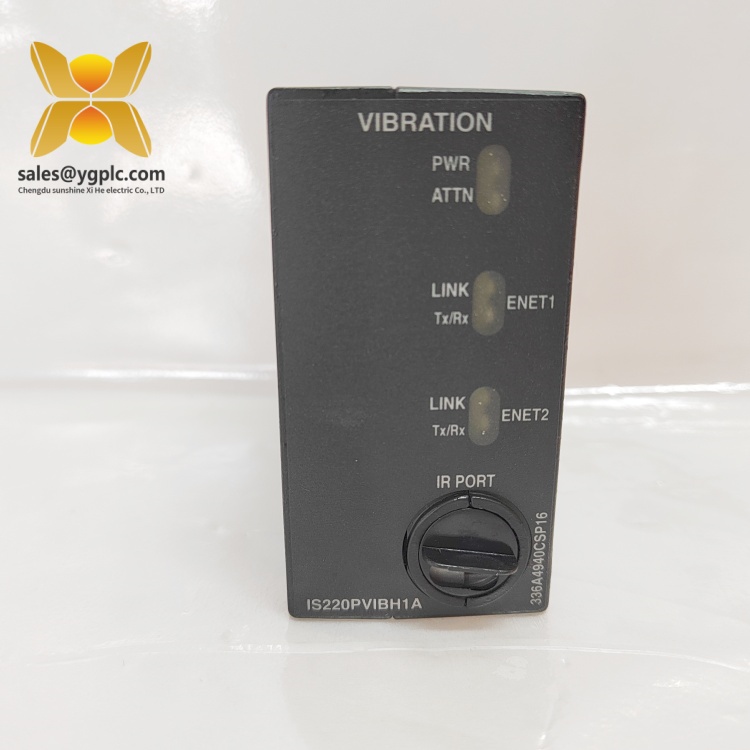

Perform monthly visual inspections to confirm front-panel LEDs (Power, Ethernet Link, Fault) indicate normal operation. Clean dust from ventilation slots using compressed air to maintain cooling efficiency. Quarterly, use a multimeter to verify output voltage (-24 VDC ±5%) and check terminal connections for corrosion. Annually, update firmware via GE’s Proficy software to access bug fixes and compatibility enhancements. Test redundancy by disconnecting one Ethernet port and confirming seamless switchover to the secondary channel 1.
Perform monthly visual inspections to confirm front-panel LEDs (Power, Ethernet Link, Fault) indicate normal operation. Clean dust from ventilation slots using compressed air to maintain cooling efficiency. Quarterly, use a multimeter to verify output voltage (-24 VDC ±5%) and check terminal connections for corrosion. Annually, update firmware via GE’s Proficy software to access bug fixes and compatibility enhancements. Test redundancy by disconnecting one Ethernet port and confirming seamless switchover to the secondary channel 1.
Product Warranty:GE IS220PVIBH1A 336A4940CSP1
Our company offers a one-year quality warranty for the GE IS220PVIBH1A 336A4940CSP16, covering hardware malfunctions not caused by human factors. During the warranty period, if the module exhibits abnormal vibration readings, communication failures, or functional defects, we will provide replacement services. For discontinued models or urgent demands, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting the continuous operation of your industrial systems. As a leading import-export distributor with 17 years of experience, we maintain large inventories of industrial control parts, including hard-to-find models, to meet your urgent needs 1.
