GE IS220PDIOH1A Product Specification
Product Overview
The GE IS220PDIOH1A is a discrete input/output (I/O) pack module designed for GE’s Mark VIe Speedtronic Turbine Control System, offering high-reliability digital signal processing in industrial automation. This module integrates 24 discrete inputs and 12 relay outputs into a single compact unit, making it ideal for applications requiring both signal acquisition and control in hazardous or non-hazardous environments

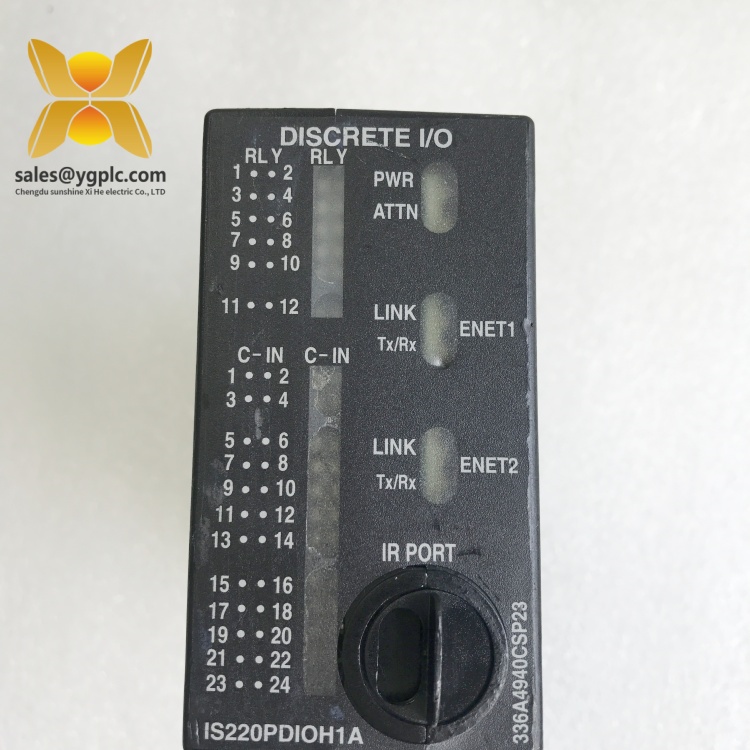

Key features include dual Ethernet ports (100 Mbps full-duplex) for high-speed communication with Mark VIe controllers, a local processor for real-time data processing, and 1500 Vrms optical isolation between channels and ground to prevent electrical interference 223. The module supports hot-swappable operation and front-panel LEDs for diagnostics (Power, Run, Fault, Ethernet links), enabling rapid maintenance in mission-critical systems
Constructed with a triple-layer conformal coating and IP20-rated enclosure, the IS220PDIOH1A withstands extreme temperatures (-30°C to +65°C), humidity (5–95% non-condensing), and vibration (75 G peak). Its VME 64x rack mount design (3U form factor) ensures compatibility with GE’s distributed I/O architecture
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS220PDIOH1A |
| Manufacturer | General Electric (GE) |
| Product Type | Discrete Input/Output Pack for Industrial Control |
| Series | Mark VIe Speedtronic Turbine Control System |
| Input Channels | 24 dry contact voltage inputs (24 VDC/125 VDC selectable) |
| Output Channels | 12 relay outputs (250 VAC/10A max) |
| Input Isolation | 1500 Vrms optical isolation |
| Output Isolation | 2500 Vrms between channels and ground |
| Power Supply | 24 VDC ±10% (dual redundant inputs optional for critical applications) 1723 |
| Communication Interfaces | 2 × Ethernet (100 Mbps full-duplex) |
| Physical Dimensions | 310 mm (L) × 170 mm (W) × 85 mm (D) |
| Weight | ~6 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Mounting | VME 64x rack (3U form factor) |
| Certifications | UL E207865 (non-hazardous), ATEX Zone 2 (Group IIC) when paired with compatible terminal boards 629 |
Key Features and Advantages
Flexible I/O Configuration:

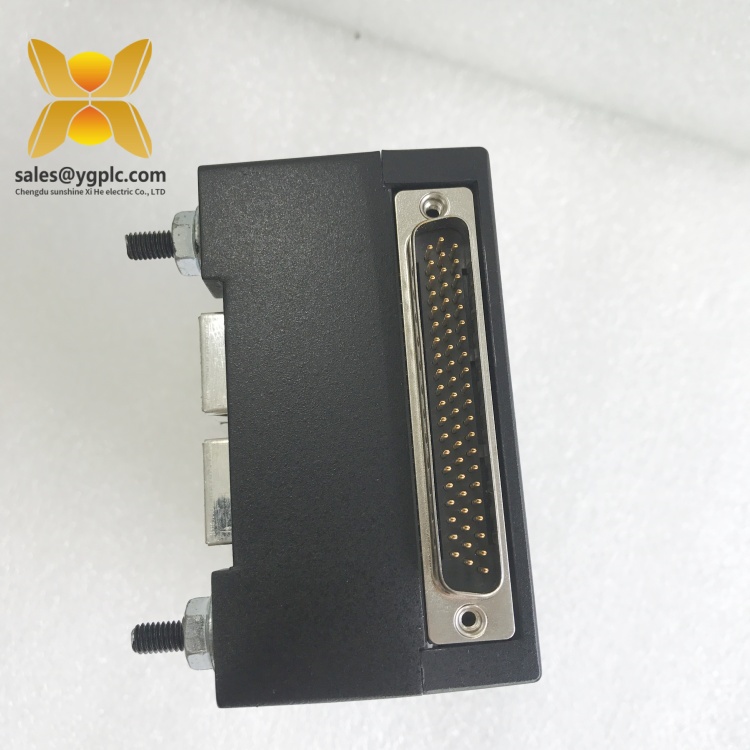

The IS220PDIOH1A supports 24 discrete inputs (e.g., switch status, proximity sensors) and 12 relay outputs (e.g., solenoid valves, contactors), with selectable voltage ranges (24 VDC/125 VDC) for compatibility with diverse field devices 714. Its DC-62 pin connector interfaces directly with terminal boards (e.g., IS200TDBSH2A for simplex applications, IS200TDBTH2A for TMR systems), simplifying wiring and reducing installation time
The IS220PDIOH1A supports 24 discrete inputs (e.g., switch status, proximity sensors) and 12 relay outputs (e.g., solenoid valves, contactors), with selectable voltage ranges (24 VDC/125 VDC) for compatibility with diverse field devices 714. Its DC-62 pin connector interfaces directly with terminal boards (e.g., IS200TDBSH2A for simplex applications, IS200TDBTH2A for TMR systems), simplifying wiring and reducing installation time
High-Speed Redundant Communication:
Dual Ethernet ports enable IONET protocol for sub-millisecond data synchronization with Mark VIe controllers, ensuring seamless operation in redundant architectures. The module’s local processor executes real-time algorithms (e.g., signal filtering, fault detection) independently, reducing latency and improving system responsiveness
Dual Ethernet ports enable IONET protocol for sub-millisecond data synchronization with Mark VIe controllers, ensuring seamless operation in redundant architectures. The module’s local processor executes real-time algorithms (e.g., signal filtering, fault detection) independently, reducing latency and improving system responsiveness
Rugged Industrial Design:
The triple-layer conformal coating protects against salt spray, dust, and UV radiation, while IP20-rated enclosure safeguards against solid particle ingress. Hot-swappable functionality allows field maintenance without system shutdowns, minimizing downtime in critical operations
The triple-layer conformal coating protects against salt spray, dust, and UV radiation, while IP20-rated enclosure safeguards against solid particle ingress. Hot-swappable functionality allows field maintenance without system shutdowns, minimizing downtime in critical operations
Enhanced Safety for Hazardous Environments:
When paired with IS200TDBSH2A or IS200TDBTH2A terminal boards, the IS220PDIOH1A is certified for ATEX Zone 2 (Group IIC) and Class I, Division 2 (Groups A–D) hazardous locations, making it suitable for oil refineries, chemical plants, and offshore platforms 629. Its intrinsically safe design prevents ignition sources, ensuring compliance with ANSI/ISA-12.12.01-2015 standards
When paired with IS200TDBSH2A or IS200TDBTH2A terminal boards, the IS220PDIOH1A is certified for ATEX Zone 2 (Group IIC) and Class I, Division 2 (Groups A–D) hazardous locations, making it suitable for oil refineries, chemical plants, and offshore platforms 629. Its intrinsically safe design prevents ignition sources, ensuring compliance with ANSI/ISA-12.12.01-2015 standards
Application Areas
-
Power Generation:
- Gas Turbine Control: Monitors turbine overspeed switches and triggers emergency shutdowns via relay outputs
- Generator Protection: Processes breaker status signals during grid synchronization to ensure stable power output
-
Oil and Gas:
- Wellhead Monitoring: Interfaces with pressure switches in offshore platforms to initiate safety interlocks
- Pipeline Automation: Controls valve actuators and monitors flowmeter status in refineries
-
Chemical Processing:
- Reactor Safety: Monitors temperature/high-level switches and controls cooling systems via relays.
- Batch Process Control: Synchronizes solenoid valves and pumps for precise chemical dosing sequences
-
Industrial Manufacturing:
- Robotic Systems: Processes proximity sensor signals for robotic arm positioning in automotive assembly lines
- Conveyor Control: Monitors belt alignment switches to prevent material spillage
Related Products
- GE IS200TDBSH2A/IS200TDBTH2A: Terminal boards for simplex and TMR applications, directly compatible with IS220PDIOH1A via DC-62 connectors
- GE IS220PSCAH1B: Redundant power supply module ensuring stable 24 VDC to the I/O pack
- GE IS220VCMIH1A: Communication module enabling data exchange with supervisory SCADA systems
- GE IS220PAICH1A: Analog I/O pack often paired with IS220PDIOH1A for hybrid control systems
Installation and Maintenance
Pre-installation Preparation:
- Environmental Checks: Verify ambient temperature (-30°C to +65°C) and humidity (5–95% non-condensing). Use anti-static wrist straps to prevent ESD damage during handling
- Rack Configuration: Install in a VME 64x rack with anti-vibration brackets, ensuring proper grounding for EMI/EMC compliance
- Cabling: Connect Ethernet cables to dual RJ45 ports and terminal boards (e.g., IS200TDBSH2A) for field signal integration. Label all connections for traceability
- Software Setup: Configure I/O channels and communication parameters using GE’s Proficy Machine Edition, ensuring compatibility with Mark VIe controllers
Maintenance Recommendations:
- Monthly Inspections: Visually check front-panel LEDs and clean dust from ventilation slots. Inspect cable connectors for corrosion or looseness
- Annual Calibration: Use a certified signal generator to verify input accuracy (±0.5% of full scale) and relay output reliability. Replace degraded terminal blocks or cables
- Firmware Updates: Periodically update via Proficy to access bug fixes and security patches. Document all changes for traceability
- Thermal Management: Monitor operating temperatures to detect 异常 hotspots. Replace thermal compound every 2–3 years to maintain optimal heat dissipation
Product Warranty and Availability
Our company provides a one-year quality warranty for the GE IS220PDIOH1A, covering hardware defects unrelated to misuse or environmental damage. During the warranty period, we offer free replacement for modules exhibiting abnormal performance. For urgent requirements, our global inventory network ensures rapid delivery of scarce parts within 24–48 hours
Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Note: This document synthesizes third-party technical resources and industry applications. For detailed installation guides or compliance documentation, refer to GE’s Mark VIe System Manual (e.g., GEH-6725) or contact our technical support team
