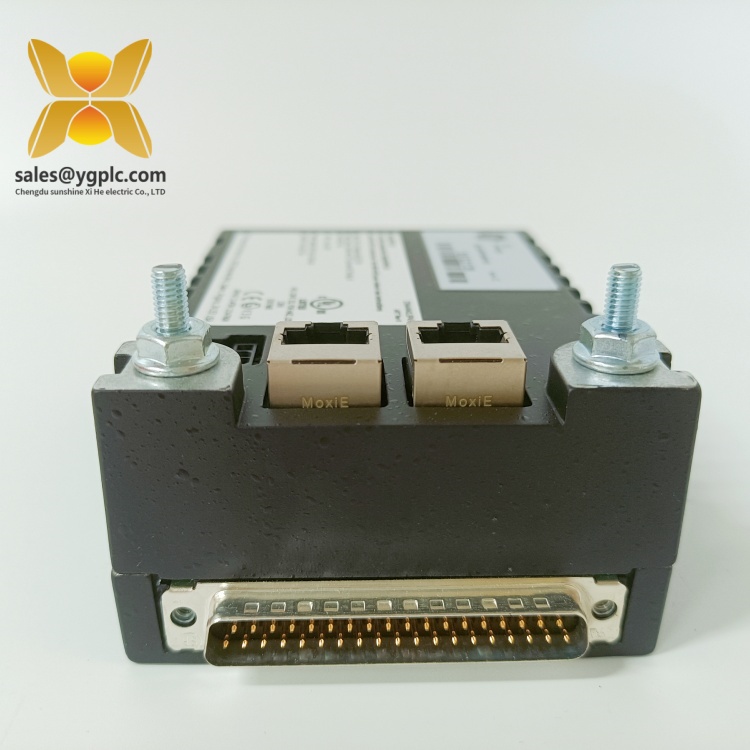

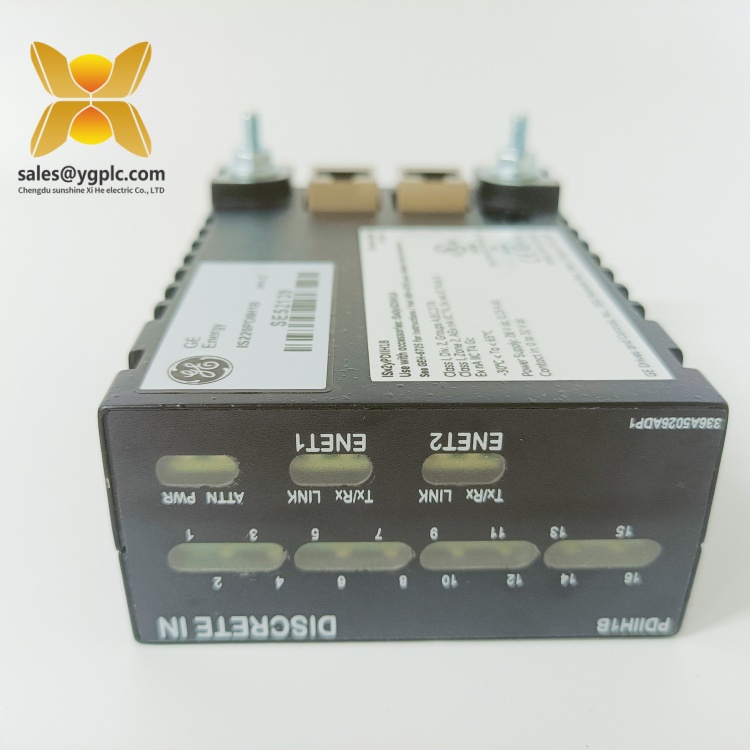

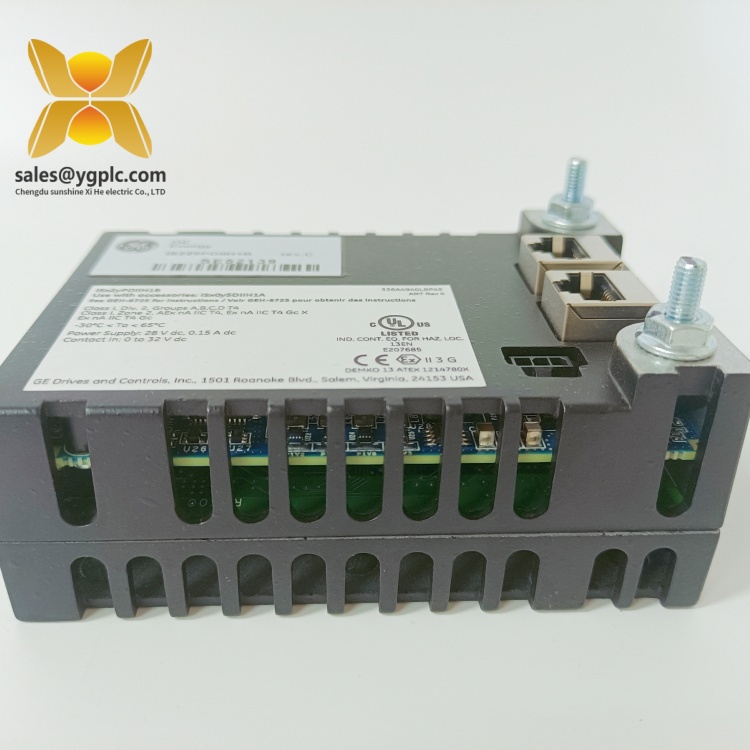

GE IS220PDIIH1B 336A5026ADP1 Mark VIe Digital Input Module
Product Overview
The GE IS220PDIIH1B 336A5026ADP1 is a high-reliability digital input module designed for GE’s Mark VIe control system, serving as a critical interface for monitoring digital signals in industrial automation. As part of the IS220 Series, this module converts discrete electrical signals from sensors, switches, and relays into digital data for processing by the system’s central controller, enabling real-time status monitoring of machinery and processes. The IS220PDIIH1B 336A5026ADP1 integrates seamlessly with other Mark VIe components (e.g., analog output modules, communication cards), forming a robust control architecture for mission-critical applications in power generation, oil & gas, and manufacturing.
Featuring 32 independent digital input channels, the GE IS220PDIIH1B 336A5026ADP1 supports 24 V DC input signals, with galvanic isolation (2500 V RMS) between channels to prevent electrical interference. Its 16-bit processing core ensures fast signal detection (response time <1 ms), critical for capturing rapid state changes in safety systems and high-speed machinery. The module’s rugged design includes a conformal coating and compliance with MIL-STD-810G for vibration, shock, and temperature extremes (-40°C to +70°C), making it suitable for harsh environments like offshore platforms and power plant turbine halls.
In automation ecosystems, the IS220PDIIH1B 336A5026ADP1 monitors critical statuses such as valve positions, limit switch triggers, and emergency stop signals, feeding data to the Mark VIe controller for decision-making. Its support for triple modular redundancy (TMR) configurations enhances system reliability by cross-verifying inputs across three redundant modules, ensuring fault tolerance in safety-critical setups. The hot-swappable design allows maintenance without system shutdown, minimizing downtime in 24/7 operations—an essential feature for industries where unplanned outages incur significant costs.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PDIIH1B 336A5026ADP1 |
| Manufacturer | GE |
| Product Type | Digital Input Module |
| Series | Mark VIe |
| Number of Channels | 32 independent digital inputs |
| Input Voltage | 24 V DC ±10% |
| Isolation | 2500 V RMS galvanic isolation (channel-to-channel and channel-to-backplane) |
| Response Time | <1 ms (maximum) |
| Physical Dimensions | 167.6 mm (H) × 233.4 mm (W) × 44.5 mm (D) |
| Weight | 1.0 kg |
| Operating Temperature | -40°C to +70°C |
| Certifications | MIL-STD-810G, CE, UL, IEC 61131-2 |
| Redundancy Support | Triple Modular Redundancy (TMR) |
| Mounting | 6U VMEbus rack-mounted |
Key Features and Advantages
High Channel Density:
32 independent channels in a compact 6U form factor reduce rack space requirements, simplifying system architecture in large-scale installations such as power plant control rooms.
32 independent channels in a compact 6U form factor reduce rack space requirements, simplifying system architecture in large-scale installations such as power plant control rooms.
Robust Isolation:
2500 V RMS galvanic isolation prevents electrical noise, ground loops, and transient voltage spikes from disrupting signal integrity—critical in industrial environments with high electromagnetic interference.
2500 V RMS galvanic isolation prevents electrical noise, ground loops, and transient voltage spikes from disrupting signal integrity—critical in industrial environments with high electromagnetic interference.
Ultra-Fast Response:
<1 ms response time ensures rapid detection of state changes, making the IS220PDIIH1B 336A5026ADP1 ideal for safety systems (e.g., emergency stop circuits) and high-speed machinery monitoring.
<1 ms response time ensures rapid detection of state changes, making the IS220PDIIH1B 336A5026ADP1 ideal for safety systems (e.g., emergency stop circuits) and high-speed machinery monitoring.
TMR Compatibility:
Supports triple modular redundancy, where three identical modules process the same inputs and “vote” on valid signals, eliminating single-point failures and ensuring compliance with safety standards like SIL 3.
Supports triple modular redundancy, where three identical modules process the same inputs and “vote” on valid signals, eliminating single-point failures and ensuring compliance with safety standards like SIL 3.
Hot-Swappable Design:
Allows module replacement without powering down the system, minimizing downtime in continuous-operation environments such as refineries and power plants.
Allows module replacement without powering down the system, minimizing downtime in continuous-operation environments such as refineries and power plants.
Advanced Diagnostics:
Built-in self-test functions monitor channel health, detect open circuits or short circuits, and trigger alarms via front-panel LEDs and system software. This proactive troubleshooting reduces mean time to repair (MTTR).
Built-in self-test functions monitor channel health, detect open circuits or short circuits, and trigger alarms via front-panel LEDs and system software. This proactive troubleshooting reduces mean time to repair (MTTR).
Rugged Environmental Tolerance:
Conformal coating and MIL-STD-810G compliance ensure reliable operation in extreme temperatures, vibration, and humidity—essential for offshore platforms, mining sites, and desert power plants.
Conformal coating and MIL-STD-810G compliance ensure reliable operation in extreme temperatures, vibration, and humidity—essential for offshore platforms, mining sites, and desert power plants.
Application Areas
The GE IS220PDIIH1B 336A5026ADP1 is indispensable in industries requiring precise monitoring of discrete signals:
- Power Generation:
Monitors status signals from turbine trip valves, generator breakers, and cooling system pumps in thermal, hydro, and nuclear plants, enabling real-time fault detection and safe shutdowns. - Oil & Gas:
Tracks valve positions, pressure switch states, and emergency shutdown (ESD) signals in pipelines, refineries, and offshore rigs, ensuring compliance with safety regulations. - Manufacturing:
Integrates with robotic cells, conveyor systems, and assembly lines to monitor limit switches, photoelectric sensors, and safety interlocks, maintaining production continuity. - Chemical Processing:
Monitors tank level switches, pressure relief valves, and agitator statuses, ensuring process stability and preventing hazardous overflows or underfills.
Specific applications include gas turbine auxiliary system monitoring, refinery ESD networks, and automotive assembly line safety interlock systems.
Related Products
- GE IS220PAICH1A (Mark VIe Analog Input Module):
Complements the IS220PDIIH1B 336A5026ADP1 by converting analog signals (e.g., temperature, pressure) into digital data for the controller. - GE IS220PBITH1A (Mark VIe Binary Output Module):
Provides digital output capabilities to control relays, solenoids, and valves, working alongside the input module to form a complete I/O system. - GE IS220PBIUH1A (Mark VIe Enhanced Binary Input Module):
A higher-channel variant (64 channels) for large-scale systems requiring more monitoring points. - GE IS220VCMIH2CA (Mark VIe Communication Interface Card):
Facilitates data transfer between the IS220PDIIH1B 336A5026ADP1 and the central controller via industrial networks. - GE IS220WETAH1BB (Mark VIe Ethernet Interface Module):
Enables remote monitoring of the input module’s data via Ethernet/IP, integrating with SCADA and HMI systems. - GE IS220PDIIH1C (Mark VIe Digital Input Module):
An upgraded version with enhanced diagnostics and faster response time for ultra-critical applications.
Installation and Maintenance
Pre-installation preparations:
Ensure the Mark VIe rack is properly grounded and ventilated, with a stable 24 V DC power supply. Verify compatibility with existing system firmware using GE’s Mark VIe Configuration Tool. Mount the IS220PDIIH1B 336A5026ADP1 in the 6U VMEbus slot, securing it with anti-vibration screws to prevent loosening in high-vibration environments. Route input cables separately from high-voltage lines to minimize interference, and use shielded wiring for signals from outdoor or noisy sensors.
Ensure the Mark VIe rack is properly grounded and ventilated, with a stable 24 V DC power supply. Verify compatibility with existing system firmware using GE’s Mark VIe Configuration Tool. Mount the IS220PDIIH1B 336A5026ADP1 in the 6U VMEbus slot, securing it with anti-vibration screws to prevent loosening in high-vibration environments. Route input cables separately from high-voltage lines to minimize interference, and use shielded wiring for signals from outdoor or noisy sensors.
Maintenance suggestions:
Perform monthly visual inspections of front-panel LEDs to check for channel faults or power issues. Use GE’s Proficy Machine Edition software to run diagnostic tests, verifying input responsiveness and isolation integrity. Clean dust from vents quarterly using compressed air, especially in dusty industrial environments. Calibrate input thresholds annually using a precision signal generator to ensure accurate detection of 24 V DC signals. Store spare IS220PDIIH1B 336A5026ADP1 modules in anti-static packaging at 10–30°C with <50% humidity, and test them annually to confirm functionality.
Perform monthly visual inspections of front-panel LEDs to check for channel faults or power issues. Use GE’s Proficy Machine Edition software to run diagnostic tests, verifying input responsiveness and isolation integrity. Clean dust from vents quarterly using compressed air, especially in dusty industrial environments. Calibrate input thresholds annually using a precision signal generator to ensure accurate detection of 24 V DC signals. Store spare IS220PDIIH1B 336A5026ADP1 modules in anti-static packaging at 10–30°C with <50% humidity, and test them annually to confirm functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the GE IS220PDIIH1B 336A5026ADP1, covering hardware malfunctions not caused by human factors. During the warranty period, if the IS220PDIIH1B 336A5026ADP1 exhibits abnormal performance or functional failure, we will provide replacement services. As a leading import-export distributor with 17 years of experience, we maintain large stocks of industrial control parts, including discontinued models like this one. Relying on our global supply chain network, we can quickly respond to urgent procurement needs, ensuring your automation systems operate continuously and stably.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
