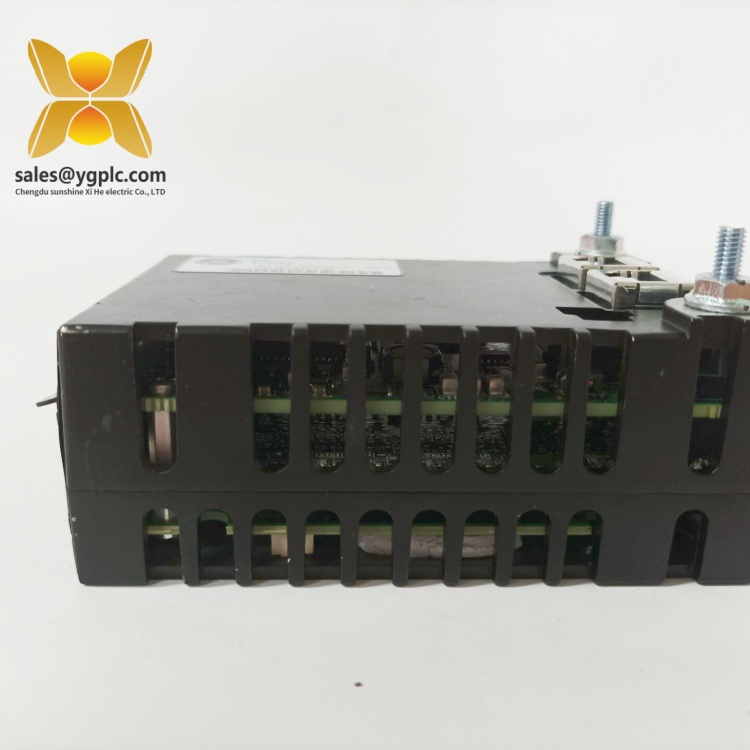

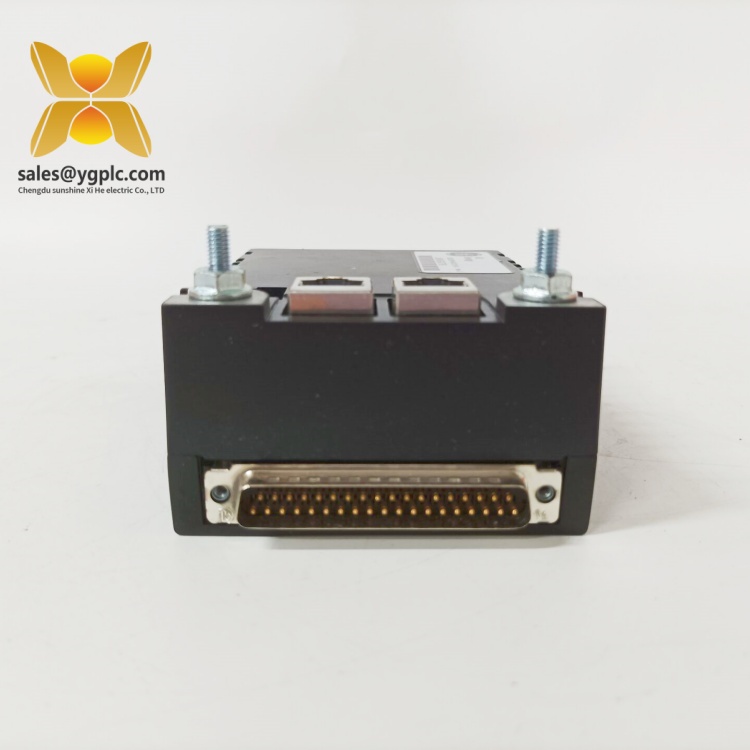

GE IS220PAOCH1A Mark VIe Analog Output Module
Product Overview
The GE IS220PAOCH1A is a high-precision Analog Output Module designed for GE’s Mark VIe control system, engineered to deliver accurate and reliable analog signals for industrial automation applications. As part of the IS220 Series, this module plays a critical role in converting digital control signals into precise analog outputs, enabling seamless interaction with actuators, valves, and other analog-controlled devices. The IS220PAOCH1A is optimized for harsh industrial environments, featuring rugged construction, high-resolution outputs, and redundant configurations to ensure uninterrupted operation in mission-critical systems.
Featuring 8 independent analog output channels, the GE IS220PAOCH1A supports both 4–20 mA and 0–10 V signal ranges, with 16-bit resolution and ±0.05% accuracy to provide precise control over industrial processes. Each channel includes galvanic isolation (1500 V RMS) to prevent electrical interference and ensure signal integrity, even in noisy industrial environments. The module’s hot-swappable design allows for maintenance without system shutdown, minimizing downtime in continuous-operation environments. With support for triple modular redundancy (TMR) configurations, the IS220PAOCH1A provides fault tolerance and enhances system reliability by voting on outputs from three redundant channels.
In industrial settings, the IS220PAOCH1A is commonly used to control variables such as temperature, pressure, and flow rate in gas turbines, steam turbines, and other critical equipment. Its high-speed update rate (up to 100 Hz) ensures responsive control, while diagnostic features monitor channel health and detect faults such as open circuits or short circuits. The module’s conformal coating and compliance with MIL-STD-810G for vibration, shock, and temperature extremes (-40°C to +70°C) make it suitable for deployment in harsh environments such as offshore platforms, mining operations, and power plants.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PAOCH1A |
| Manufacturer | GE |
| Product Type | Analog Output Module |
| Series | Mark VIe |
| Number of Channels | 8 independent analog outputs |
| Signal Range | 4–20 mA, 0–10 V (configurable per channel) |
| Resolution | 16-bit |
| Accuracy | ±0.05% of full scale |
| Update Rate | Up to 100 Hz |
| Isolation | 1500 V RMS galvanic isolation per channel |
| Load Impedance | 0–600 Ω for current outputs, >10 kΩ for voltage outputs |
| Input Voltage | 24 V DC ±10% |
| Physical Dimensions | 167.6 mm (H) × 233.4 mm (W) × 44.5 mm (D) |
| Weight | 1.0 kg |
| Operating Temperature | -40°C to +70°C |
| Certifications | MIL-STD-810G, CE, UL |
| Redundancy Support | Triple Modular Redundancy (TMR) |
Key Features and Advantages
High-Precision Outputs:
16-bit resolution and ±0.05% accuracy ensure precise control over industrial processes, making the IS220PAOCH1A ideal for applications requiring tight tolerance control.
16-bit resolution and ±0.05% accuracy ensure precise control over industrial processes, making the IS220PAOCH1A ideal for applications requiring tight tolerance control.
Configurable Signal Ranges:
Each channel supports both 4–20 mA and 0–10 V signal ranges, providing flexibility to interface with a wide range of industrial devices.
Each channel supports both 4–20 mA and 0–10 V signal ranges, providing flexibility to interface with a wide range of industrial devices.
Galvanic Isolation:
1500 V RMS isolation per channel protects against electrical interference and ground loops, ensuring reliable operation in noisy industrial environments.
1500 V RMS isolation per channel protects against electrical interference and ground loops, ensuring reliable operation in noisy industrial environments.
Redundant Configuration:
Supports TMR configurations, where three redundant channels vote on outputs to ensure fault tolerance and continuous operation in critical systems.
Supports TMR configurations, where three redundant channels vote on outputs to ensure fault tolerance and continuous operation in critical systems.
Hot-Swappable Design:
Allows for module replacement without system shutdown, minimizing disruptions in continuous-operation environments such as power plants and refineries.
Allows for module replacement without system shutdown, minimizing disruptions in continuous-operation environments such as power plants and refineries.
Advanced Diagnostics:
Built-in self-diagnostics monitor channel health, detect faults such as open circuits or short circuits, and provide status feedback via front-panel LEDs, simplifying troubleshooting and reducing maintenance time.
Built-in self-diagnostics monitor channel health, detect faults such as open circuits or short circuits, and provide status feedback via front-panel LEDs, simplifying troubleshooting and reducing maintenance time.
Application Areas
The GE IS220PAOCH1A is ideal for applications requiring precise analog control in industrial automation systems:
- Power Generation:
Controls variables such as turbine speed, steam pressure, and generator excitation in thermal, hydro, and combined cycle power plants. - Oil & Gas:
Manages flow rates, pressures, and temperatures in pipelines, refineries, and offshore platforms, ensuring efficient and safe operation. - Chemical Processing:
Controls chemical reactions, pH levels, and flow rates in chemical plants, maintaining process stability and product quality. - Industrial Automation:
Integrates with robotic equipment, CNC machines, and other industrial machinery to provide precise control over movement and operation.
Related Products
- GE IS220PBIUH1A (Mark VIe Binary Input Module):
Provides digital input capabilities for monitoring status signals from sensors and switches. - GE IS220PBITH1A (Mark VIe Binary Output Module):
Offers digital output capabilities for controlling relays, solenoids, and other binary devices. - GE IS220PDIHH1A (Mark VIe Digital Input Module):
Provides high-speed digital input capabilities for monitoring fast-changing signals. - GE IS220PAICH1A (Mark VIe Analog Input Module):
Offers high-precision analog input capabilities for measuring process variables such as temperature and pressure. - GE IS220VCMIH1A (Mark VIe VMEbus Communication Interface Card):
Enables communication between the Mark VIe controller and other modules in the system.
Installation and Maintenance
Pre-installation Preparations:
Ensure the VMEbus rack is properly grounded and ventilated, with compatible power supplies (24 V DC). Verify that the rack supports 6U VME64x modules and that existing system firmware is compatible. Use GE’s configuration tools to set signal ranges, scaling factors, and diagnostic thresholds before installation.
Ensure the VMEbus rack is properly grounded and ventilated, with compatible power supplies (24 V DC). Verify that the rack supports 6U VME64x modules and that existing system firmware is compatible. Use GE’s configuration tools to set signal ranges, scaling factors, and diagnostic thresholds before installation.
Maintenance Suggestions:
- Routine Inspections:
Monthly checks of front-panel LEDs and diagnostic software to monitor module status, channel health, and fault conditions. - Environmental Management:
Quarterly cleaning of vents and filters to prevent dust accumulation, ensuring proper airflow and temperature regulation. - Calibration:
Annually calibrate the module using precision signal sources to maintain accuracy and ensure compliance with industry standards. - Spare Parts Handling:
Store spare modules in static-free packaging at 10–30°C with <50% humidity. Test spares annually to ensure functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the GE IS220PAOCH1A, covering hardware defects under normal use. For discontinued models, our global supply chain ensures rapid sourcing of replacement parts. In the event of performance issues, our technical support team offers 24/7 assistance, including remote diagnostics and on-site troubleshooting.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
