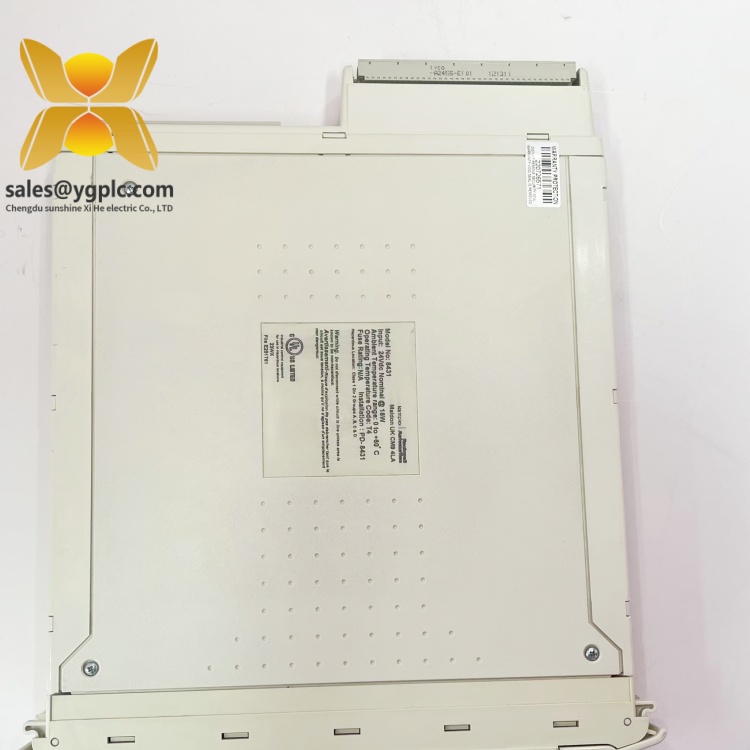

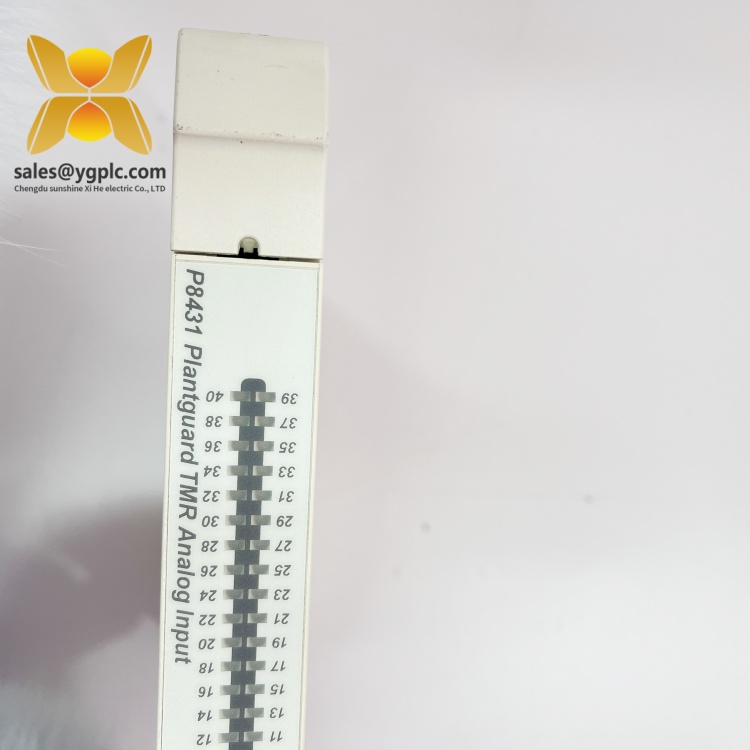

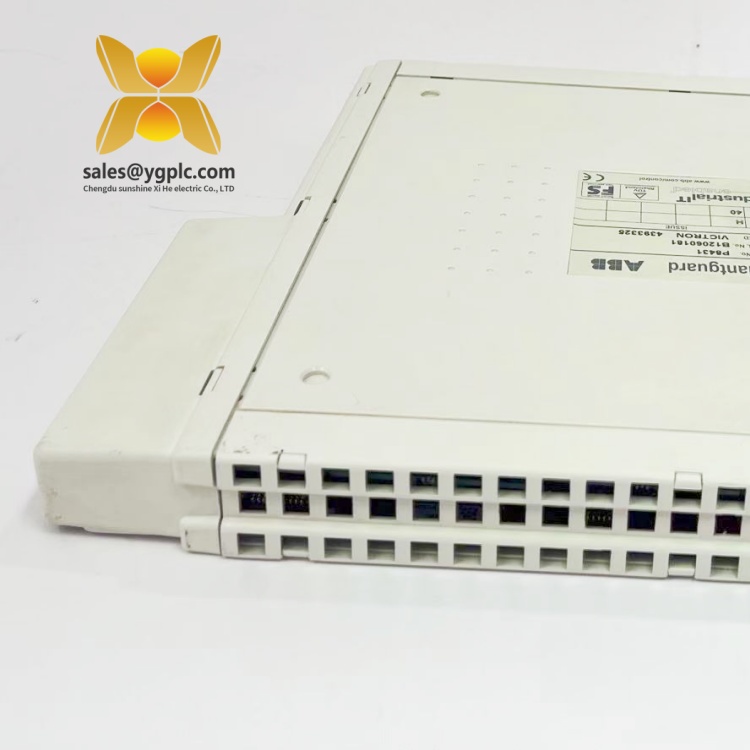

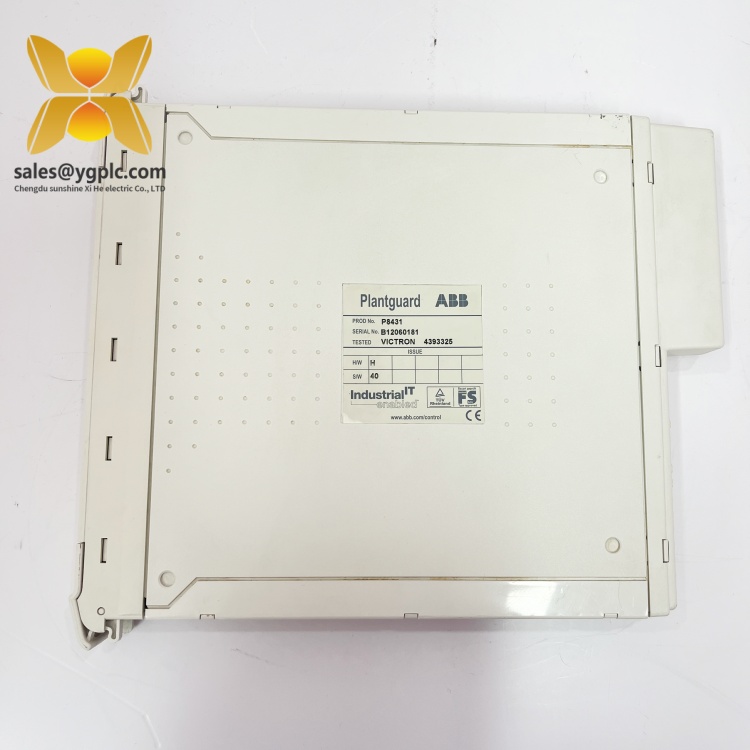

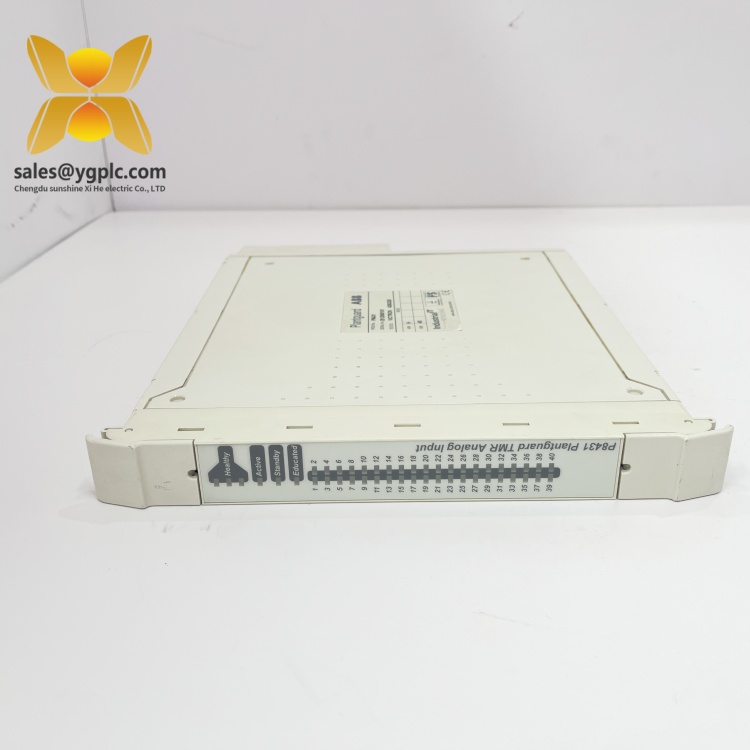

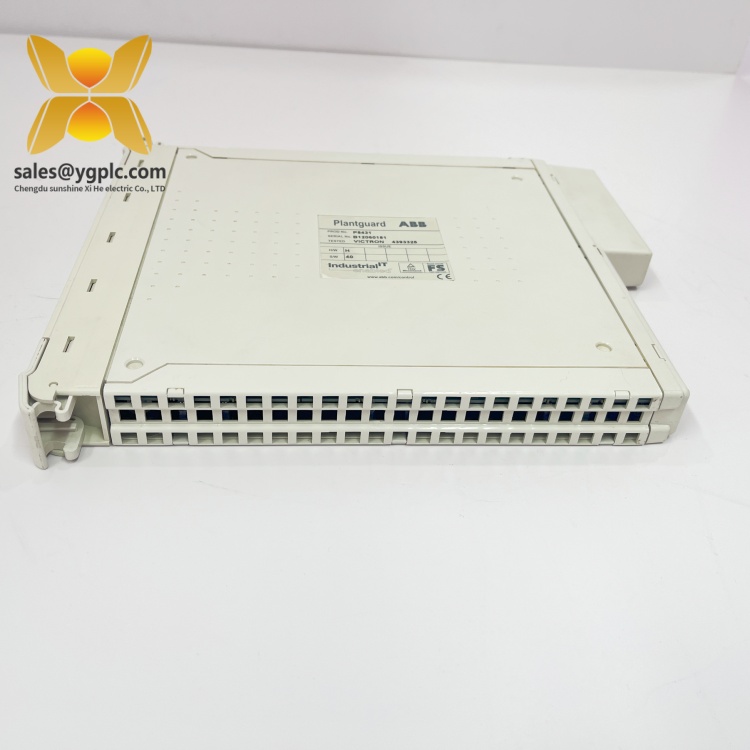

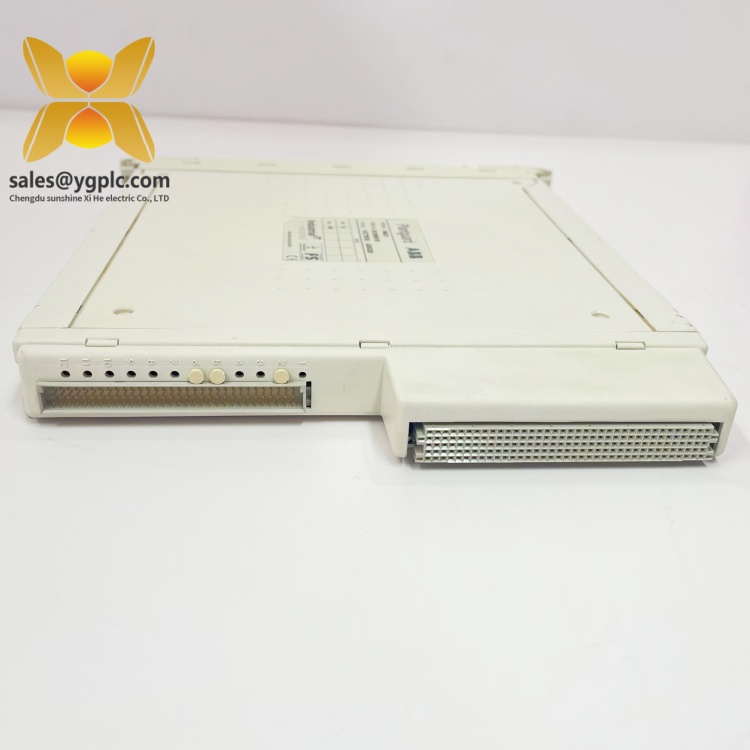

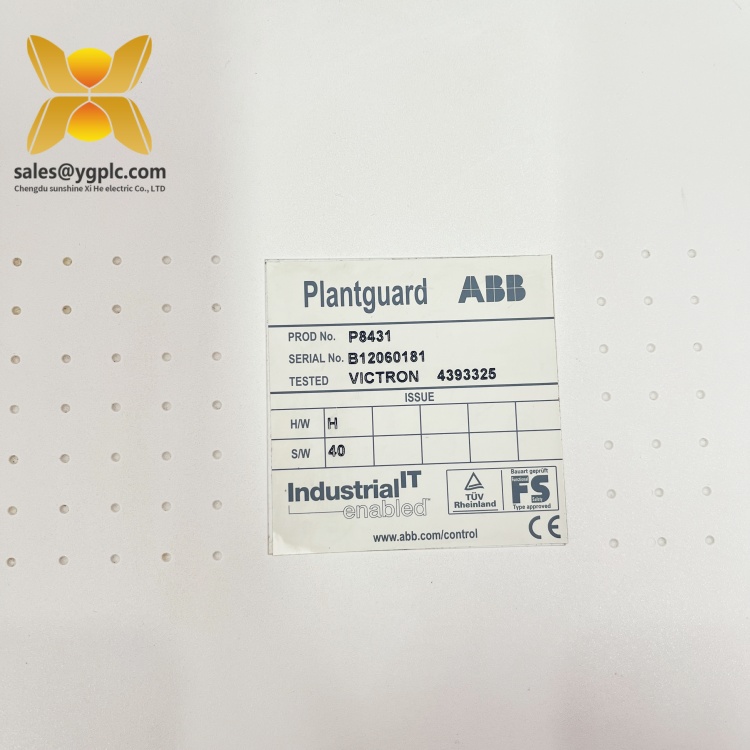

ICS TRIPLEX T8431 | T8231 | T8151B | T8153C

Description

Parameter	Value
Product Model	ICS TRIPLEX 8431
Manufacturer	ICS TRIPLEX
Product Type	Analog Input Module (Triple Modular Redundancy)
Input Channels	40 channels (triple-modular redundant)
Input Signal Range	0-22 mA (current), 0-6 VDC (voltage)
Resolution	3.9 microamperes (1/256 mA)
Sample Update Time	0.5 milliseconds
Isolation Voltage	2500V RMS
Operating Temperature	-40°C to +70°C (varies by configuration) 17
Power Supply	20-32 VDC
Dimensions	266 mm (height) x 31 mm (width) x 303 mm (depth) 8
Weight	1.149 kg
Communication Protocols	Modbus TCP/IP, EtherNet/IP, PROFIBUS 814

8431

• Oil & Gas: Used in offshore platforms, refineries, and pipeline systems for monitoring pressure, flow, and temperature in critical processes. Its TMR design ensures uninterrupted operation during equipment failures 17.
• Power Generation: Integrates with turbine control systems and generator protection systems to monitor vibration, fuel flow, and electrical parameters, ensuring stable grid synchronization and efficient energy production 314.
• Chemical Processing: Supports real-time monitoring of reactor conditions, distillation columns, and safety interlocks, preventing hazardous events and optimizing production yields 38.
• Pharmaceuticals: Ensures compliance with strict quality standards by accurately measuring sterilization processes, temperature-controlled environments, and critical process parameters 14.
• Water Treatment: Monitors levels, pH, and chemical concentrations in wastewater treatment plants, enabling precise control of purification processes 7.

8431

1. ICS TRIPLEX T8431C: An enhanced version of the 8431 with additional communication interfaces and advanced diagnostics, suitable for complex industrial networks 18.
2. ICS TRIPLEX T8403: A digital input module compatible with the 8431, providing complementary I/O functionality for integrated control systems 19.
3. ICS TRIPLEX T8311: An expander interface module that extends the 8431’s capabilities by connecting multiple control chassis, supporting large-scale automation projects 19.
4. ICS TRIPLEX T8151B: A communication interface module enabling seamless integration with third-party systems via Ethernet and serial protocols, enhancing system interoperability 19.
5. ICS TRIPLEX T9432: A high-channel-count analog input module (16 channels) for applications requiring dense signal acquisition, often used alongside the 8431 in distributed control systems 19.
6. ICS TRIPLEX T8110B: A TMR processor module that pairs with the 8431 to execute control logic and manage data processing in safety-critical systems 19.
7. ICS TRIPLEX T8800: A field termination assembly (FTA) designed for the 8431, providing signal conditioning and isolation for field devices 19.
8. ICS TRIPLEX T8123C: A processor interface adapter that enables communication between the 8431 and external systems, supporting MODBUS and IRIG-B protocols 19.

Maintenance Recommendations: ：ICS TRIPLEX 8431
Regularly inspect the ICS TRIPLEX 8431 for physical damage or loose connections. Perform firmware updates as recommended by the manufacturer to address security patches and enhance functionality. Leverage the module’s built-in diagnostics to monitor channel health and detect anomalies. For preventive maintenance, clean the module’s exterior to remove dust and debris, and ensure the operating environment remains within specified temperature and humidity ranges. In case of component failure, utilize the hot-swap feature to replace the module without disrupting system operation, following the manufacturer’s guidelines for safe replacement 221.
