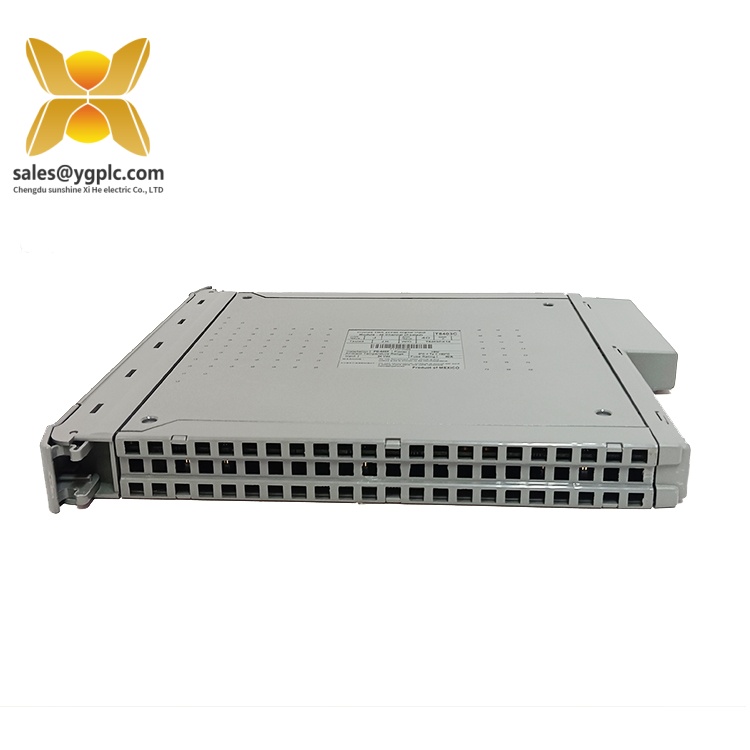

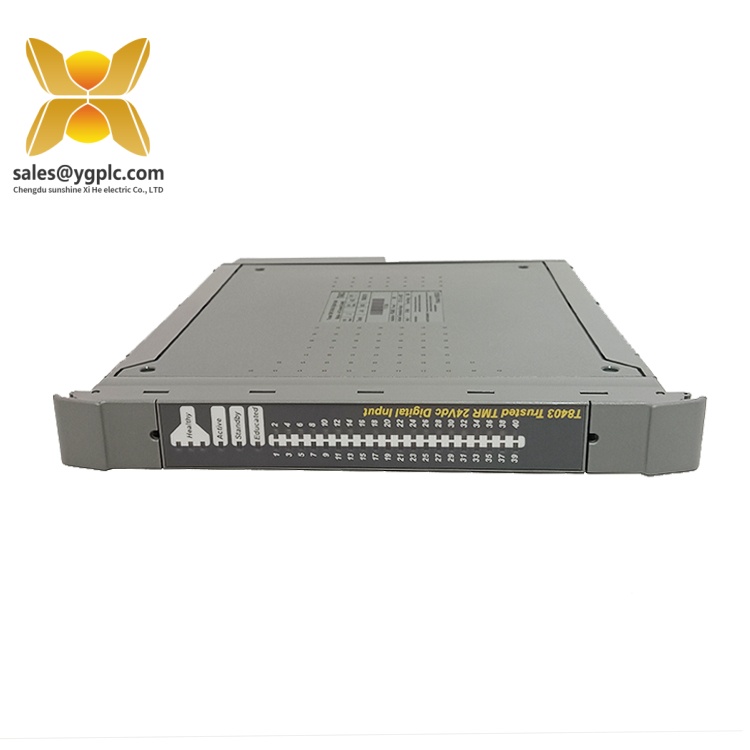

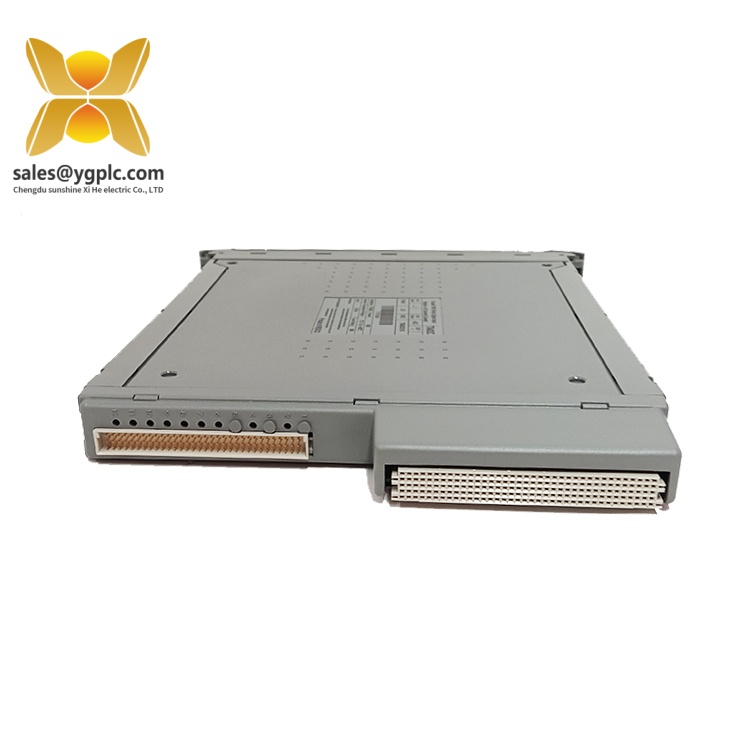

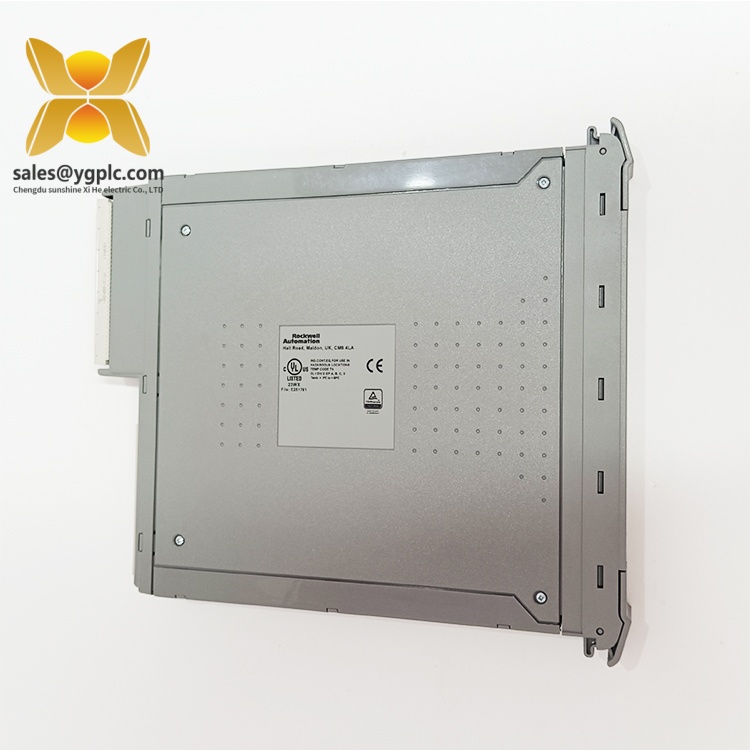

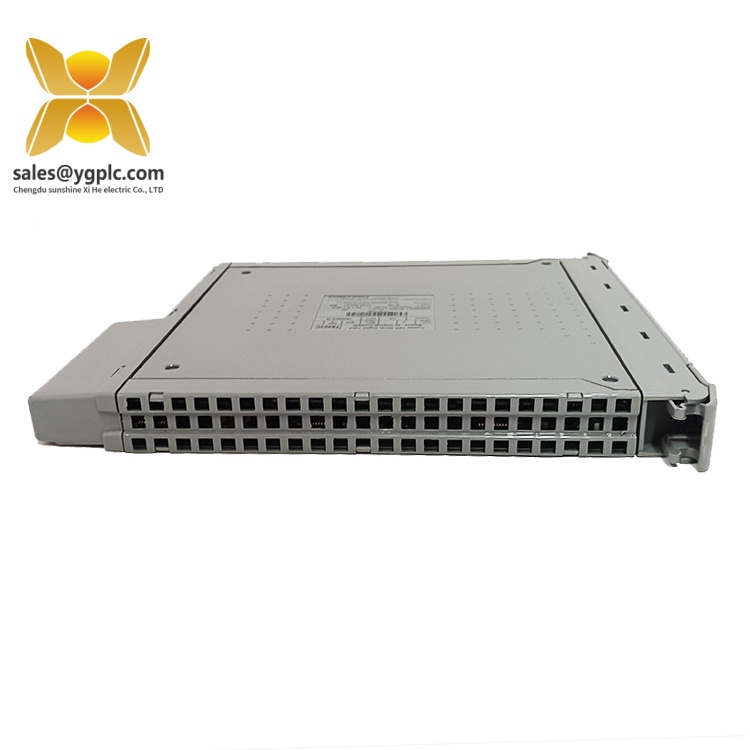

ICS TRIPLEX T8403C Tricon Analog Input Module
Product Overview ：ICS TRIPLEX T8403C
The ICS TRIPLEX T8403C is a high-reliability Analog Input Module designed for safety-critical industrial automation systems, particularly those requiring fault-tolerant performance in compliance with international safety standards. As a core component of ICS TRIPLEX’s Tricon Series, the T8403C serves as a triple-modular redundant (TMR) interface for converting analog signals from field instruments into digital data for processing by the Tricon controller. This module is engineered to handle up to 16 isolated analog input channels, making it indispensable for applications in oil & gas, chemical processing, and power generation where uninterrupted operation and precise signal conditioning are non-negotiable.
Featuring a robust design with galvanic isolation and built-in self-diagnostics, the ICS TRIPLEX T8403C ensures accurate signal acquisition even in harsh environments with high electromagnetic interference. Each channel supports a wide range of input types, including 4–20 mA current loops, thermocouples, and RTDs, with configurable scaling and linearization capabilities. The module’s TMR architecture—where each channel is triplicated and voted on—eliminates single points of failure, ensuring system integrity during transient faults or component degradation. Compatibility with the Tricon controller’s software suite allows seamless integration into existing safety instrumented systems (SIS), reducing complexity and enhancing diagnostic coverage.
In automation ecosystems, the T8403C plays a pivotal role in safety-critical loops, such as emergency shutdown (ESD) systems and critical process control. Its ability to provide real-time, fault-checked analog data enables rapid decision-making in scenarios where delays could lead to operational disruptions or safety incidents. By combining high-precision signal processing with rugged hardware, the ICS TRIPLEX T8403C sets a benchmark for reliability in industries where system downtime equates to significant financial and operational risk.
Technical Specifications ：ICS TRIPLEX T8403C
| Parameter Name | Parameter Value |
|---|---|
| Product Model | T8403C |
| Manufacturer | ICS TRIPLEX |
| Product Type | Analog Input Module (TMR) |
| Input Channels | 16 isolated channels (configurable as voltage/current/Temp) |
| Input Range | 4–20 mA, 0–10 V DC, thermocouples (J/K/T/E/R/S/B), RTDs (3-wire, 4-wire) |
| Isolation | 250 V RMS channel-to-channel, 500 V RMS channel-to-ground |
| Accuracy | ±0.1% of full scale (25°C) |
| Update Rate | ≤20 ms per channel |
| Power Supply | 24 V DC ±10% (dual redundant inputs) |
| Physical Dimensions | 178 mm (H) × 48 mm (W) × 222 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -40°C to +70°C |
| Certifications | IEC 61508 (SIL 3), IEC 61511, API 615, FMEDA-compliant |
T8403C
Key Features and Advantages ：ICS TRIPLEX T8403C
Triple-Modular Redundancy (TMR): The T8403C’s TMR architecture ensures continuous operation by triplicating all critical components and using a majority-vote mechanism to resolve discrepancies. This design provides inherent fault tolerance, allowing the module to operate through single or even dual failures without compromising system integrity.
Wide Input Flexibility: With support for multiple analog signal types, the ICS TRIPLEX T8403C eliminates the need for dedicated modules per sensor type, simplifying inventory management and reducing hardware costs. Configurable input scaling and linearization features further enhance its adaptability to diverse process requirements.
Galvanic Isolation and Noise Immunity: Each channel’s 250 V RMS isolation protects against ground loops and voltage surges, while advanced filtering algorithms suppress electromagnetic interference (EMI) and radio-frequency interference (RFI). This ensures reliable signal transmission in harsh industrial environments, such as those near high-power motors or transformers.
Hot Swappable Design: The module can be replaced without powering down the system, minimizing downtime during maintenance or component replacement. LED indicators provide real-time status updates on power, communication, and fault conditions, enabling rapid troubleshooting.
Regulatory Compliance: Certified for SIL 3 applications per IEC 61508, the T8403C meets the most stringent safety requirements for SIS. Its inclusion in FMEDA reports and compliance with industry standards like API 615 make it suitable for applications requiring third-party validation.
Seamless Integration: As part of the Tricon ecosystem, the module interfaces natively with ICS TRIPLEX controllers and software tools (e.g., Tricon Expert), enabling efficient configuration, diagnostics, and data integration with higher-level SCADA or DCS systems.
T8403C
Application Areas ：ICS TRIPLEX T8403C
The ICS TRIPLEX T8403C is optimized for safety-critical applications across industries where precision and reliability are paramount:
- Oil & Gas: Monitoring process variables (e.g., pressure, temperature, flow rate) in offshore platforms, refineries, and pipeline systems. The module’s TMR design is critical for ESD systems, ensuring rapid response to leaks, overpressure, or other hazardous conditions.
- Chemical Processing: Controlling reactive processes in petrochemical plants, where accurate analog data from sensors (e.g., pH meters, level transmitters) is essential for maintaining process stability and preventing catastrophic failures.
- Power Generation: Managing turbine and generator operations in thermal and nuclear power plants, including real-time monitoring of steam pressure, bearing temperatures, and coolant levels to support predictive maintenance and grid stability.
- Marine Engineering: Outfitting marine vessels with redundant safety systems, such as engine room monitoring and fire suppression controls, where harsh environmental conditions (salt spray, vibration) demand rugged hardware.
Specific use cases include:
- Safety Instrumented Loops: Providing analog inputs for SIS logic solvers, enabling precise trip point calculations and ensuring compliance with safety lifecycle management.
- Process Control Optimization: Feeding real-time analog data into advanced process control (APC) algorithms to optimize throughput, energy efficiency, and product quality.
- Condition-Based Monitoring: Integrating with vibration sensors and analytical instruments to detect early signs of equipment degradation, facilitating proactive maintenance scheduling.
T8403C
Related Products ：ICS TRIPLEX T8403C
- T8401C Digital Input Module: A TMR digital input module for discrete signals, complementary to the T8403C in mixed-signal SIS applications.
- T8402C Digital Output Module: A TMR digital output module for driving relays or solenoids, often paired with the T8403C in closed-loop control systems.
- T8421C Controller Module: The core Tricon controller that processes data from the T8403C, featuring triple-core processing and advanced diagnostics.
- T8311C Power Supply Module: A redundant 24 V DC power supply designed for Tricon systems, ensuring stable power delivery to the T8403C.
- T8500E Ethernet Interface Module: Enables Ethernet communication between the T8403C and supervisory systems, supporting protocols like Modbus TCP and Profinet.
- T9471C Terminal Block: A field-wiring interface for connecting analog sensors to the T8403C, simplifying installation and reducing cabling complexity.
- T8491C High-Speed Analog Input Module: A specialized module for high-frequency signal acquisition, suitable for applications requiring rapid data sampling.
- T8151C Tricon Baseplate: The mechanical and electrical foundation for Tricon modules, providing backplane connectivity and thermal management for the T8403C.
Installation and Maintenance ：ICS TRIPLEX T8403C
Installation Preparation:
Before installing the ICS TRIPLEX T8403C, ensure the Tricon baseplate is properly grounded and powered. Verify that field instruments are calibrated and wired according to the module’s input type 4–20 mA loops for transmitters, RTD configurations for temperature sensors). Use shielded cables to minimize noise and follow ICS TRIPLEX’s guidelines for cable routing and termination. Mount the module in the Tricon chassis, ensuring secure alignment with the backplane connectors, and power on the system to initialize communication with the controller.
Before installing the ICS TRIPLEX T8403C, ensure the Tricon baseplate is properly grounded and powered. Verify that field instruments are calibrated and wired according to the module’s input type 4–20 mA loops for transmitters, RTD configurations for temperature sensors). Use shielded cables to minimize noise and follow ICS TRIPLEX’s guidelines for cable routing and termination. Mount the module in the Tricon chassis, ensuring secure alignment with the backplane connectors, and power on the system to initialize communication with the controller.
Maintenance Recommendations:
- Routine Inspections: Perform quarterly visual checks for loose connections, corrosion, or overheating. Use the Tricon Expert software to review module diagnostics, including channel health reports and fault history.
- Calibration: Annually calibrate field instruments and verify the T8403C’s input accuracy using a precision signal source. Document calibration results for compliance with ISO 9001 or industry-specific standards.
- Firmware Updates: Periodically update the module’s firmware to incorporate bug fixes and new features, following ICS TRIPLEX’s validated update procedures to avoid system disruptions.
- Spare Parts Management: Store spare T8403C modules in anti-static packaging at controlled temperatures (10–30°C) and humidity (20–80% RH). Regularly test spares in a dedicated validation setup to ensure functionality.
T8403C
Product Warranty ：ICS TRIPLEX T8403C
Our company provides a 12-month quality warranty for the ICS TRIPLEX T8403C, covering hardware defects under normal use. In the event of performance issues or functional failures, we offer prompt replacement services to minimize downtime. For discontinued models or urgent requirements, our global supply chain network leverages strategic partnerships to source rare or legacy components, ensuring rapid fulfillment of critical spares needs. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, delivering tailored solutions to maintain your industrial systems’ reliability and safety.
For inquiries, contact our team via Whatsapp:+86 18859254943. or E-mail :sales@ygplc.com to explore how the T8403C can enhance your automation infrastructure.
