ICS TRIPLEX T8402 | Direct Replacement for Trusted 24 VDC DI

Description

• Model: T8402
• Brand: ICS Triplex / Rockwell Automation
• Series: Trusted Series 8000
• Core Function: Monitors 60 dual 24 VDC digital inputs
• Type: Dual digital input safety module
• Key Specs: 60 channels; 1oo2D architecture; 1 ms SOE resolution
• Safety: IEC 61508 SIL 3 certified configuration

Product Introduction

Two independent input measurements per channel are the key to the ICS TRIPLEX T8402. This Trusted Series 8000 module handles 60 field digital inputs at 24 VDC and applies an internal 1oo2D voting architecture for fault detection and tolerance. Rockwell Automation lists it officially as the Trusted Dual 24 Vdc Digital Input Module – 60 Channel.

For safety-system maintenance, the practical details matter. The module supports selectable line monitoring, 1 ms Sequence of Events (SOE) reporting, automatic diagnostics, hot replacement, and a 2,500 V impulse withstand isolation barrier. It is also listed in the Trusted documentation for IEC 61508 SIL 3 certified configurations. That makes it a specialist safety I/O component, not a drop-in substitute for an ordinary 24 VDC PLC input card.

Key Technical Specifications

Rockwell’s published technical documentation confirms the 60-channel dual-input architecture, configurable line monitoring, 1 ms SOE, hot replacement capability, and SIL 3 certification. A Rockwell environmental certificate lists the module at 20–32 VDC with a 20 W rating.

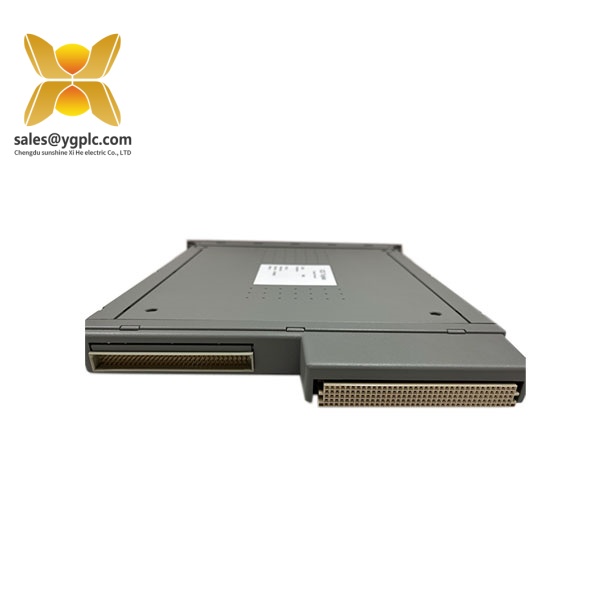

ICS TRIPLEX T8402

Key Features and Practical Value

• 60 digital input channels in one module.
• 1oo2D architecture provides dual measurement and internal fault handling.
• 1 ms SOE resolution supports event sequencing where timing matters.
• Per-channel line monitoring can detect open and short field wiring when configured appropriately.
• Automatic self-test reduces dependence on manual diagnostics.
• Hot replacement supports online maintenance using the appropriate Trusted companion or SmartSlot architecture.
• 2,500 V impulse withstand isolation separates field-side signals from the module electronics.

The channel count is impressive, but that is not the main selection criterion. The safety architecture is.

For a plant MRO buyer, the real question is whether the installed application requires the Trusted dual-input design. If the answer is yes, replacing it with a standard 24 VDC input module is the wrong comparison.

Typical Applications

The unit fits safety-related digital input collection in process plants, power-generation systems, emergency shutdown architectures, burner-management functions, and other SIS installations where diagnostic coverage and fault tolerance are part of the design.

A typical signal path can include a field switch, the T8802 Field Termination Assembly, and the T8402 input module. Rockwell specifically documents the T8802 as the 60-channel FTA intended to interface with this module, including fused field power and SmartSlot support.

Related Models

T8403 — Trusted 24 VDC digital input module with 40 channels. It uses a different architecture and should not be treated as a direct 60-channel substitute.

T8432 — Trusted dual analog input module with 60 channels, intended for analog measurement rather than digital field-state sensing.

T8802 — 60-channel 24 VDC digital input Field Termination Assembly (FTA) designed to interface with the T8402. It provides field wiring termination and fused channel power.

T8451 — Trusted TMR 24 VDC digital output module with 40 channels. It belongs to the output side of the Trusted I/O architecture and is not an input replacement.

ICS TRIPLEX T8402

Installation and Maintenance

Before removing the original module, record the chassis number, slot number, module status, field wiring, FTA arrangement, and application configuration. The Trusted system uses defined chassis and slot assignments, so physical placement matters during replacement.

Check the field power first. The published environmental certification specifies 20–32 VDC for the module, while the field-side FTA has its own supply and protection requirements.

A few practical checks save time:

• Confirm the T8802 or compatible FTA arrangement.
• Photograph the existing wiring before disconnection.
• Verify line-monitoring settings channel by channel.
• Check the Trusted controller configuration before powering the replacement.
• After installation, verify module health LEDs and representative input states.
• Review SOE behavior where sequence timing is part of the safety function.

For SIL-rated applications, replacement is not finished when the LED turns green. The site’s approved validation and proof-test procedure still applies.

Quality Inspection and Test Procedure

For a safety-system spare, inspection should be recorded rather than assumed.

1. Inbound inspection

• Verify the source documentation and part-number traceability.
• Check the serial number and product label.
• Inspect the housing, terminals, connectors, and PCB area for corrosion or physical damage.
• Check for signs of previous repair or contamination.
• Confirm included documentation and accessories where applicable.

2. Live test

Use a compatible Trusted test chassis or system simulator. Verify power-up status, module diagnostics, communication with the controller, and representative digital input transitions. Where the test setup permits, run the unit continuously for more than 24 hours and record temperature behavior.

A Test Report should be generated.

3. Electrical testing

• Verify supply behavior within the applicable range.
• Perform grounding and continuity checks where applicable.
• Perform insulation or withstand testing only according to the manufacturer’s approved procedure; do not apply generic hipot settings to a safety module without documentation.

4. Firmware and configuration verification

Record the installed hardware and firmware information where accessible. Photograph configuration identifiers and keep the original module data with the replacement record.

5. Final QC and packaging

The unit should receive a documented QC sign-off, then be packed in an antistatic bag with protective cushioning and a rigid carton. Attach the inspection status and test date.

Test photographs and videos can be provided when required by the purchasing process.

Technical Replacement Pitfalls

Firmware revision mismatch: A replacement can power up normally yet behave differently when paired with an older Trusted system configuration. Record the existing revision before ordering.

FTA mismatch: The T8802 is specifically documented as the 60-channel interface for this input architecture. Do not assume another termination assembly has the same pin assignment.

Line-monitoring configuration: A channel configured for open/short-circuit monitoring may not behave like a simple dry-contact input. Check the original configuration.

Slot assignment: Take a photo before removal. It sounds trivial… and it prevents a surprising amount of cabinet rework.

ESD: Use an antistatic wrist strap and work surface during handling. A safety I/O board is not the place to rely on bare-hand handling.

Procurement Guidance

For MRO procurement, the correct purchasing description should include the exact T8402 part number, hardware revision where applicable, condition, test status, and warranty terms. New surplus, used, and refurbished units should be identified honestly; stock status and delivery time should be confirmed from the actual supplier inventory before a purchase order is issued.

One more point. Do not purchase this module solely because the site uses 24 VDC inputs. The 60-channel count, Trusted architecture, FTA arrangement, safety configuration, and application logic all need to match.

Quick Conclusion

• T8402 is a 60-channel dual 24 VDC digital input module for the Trusted safety system.
• Its defining architecture is 1oo2D, with dual measurement and onboard diagnostics.
• 1 ms SOE, selectable line monitoring, and hot replacement make it suitable for safety-critical input applications.
• The T8802 FTA is the documented 60-channel field termination partner.
• It is not recommended for generic PLC input replacement without checking the complete Trusted system configuration.
