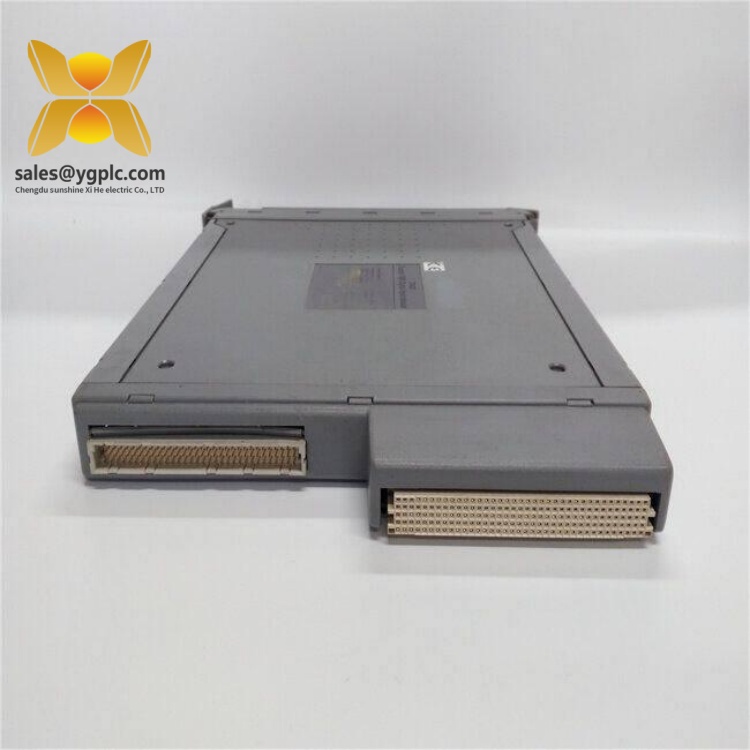

ICS Triplex T8100 – Trusted TMR Controller Chassis

Product Overview

The ICS Triplex T8100 is a chassis component used within the Trusted industrial control system, supporting the system architecture used for high-availability and fault-tolerant automation applications. The Trusted platform is based on Triple Modular Redundancy (TMR), allowing critical control functions to continue operating despite certain hardware faults. The chassis provides the physical framework for installing compatible Trusted system modules and maintaining an organized control-system configuration.

For plant maintenance teams, this type of hardware is particularly relevant when extending the service life of an existing Trusted installation or maintaining an established spare-parts strategy. Before replacement, the complete hardware identification should be checked against the installed system configuration. Personally, I would verify the chassis revision, module compatibility, and cabinet arrangement before placing an order.

Technical Specifications — ICS Triplex T8100

ICS Triplex T8100

Key Features and Benefits — ICS Triplex T8100

• Provides a structured mounting platform for compatible Trusted system modules.
• Supports installations based on fault-tolerant TMR control architecture.
• Suitable for maintenance, system expansion, and replacement activities within existing Trusted installations.
• Helps maintain consistent module organization inside an industrial control cabinet.
• Designed for use with the corresponding Trusted hardware ecosystem rather than as a standalone controller.
• Useful for MRO teams maintaining legacy or long-life automation systems.

The chassis itself should not be evaluated independently from the modules installed within it. Compatibility between chassis hardware, processor modules, I/O modules, power arrangements, and system configuration is essential for a successful replacement.

Related Models

ICS Triplex Trusted TMR Controller: The processor section provides the primary control-processing function within a Trusted redundant architecture.

ICS Triplex Trusted I/O Modules: These modules interface the control system with field instrumentation and process equipment.

ICS Triplex Trusted Power Modules: Power components provide the required supply architecture for the installed Trusted system hardware.

ICS Triplex Trusted Communication Modules: Communication hardware supports data exchange between the control system, engineering stations, and external automation equipment.

ICS Triplex T8100

Installation and Maintenance — ICS Triplex T8100

Before installation, isolate the relevant cabinet section according to the site’s electrical safety procedures. Record the existing module arrangement and verify that the replacement chassis matches the installed system configuration.

Inspect the chassis for mechanical damage, contamination, corrosion, or damaged connectors. Check module seating and connector alignment before applying power. After installation, perform the manufacturer’s recommended system diagnostics and confirm that the installed modules are recognized correctly.

For critical control applications, retain the original configuration records and hardware identification. This makes future troubleshooting considerably easier and reduces the risk of installing an incompatible revision.

Product Warranty — ICS Triplex T8100

Warranty terms depend on the supplier and the condition of the unit. For new, refurbished, or surplus equipment, confirm the exact hardware revision, serial number, inspection status, and applicable warranty period before purchase. Functional testing documentation is recommended for critical MRO applications.

The ICS Triplex T8100 is best treated as a system-level replacement component, with compatibility verified against the complete Trusted installation rather than the chassis designation alone.
