GE IC695CHS012LT-DA | 12-Slot Universal Backplane | General Electric GE

Original price was: $600.00.Current price is: $499.00.

The GE IC695CHS012LT-DA is a high-performance 12-slot universal backplane designed for GE’s RX3i PACSystems platform. As a critical infrastructure component, it serves as the physical and electrical backbone for industrial automation systems, enabling seamless integration of PLC modules, power supplies, and communication devices.

Brand model:GE
Product Name: IC695CHS012LT-DA
Warranty: 1 year
Weight:1.55kg
Origin:USA
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Category: Brand:

Description

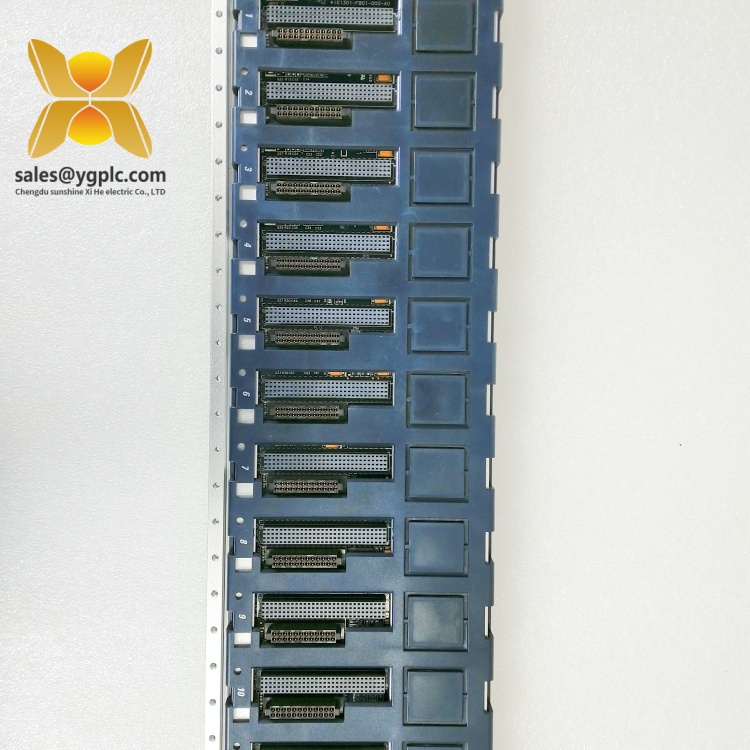

GE IC695CHS012LT-DA RX3i 12-Slot Universal Backplane

Product Overview

The GE IC695CHS012LT-DA is a high-performance 12-slot universal backplane designed for GE’s RX3i PACSystems platform. As a critical infrastructure component, it serves as the physical and electrical backbone for industrial automation systems, enabling seamless integration of PLC modules, power supplies, and communication devices. This backplane supports both PCI and high-speed serial buses, accommodating a wide range of IC695 (PCI-based) and IC694 (serial-based) modules, as well as legacy Series 90-30 I/O devices.



With dimensions of 141.4 mm (H) × 457.2 mm (W) × 147.3 mm (D) and a weight of 0.9 kg, the IC695CHS012LT-DA offers a compact yet robust design. It features hot-swap capability, allowing module replacement without powering down the system, which minimizes downtime in mission-critical applications like chemical processing or power generation. The backplane supports ±24V DC external power input via a TB1 terminal block, ensuring stable operation even in environments with voltage fluctuations.



Rated for IP20 protection (NEMA/UL Type 1), the IC695CHS012LT-DA is suitable for indoor use in dust-free environments. For hazardous areas (e.g., ATEX Zone 2), it can be installed in an IP54 or higher enclosure to meet safety requirements. Its dual-bus architecture and 600 mA @ 3.3V DC / 240 mA @ 5V DC power consumption make it energy-efficient while supporting high-speed data transfer between modules.

Technical Specifications

Parameter Name Parameter Value
Product Model IC695CHS012LT-DA
Manufacturer GE
Product Type 12-Slot Universal Backplane
Series RX3i
Number of Slots 12
Bus Support PCI and High-Speed Serial
Hot-Swap Capability Yes
Input Voltage ±24V DC (via TB1 terminal block)
Internal Power 600 mA @ 3.3V DC, 240 mA @ 5V DC
Physical Dimensions 141.4 mm (H) × 457.2 mm (W) × 147.3 mm (D)
Weight 0.9 kg
Operating Temperature 0°C to 60°C
Humidity Resistance 5–95% non-condensing
Protection Rating IP20 (NEMA/UL Type 1); compatible with IP54 enclosures for hazardous areas
Mounting Horizontal rack installation
Clearance Requirement 102 mm (4 inches) on all sides for airflow
Country of Origin United States
IC695CHS012LT-DA

IC695CHS012LT-DA

Related Products

  1. GE IC695CPU310: A versatile CPU module that integrates with the IC695CHS012LT-DA to execute control logic for industrial processes.
  2. GE IC695PWR120: A 5V DC power supply module that provides stable power to the backplane and connected modules.
  3. GE IC695CHS010: A 10-slot variant of the backplane, suitable for smaller systems requiring fewer I/O modules.
  4. GE IC695ACC412: An Ethernet communication module that enables remote monitoring and data transfer via the IC695CHS012LT-DA backplane.
  5. GE IC695MDL640: A digital output module that pairs with the backplane to control actuators in manufacturing lines.
  6. GE IC695ALG704: A 4-channel analog input module for converting sensor signals into digital data within the RX3i system.

Main features and advantages

Dual-bus architecture: The IC695CHS012LT-DA supports both PCI and serial buses, allowing mixed installation of IC695 (PCI-based) and IC694 (serial-based) modules. This flexibility enables seamless integration of legacy and modern components, making it ideal for retrofitting older systems.



Hot-swap capability: The backplane allows module replacement without powering down the system, reducing downtime during maintenance. This is critical in industries like pharmaceuticals, where continuous operation is essential.



Robust industrial design: With an IP20 rating and resistance to temperatures up to 60°C, the IC695CHS012LT-DA withstands harsh conditions in factories, power plants, and wastewater treatment facilities. Its UL 94V-0 flame-retardant casing adds an extra layer of safety.



Space-efficient layout: The 12-slot design maximizes I/O density while maintaining a compact form factor (141.4 mm × 457.2 mm × 147.3 mm). This makes it suitable for applications with limited cabinet space, such as offshore oil platforms.



Easy installation: The backplane’s plug-and-play design and labeled slot numbers simplify setup. It requires only 102 mm of clearance on all sides for natural cooling, eliminating the need for additional fans or heat sinks.

Installation and maintenance

Pre-installation preparations: Before installing the IC695CHS012LT-DA, ensure the power to the RX3i rack is disconnected. Verify that the rack provides ±24V DC power and has sufficient clearance (102 mm) around the backplane for airflow. Inspect the TB1 terminal block for loose connections and ensure the backplane is securely mounted in a horizontal orientation.



Maintenance suggestions: Regularly clean dust from the backplane and check for loose wires or corroded connectors. Monitor the LED indicators on connected modules for status updates. If a module fails, replace it while the system is powered on (hot-swap) to avoid downtime. Periodically review GE’s firmware updates to ensure compatibility with the latest modules.

IC695CHS012LT-DA

IC695CHS012LT-DA

Application fields

The GE IC695CHS012LT-DA is widely used in industries requiring scalable and reliable automation systems:



Manufacturing: Supports robotic assembly lines by integrating I/O modules, CPUs, and communication devices to control production processes.
Energy: Used in power generation plants to monitor turbine performance and manage grid stability through SCADA systems.
Water treatment: Manages chemical dosing and flow control in wastewater treatment plants by connecting sensors and actuators to the PLC.
Oil and gas: Deployed in offshore platforms to monitor pressure, temperature, and safety systems in hazardous environments.
Food and beverage: Ensures consistent product quality by controlling fermentation and packaging processes through precise I/O synchronization.

IC695CHS012LT-DA

IC695CHS012LT-DA

Product guarantee

Our company offers a one-year quality warranty service for the IC695CHS012LT-DA, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
