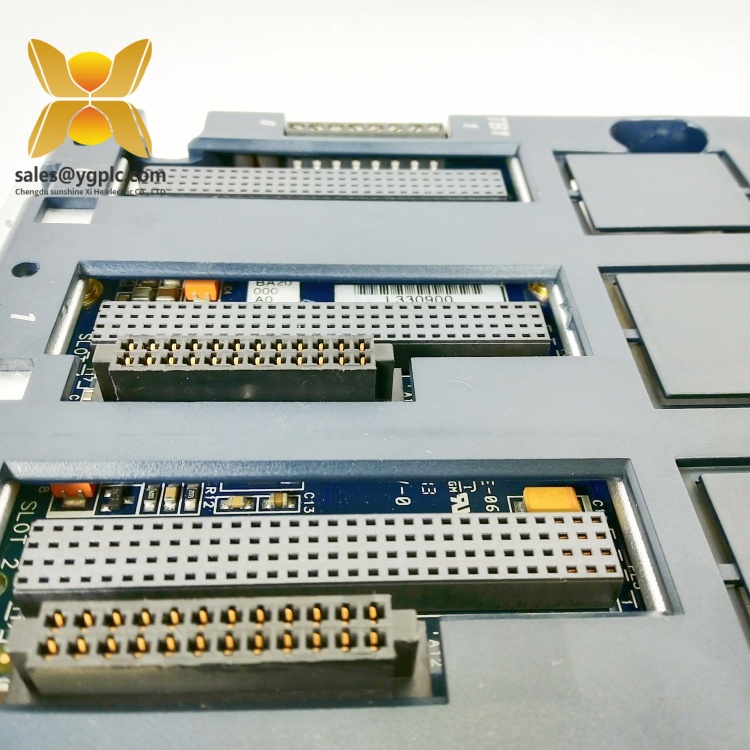

GE IC695CHS012CA 12-Slot Universal Backplane
Product Overview
The GE IC695CHS012CA is a 12-slot universal backplane designed for GE’s RX3i PACSystems, a leading platform in industrial automation. As the backbone of control systems, this backplane integrates power distribution, data communication, and mechanical support for I/O modules, CPUs, and other components. It enables seamless interaction between field devices and control logic, ensuring reliable operation in manufacturing, energy, and process industries.
Part of the IC695 Series, the GE IC695CHS012CA supports both PCI-based (IC695) and serial (IC694) modules, allowing hybrid configurations of high-speed and legacy devices. This dual-bus architecture simplifies system upgrades by accommodating existing Series 90-30 I/O while leveraging modern PCI technology. The GE IC695CHS012CA features a terminal strip for isolated +24V DC input, a grounding bar for EMI protection, and a serial expansion connector for linking to remote backplanes.
Built for durability, the GE IC695CHS012CA operates in environments with IP54-rated enclosures and requires 102 mm of clearance on all sides for cooling. Its hot-swap capability minimizes downtime during module replacement, while the printed slot numbers streamline configuration. Despite being a legacy model, the GE IC695CHS012CA remains vital for maintaining large-scale systems, offering scalability and compatibility that reduce the need for full overhauls.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC695CHS012CA |
| Manufacturer | GE |
| Product Type | 12-Slot Universal Backplane (RX3i PACSystems) |
| Number of Slots | 12 (configurable for PCI and serial modules) |
| Backplane Support | PCI bus (IC695) and high-speed serial bus (IC694) |
| Power Consumption | 240 mA @ 5V DC, 600 mA @ 3.3V DC (via backplane) |
| Physical Dimensions | 457.5 mm (W) × 141.5 mm (H) × 147.32 mm (D) |
| Weight | 3 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity Tolerance | 5%–95% (non-condensing) |
| Enclosure Rating | IP54 (when installed in protective housing) |
| Mounting Type | Horizontal rack mount (requires 102 mm clearance for airflow) |
| Hot-Swap Support | Yes (compatible modules only) |
IC695CHS012CA
Related Products
- GE IC694CHS790: A 9-slot backplane for smaller systems, ideal for retrofitting or distributed control setups.
- GE IC695CPU320: An RX3i CPU module that processes data from the IC695CHS012CA to execute control logic.
- GE IC694PWR330: A power supply module that delivers backplane power to the IC695CHS012CA and connected modules.
- GE IC695ALG628: An 8-channel analog input module that pairs with the IC695CHS012CA for process monitoring.
- GE IC695MDL655: A digital output module compatible with the backplane’s PCI bus for discrete control.
- GE IC695CHS016: A 16-slot backplane for larger systems requiring more I/O capacity than the IC695CHS012CA.
Main features and advantages
Scalable architecture: With 12 slots, the IC695CHS012CA supports a mix of PCI and serial modules, making it suitable for large-scale systems. For example, it can host multiple analog/digital I/O modules, communication cards, and redundant CPUs in a single rack.
Dual-bus compatibility: The backplane’s PCI and serial buses allow integration of modern high-speed modules (e.g., IC695 series) and legacy devices (e.g., Series 90-30). This flexibility reduces upgrade costs by reusing existing hardware.
Rugged design: Rated for IP54 environments, the IC695CHS012CA withstands dust, moisture, and vibration. Its -20°C to 60°C operating range ensures reliability in extreme conditions, such as outdoor power plants or cold storage facilities.
Hot-swap capability: Critical modules like CPUs or power supplies can be replaced without shutting down the system, minimizing downtime. This feature is essential for industries like oil refining, where continuous operation is mandatory.
EMI protection: The backplane’s integral grounding bar and isolated +24V input reduce electromagnetic interference, ensuring stable data transmission even near high-voltage equipment.
Easy installation: The printed slot numbers and plug-and-play design simplify module alignment and wiring. No special tools are required, streamlining setup for technicians.
IC695CHS012CA
Installation and maintenance
Pre-installation preparations: Verify compatibility with your RX3i CPU (e.g., IC695CPU320) and power supply (e.g., IC694PWR330). Mount the IC695CHS012CA horizontally in a rack with at least 102 mm of clearance on all sides for cooling. Connect the power supply to the terminal strip and ground the backplane using the dedicated grounding point. Insert modules into slots, ensuring they click into place, and secure wiring with AWG 14–22 cables.
Maintenance suggestions: Inspect the IC695CHS012CA quarterly for loose connections or dust buildup. Use a dry cloth to clean the surface and verify that all module LEDs indicate normal operation. If a module fails, power off the system (if hot-swap is unsupported) and replace the faulty component. Store spare modules in a dry, cool environment (10–30°C) to ensure quick replacement during emergencies.
Application fields
The GE IC695CHS012CA excels in industries requiring high-performance, scalable control systems:
- Manufacturing: In automotive assembly lines, it integrates PLCs, motion controllers, and vision systems to coordinate robotic arms and conveyor belts. Its hot-swap capability ensures minimal downtime during component failures.
- Power generation: In a gas turbine plant, the backplane hosts modules that monitor turbine temperature, pressure, and fuel flow. The PCI bus enables real-time data processing for efficiency optimization.
- Water treatment: In wastewater facilities, the IC695CHS012CA supports analog I/O modules that measure pH levels and flow rates, while serial modules control pumps and valves. Its IP54 rating protects against moisture in harsh environments.
- Oil and gas: On offshore platforms, the backplane’s rugged design withstands saltwater corrosion and extreme temperatures. It manages safety systems like emergency shutdown (ESD) modules and environmental sensors.
IC695CHS012CA
Product guarantee
Our company offers a one-year quality warranty service for the IC695CHS012CA, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
