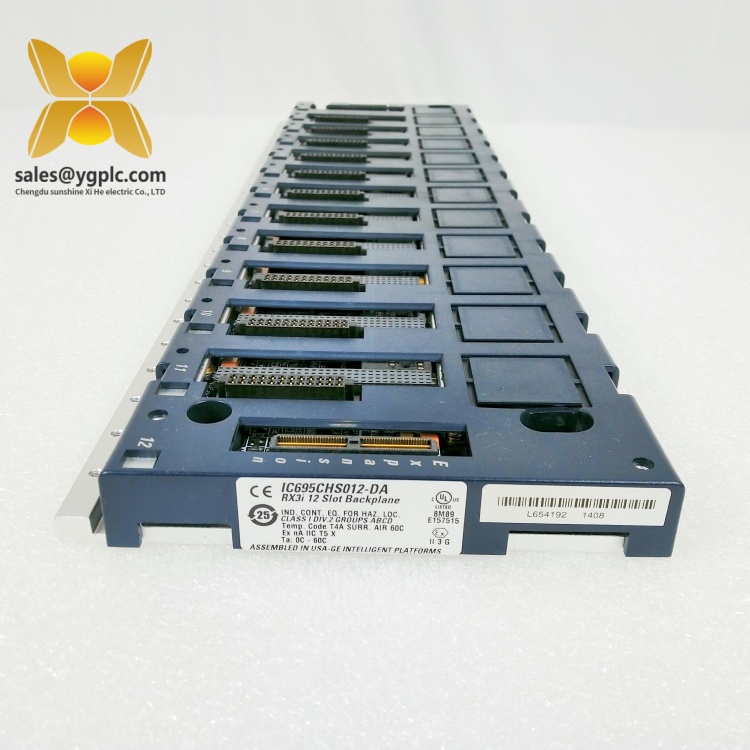

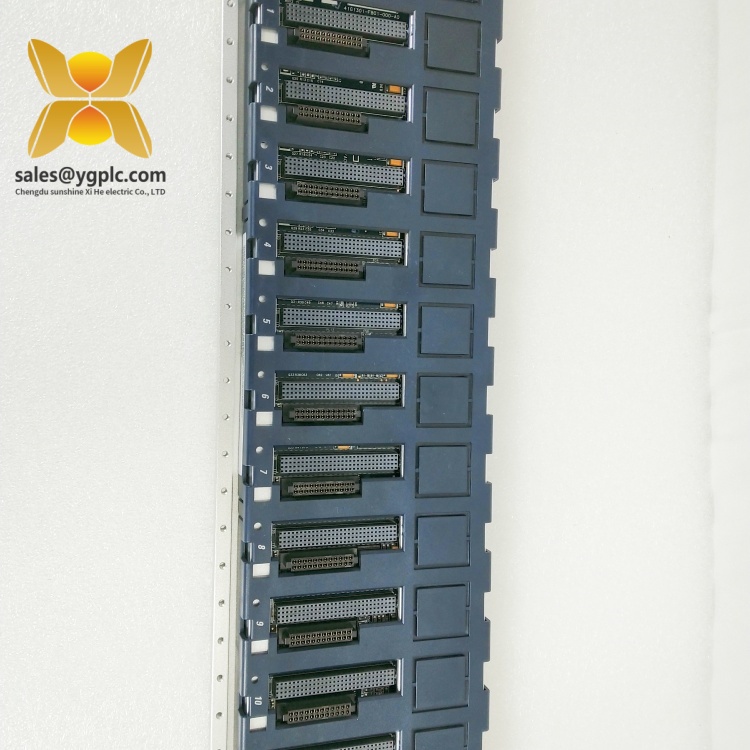

Product Overview: GE IC695CHS012
The GE IC695CHS012 is a 12-slot universal backplane designed for GE’s RX3i PACSystems, a leading platform for industrial automation. Serving as the backbone of modular control systems, this backplane provides mechanical support and electrical connectivity for a wide range of modules, including CPUs, I/O devices, and power supplies. Its dual-bus architecture supports both PCI-based (IC695) and serial (IC694) modules, enabling flexible integration of legacy and modern components in applications requiring high-performance control.
As part of the RX3i series, the GE IC695CHS012 ensures seamless communication and power distribution across the automation network. Its hot-swappable design allows modules to be replaced without shutting down the system, minimizing downtime during maintenance or upgrades. This feature is critical for industries like manufacturing and energy, where continuous operation is essential. The backplane’s rugged construction withstands harsh environments, including dust, vibration, and temperature fluctuations, ensuring reliable performance in challenging industrial settings.
In automation systems, the GE IC695CHS012 acts as a central hub, facilitating real-time data exchange between control components. It supports high-speed serial and PCI buses, enabling fast response times for critical processes like machine control or process optimization. By consolidating multiple modules into a single chassis, it reduces cabling complexity and cabinet space, streamlining system design and lowering installation costs.
Technical Specifications: GE IC695CHS012
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Product type | 12-Slot Universal Backplane |
| Series | RX3i PACSystems |
| Number of Slots | 12 (supports PCI and serial modules) |
| Bus Support | PCI, High-Speed Serial |
| Hot-Swap Capability | Yes (modules can be replaced without powering down) |
| Power Consumption | 600 mA @ 3.3 VDC, 240 mA @ 5 VDC (from backplane) |
| Dimensions | 457.5 x 141.5 x 147.3 mm (18.01 x 5.57 x 5.80 inches) [W x H x D] |
| Weight | 2.6 kg (5.73 lbs) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Enclosure Rating | IP54 (dust and water splash protection) |
| Mounting Orientation | Horizontal |
| Connector Type | 37-pin D-subminiature (for module interfaces) |
IC695CHS012
Related Products
- IC695PWR321: A 5 VDC power supply module that provides stable power to the GE IC695CHS012, ensuring reliable operation of all connected modules.
- IC695CPE330: A high-performance RX3i CPU that pairs with the backplane to execute control logic and coordinate module interactions.
- IC695CHS016: A 16-slot version of the backplane, suitable for larger systems requiring more I/O channels or expansion capabilities.
- IC695ALG608-HF: An 8-channel analog output module that integrates with the GE IC695CHS012 to control valves and motors in process automation.
- IC695CBL006: A shielded 37-pin cable designed for the backplane, reducing noise interference and ensuring robust signal transmission.
- IC695MDL940: A digital input/output module that interfaces with the backplane for discrete control applications.
Main Features and Advantages
The GE IC695CHS012 excels in flexibility and reliability. Its dual-bus architecture supports both PCI and serial modules, allowing seamless integration of legacy GE Series 90-30 I/O with modern RX3i components. This adaptability makes it ideal for retrofitting existing systems or building new hybrid automation setups. For example, a manufacturing plant upgrading its control system can reuse older serial modules while adding PCI-based modules for advanced functionality.
Hot-swappable design is another key strength. Maintenance personnel can replace faulty modules without interrupting operations, a critical feature for industries like oil refining or pharmaceuticals, where downtime translates to significant losses. The backplane’s rugged construction further enhances reliability, with an IP54 rating protecting against dust and water ingress common in factory environments.
Efficiency is also a highlight. The GE IC695CHS012 optimizes power distribution, ensuring minimal energy loss while supporting high-speed data transfer. Its compact dimensions (457.5 x 141.5 x 147.3 mm) save space in control cabinets, making it suitable for applications with limited physical infrastructure. Additionally, the backplane’s slot numbering and grounding bar simplify installation and troubleshooting, reducing setup time and errors.
IC695CHS012
Installation and Maintenance
Pre-installation preparations:
Before installing the GE IC695CHS012, ensure the RX3i system is powered off and grounded. Verify that the backplane’s bus support matches the modules being used (e.g., PCI or serial). Check the enclosure for IP54 compliance and ensure at least 102 mm (4 inches) of clearance around the backplane for cooling. Use AWG 14–22 wires to connect the terminal strip for isolated +24 VDC input, and secure the backplane horizontally in the rack.
Before installing the GE IC695CHS012, ensure the RX3i system is powered off and grounded. Verify that the backplane’s bus support matches the modules being used (e.g., PCI or serial). Check the enclosure for IP54 compliance and ensure at least 102 mm (4 inches) of clearance around the backplane for cooling. Use AWG 14–22 wires to connect the terminal strip for isolated +24 VDC input, and secure the backplane horizontally in the rack.
Maintenance suggestions:
Regularly inspect the 37-pin connectors for corrosion or loose connections, as these can degrade signal quality. Clean dust from the backplane’s vents every three months using compressed air to prevent overheating. Monitor power consumption via the CPU; if 异常 occurs, check the backplane’s power supply and module compatibility. Use anti-static equipment when handling the GE IC695CHS012 to avoid electrostatic discharge damage, and power off the system before replacing modules.
Regularly inspect the 37-pin connectors for corrosion or loose connections, as these can degrade signal quality. Clean dust from the backplane’s vents every three months using compressed air to prevent overheating. Monitor power consumption via the CPU; if 异常 occurs, check the backplane’s power supply and module compatibility. Use anti-static equipment when handling the GE IC695CHS012 to avoid electrostatic discharge damage, and power off the system before replacing modules.
Application Fields
The GE IC695CHS012 finds 广泛应用 in diverse industries. In automotive manufacturing, it supports robotic assembly lines by integrating digital I/O modules (e.g., IC695MDL940) and analog controllers (e.g., IC695ALG608-HF) to coordinate precise movements and quality checks. In power generation, it enables real-time monitoring and control of turbines by connecting vibration sensors and temperature modules to the RX3i CPU, ensuring optimal performance and safety.
Water treatment facilities rely on the backplane to manage chemical dosing systems. By hosting serial-based flow meters and PCI-based controllers, the GE IC695CHS012 ensures accurate regulation of chlorine injection and filtration processes. In food processing, it supports packaging machines by synchronizing conveyor belt speeds and temperature controls, maintaining product consistency and compliance with hygiene standards.
IC695CHS012
Product Guarantee
Our company offers a one-year quality warranty for the GE IC695CHS012, covering hardware malfunctions unrelated to misuse. During the warranty period, defective units will be replaced promptly. Established in 2007, we specialize in distributing industrial control parts, including rare and discontinued models, with a large inventory to meet urgent procurement needs. Our global supply chain network ensures rapid delivery of scarce spare parts, supporting the continuous operation of industrial systems. Trust in our 17 years of expertise to deliver reliable solutions for your automation requirements.
