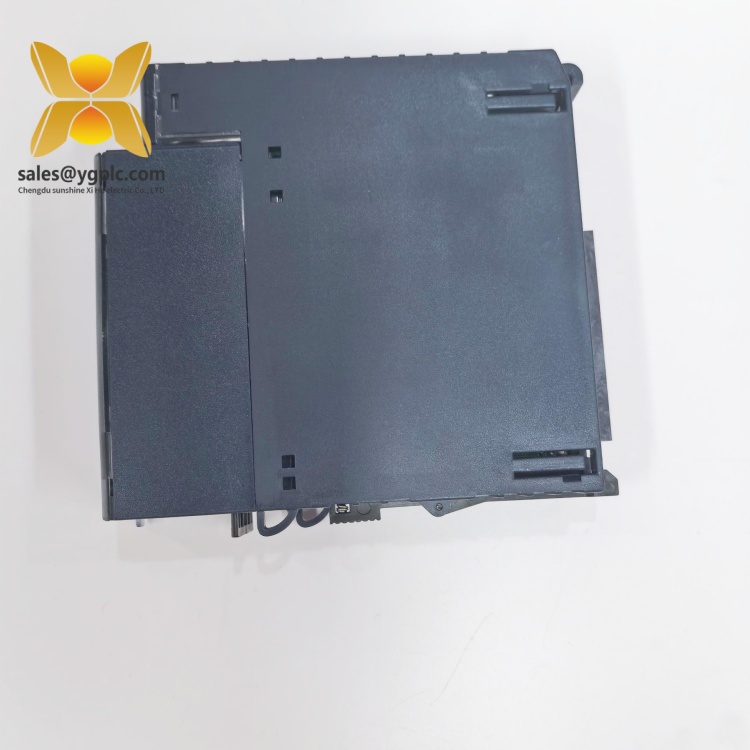

GE IC695ALG608 RX3i 8-Channel Analog Input Module
Product Overview
The GE IC695ALG608 is an 8-channel analog input module designed for GE’s RX3i series PLC systems, serving as a critical interface to convert continuous physical signals (such as temperature, pressure, and flow) into digital data for the PLC’s CPU. This conversion allows the PLC to monitor and adjust industrial processes in real time, making it essential for precision control in automation systems.
The GE IC695ALG608 supports multiple input ranges, including 4–20mA, 0–20mA, 0–10V, and ±10V, enabling it to connect to a wide range of sensors—from pressure transducers in manufacturing to level sensors in water treatment. Its 16-bit resolution ensures accurate signal conversion, with a total error of less than ±0.1% of full scale, critical for applications requiring tight process control.
As part of the RX3i ecosystem, the GE IC695ALG608 integrates seamlessly with components like the IC695CPU310 (CPU module), IC695PWR120 (power supply), and IC695CHS010 (10-slot rack). It operates in temperatures from 0°C to 60°C, resists dust, vibrations, and electrical noise, and features 250V AC isolation between channels and the backplane—ensuring reliable performance in harsh environments like chemical plants and automotive factories.
The module’s compact design fits easily into standard RX3i racks, while LED indicators for each channel show signal status and faults, simplifying troubleshooting. Whether used in small production lines or large industrial complexes, the GE IC695ALG608 ensures precise data collection, forming the foundation of efficient and responsive process control.
Technical Specifications
Parameter Name | Parameter Value |
---|---|
Product Model | IC695ALG608 |
Manufacturer | GE |
Product Type | 8-Channel Analog Input Module |
Series | RX3i |
Number of Channels | 8 (single-ended) |
Input Ranges | 4–20mA, 0–20mA, 0–10V, ±10V |
Resolution | 16 bits |
Accuracy | ±0.1% of full scale (at 25°C) |
Physical Dimensions | 120mm (L) × 80mm (W) × 60mm (D) |
Weight | 0.4 kg |
Operating Temperature | 0°C to 60°C |
Power Consumption | 1.8W (5V DC from backplane) |
Isolation | 250V AC (channels to backplane) |
Mounting | Fits RX3i racks (e.g., IC695CHS010) |
Country of Origin | United States |
IC695ALG608
Related Products
- GE IC695CPU310: The RX3i CPU module that processes data from the IC695ALG608, using analog signals to execute control logic and adjust outputs.
- GE IC695PWR120: A power supply module that delivers 5V DC to the IC695ALG608, ensuring stable operation of the module and connected sensors.
- GE IC695MDL640: An 8-channel digital output module that works with the IC695ALG608—analog data from the IC695ALG608 triggers the CPU to activate outputs like valves via the IC695MDL640.
- GE IC695ACC412: An Ethernet communication module that transmits data from the IC695ALG608 to remote HMIs, allowing operators to monitor analog signals (e.g., temperature) in real time.
- GE IC695ALG600: A 4-channel analog input module with similar functionality to the IC695ALG608 but with fewer channels, suitable for smaller systems.
- GE IC695CHS010: A 10-slot rack that houses the IC695ALG608 and other RX3i modules, providing structural support and backplane connectivity.
- GE IC695CMM001: A serial communication module that complements the IC695ALG608 in systems needing to connect to RS-485 sensors, expanding input capabilities.
Main features and advantages
8-channel flexibility: The IC695ALG608 offers 8 channels in a compact design, allowing simultaneous monitoring of 8 different analog signals—such as pressure, temperature, and flow—in a single module. This reduces the number of modules needed in the rack, saving space in control cabinets.
Wide input compatibility: It supports 4–20mA, 0–20mA, 0–10V, and ±10V signals, matching most industrial sensors. This versatility eliminates the need for signal converters, simplifying wiring and reducing system costs. For example, it can connect directly to a 4–20mA pressure sensor and a ±10V level transmitter in the same system.
High accuracy: With 16-bit resolution and ±0.1% full-scale accuracy, the IC695ALG608 ensures precise signal conversion. This is critical for applications like pharmaceutical manufacturing, where even small deviations in temperature or pressure can affect product quality.
Industrial durability: The module operates in temperatures from 0°C to 60°C and resists dust, vibrations, and humidity. Its 250V AC isolation protects against electrical noise from motors or welders, ensuring reliable performance in noisy environments like steel mills.
Easy integration: The IC695ALG608 fits directly into RX3i racks like the IC695CHS010 with a simple plug-in design. It connects to the backplane for power and data, requiring no external wiring beyond sensor connections. This speeds up installation, even in existing systems.
Clear status monitoring: LED indicators on the front panel show the input status of each channel (active or fault). This allows technicians to quickly identify issues—such as a disconnected sensor or signal drift—without opening the control cabinet, reducing troubleshooting time.
IC695ALG608
Installation and maintenance
Pre-installation preparations: Power off the RX3i rack (e.g., IC695CHS010) before installing the IC695ALG608. Check that the rack has an open slot and that the power supply (like the IC695PWR120) provides stable 5V DC. Inspect the module for physical damage, ensuring connectors are clean. Use an anti-static wristband to handle the module to avoid static damage.
Maintenance suggestions: Inspect the IC695ALG608 monthly. Check for loose sensor connections and wipe dust from the surface with a dry cloth. Monitor LED indicators to ensure all channels show normal operation—flashing or off LEDs may indicate a sensor fault. Calibrate the module annually using GE’s calibration tools to maintain accuracy. Replace the IC695ALG608 if faults persist after troubleshooting, following proper shutdown procedures to avoid damaging other components.
Application fields
The GE IC695ALG608 is widely used in industries requiring precise analog signal monitoring:
In manufacturing, it monitors sensors on production lines. For example, it tracks pressure in hydraulic presses and temperature in ovens, sending data to the IC695CPU310. The CPU uses this data to adjust machine settings, ensuring consistent product quality.
In energy plants, the IC695ALG608 monitors turbine sensors, tracking vibration, oil pressure, and exhaust temperature. Its accurate readings help detect early signs of wear, preventing unexpected shutdowns and reducing maintenance costs.
In water treatment facilities, it measures flow rates, pH levels, and chemical concentrations. The module’s 4–20mA input range connects to flow meters, while its ±10V range handles pH sensors, ensuring water treatment processes meet regulatory standards.
In chemical processing, the IC695ALG608 monitors reaction tank pressure and temperature. Its high accuracy ensures chemical reactions proceed within safe parameters, preventing accidents and ensuring product consistency.
IC695ALG608
Product guarantee
Our company offers a one-year quality warranty service for the IC695ALG608, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
