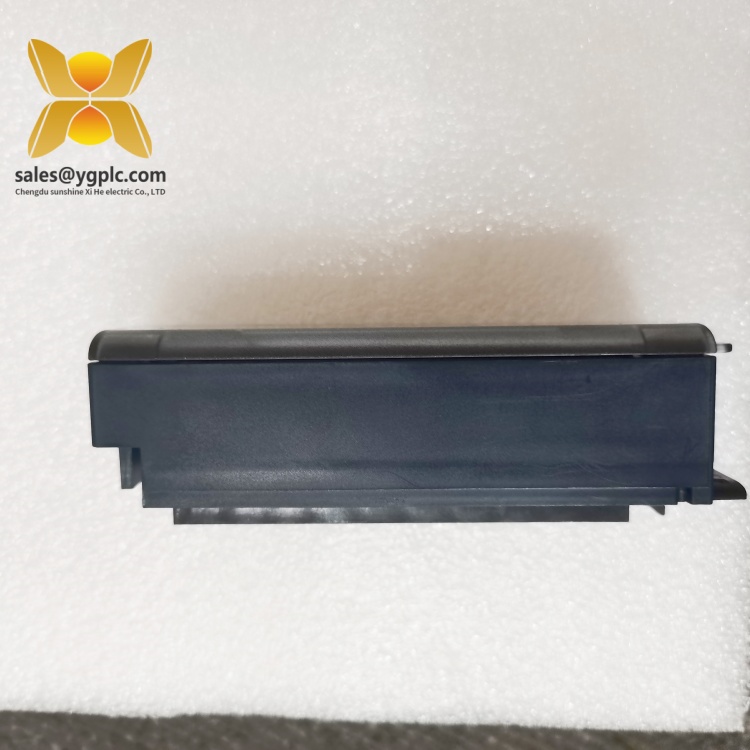

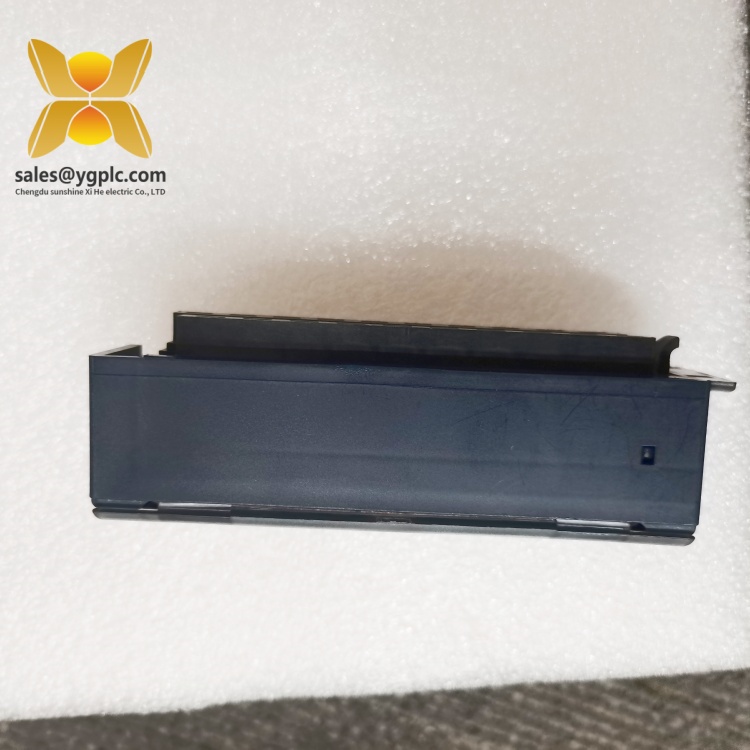

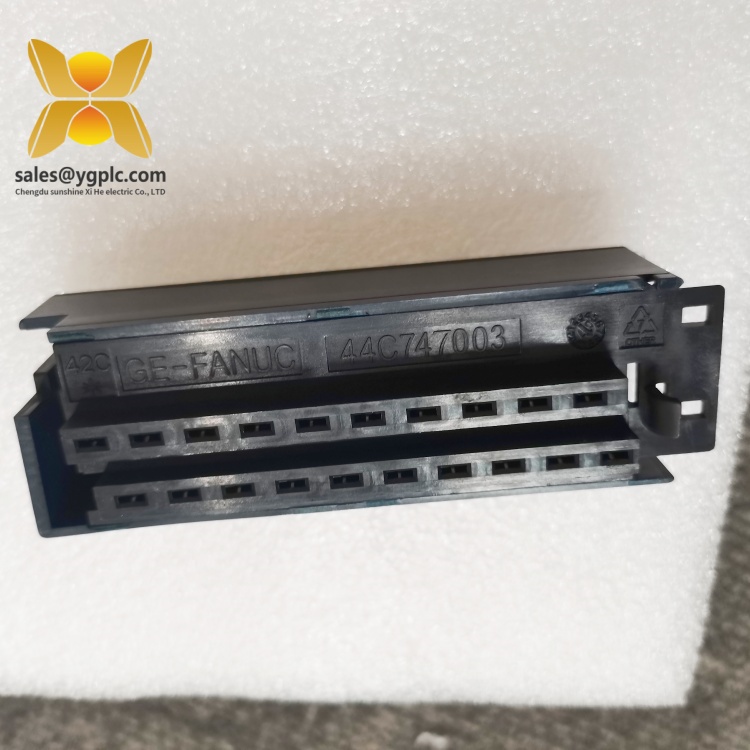

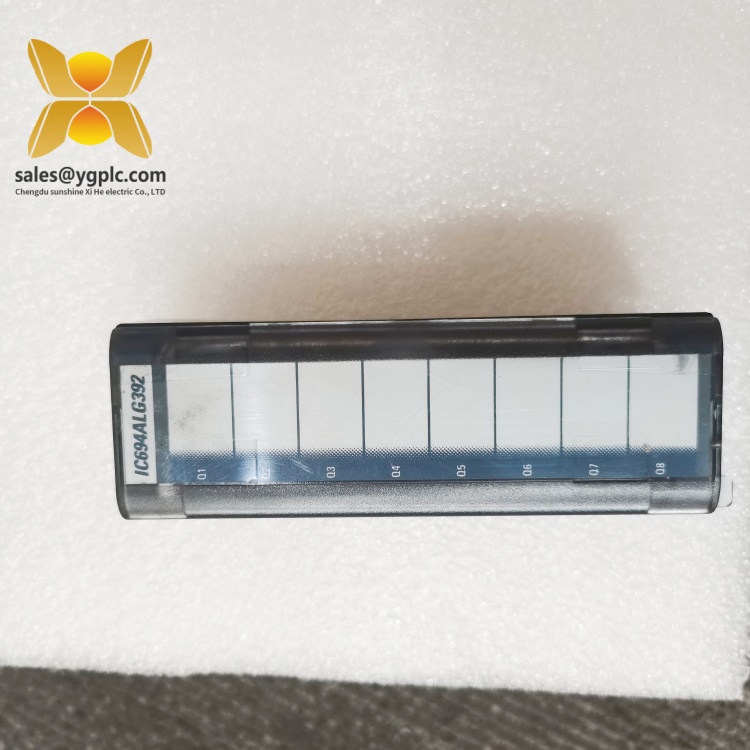

GE IC694ALG392 PACSystems RX3i Analog Input Module
Product Overview
The GE IC694ALG392 is a high-performance analog input module designed for GE’s PACSystems RX3i automation platform, a cornerstone of industrial control systems in manufacturing, energy, and infrastructure sectors. As a 16-channel module, the IC694ALG392 converts analog signals from field sensors (such as pressure transducers, thermocouples, and RTDs) into digital data for processing by the RX3i controller, enabling precise monitoring of critical process variables.
Engineered for versatility, the IC694ALG392 supports multiple input types, including 4-20mA, 0-10V DC, and thermocouples (J, K, T, E, R, S, B), making it suitable for diverse applications. Its 24-bit resolution and 0.05% accuracy ensure reliable measurements even in noisy industrial environments, while channel-to-channel isolation prevents signal interference. The module operates across -40°C to +70°C, with a rugged metal enclosure that withstands vibration, humidity, and corrosive atmospheres—ideal for offshore platforms, power plants, and chemical facilities.
Within the RX3i ecosystem, the IC694ALG392 integrates seamlessly with controllers like IC694CPU313 and terminal boards such as IC694TBM302, forming a cohesive analog monitoring system. LED indicators provide real-time status for power, communication, and channel faults, simplifying diagnostics. Compliance with UL 508 and IEC 61010 standards underscores its reliability in regulated industrial settings.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC694ALG392 |
| Manufacturer | GE |
| Product Type | Analog Input Module |
| Series | PACSystems RX3i |
| Input Channels | 16 (configurable) |
| Input Types | 4-20mA, 0-10V DC, thermocouples (J, K, T, E, R, S, B) |
| Resolution | 24-bit |
| Accuracy | ±0.05% of full scale |
| Power Supply | 24V DC (±10%), 350 mA max |
| Physical Dimensions | 120 mm (L) × 160 mm (W) × 60 mm (D) |
| Weight | 0.6 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | RX3i rack (3U form factor) |
| Isolation | 250V AC channel-to-channel, channel-to-ground |
| Communication | RX3i backplane |
| Country of Origin | United States |
Main Features and Advantages
High-Precision Measurement: The IC694ALG392 delivers 24-bit resolution and 0.05% accuracy, ensuring precise conversion of analog signals from sensors. This level of precision is critical for applications like pharmaceutical manufacturing, where temperature or pressure variations of even 0.1% can affect product quality.
Flexible Input Configuration: Each of the 16 channels can be independently configured for 4-20mA, 0-10V DC, or thermocouples, eliminating the need for multiple modules. This flexibility reduces inventory costs and simplifies system design, especially in mixed-signal environments like food processing plants.
Rugged Industrial Design: With a -40°C to +70°C operating range and 250V AC isolation, the IC694ALG392 thrives in harsh conditions. Its metal enclosure and conformal coating resist dust, moisture, and electromagnetic interference (EMI), making it suitable for steel mills, mines, and offshore platforms.
Seamless RX3i Integration: The module works natively with RX3i controllers, using the backplane for high-speed data transfer. It pairs with IC694TBM302 terminal boards for easy wiring and IC694BEM331 communication modules for Ethernet connectivity, enabling integration with SCADA systems and cloud platforms.
Advanced Diagnostics: LED indicators for power, communication, and channel faults provide instant visual feedback. Internal self-tests continuously verify component health, while alerts for open thermocouple wires or overrange signals enable proactive maintenance—reducing downtime in 24/7 operations.
Application Fields
The GE IC694ALG392 is integral to industries requiring accurate analog signal monitoring:
- Power Generation: Monitors steam pressure, turbine vibration, and generator winding temperatures in thermal and nuclear plants. Its thermocouple support ensures reliable measurements in high-temperature environments like boiler chambers.
- Oil and Gas: Tracks wellhead pressure, pipeline flow rates, and compressor discharge temperatures in offshore platforms. The module’s rugged design withstands salt spray and vibration, ensuring continuous operation in remote, unmanned facilities.
- Chemical Processing: Measures reactor temperature, pH levels, and chemical concentration in batch processing. Its high accuracy and isolation prevent cross-contamination of signals, critical for maintaining process purity.
- Automotive Manufacturing: Monitors hydraulic pressure in stamping presses and oven temperatures in paint shops. The flexible input configuration allows integration with legacy sensors and new IoT-enabled devices.
Related Products
- GE IC694CPU313: RX3i controller that processes data from the IC694ALG392, executing control logic for industrial processes.
- GE IC694TBM302: Terminal board for the IC694ALG392, providing screw terminals for sensor wiring and surge protection.
- GE IC694BEM331: Ethernet communication module that connects the IC694ALG392 to SCADA systems, enabling remote monitoring.
- GE IC694ALG240: 8-channel analog input module with similar features, ideal for smaller systems requiring fewer channels.
- GE IC694PSD140: Redundant power supply for the RX3i rack, ensuring uninterrupted operation of the IC694ALG392 and other modules.
- GE IC694VPR100: RX3i rack that houses the IC694ALG392, supporting up to 16 modules for scalable system design.
Installation and Maintenance
Pre-installation preparations: Ensure the RX3i rack is grounded and powered with 24V DC (±10%). Mount the IC694ALG392 in the rack, securing it with captive screws. Connect sensors to the module via IC694TBM302 terminal boards, using shielded cables for thermocouples to minimize noise. Configure input types and ranges using GE’s Proficy Machine Edition software, matching sensor specifications to avoid measurement errors.
Maintenance suggestions: Conduct monthly visual inspections to check for loose terminals, damaged wires, or dim LEDs. Clean dust from ventilation slots with compressed air to prevent overheating. Quarterly, calibrate the module using a precision signal generator to verify accuracy. For thermocouple channels, inspect wire connections for corrosion, which can cause measurement drift. When replacing the IC694ALG392, back up configurations via Proficy software to simplify reinstallation, and retest all channels post-installation.
Product Guarantee
Our company offers a one-year quality warranty service for the IC694ALG392, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. As a leading import and export trade distribution company with 17 years of experience, we maintain extensive inventory of RX3i modules, ensuring 48-hour delivery for urgent requirements. Technical support includes wiring diagrams, configuration guides, and on-site troubleshooting assistance.
