GE IC694ALG222 Product Specification
Product Overview
The GE IC694ALG222 is a high-precision analog input module designed for GE’s RX3i PAC (Programmable Automation Controller) system. It converts real-world analog signals (e.g., voltage) into digital data for processing by PLCs, making it essential for monitoring and controlling industrial processes. With support for 16 single-ended or 8 differential input channels, this module adapts to diverse applications, from factory automation to power generation.
Rated for 0–10 VDC (unipolar) and -10–+10 VDC (bipolar) inputs, the GE IC694ALG222 offers a resolution of 2.5 mV (0–10 VDC) and 5 mV (-10–+10 VDC) . It processes signals with ±0.25% full-scale accuracy at 25°C and maintains ±0.5% accuracy across the operating temperature range (0°C to 60°C) . The module’s update rate is 6 milliseconds for single-ended channels and 3 milliseconds for differential channels, ensuring real-time responsiveness in critical systems like turbine control or chemical dosing.
Physically compact (263 × 58 × 28 mm) and lightweight (0.43 kg), the GE IC694ALG222 integrates seamlessly with RX3i racks (e.g., IC694CHS790) and requires an external 24 VDC power supply connected via the TB1 terminal block . Its field-to-backplane isolation of 250 VAC (continuous) and 1500 VAC (1-minute surge) safeguards against voltage spikes, while CE and UL certifications ensure compliance with global safety standards .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC694ALG222 |
| Manufacturer | General Electric (GE) |
| Product Type | 16-Channel Analog Input Module (Single-Ended/Differential) |
| Series | RX3i PAC System |
| Input Voltage Ranges | 0–10 VDC (unipolar), -10–+10 VDC (bipolar) |
| Resolution | 2.5 mV (0–10 VDC), 5 mV (-10–+10 VDC) |
| Accuracy | ±0.25% full scale @ 25°C; ±0.5% full scale (0°C–60°C) |
| Update Rate | 6 ms (single-ended), 3 ms (differential) |
| Physical Dimensions | 263 mm (L) × 58 mm (W) × 28 mm (H) [10.35″ × 2.28″ × 1.10″] |
| Weight | 0.43 kg (0.95 lb) |
| Power Requirements | 112 mA @ 5 VDC (internal), 41 mA @ 24 VDC (external) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Input Impedance | >500 kΩ (single-ended mode) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL 508 |

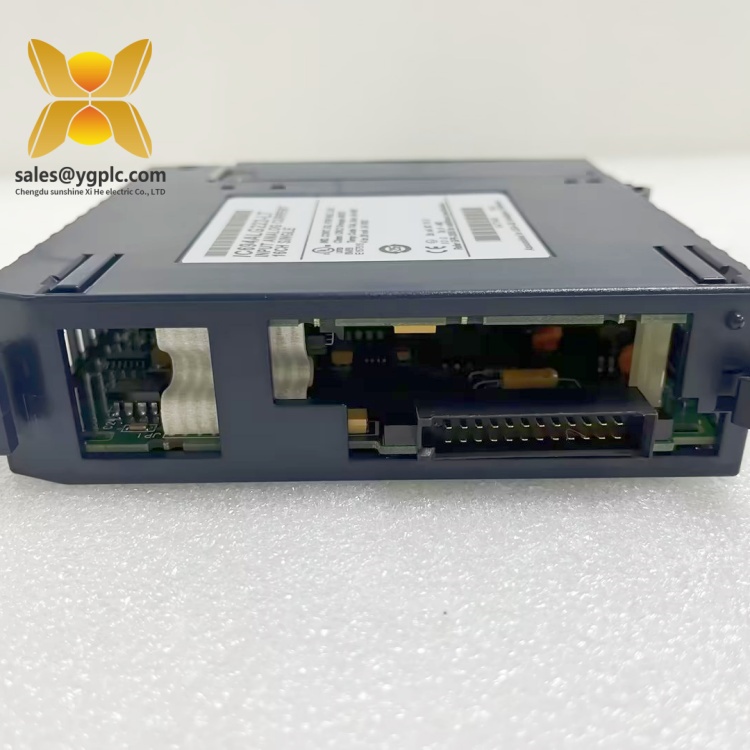

IC694ALG222
Main Features and Advantages
Dual Wiring Configurations: The GE IC694ALG222 supports both single-ended and differential wiring. Single-ended mode is ideal for cost-effective applications with low electromagnetic interference (EMI), while differential mode enhances noise resistance in high-interference environments like steel mills or mining operations .
High Precision and Speed: With 12-bit resolution and fast update rates, the module ensures accurate real-time data acquisition. Its ±0.25% accuracy at 25°C minimizes measurement errors, critical for processes like pharmaceutical mixing or oil refining where precision directly impacts product quality .
Robust Design: Built to withstand industrial conditions, the GE IC694ALG222 operates reliably in extreme temperatures and humidity. Its isolation features protect against voltage surges, reducing downtime caused by equipment failures .
Flexible Power Supply: While requiring an external 24 VDC power source, the module efficiently distributes energy, with low power consumption ensuring compatibility with standard industrial power systems .
Diagnostic Capabilities: LED indicators for power (P/S) and module status (OK) provide quick visual checks, simplifying maintenance and troubleshooting. The module’s RS485 interface (via the RX3i backplane) enables remote monitoring of input values and fault conditions .
Related Products
- GE IC694CHS790: A 16-slot RX3i baseplate that houses the GE IC694ALG222 and other modules, providing structural support and power distribution .
- GE IC694CPU331: A high-performance CPU module that processes data from the GE IC694ALG222 to execute control logic in automation systems .
- GE IC694PWR710: A power supply module that delivers 24 VDC to the GE IC694ALG222, ensuring stable energy for analog signal conversion .
- GE IC694BEM731: A communication module that enables the GE IC694ALG222 to transmit data to HMIs or SCADA systems via Ethernet/IP or Modbus protocols .
- GE IC694ALG221: A 4-channel analog input module with similar functionality to the GE IC694ALG222, suitable for smaller-scale applications requiring fewer channels .
Installation and Maintenance
Pre-Installation Preparations:
- Verify the rack type (e.g., IC694CHS790) and ensure the slot is clean.
- Connect the GE IC694ALG222 to an external 24 VDC power source via the TB1 terminal block. For expansion racks, ensure the backplane power supply is active .
- Align the module with the rack slot and press firmly until it clicks into place. No tools are required for installation.

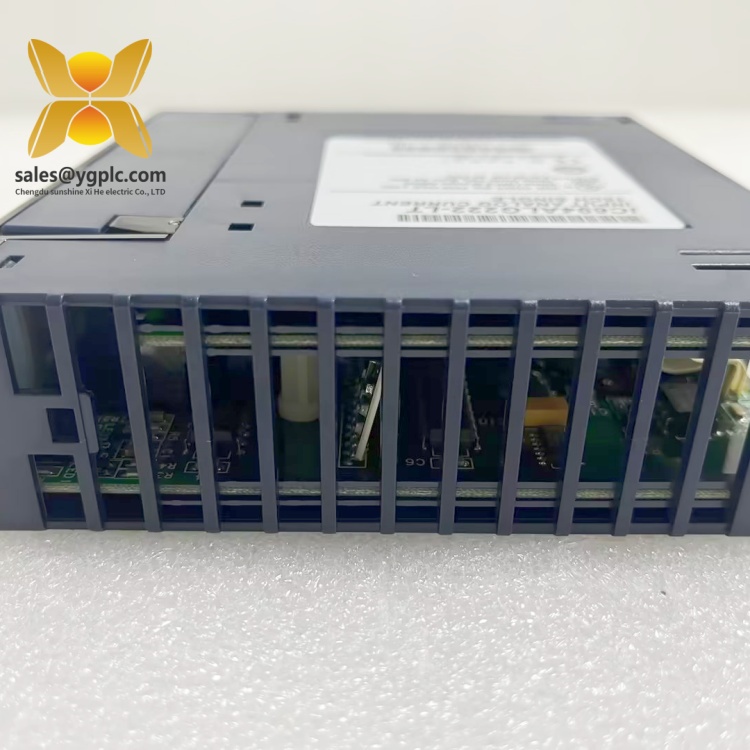

IC694ALG222
Maintenance Suggestions:
- Inspect quarterly for loose connections or physical damage. Clean dust from vents using a dry cloth to maintain airflow.
- Use a multimeter to check input voltage accuracy annually. If readings deviate beyond ±0.5% of full scale, recalibrate or replace the module .
- Replace the module if the P/S LED remains off, indicating a power fault, or if the OK LED blinks, signaling internal errors.
Application Areas
Manufacturing: The GE IC694ALG222 monitors pressure sensors in injection molding machines, converting analog signals to digital data for precise control of material flow and product consistency.
Power Generation: In wind turbines, it measures voltage fluctuations from generators, enabling PLCs to adjust blade pitch and optimize energy output.
Water Treatment: The module processes pH sensor signals in wastewater treatment plants, triggering chemical adjustments to ensure compliance with environmental standards.
Oil and Gas: On offshore platforms, it monitors temperature and pressure in pipelines, providing real-time data to prevent leaks or equipment failures.
Power Generation: In wind turbines, it measures voltage fluctuations from generators, enabling PLCs to adjust blade pitch and optimize energy output.
Water Treatment: The module processes pH sensor signals in wastewater treatment plants, triggering chemical adjustments to ensure compliance with environmental standards.
Oil and Gas: On offshore platforms, it monitors temperature and pressure in pipelines, providing real-time data to prevent leaks or equipment failures.

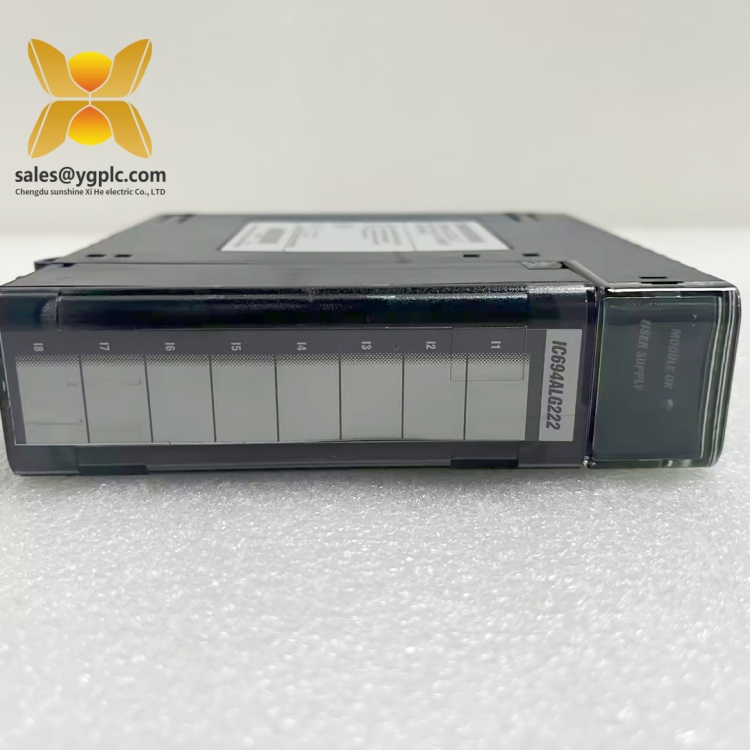

IC694ALG222
Product Guarantee
Our company offers a one-year quality warranty for the GE IC694ALG222, covering hardware defects unrelated to misuse. During the warranty period, defective units will be replaced promptly to minimize downtime. For discontinued models or urgent needs, our global supply chain ensures rapid delivery of scarce spare parts, supporting continuous industrial operations.
Established in 2007, our company is a leading distributor of industrial control components, specializing in hard-to-find and obsolete parts. We maintain a large inventory of GE RX3i modules, including the GE IC694ALG222, to meet urgent customer demands with minimal lead times.
