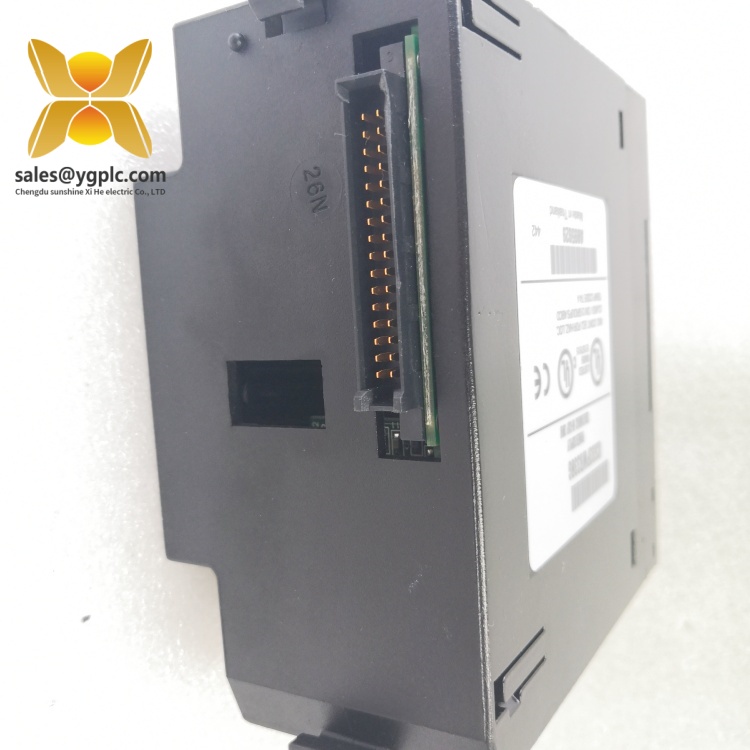

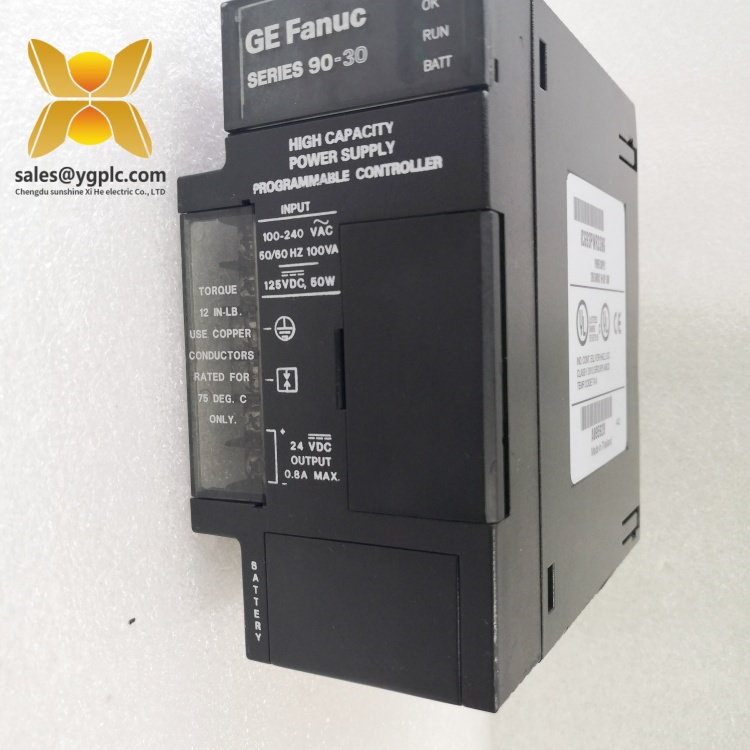

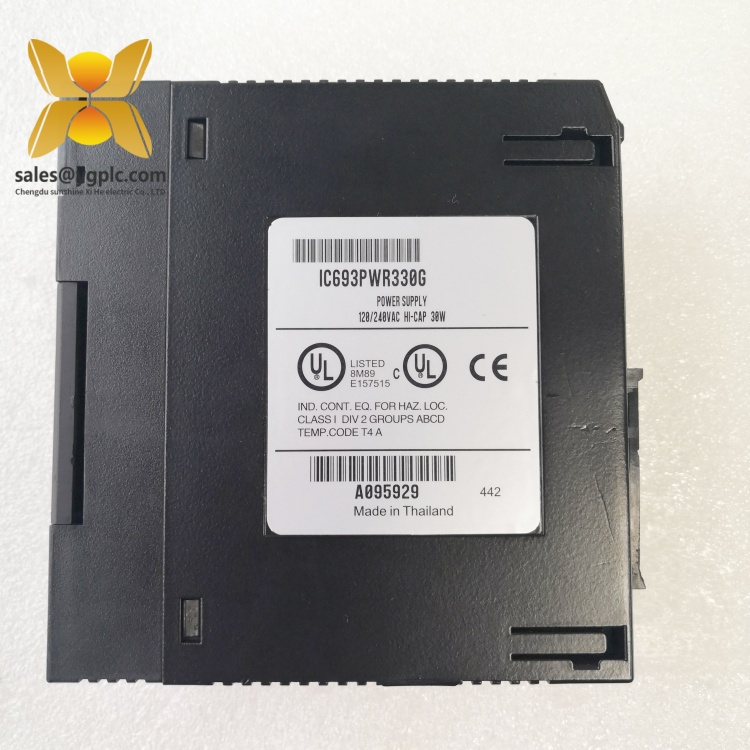

GE IC693PWR330E Power Supply Module
Product Overview
The GE IC693PWR330E is a power supply module designed for GE’s Series 90-30 PLC systems, a key platform in industrial automation. This module serves as the primary power source for other Series 90-30 components, such as CPUs, input/output modules, and communication cards. It converts incoming AC voltage into the stable DC voltages these components need to operate, making it critical for keeping automated systems running smoothly.
As part of the IC693 Series, the GE IC693PWR330E fits into Series 90-30 backplane racks like the IC693CHS393. It slots into the rack’s dedicated power position, connecting to the backplane to distribute power to all other modules. The IC693PWR330E accepts a wide 100–240 V AC input. It provides two essential outputs: 5 V DC (for logic components like CPUs) and 24 V DC (for field devices such as sensors and small motors). This dual-output design means one module can power both the PLC’s internal logic and external equipment, simplifying system setup.
Built to handle tough industrial conditions, the GE IC693PWR330E works in temperatures from 0°C to 60°C and humidity up to 95% (non-condensing). It resists dust, vibrations, and minor electrical fluctuations, making it reliable in factories, automotive plants, and water treatment facilities. Even though GE has stopped producing it, the GE IC693PWR330E remains vital for maintaining older Series 90-30 systems. It helps businesses avoid the cost of full system upgrades while keeping their automation infrastructure operational.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693PWR330E |
| Manufacturer | GE |
| Product Type | Power Supply Module (Series 90-30) |
| Series | IC693 (Series 90-30) |
| Input Voltage | 100–240 V AC (50/60 Hz) |
| Output Voltages | 5 V DC (logic), 24 V DC (field devices) |
| Output Currents | 5 V: 6 A; 24 V: 3 A |
| Physical Dimensions | 125 mm (L) × 89 mm (W) × 64 mm (D) |
| Weight | 0.7 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity Tolerance | 5%–95% (non-condensing) |
| Protection Features | Overcurrent protection, short-circuit protection, overvoltage protection |
| Mounting Type | Backplane mount (fits Series 90-30 racks) |
IC693PWR330E
Related Products
- GE IC693CHS393: A 10-slot backplane rack where the IC693PWR330E is installed. The rack distributes power from the module to all other Series 90-30 modules.
- GE IC693CPU364: A Series 90-30 CPU module. It relies on the IC693PWR330E’s 5 V DC output to run logic operations and process data.
- GE IC693MDL730K: A digital output module. It uses the IC693PWR330E’s 24 V DC output to power connected devices like motors and valves.
- GE IC693ALG222E: An analog input module. The IC693PWR330E supplies the 5 V DC it needs to process signals from sensors (e.g., temperature, pressure).
- GE IC693BEM331L: A communication module. It gets 5 V DC power from the IC693PWR330E to send data over the Genius bus.
- GE IC693PWR322J: A similar power supply module with lower output currents. It is a smaller alternative to the IC693PWR330E for less demanding systems.
Main features and advantages
Stable dual outputs: The IC693PWR330E provides both 5 V DC and 24 V DC. This means it can power all parts of a Series 90-30 system with one module. For example, it runs the CPU (5 V) and a conveyor sensor (24 V) at the same time. This reduces the number of components needed, simplifying system setup.
Wide input range: It works with 100–240 V AC input. This makes it usable in places with different electrical standards, like 110 V in North America or 220 V in Europe. No extra adapters are needed.
Built-in protection: The IC693PWR330E has overcurrent, short-circuit, and overvoltage protection. If a device draws too much power (e.g., a shorted motor), the module shuts down briefly to avoid damage. It starts working again once the problem is fixed.
Tough design: The module works in temperatures from 0°C to 60°C. It handles humidity up to 95% (no condensation). It resists dust and vibrations, making it reliable in factories, outdoor setups, and damp areas like food processing plants.
Easy to install: The IC693PWR330E fits into Series 90-30 backplane racks. It slides into the power slot and locks in place without special tools. Wiring is simple: connect the AC input cable to its terminals, and it is ready to use.
Works with old systems: The IC693PWR330E is fully compatible with all Series 90-30 modules. This lets businesses keep using their existing equipment instead of replacing it. It saves money and avoids downtime from system upgrades.
IC693PWR330E
Installation and maintenance
Pre-installation preparations: Check that the IC693PWR330E fits your Series 90-30 rack (e.g., IC693CHS393). Make sure the rack has an empty power slot. Turn off all power to the system. Slide the module into the power slot until it clicks. Connect the AC input cable to the module’s terminals. Tighten the terminal screws to 5 lb-in to secure the wires. Turn on the AC power. Check that the module’s green LED is on—this means it is working.
Maintenance suggestions: Inspect the IC693PWR330E every month. Wipe dust off with a dry cloth to prevent overheating. Check the input cable connections to make sure they are tight. Loose wires can cause power fluctuations. If the green LED turns off or flickers, turn off the AC power. Remove the module and reinsert it to fix loose connections. If the problem continues, replace the module with a spare. Keep a spare IC693PWR330E in a dry, cool area (10–30°C) to replace quickly if needed. This minimizes downtime.
Application fields
The GE IC693PWR330E is used in many industries that rely on Series 90-30 PLC systems:
- Manufacturing: In automotive plants, it powers the IC693CPU364 (CPU) and IC693MDL730K (digital output module). The CPU runs logic to control robotic arms. The output module uses 24 V to operate welding machines. The IC693PWR330E’s stable power ensures these machines work in sync, keeping the assembly line moving.
- Food processing: In beverage bottling facilities, it powers the PLC’s CPU (5 V) and sensors that check bottle positions (24 V). Its ability to handle humidity and washdowns keeps the system running in wet, clean environments. This helps meet food safety standards.
- Water treatment: In wastewater plants, it supplies power to pump control modules (5 V) and level sensors (24 V). The module’s rugged design withstands damp, chemically exposed conditions. It ensures pumps and valves work as needed to treat water.
- Material handling: In warehouses, it powers conveyor system CPUs (5 V) and barcode scanners (24 V). Its reliable power keeps packages moving from sorting to shipping areas. This reduces delays in delivery.
IC693PWR330E
