GE IC693PWR330 Product Specification
Product Overview
The GE IC693PWR330 is a power supply module designed for GE’s Series 90-30 PLC systems. It acts as the energy source for the entire PLC rack, converting incoming alternating current (AC) into direct current (DC) that other modules—like CPUs, input/output modules, and communication modules—need to function. This makes it a vital component for keeping industrial automation systems running without interruptions.
The GE IC693PWR330 accepts a wide range of AC input (100-240 VAC), which works with power grids worldwide, and outputs two key DC voltages: 5 VDC and 24 VDC. These voltages match the requirements of Series 90-30 components, such as the IC693CPU350 (CPU) and IC693MDL240 (discrete input module). It fits seamlessly into racks like the IC693CHS391M (10-slot), integrating with the rack’s backplane to distribute power efficiently.
The GE IC693PWR330 is built to handle tough industrial conditions. It operates in temperatures from 0°C to 60°C and can manage humidity between 5% and 95% without condensation. Its compact size (110 mm × 80 mm × 40 mm) and light weight (0.5 kg) make it easy to install in control cabinets. It also has built-in protection against overloads and short circuits, which helps shield connected modules from damage. Whether in factories, power plants, or water treatment facilities, the GE IC693PWR330 provides steady, reliable power to keep PLC systems working smoothly.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC693PWR330 |
| Manufacturer | General Electric (GE) |
| Product Type | Power Supply Module |
| Series | Series 90-30 |
| Input Voltage | 100-240 VAC (50/60 Hz) |
| Output Voltages | 5 VDC (6 A max), 24 VDC (2 A max) |
| Physical Dimensions | 110 mm (L) × 80 mm (W) × 40 mm (H) [4.33″ × 3.15″ × 1.57″] |
| Weight | 0.5 kg (1.1 lb) |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Features | Overload protection, short-circuit protection, overvoltage protection |
| Mounting Type | Slot mount in Series 90-30 racks (e.g., IC693CHS391M, IC693CHS398H) |
| Certifications | CE, UL 508 |

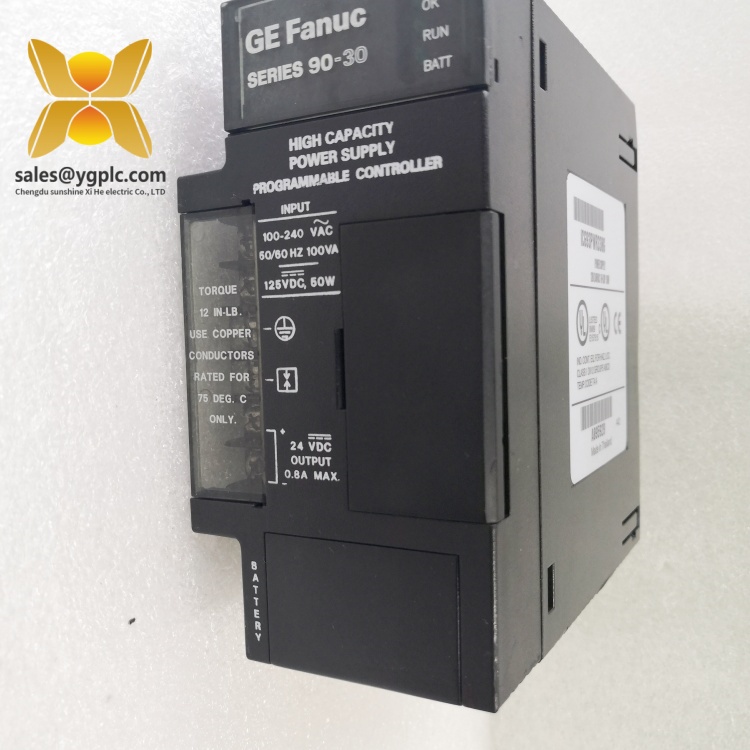

IC693PWR330
Main Features and Advantages
Wide input compatibility: The GE IC693PWR330 works with 100-240 VAC input. This means it can be used in factories and plants around the world, whether the local power grid runs on 110 VAC or 220 VAC. No extra adapters are needed, which simplifies setup.
Dual DC outputs: It provides two key voltages—5 VDC and 24 VDC. The 5 VDC powers sensitive components like the IC693CPU350 (CPU), while the 24 VDC runs field devices such as sensors and small motors. This dual output eliminates the need for separate power supplies, saving space in the control cabinet.
Built-in safety: The GE IC693PWR330 shuts down automatically if there’s an overload, short circuit, or voltage spike. This protects connected modules from damage, reducing repair costs and keeping the system safe. Once the issue is fixed, it restarts easily.
Easy to install: It slides into any slot in a Series 90-30 rack. The rack’s backplane handles power distribution to other modules, so no extra wiring is needed. This makes installation quick—technicians can set it up in minutes.
Tough for industrial use: The GE IC693PWR330 works in hot, humid, and dusty environments. It handles temperatures up to 60°C and humidity up to 95% without failing. Its durable casing resists dust and moisture, ensuring long-term reliability in harsh settings like factories or outdoor power stations.
Related Products
- GE IC693CHS391M: A 10-slot rack that houses the GE IC693PWR330 and other Series 90-30 modules, providing a structure for power distribution.
- GE IC693CPU350: A Series 90-30 CPU module that relies on the GE IC693PWR330’s 5 VDC output to run control programs.
- GE IC693MDL240: A 16-channel discrete input module powered by the GE IC693PWR330’s 24 VDC output, used to read signals from sensors and switches.
- GE IC693MDL940L: A discrete output module that uses 24 VDC from the GE IC693PWR330 to control devices like valves and small motors.
- GE IC693BEM331M: A communication module that receives power from the GE IC693PWR330, enabling the PLC to connect to external systems like HMIs.
Installation and Maintenance
Pre-installation preparations: Before installing the GE IC693PWR330, turn off all power to the rack. Check that the facility’s AC voltage (100-240 VAC) matches the module’s input range. Ensure the rack (such as IC693CHS391M) is properly grounded to avoid electrical issues. Slide the module into an empty slot until it clicks, then secure it with the front screw. Connect the AC power cord to the terminal block, making sure wires are tight to prevent loose connections.
Maintenance suggestions: Inspect the GE IC693PWR330 monthly. Look for signs of overheating, like discoloration or a burning smell. Dust the module with a dry cloth to keep it cool—dust buildup can block airflow and cause overheating. Every three months, check the power cord and terminal block for loose wires, tightening them if needed. If the module shuts down unexpectedly, check for overloads (too many modules drawing power) and reduce the load. If problems persist, replace the module to avoid system downtime.
Application Areas
In manufacturing: Factories use the GE IC693PWR330 to power PLC systems on assembly lines. It provides 5 VDC to the CPU, which runs programs, and 24 VDC to sensors that track part positions. This ensures robots, conveyor belts, and quality checks work together smoothly, keeping production on schedule.
In power plants: It supplies power to PLC modules that monitor turbine operations. The 5 VDC keeps the CPU running, while 24 VDC powers sensors that track temperature and pressure. This steady power helps maintain stable turbine performance, ensuring consistent electricity generation.
In water treatment: The GE IC693PWR330 powers PLC components in pump stations. It provides 24 VDC to level sensors in water tanks and 5 VDC to the CPU, which controls pumps. This ensures water levels stay balanced, and treatment chemicals are dosed correctly, keeping the water safe.
In food processing: It’s used in packaging lines, powering modules that control heating elements and conveyor speeds. The 24 VDC runs sensors that detect food position, while 5 VDC keeps the CPU running. This ensures packages are sealed and labeled correctly, meeting food safety standards.
IC693PWR330
Product Guarantee
Our company offers a one-year quality warranty service for GE IC693PWR330, covering hardware malfunctions not caused by human factors. During the warranty period, if GE IC693PWR330 shows abnormal performance—like unstable output or failure to power on—we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
Our company is a leading enterprise in the industrial control industry, established in 2007, has been 17 years. The company type is import and export trade distribution company, mainly selling major brands of industrial control parts, there are many unpopular discontinued models, with a large stock. Our company has the advantage of supply channels, a large number of spot, to meet the needs of customers anxious to find spare parts.
