GE IC693CPU364 Series 90-30 CPU Module
Product Overview
The GE IC693CPU364 is a high-performance central processing unit (CPU) module. It is designed for GE’s Series 90-30 programmable logic controller (PLC) systems. These systems are widely used in industrial automation. The GE IC693CPU364 serves as the core of the PLC system. It processes data from connected sensors and devices. It then issues commands to actuators, motors, and other equipment.
This module is part of the IC693 Series. It offers enhanced capabilities compared to earlier models in the series. The GE IC693CPU364 features a 33 MHz processor. It has 128 KB of user memory. This allows it to handle more complex automation tasks. These tasks include controlling multi-stage production lines, managing process variables, and coordinating multiple machines.
The IC693CPU364 is built to operate in harsh industrial environments. It functions in temperatures ranging from 0°C to 60°C. It also tolerates humidity levels up to 95% (non-condensing). This makes it suitable for use in factories, power plants, and chemical processing facilities. Even though GE has discontinued production of the GE IC693CPU364, it remains a critical component for maintaining legacy automation systems. It allows businesses to extend the life of their existing infrastructure without the need for full system replacements.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693CPU364 |
| Manufacturer | GE |
| Product Type | CPU Module (Series 90-30) |
| Processor Speed | 33 MHz |
| User Memory | 128 KB (program memory) |
| I/O Capacity | Up to 8192 discrete I/O points; 512 analog I/O points |
| Physical Dimensions | 127 mm (L) × 89 mm (W) × 64 mm (D) |
| Weight | 0.6 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity Tolerance | 5%–95% (non-condensing) |
| Power Requirements | 5 V DC, 600 mA |

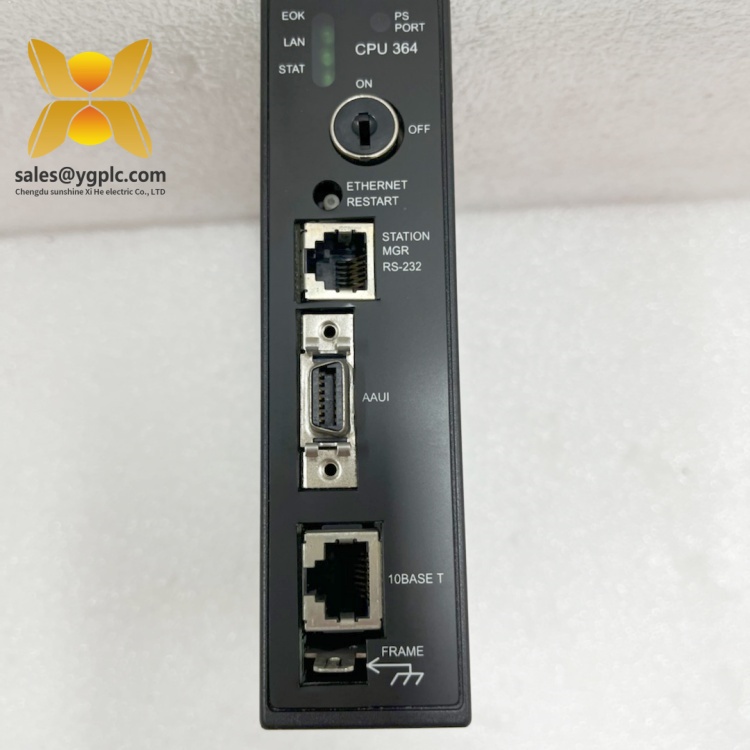

| Communication Ports | 1 serial port (RS-232); 1 Genius bus port |
| Mounting Type | DIN rail or panel mount |
IC693CPU364
Related Products
- GE IC693PWR330: This is a power supply module. It provides 24 V DC power to the IC693CPU364 and other Series 90-30 modules.
- GE IC693ALG222E: This is an analog input module. It connects to sensors. It sends data to the IC693CPU364 for processing.
- GE IC693MDL730K: This is a digital output module. It receives commands from the IC693CPU364. It controls devices like motors and valves.
- GE IC693BEM331L: This is a communication module. It connects the IC693CPU364 to the Genius bus. It enables data exchange with other system components.
- GE IC693CHS393: This is a 10-slot backplane rack. The IC693CPU364 and other modules mount onto it. It provides electrical connections between components.
- GE IC693CPU340: This is a lower-performance CPU module. It is an earlier model in the Series 90-30 line. The IC693CPU364 serves as an upgrade option for systems using this model.
- GE IC693CBL324: This is a 1-meter cable. It connects the IC693CPU364 to other modules in the backplane rack. It ensures reliable data transfer.
Main features and advantages
Processing power: The IC693CPU364 has a 33 MHz processor. This processor is significantly faster than earlier models in the Series 90-30 line. It can process 1K of boolean logic in 0.1 milliseconds. This speed ensures quick responses to changes in sensor inputs. For example, it can adjust a valve’s position immediately if a pressure sensor detects a deviation from the set point.
Memory capacity: The module includes 128 KB of user program memory. This memory is sufficient to store complex logic for controlling large-scale systems. It also has non-volatile memory. This memory retains program data during power outages. This eliminates the need to reload programs after a power failure.
I/O handling: The IC693CPU364 supports up to 8192 discrete I/O points and 512 analog I/O points. This allows it to manage large numbers of sensors and actuators. It is suitable for applications like automotive assembly lines. These lines require monitoring and controlling hundreds of devices.
Compatibility: The IC693CPU364 works with all Series 90-30 I/O modules. These modules include digital inputs, analog outputs, and communication cards. This compatibility allows users to expand their systems. They can add new functions without replacing the CPU.
Durability: The IC693CPU364 is built to withstand tough industrial conditions. It operates in a wide temperature range. It resists humidity, dust, and vibration. This durability reduces the risk of system failures. It makes the module reliable in environments like steel mills and food processing plants.
Communication capabilities: The module includes a serial port and a Genius bus port. These ports allow it to connect to other parts of the automation system. They enable data sharing with human-machine interfaces (HMIs) and higher-level control systems. This enhances visibility into process operations.
IC693CPU364
Installation and maintenance
Pre-installation preparations: Check that the IC693CPU364 is compatible with the existing Series 90-30 backplane rack. Ensure the rack has an available slot. Power off the PLC system before installation. Insert the IC693CPU364 into the slot. Push it firmly until it locks into place. Connect the power supply cable to the backplane. Connect communication cables to the serial and Genius bus ports as needed. Power on the system. Verify the module’s status light turns green. This indicates proper installation.
Maintenance suggestions: Inspect the IC693CPU364 regularly. Check for dust buildup on the module’s surface. Use a dry cloth to wipe away dust. This prevents overheating. Monitor the status light during operation. A red light indicates a problem. Common issues include loose connections or memory errors. Reseat the module to fix loose connections. For memory errors, reload the program from a backup. Store spare IC693CPU364 modules in a dry, cool area. This ensures they are ready for quick replacement if needed.
Application fields
The GE IC693CPU364 is used in various industries. These industries rely on medium to large-scale automation systems.
Manufacturing: In automotive assembly plants, the IC693CPU364 controls robotic arms, conveyor belts, and welding equipment. It coordinates their actions to ensure parts are assembled correctly. It also monitors quality control sensors. It triggers alarms if a defect is detected. This helps maintain production standards.
Power generation: In thermal power plants, the module controls boiler operations, turbine speed, and generator output. It processes data from temperature, pressure, and flow sensors. It adjusts fuel flow and air intake to optimize efficiency. Its fast processing speed ensures stable operation even as demand fluctuates.
Chemical processing: In chemical plants, the IC693CPU364 manages reactor temperatures, pressure, and chemical dosing. It processes data from pH sensors and flow meters. It adjusts valves and pumps to maintain optimal reaction conditions. Its durability ensures reliable operation in corrosive environments.
Water treatment: In wastewater treatment facilities, the module controls pump systems, filtration units, and chemical dosing equipment. It processes data from level sensors and turbidity meters. It adjusts operations to meet water quality standards. Its ability to handle high humidity makes it suitable for these environments.
IC693CPU364
Product guarantee
Our company offers a one-year quality warranty service for the IC693CPU364. This warranty covers hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts. We provide reliable services to support the continuous and stable operation of industrial systems.
Our company is a leading enterprise in the industrial control industry. It was established in 2007 and has a history of 17 years up to now. We are an import and export trade distribution company. We mainly sell major brands of industrial control parts. There are many unpopular discontinued models. We have a large stock. Our company has the advantage of supply channels. We have a large number of spot products. We can meet the needs of customers anxious to find spare parts. Our main business includes the distribution and trade of PLC modules, DCS cards, ESD system cards, vibration monitoring system cards, turbine control system modules, gas generator spare parts, instruments and other products.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
