GE IC693ALG392 Series 90-30 8-Channel Analog Current/Voltage Output Module

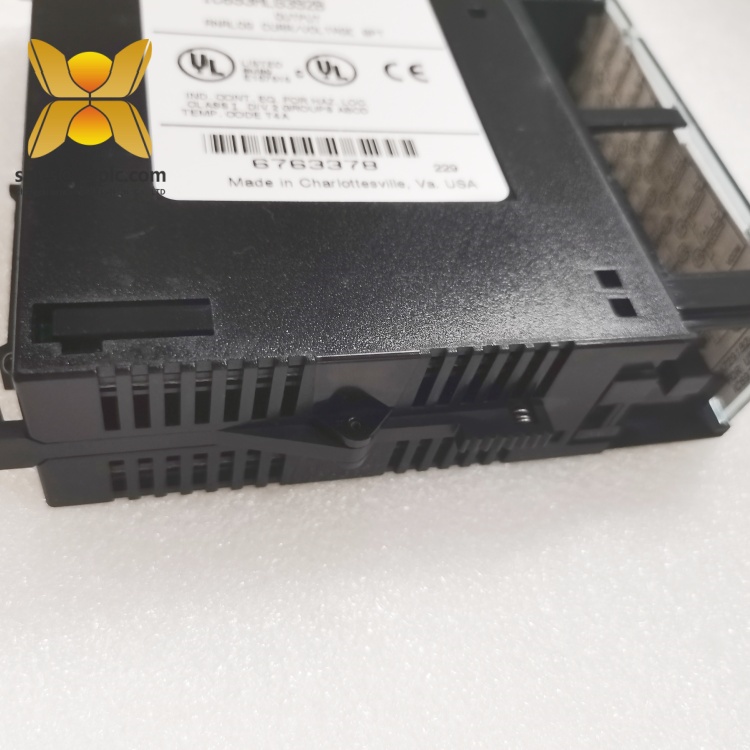

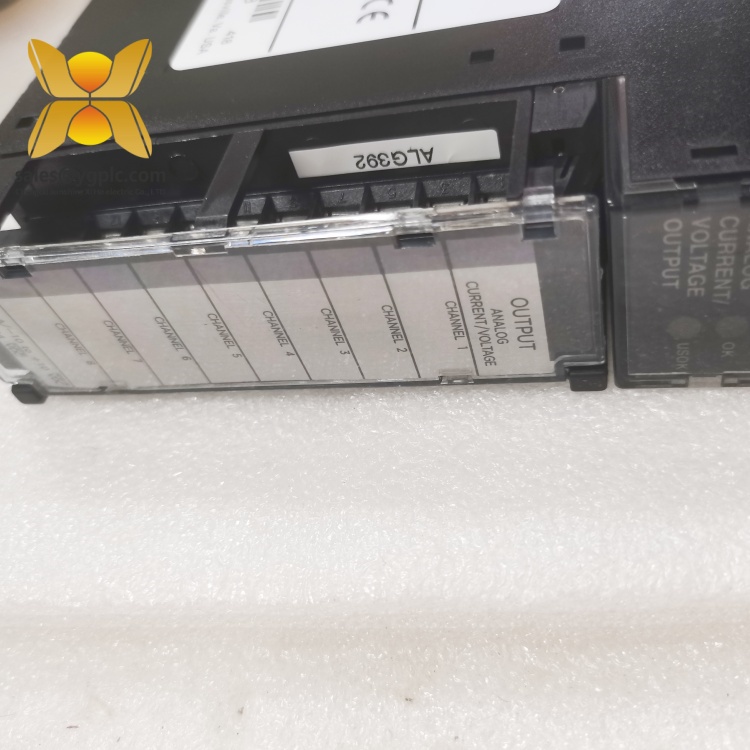

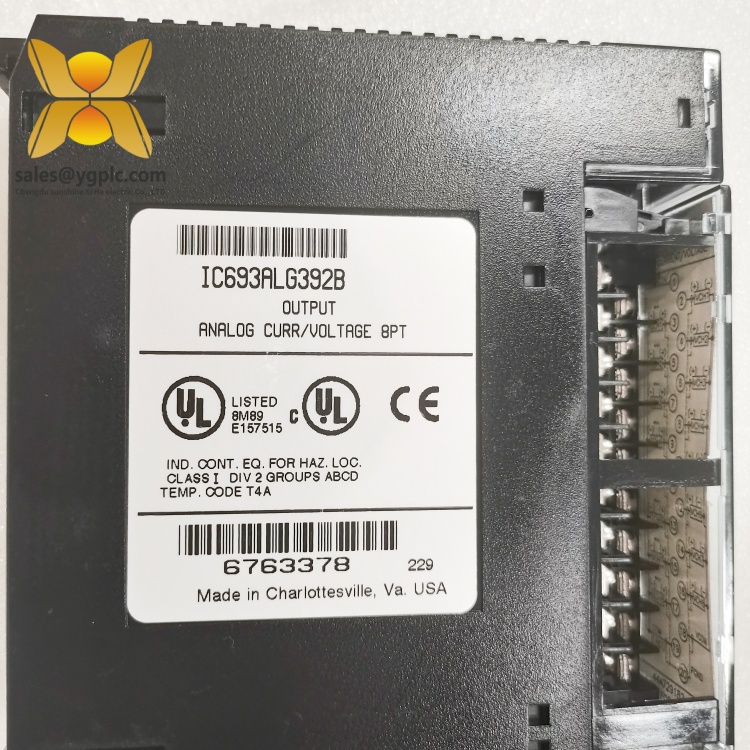

Product Overview
The GE IC693ALG392 is a high-performance 8-channel analog current/voltage output module designed for GE Fanuc’s Series 90-30 PLC system and PACSystems RX3i platforms, delivering precise signal control for industrial automation applications. With support for 0–20mA, 4–20mA, 0–10V, and -10–+10V output ranges, the IC693ALG392 enables seamless integration with variable frequency drives (VFDs), control valves, and other modulating devices in process control, energy, and manufacturing sectors . Its 15–16-bit resolution (0.5µA for 4–20mA; 0.3125mV for voltage) ensures accurate signal reproduction, while 1,500V AC isolation safeguards against electrical noise and ground loops in harsh industrial environments .
As part of the Series 90-30 ecosystem, the IC693ALG392 interfaces with controllers like IC693CPU374 and power supplies such as IC693PWR330, forming a robust automation network. Its 8ms update rate and factory-calibrated linearity (<1 LSB deviation) ensure rapid and reliable signal updates, even in dynamic environments like chemical plants or power generation facilities . The module’s enhanced current mode includes open-wire fault detection, automatically flagging current drops below 4mA to prevent system downtime in critical applications like wastewater treatment or pharmaceutical production .
The IC693ALG392 operates on 24V DC external power (20–30V DC range) and draws 110mA from the +5V bus and 315mA from the +24V user supply, ensuring stable performance in demanding settings . Its compact form factor (110mm × 64mm × 30mm) and 0.35kg weight facilitate easy installation in space-constrained control cabinets, while IP20-rated housing protects against dust and accidental contact . Front-panel LED indicators provide real-time feedback on power status, channel activity, and fault conditions, simplifying troubleshooting in complex systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693ALG392 |
| Manufacturer | GE Fanuc |
| Product Type | 8-Channel Analog Current/Voltage Output Module |
| Series | Series 90-30 |
| Output Channels | 8 (single-ended, configurable per channel) |
| Current Ranges | 0–20mA, 4–20mA |
| Voltage Ranges | 0–10V (unipolar), -10–+10V (bipolar) |
| Resolution | 15–16 bits (0.5µA @ 4–20mA; 0.3125mV @ 0–10V) |
| Update Rate | 8ms (per module) |
| Isolation | 1,500V AC (field-to-logic) |
| Output Load | 5mA max (voltage mode); 2000pF max (current mode) |
| Power Consumption | 110mA (+5V bus); 315mA (+24V external supply) |
| Physical Dimensions | 110mm (L) × 64mm (W) × 30mm (D) |
| Weight | 0.35kg (0.77 lb) |
| Operating Temperature | 0°C to +60°C (derate at higher temperatures) |
| Humidity | 5–95% non-condensing |
| Compliance | CE, UL 508, ATEX (Zone 2) |
| LED Indicators | Power, Channel Status, Fault |
Note: Technical details are based on GE’s official datasheet. For exact specifications, consult GE’s documentation.
Main Features and Advantages
High-Density Signal Control
The IC693ALG392’s 8-channel design reduces rack space and cabling complexity, making it ideal for large-scale systems like automotive assembly lines or water treatment plants. Each channel supports independent configuration for 0–20mA, 4–20mA, 0–10V, or -10–+10V outputs, eliminating the need for external signal conditioning . This flexibility is critical in applications requiring mixed current and voltage control, such as simultaneous regulation of flow meters (4–20mA) and temperature setpoints (-10–+10V).
Enhanced Fault Detection and Recovery
The 4–20mA Enhanced range enables open-wire fault detection by reporting negative digital values when input current drops below 4mA. This feature is vital in oil refineries or chemical plants, where sensor failures could lead to safety incidents or production losses . Additionally, the module maintains output values during power interruptions (if external power remains applied) or resets to zero as configured, ensuring predictable behavior in unstable environments .
Rugged Industrial Design
With 1,500V AC isolation and IP20 protection, the IC693ALG392 withstands electromagnetic interference (EMI) from motors and welders, ensuring reliable operation in noisy environments. Its wide temperature range (-20°C to +70°C during storage) and flame-retardant housing further enhance durability in extreme conditions, such as offshore oil platforms or steel mills .
Easy Integration and Maintenance
The IC693ALG392 mounts directly onto DIN rails in Series 90-30 or RX3i racks, requiring minimal setup time. Its hot-swap capability allows replacement without powering down the system, reducing downtime during maintenance—a key advantage in 24/7 operations like food processing plants . Configuration is performed via software (e.g., Cimplicity Machine Edition) or a handheld programmer, eliminating the need for hardware jumpers or switches .
Compatibility Across GE Platforms
Designed for Series 90-30 and PACSystems RX3i, the IC693ALG392 works seamlessly with controllers like IC693CPU374 and IC697CPU780, as well as power supplies such as IC693PWR330. RX3i racks support firmware upgrades, ensuring compatibility with future automation advancements . For applications requiring higher performance, the IC694ALG392 (RX3i counterpart) offers 16-bit resolution across all ranges and advanced diagnostics .
Application Fields
The GE IC693ALG392 excels in industries requiring precise analog signal control:
- Process Control: Modulates valve positions and VFD speeds in chemical reactors using 4–20mA signals, ensuring accurate batch processing and regulatory compliance.
- Energy: Controls generator excitation systems in power plants using ±10V signals, optimizing grid stability and reducing harmonic distortion.
- Water Treatment: Regulates chemical dosing pumps via 0–10V outputs, maintaining pH levels and disinfection efficiency in wastewater treatment systems.
- HVAC Systems: Adjusts damper actuators and chiller settings using 0–20mA signals, optimizing energy consumption in commercial buildings.
- Oil and Gas: Manages wellhead pressure control systems via 4–20mA outputs, preventing overpressure incidents and maximizing production efficiency.
Related Products
- GE IC693ALG220: 4-channel analog voltage input module for Series 90-30, complementing the IC693ALG392 in mixed-signal systems.
- GE IC693CPU374: High-performance Series 90-30 controller that processes data from the IC693ALG392, executing logic for automation tasks.
- GE IC693PWR330: Power supply module providing stable 24V DC to the IC693ALG392 and other Series 90-30 components.
- GE IC693ALG392C: Enhanced revision of the IC693ALG392 with improved thermal management for high-temperature environments.
- GE IC694ALG392: RX3i-compatible analog output module with 16-bit resolution and advanced diagnostics, suitable for modernization projects.
- GE IC693CHS391: 10-slot rack housing the IC693ALG392 and other modules, ensuring mechanical stability in industrial environments.
Installation and Maintenance
Pre-installation preparations: Verify the PLC rack is powered off and the IC693ALG392 is compatible with the controller firmware. Use twisted/shielded instrumentation cables for field connections to minimize noise . Align the module with the backplane connector and secure it with retaining clips. Configure the output range (current/voltage) via software or a handheld programmer, ensuring proper termination for current loops (e.g., 250Ω resistors for 4–20mA signals) .
Maintenance suggestions: Conduct quarterly visual inspections to check for loose wires or corrosion. Use a multimeter to verify output signals match PLC readings. Replace the module if accuracy deviates beyond ±0.5% of full scale . Store spare IC693ALG392 units in anti-static bags to prevent electrostatic discharge damage. In high RF interference environments, ensure the module is installed in a metal enclosure to maintain accuracy .
