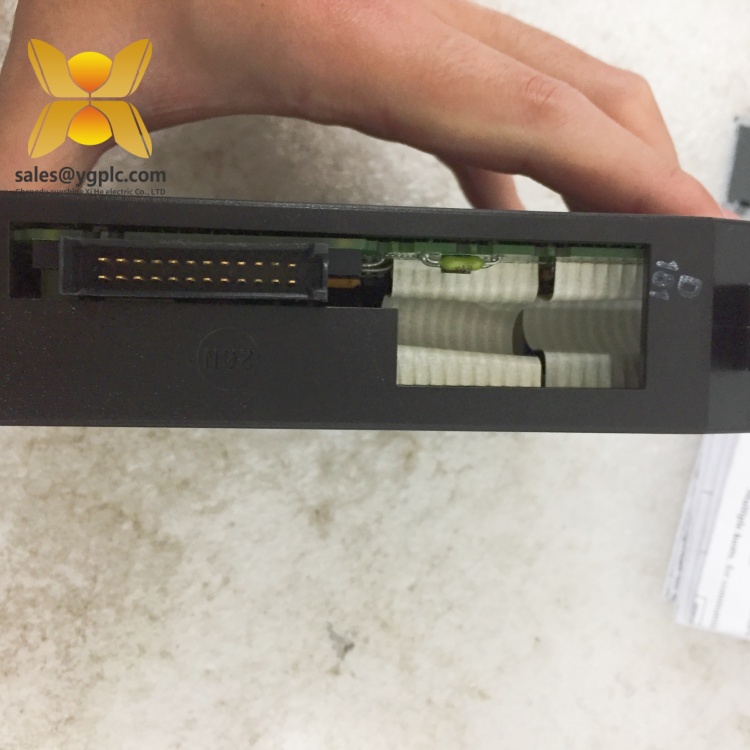

GE IC693ALG391F Analog Current Output Module
Product Overview
The GE IC693ALG391F is a high-precision 2-channel analog current output module designed for GE Fanuc’s Series 90-30 PLC platform, now under Emerson Automation Solutions. As part of the IC693 Series, this module converts 12-bit digital signals into analog current outputs, enabling precise control of actuators, valves, and variable-speed drives in industrial automation systems. With support for 0–20 mA and 4–20 mA output ranges, the IC693ALG391F is ideal for applications requiring seamless integration with process instruments, such as flow meters, pressure transducers, and temperature controllers.
Featuring a 12-bit resolution (5 µA per bit for 0–20 mA), the IC693ALG391F delivers an absolute accuracy of ±8 µA at 25°C for 0–20 mA outputs and ±0.1% of full scale for 4–20 mA outputs, ensuring reliable performance in critical control loops 715. Its 5 ms update rate ensures real-time responsiveness, while 1,500 V RMS isolation between field and logic sides mitigates electromagnetic interference (EMI) in high-noise environments like manufacturing plants or oil refineries . The module incorporates MOV (Metal Oxide Varistor) surge protection on high-power terminals, safeguarding against voltage spikes caused by inductive loads or transient electrical noise 17.
In automation systems, the IC693ALG391F integrates with Series 90-30 CPUs (e.g., IC693CPU340, IC693CPU364) and Genius Bus Interface Units (BIUs) to provide analog control signals for process optimization. Its compact DIN rail-mount design (125 mm × 48 mm × 45 mm) and lightweight construction (0.35 kg) simplify installation in crowded control panels, while a flame-retardant ABS housing ensures durability in temperatures ranging from 0°C to 60°C and 95% non-condensing humidity . Though discontinued by GE, the IC693ALG391F remains critical for legacy systems, offering cost-effective scalability where upgrading to newer platforms is impractical. By combining high-resolution signal conditioning, rugged isolation, and deep integration with Series 90-30 components, this module enhances system precision and reduces downtime in mission-critical operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693ALG391F |
| Manufacturer | GE |
| Product Type | Analog Current Output Module (Series 90-30) |
| Series | IC693 |
| Output Channels | 2 (independent) |
| Current Ranges | 0–20 mA, 4–20 mA |
| Voltage Ranges | 0–5 V, 1–5 V (via 250 Ω resistor) |
| Resolution | 12-bit (5 µA/bit for 0–20 mA) |
| Accuracy | ±8 µA @ 25°C (0–20 mA); ±0.1% @ 25°C (4–20 mA) |
| Update Rate | 5 ms (both channels) |
| Isolation Voltage | 1,500 V RMS (field to logic side) |
| Surge Protection | MOV on high-power terminals |
| Physical Dimensions | 125 mm (L) × 48 mm (W) × 45 mm (D) |
| Weight | 0.35 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity Tolerance | 5%–95% (non-condensing) |
| Power Consumption | 30 mA @ +5 V DC; 215 mA @ +24 V DC (isolated) |
| External Supply Voltage | 20–30 V DC |
| Maximum Compliance Voltage | 25 V |
| Load Impedance | 0–850 Ω (current mode); 2 kΩ (voltage mode) |
| Certifications | CE, UL 508 (compliant with GE Field Control standards) |
| Mounting Method | DIN rail or panel mount with #8-32 screws |
Main Features and Advantages
Dual-range flexibility:
The IC693ALG391F supports both 0–20 mA (for general-purpose control) and 4–20 mA (for loop-powered instruments), eliminating the need for external signal converters. This versatility simplifies integration with mixed-voltage systems, such as chemical reactors where pressure transmitters (4–20 mA) and motor drives (0–20 mA) coexist .
The IC693ALG391F supports both 0–20 mA (for general-purpose control) and 4–20 mA (for loop-powered instruments), eliminating the need for external signal converters. This versatility simplifies integration with mixed-voltage systems, such as chemical reactors where pressure transmitters (4–20 mA) and motor drives (0–20 mA) coexist .
High-resolution signal control:
With 12-bit resolution and 5 µA/bit precision, the module ensures fine-grained control over actuators, critical for applications like semiconductor wafer handling or pharmaceutical dosing systems. Its ±0.1% accuracy in 4–20 mA mode guarantees repeatable performance in environments where minor deviations could impact product quality .
With 12-bit resolution and 5 µA/bit precision, the module ensures fine-grained control over actuators, critical for applications like semiconductor wafer handling or pharmaceutical dosing systems. Its ±0.1% accuracy in 4–20 mA mode guarantees repeatable performance in environments where minor deviations could impact product quality .
Rugged industrial design:
The flame-retardant ABS housing and MOV surge protection shield the module from electrical transients and environmental hazards, making it suitable for harsh settings like offshore platforms or food processing plants. Its 1,500 V RMS isolation further mitigates EMI from nearby motors or drives, ensuring stable operation in high-noise environments .
The flame-retardant ABS housing and MOV surge protection shield the module from electrical transients and environmental hazards, making it suitable for harsh settings like offshore platforms or food processing plants. Its 1,500 V RMS isolation further mitigates EMI from nearby motors or drives, ensuring stable operation in high-noise environments .
Easy configuration and maintenance:
The IC693ALG391F is configured via LogicMaster 90-30 or Cimplicity Control Configurator software, allowing users to select output ranges, filter settings, and channel modes without hardware modifications. Its 2 green LEDs (Module OK and Power Supply OK) provide real-time status monitoring, simplifying troubleshooting. Regular visual inspections and fuse checks (recommended quarterly) ensure optimal performance 6.
The IC693ALG391F is configured via LogicMaster 90-30 or Cimplicity Control Configurator software, allowing users to select output ranges, filter settings, and channel modes without hardware modifications. Its 2 green LEDs (Module OK and Power Supply OK) provide real-time status monitoring, simplifying troubleshooting. Regular visual inspections and fuse checks (recommended quarterly) ensure optimal performance 6.
Application Areas
The GE IC693ALG391F excels in industries requiring precise analog control:
- Manufacturing:
Controls conveyor belt speeds and robotic arm movements in automotive assembly lines, ensuring synchronization with upstream/downstream processes. Its high resolution supports quality control in pharmaceutical batch processing, where ingredient ratios must meet strict standards . - Oil and Gas:
Regulates flow rates in wellhead control systems and adjusts valve positions in refineries, integrating with pressure transmitters (4–20 mA) and motorized actuators (0–20 mA). Its surge protection safeguards against voltage spikes from pump motors . - Water and Wastewater Treatment:
Manages chemical dosing systems by controlling metering pumps (0–20 mA) based on pH sensor inputs (4–20 mA). Its moisture-resistant design is ideal for wet, corrosive environments like wastewater treatment plants . - Power Generation:
Optimizes turbine output by adjusting steam valves in power plants, interfacing with speed sensors (4–20 mA) and hydraulic actuators (0–20 mA). Its fast update rates support rapid adjustments to grid demand fluctuations .
Related Products
- GE IC693ALG222E (Analog Voltage Input Module):
Complementary module for voltage-based sensors, often used alongside the IC693ALG391F in hybrid analog systems. - GE IC693CPU364 (Series 90-30 CPU):
High-performance PLC processor compatible with the IC693ALG391F, supporting up to 12 analog output modules in a single system. - GE IC693GBI002 (Genius Bus Interface Unit):
Facilitates communication between the IC693ALG391F and distributed I/O modules, ensuring seamless data integration across the automation network. - GE IC693PWR330 (Series 90-30 Power Supply):
Provides stable 5 V DC and 24 V DC power to the IC693ALG391F, ensuring reliable operation in fluctuating mains environments. - GE IC693ALG392 (Analog Current Output Module):
A 4-channel variant with similar specifications, suitable for applications requiring higher output density.
Installation and Maintenance
Pre-installation preparations:
Verify compatibility with the target Series 90-30 CPU (e.g., IC693CPU340) and power supply (e.g., IC693PWR330). Mount the IC693ALG391F on a clean, grounded DIN rail or panel using #8-32 screws, ensuring the 20-terminal block aligns with the module’s faceplate. Route shielded twisted-pair cables away from high-voltage lines to minimize EMI, grounding the shield at the field device end for single-ended inputs. Configure the module via software to select the desired output range (0–20 mA or 4–20 mA) and enable hold-last-state functionality if required .
Verify compatibility with the target Series 90-30 CPU (e.g., IC693CPU340) and power supply (e.g., IC693PWR330). Mount the IC693ALG391F on a clean, grounded DIN rail or panel using #8-32 screws, ensuring the 20-terminal block aligns with the module’s faceplate. Route shielded twisted-pair cables away from high-voltage lines to minimize EMI, grounding the shield at the field device end for single-ended inputs. Configure the module via software to select the desired output range (0–20 mA or 4–20 mA) and enable hold-last-state functionality if required .
Maintenance suggestions:
Perform quarterly visual inspections to check for loose connections or physical damage, retightening terminals to 5 lb-in torque as needed. Test surge protection components annually using a multimeter to ensure MOVs are functional. Replace the module every 7–10 years (or sooner if physical damage is detected) to maintain signal integrity. Store spare IC693ALG391F modules in anti-static packaging at 10–30°C with <60% humidity, testing functionality biannually .
Perform quarterly visual inspections to check for loose connections or physical damage, retightening terminals to 5 lb-in torque as needed. Test surge protection components annually using a multimeter to ensure MOVs are functional. Replace the module every 7–10 years (or sooner if physical damage is detected) to maintain signal integrity. Store spare IC693ALG391F modules in anti-static packaging at 10–30°C with <60% humidity, testing functionality biannually .
