The GE IC3600SOTD1 is an over-temperature protection card for GE Fanuc’s turbine control system, part of the Mark I and II series. Below is a detailed product description:
Product Overview

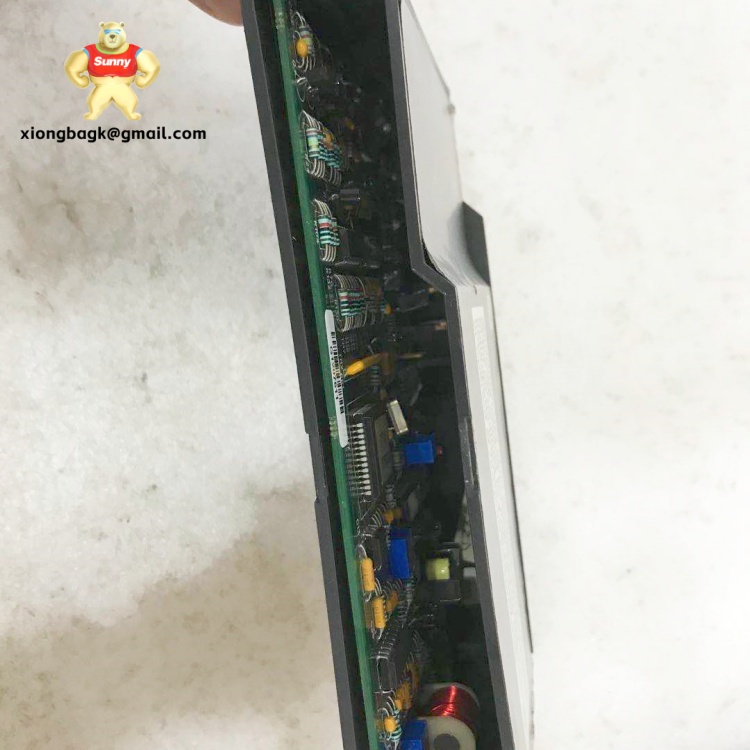

The GE IC3600SOTD1 over-temperature protection card is a critical component of GE Fanuc’s turbine control system, designed to monitor and protect equipment from overheating. It contains eight potentiometers, also known as variable resistors, whose energy flow is controlled by small screws on the front panel. The card features fifty-five light blue resistors with various stripes, which include a color code and calculations to determine the resistance capabilities of each resistor. Additionally, it comprises four small silver transistors and five small black transistors, which amplify and modify electrical and electronic signals. There are also two square capacitors, four small circular capacitors, three yellow capacitors, two white capacitors, and two black capacitors, which store energy for later use by the PCB. Approximately ten small orange and black diodes allow energy to flow in one direction, controlling energy flow through the circuit board. The board is equipped with about fifty metal male terminal pins that connect it to the rest of the system. The GE IC3600SOTD1 plays a vital role in industrial automation systems, particularly in turbine control systems, ensuring the stable operation of equipment and preventing damage caused by overheating. Its robust performance and reliability make it indispensable in industrial applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Manufacturer | General Electric (GE Fanuc Automation) |
| Product Type | Over-Temperature Protection Card |
| Series | Mark I and II |
| Voltage | 24/48 VDC |
| Number of Channels | 8 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Meets industrial standards for vibration resistance |
| Shock Resistance | Meets industrial standards for shock resistance |
| Dimensions | Approximately 233mm × 150mm × 50mm |
| Weight | Approximately 0.7 kg |
Main Features and Advantages
-
High Reliability and Stability: The GE IC3600SOTD1 is manufactured using advanced processes and high-quality materials, ensuring stable performance and reliable operation. It undergoes rigorous testing to meet the demands of harsh industrial environments, minimizing the risk of malfunctions and providing long-term, stable service.
-
Precision Over-Temperature Protection: The card contains eight potentiometers, allowing users to finely adjust resistance values based on specific requirements. This enables precise monitoring and protection of temperature parameters, effectively preventing equipment damage caused by overheating and ensuring the safe operation of industrial equipment.
-
Rich Component Configuration: The GE IC3600SOTD1 integrates various electronic components, including resistors, capacitors, transistors, and diodes. Each component plays a specific role in signal transmission, amplification, and energy storage, enabling the card to achieve complex over-temperature protection functions. The coordinated operation of these components ensures reliable and stable card performance.
-
Compatibility with Mark I and II Systems: As a member of the Mark I and II series, the GE IC3600SOTD1 seamlessly integrates with other components of the Mark I and II turbine control systems. It ensures compatibility and interoperability with other modules, facilitating the construction of complete turbine control systems and enabling efficient collaboration among system components.
-
User-Friendly Design: The potentiometers on the GE IC3600SOTD1 are accessible through small holes in the card’s faceplate, allowing users to easily adjust resistance values. The card’s design is intuitive and convenient, enabling users to quickly complete adjustments and configurations without specialized tools or extensive training.
Application Fields
The GE IC3600SOTD1 over-temperature protection card is primarily used in GE Fanuc’s Mark I and II turbine control systems, playing a crucial role in gas turbine generator frame 5 systems. It monitors and protects temperature parameters of critical components such as gas turbines, steam turbines, and generators. In power generation systems, the GE IC3600SOTD1 ensures that turbines operate within safe temperature ranges, preventing equipment damage caused by overheating. This guarantees the stable power output of generators and avoids power outages or reductions that could result from turbine malfunctions. In industrial production processes, it safeguards the normal operation of turbines, ensuring the continuity of production activities and improving production efficiency and product quality. Additionally, it is suitable for other industrial scenarios requiring over-temperature protection of rotating equipment, offering reliable temperature monitoring and protection solutions.
Related Products
-
GE IC3600SOTE1: An over-temperature alarm card for GE Fanuc’s turbine control system. It works with the GE IC3600SOTD1 to provide over-temperature alarm functionality. When equipment temperatures exceed preset thresholds, the IC3600SOTE1 triggers alarms to alert operators, enabling timely measures to prevent further temperature rises and equipment damage.
-
GE IC3600AOAC1: An amplifier card for GE Fanuc’s turbine control system. It amplifies signals from temperature sensors and other components, ensuring that signals meet the input requirements of the GE IC3600SOTD1. This guarantees the accuracy and reliability of temperature monitoring and protection.
-
GE IC3600SSLA1: A setpoint control card for GE Fanuc’s turbine control system. It sets temperature thresholds and other parameters for the GE IC3600SOTD1, enabling precise over-temperature protection. Users can adjust temperature setpoints via the IC3600SSLA1 to meet specific requirements.
-
GE IC3600STKA1: A temperature control card for GE Fanuc’s turbine control system. It works with the GE IC3600SOTD1 to implement temperature control functions. The IC3600STKA1 adjusts equipment operating temperatures based on temperature signals, ensuring stable equipment operation within optimal temperature ranges.
Installation and Maintenance
-
Pre-Installation Preparations: Before installing the GE IC3600SOTD1, ensure that the installation site meets the card’s environmental requirements, including temperature, humidity, and vibration conditions. Prepare the necessary tools and materials, such as a DIN rail, terminal strips, and wiring tools. Verify that the card’s firmware version aligns with system requirements and perform a visual inspection to confirm there is no damage or defects.
-
Maintenance Suggestions: Regularly inspect the GE IC3600SOTD1 during use to ensure proper installation and secure wiring connections. Clean the card’s surface to remove dust and dirt that may affect heat dissipation and normal operation. Monitor the card’s operational status through the system and promptly address any abnormal alarms or fault indicators. Conduct regular backups and updates of the card’s programs and data to prevent data loss or corruption. Avoid exposing the card to strong electromagnetic interference and ensure proper grounding to ensure stable operation.
Product Warranty
Our company provides a one-year quality warranty for the GE IC3600SOTD1 over-temperature protection card, covering hardware malfunctions not caused by human error. During the warranty period, if the card exhibits abnormal performance or functional failures, we will offer replacement services. Leveraging our global supply chain network, we can swiftly respond to customer needs for discontinued or hard-to-find spare parts, ensuring reliable support for the continuous and stable operation of industrial systems. Our commitment to quality and service reflects our confidence in the product and our dedication to meeting customer needs.
