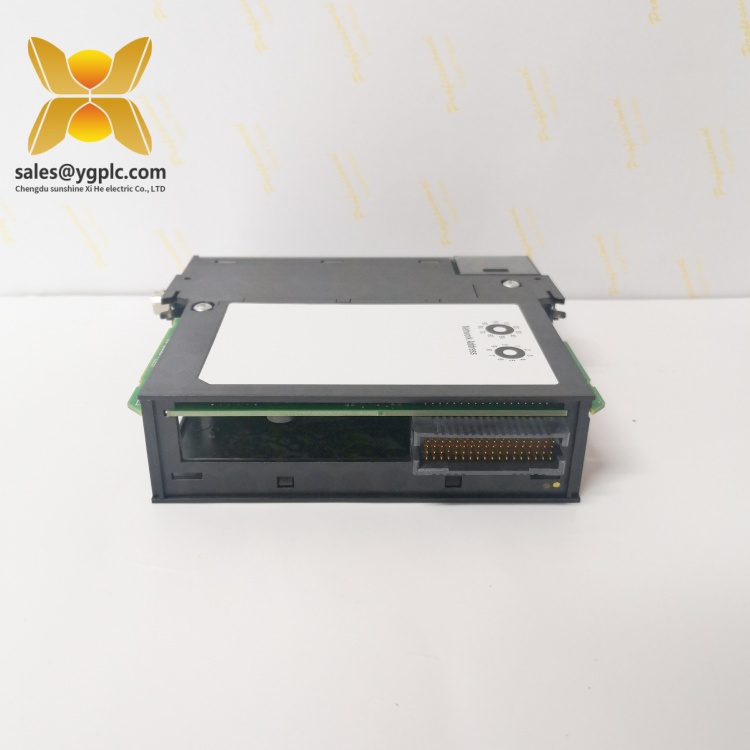

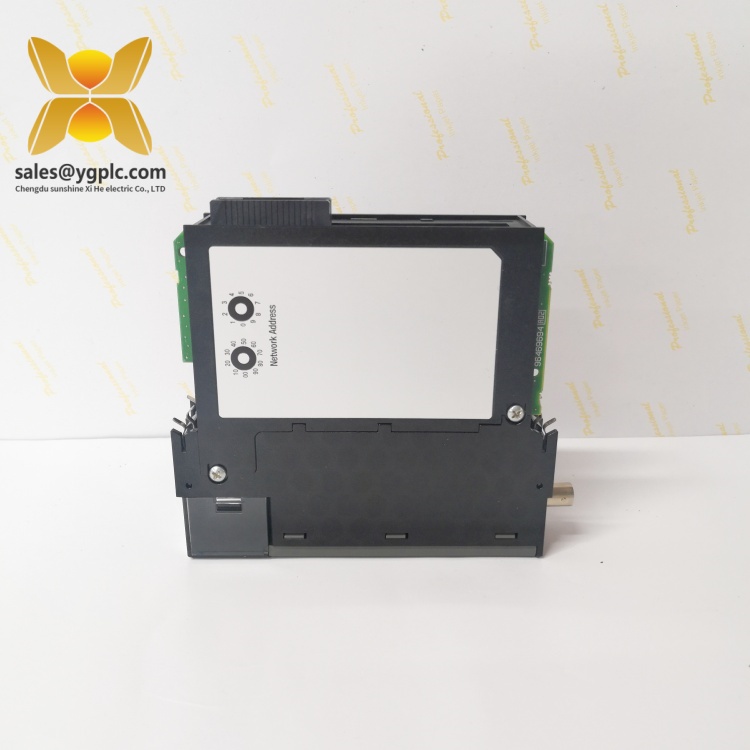

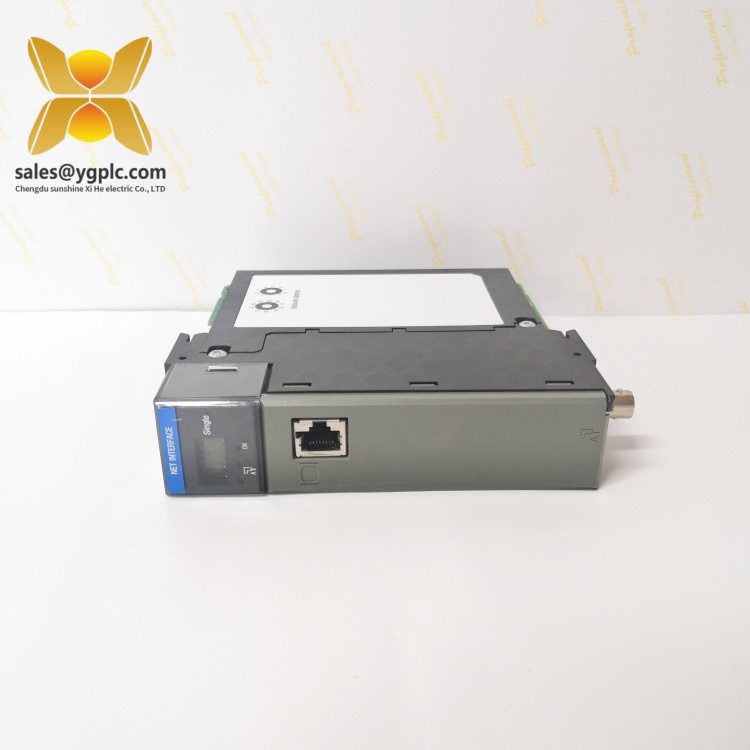

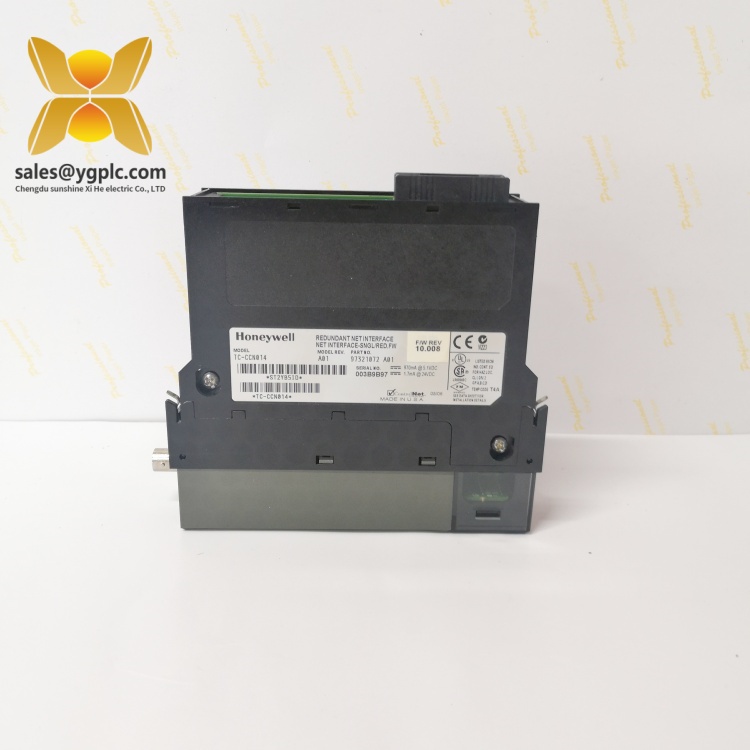

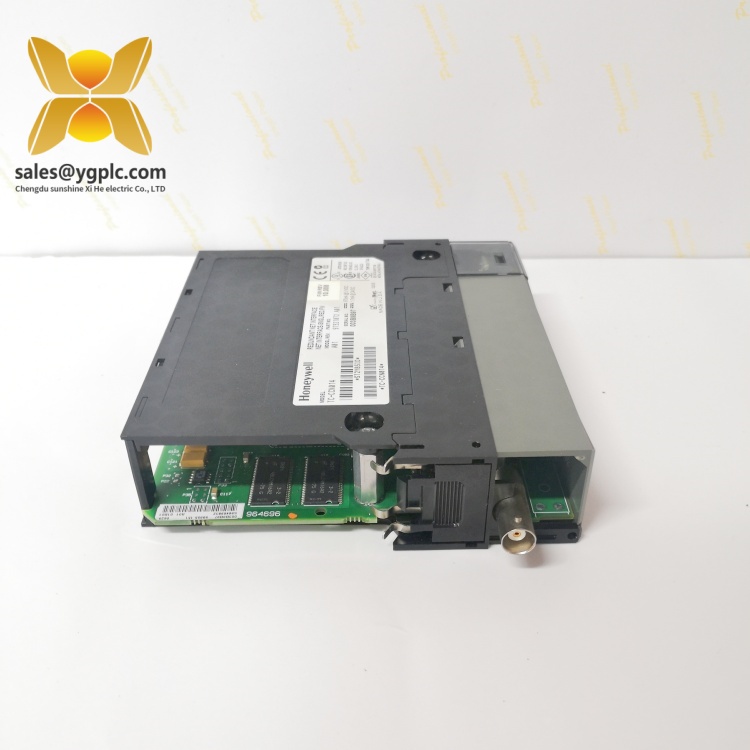

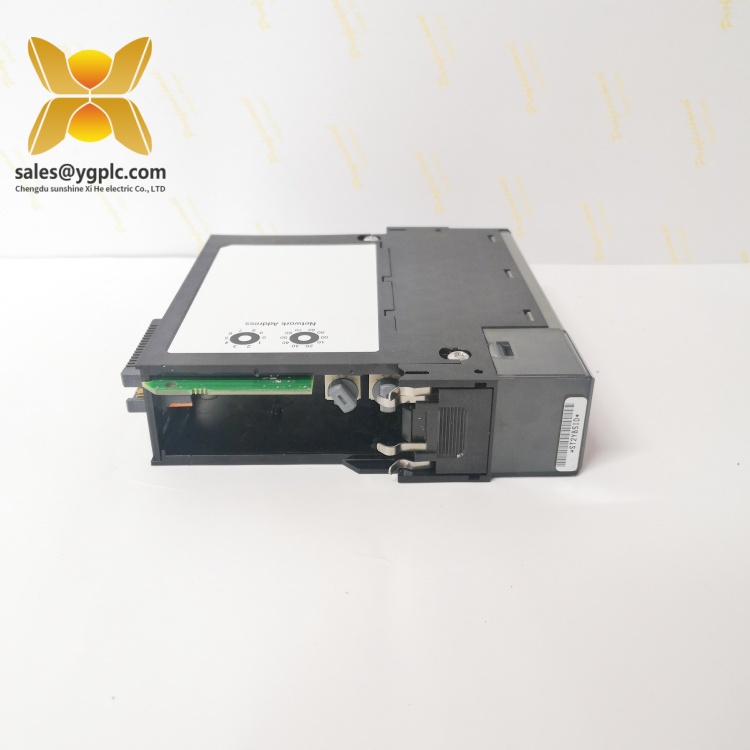

HONEYWELL TC-CCN014 Communication Network Card
Product Overview：HONEYWELL TC-CCN014
The HONEYWELL TC-CCN014 communication network card is a crucial component designed to enhance the connectivity and data exchange capabilities within industrial automation systems. As part of Honeywell’s advanced automation product lineup, this card serves as a vital link between different devices and subsystems, enabling seamless communication and efficient operation across complex industrial setups.
This TC-CCN014 card is engineered to support multiple communication protocols, allowing it to interface smoothly with a wide range of industrial equipment. Its core function lies in facilitating the transfer of data between controllers, sensors, and actuators, ensuring that information is transmitted accurately and in a timely manner. In an industrial automation system, the TC-CCN014 card plays a pivotal role in maintaining the overall integrity and functionality of the network. It helps in integrating various components into a unified system, enabling operators to monitor and control processes with greater precision and reliability.
With its robust design and high-performance capabilities, the HONEYWELL TC-CCN014 card can withstand the demanding conditions often found in industrial environments. Whether it’s in a manufacturing plant, a power generation facility, or a chemical processing unit, this card provides the necessary communication infrastructure to keep operations running smoothly. Its ability to handle large volumes of data and support real-time communication makes it an essential asset for modern industrial automation, contributing significantly to increased productivity and reduced downtime.
Technical Specifications：HONEYWELL TC-CCN014
| Parameter Name | Parameter Value |
|---|---|
| Product Model | TC-CCN014 |
| Manufacturer | HONEYWELL |
| Product Type | Communication Network Card |
| Electrical Input | 24V DC |
| Communication Protocols | Profibus DP, Modbus RTU/TCP, Ethernet/IP |
| Physical Dimensions | 180mm x 100mm x 35mm |
| Weight | 0.6 kg |
| Place of Origin | United States |
| Interface Type | RJ45 (Ethernet), RS485/RS232 |
| Operating Temperature | -20°C to 60°C |
| Humidity | 5% – 95% non-condensing |
| Installation Type | Rack-mounted |
TC-CCN014
Main features and advantages：HONEYWELL TC-CCN014
Versatile Protocol Support: The HONEYWELL TC-CCN014 card stands out with its support for multiple communication protocols like Profibus DP, Modbus, and Ethernet/IP. This versatility allows it to be integrated into diverse industrial networks without the need for extensive modifications, reducing the complexity and cost of system integration. It can communicate effectively with different brands and types of equipment, making it a flexible choice for various automation projects.
High-Speed Data Transfer: Capable of handling high volumes of data at rapid speeds, the TC-CCN014 ensures that real-time information is promptly transmitted across the network. In industrial settings where split-second decisions can impact productivity and safety, this feature is invaluable. It enables seamless monitoring and control of processes, allowing operators to respond immediately to any changes or anomalies.
Rugged and Reliable Design: Built to endure harsh industrial conditions, the TC-CCN014 card features a durable construction. Its wide operating temperature range from -20°C to 60°C and resistance to humidity ensure consistent performance even in challenging environments. The robust design minimizes the risk of failures due to environmental factors, providing long-term reliability and reducing maintenance costs.
Easy Integration and Configuration: With its standard interfaces and user-friendly configuration tools, the HONEYWELL TC-CCN014 card can be easily installed and set up within existing automation systems. Its rack-mounted design simplifies the physical installation process, while intuitive software interfaces make it straightforward for technicians to configure communication settings, reducing the time and effort required for deployment.
TC-CCN014
Application areas：HONEYWELL TC-CCN014
In the manufacturing industry, the HONEYWELL TC-CCN014 card is widely used to connect different machines and production lines. It enables seamless communication between CNC machines, robotic arms, and conveyor systems, allowing for coordinated operation and efficient production flow. For example, in an automotive manufacturing plant, it can ensure that the assembly line equipment communicates effectively, reducing errors and improving production speed.
In power generation facilities, this card plays a crucial role in monitoring and controlling power generation processes. It connects turbines, generators, and other critical equipment to the central control system, enabling operators to monitor performance in real-time, adjust parameters as needed, and ensure a stable power supply to the grid. It helps in detecting potential issues early, preventing costly breakdowns and ensuring the reliability of power generation.
The chemical processing industry also benefits significantly from the TC-CCN014 card. It is used to connect sensors and control valves in chemical reactors, storage tanks, and pipelines. By facilitating accurate communication, it helps in maintaining precise control over chemical processes, ensuring safety and compliance with environmental regulations. It allows for the seamless transfer of data related to temperature, pressure, and chemical composition, enabling operators to make informed decisions.
In logistics and warehousing, the card is used to integrate automated guided vehicles (AGVs), conveyor belts, and inventory management systems. It enables real-time tracking of goods movement, optimizing warehouse operations and improving overall efficiency. The HONEYWELL TC-CCN014 card ensures that all components of the automated logistics system work in harmony, reducing delays and enhancing productivity.
TC-CCN014
Related products：HONEYWELL TC-CCN014
- HONEYWELL TC-CCN012: A previous generation model, the TC-CCN012 offers similar basic communication functions but has a slightly lower data transfer rate compared to the TC-CCN014. It is suitable for less data-intensive applications where cost is a significant factor.
- HONEYWELL TC-CCN016: An upgraded version of the TC-CCN014, the TC-CCN016 features enhanced processing power and additional communication ports. It is designed for larger and more complex industrial networks that require higher data throughput and more connectivity options.
- HONEYWELL FC-PSU01: This is a power supply unit that can be used in conjunction with the TC-CCN014. It provides a stable and reliable power source, ensuring the proper functioning of the communication network card even in the presence of power fluctuations.
- HONEYWELL TC-IOM008: An input/output module, the TC-IOM008 works with the TC-CCN014 to expand the system’s I/O capabilities. It allows for the connection of more sensors and actuators, enabling comprehensive monitoring and control of industrial processes.
- HONEYWELL TC-CON003: A control module, the TC-CON003 complements the TC-CCN014 by executing control algorithms. Together, they form a powerful combination for managing complex automation tasks in industrial settings.
- HONEYWELL TC-COM005: Another communication module, the TC-COM005 can be used alongside the TC-CCN014 to provide redundant communication paths. This improves the overall reliability of the industrial network, ensuring continuous operation even in case of a failure.
Installation and Maintenance：HONEYWELL TC-CCN014
Installation Preparation: Before installing the HONEYWELL TC-CCN014 card, ensure that the power supply is turned off to avoid electrical hazards. Verify that the rack where the card will be mounted is properly grounded and has sufficient space. Clean the rack slots to remove any dust or debris that could affect the card’s performance. Check the compatibility of the card with the existing automation system, including the communication protocols and power requirements. Once everything is confirmed, carefully insert the TC-CCN014 card into the designated slot, making sure it is firmly seated. Then, connect the necessary cables for power and communication, following the provided wiring diagrams.
Maintenance Recommendations: Regularly inspect the TC-CCN014 card for any signs of physical damage, such as cracks or loose connections. Check the LED indicators on the card to ensure they are functioning correctly and showing normal operation status. Periodically clean the card’s surface and ventilation holes to prevent dust accumulation, which can cause overheating. Update the card’s firmware as recommended by Honeywell to ensure it has the latest features and security patches. In case of any communication issues, use the diagnostic tools provided to troubleshoot and identify the problem. If a fault is detected, contact our technical support team promptly for assistance.
TC-CCN014
Product guarantee：HONEYWELL TC-CCN014
Our company offers a one-year quality warranty service for the HONEYWELL TC-CCN014 card, covering any hardware malfunctions that are not caused by human factors. During this warranty period, if the product experiences abnormal performance or functional failure, we will provide a replacement service without delay. We understand the importance of uninterrupted industrial operations, and our dedicated support team is always ready to assist with any technical issues. For discontinued models or urgent demands, our extensive global supply chain network enables us to respond quickly to customers’ needs for scarce spare parts. With 17 years of experience in the industrial control industry, we are committed to providing reliable products and services that support the continuous and stable operation of your industrial systems.
For more information or to inquire about the HONEYWELL TC-CCN014 card, feel free to contact us via Whatsapp at +86 18859254943 or email us at sales@ygplc.com.
