GE IC695ALG704-DC is a high-performance 4-channel non-isolated analog output module designed for GE’s PACSystems RX3i platform, engineered to deliver precise control signals for industrial automation applications. This module generates configurable voltage (±10V DC, 0–10V DC) and current (4–20mA, 0–20mA) outputs, making it ideal for regulating devices such as control valves, actuators, and variable-speed drives in manufacturing, energy, and process industries. With its 16-bit resolution and fast update rate (8ms per channel), the GE IC695ALG704-DC ensures accurate and responsive control in dynamic industrial environments.
Product Overview
The GE IC695ALG704-DC serves as a critical interface between the PACSystems RX3i controller and field devices, converting digital commands into analog signals that drive process-critical equipment. Each channel supports independent configuration for voltage or current outputs, eliminating the need for dedicated modules and reducing system complexity. The module’s non-isolated design allows for cost-effective integration in applications where galvanic isolation is not required, while its robust construction ensures reliable operation in harsh conditions, including temperature ranges from 0°C to 60°C .
As part of the RX3i ecosystem, the GE IC695ALG704-DC seamlessly integrates with CPUs, power supplies, and communication modules. Its compact form factor (3.4 cm x 14.5 cm x 14 cm) optimizes rack space, and LED indicators provide real-time status monitoring for each channel. The module’s high-precision output signals (±0.15% full-scale accuracy at 25°C) ensure stable control in processes such as chemical dosing, pressure regulation, and flow optimization .
Technical Specifications
| Product model | GE IC695ALG704-DC |
|---|---|
| Manufacturer | GE |
| Product type | 4-channel non-isolated analog output module |
| Output types | Voltage (±10V DC, 0–10V DC), current (4–20mA, 0–20mA) |
| Resolution | 16-bit (14.9–15.9 bits depending on range) |
| Number of channels | 4 (non-isolated) |
| Update rate | 8ms per channel |
| Output load | Voltage: ≥2kΩ; Current: ≤850Ω |
| Power consumption | 375mA @ +3.3V DC, 160mA @ +24V DC |
| Physical dimensions | 3.4 cm x 14.5 cm x 14 cm (1.34 in x 5.71 in x 5.51 in) |
| Weight | 0.91 kg (2.01 lbs) |
| Terminal block compatibility | IC694TBB032 (box-style), IC694TBS032 (spring-style) |
| Operating temperature | 0°C to 60°C (32°F to 140°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Safety certifications | UL, CSA, CE |
| HART protocol support | Not supported |

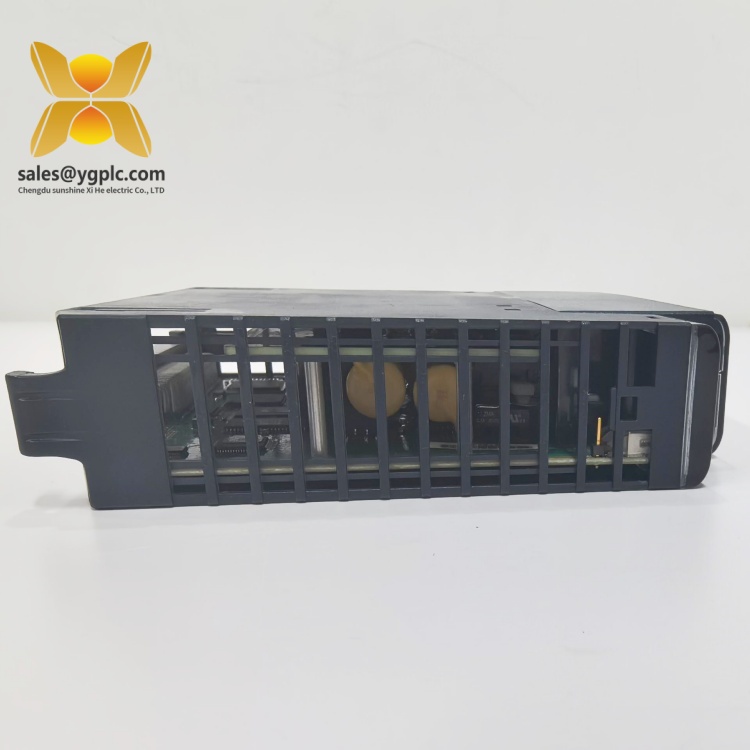

IC695ALG704-DC
Related Products
- GE IC694TBB032: Box-style terminal block 配套使用 with the GE IC695ALG704-DC for secure field wiring connections, ensuring reliable signal transmission .
- GE IC695CPE305: Mid-range CPU module that pairs with the GE IC695ALG704-DC to execute complex control algorithms and data processing.
- GE IC695PSD140: Power supply module providing stable 24V DC power to the GE IC695ALG704-DC and connected devices.
- GE IC695CHS016: 16-slot universal backplane that houses the GE IC695ALG704-DC and other RX3i modules for scalable system design.
- GE IC695ALG412: 12-channel analog input module that complements the GE IC695ALG704-DC in systems requiring both signal acquisition and output control.
Main Features and Advantages
Flexible Output Configurations: The GE IC695ALG704-DC allows each channel to be independently configured for voltage or current outputs, supporting multiple ranges (e.g., ±10V DC, 4–20mA). This versatility reduces the need for specialized modules, simplifying inventory management and system design .
High Precision and Stability: With 16-bit resolution and calibrated accuracy of ±0.15% at 25°C, the module delivers consistent performance in critical applications such as pharmaceutical batch processing and power plant turbine control. Its advanced filtering algorithms minimize noise interference, ensuring reliable signal integrity .
Cost-Effective Non-Isolated Design: The module’s non-isolated architecture offers a cost-efficient solution for applications where galvanic isolation is unnecessary, while still meeting industrial standards for durability and safety .
Easy Integration and Maintenance: The GE IC695ALG704-DC is fully compatible with GE’s Proficy software suite, enabling seamless programming and diagnostics. LED indicators on each channel provide quick status checks, while software-based configuration eliminates the need for hardware adjustments .
IC695ALG704-DC
Installation and Maintenance
Pre-installation Preparations: Before installing the GE IC695ALG704-DC, power off the RX3i chassis and verify compatibility with the CPU firmware (version 3.0 or later). Clean the mounting slot to remove debris and ensure proper airflow. Use the appropriate terminal block (e.g., GE IC694TBB032) to connect field devices, following the wiring diagram to ensure correct polarity and signal type .
Maintenance Suggestions: Regularly inspect the module’s LED indicators for 异常 status and check terminal connections for tightness during scheduled system shutdowns. Clean dust from the surface with a dry cloth to maintain optimal thermal performance. If a channel fails, verify the connected device’s functionality before replacing the module. For long-term storage, keep the GE IC695ALG704-DC in a dry environment within its specified temperature range .
Application Fields
The GE IC695ALG704-DC is widely used in industries requiring precise analog control. In chemical processing, it regulates valve positions to maintain optimal reaction conditions in reactors, ensuring product quality and process safety. Water treatment plants utilize its current outputs to control chemical dosing pumps, ensuring consistent disinfection and filtration efficiency .
In energy production, the module adjusts turbine governor settings based on load demands, optimizing power generation efficiency. Food and beverage manufacturers rely on its voltage outputs to control conveyor belt speeds and packaging machinery, ensuring production line synchronization and product consistency .
IC695ALG704-DC
Product Guarantee
Our company offers a one-year quality warranty service for the GE IC695ALG704-DC, covering hardware malfunctions not caused by human factors. During the warranty period, if the module shows abnormal performance or functional failure, we will provide replacement services. Established in 2007, our company specializes in distributing industrial control spare parts, including many unpopular and discontinued models, with a large inventory in stock. Leveraging our global supply chain network, we can quickly respond to customers’ urgent procurement needs for scarce spare parts, ensuring the continuous and stable operation of industrial systems .
