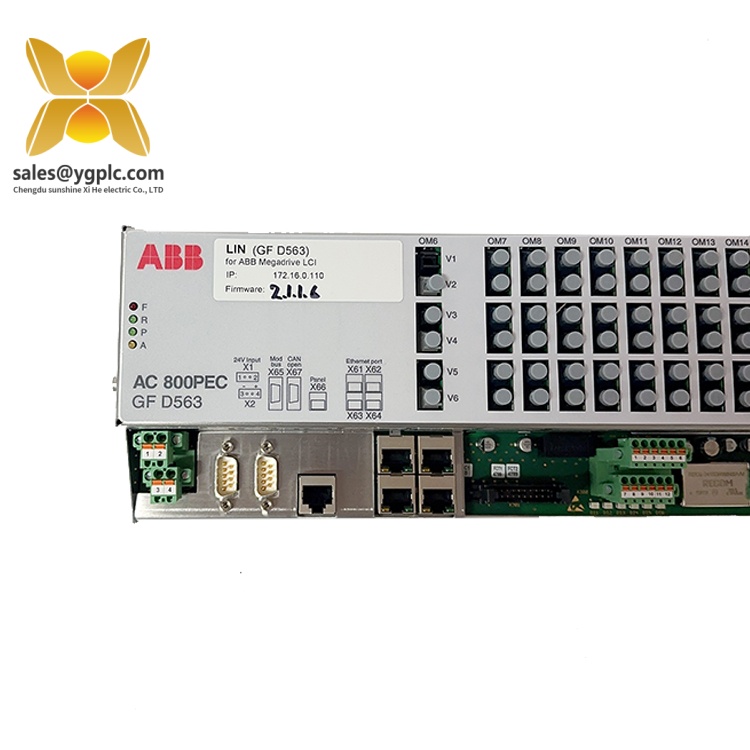

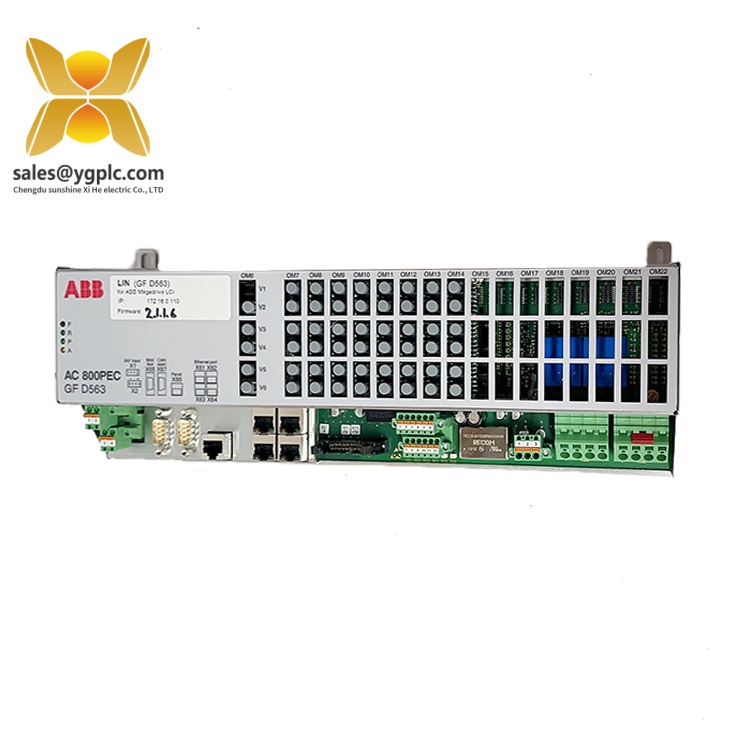

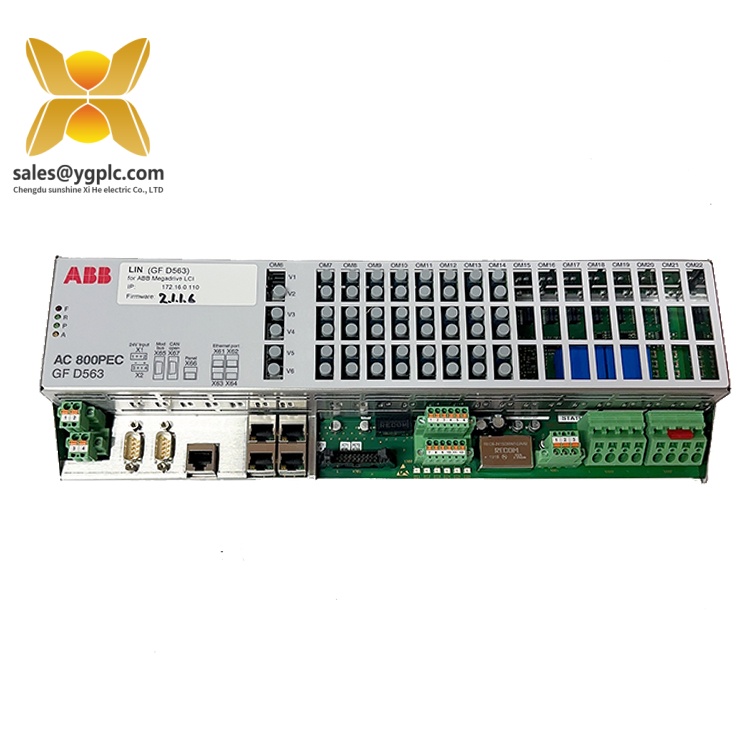

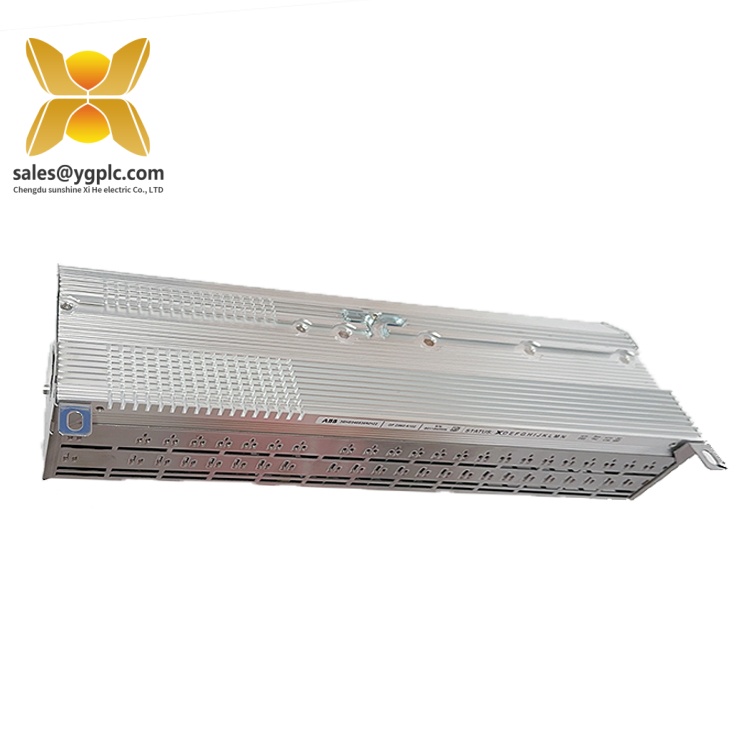

ABB GFD563A102 3BHE046836R0102 Product Specification
Product Overview：ABB GFD563A102 3BHE046836R0102
The ABB GFD563A102 3BHE046836R0102 is a high-performance industrial control module designed for mission-critical automation systems. Engineered by ABB, a global leader in power and automation technologies, this module is part of the AC 800PEC controller family, renowned for its scalability, reliability, and advanced processing capabilities. The ABB GFD563A102 3BHE046836R0102 serves as a central component in distributed control systems (DCS), enabling precise monitoring and regulation of complex industrial processes across industries such as power generation, oil and gas, and manufacturing.
At its core, the ABB GFD563A102 3BHE046836R0102 integrates dual Gigabit Ethernet ports for seamless connectivity to supervisory control systems and other networked devices. It features a 200 MHz PowerPC 405 processor and up to 256 MB DDR SDRAM, delivering robust computational power for real-time data processing and decision-making. The module supports a wide range of communication protocols, including Ethernet, RS-232, RS-485, Profibus DP, and Modbus TCP/IP, ensuring compatibility with diverse industrial networks. Its compact design (100 mm × 80 mm × 50 mm) and DIN rail mounting make it suitable for space-constrained environments while maintaining robust performance in harsh industrial conditions.
In automation systems, the ABB GFD563A102 3BHE046836R0102 acts as a bridge between field devices (e.g., sensors, actuators) and higher-level control systems, ensuring smooth data flow and operational efficiency. Its dual Ethernet ports enable redundant network configurations, enhancing system resilience against communication failures. By combining high-speed processing with reliable connectivity, the ABB GFD563A102 3BHE046836R0102 empowers industries to optimize process performance, reduce downtime, and improve overall plant productivity.
Technical Specifications：ABB GFD563A102 3BHE046836R0102
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB GFD563A102 3BHE046836R0102 |
| Manufacturer | ABB |
| Product Type | Industrial Control Module |
| Processor | 200 MHz PowerPC 405 |
| Memory | 256 MB DDR SDRAM |
| Communication Interfaces | Dual Gigabit Ethernet (10/100/1000BaseT), RS-232, RS-485, Profibus DP, Modbus TCP/IP |
| Power Supply | 24 VDC ±10% |
| Physical Dimensions | 100 mm (W) × 80 mm (H) × 50 mm (D) |
| Weight | 0.22 kg |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–500 Hz, 2 g (IEC 60068-2-6) |
| Shock Resistance | 15 g (IEC 60068-2-27) |
| Certifications | CE, UL, CSA |
GFD563A102 3BHE046836R0102
Main Features and Advantages：ABB GFD563A102 3BHE046836R0102
High-Speed Processing: The ABB GFD563A102 3BHE046836R0102’s 200 MHz PowerPC 405 processor ensures rapid execution of control algorithms and real-time data analysis. This capability is critical for applications requiring split-second decisions, such as turbine control or high-speed production lines.
Dual Gigabit Ethernet Connectivity: With two independent Ethernet ports, the module supports redundant network setups, minimizing the risk of communication failures. This feature is particularly valuable in industrial settings where continuous operation is non-negotiable, such as power plants or offshore oil platforms.
Versatile Communication Protocols: The module supports multiple industrial protocols, including Profibus DP and Modbus TCP/IP, allowing seamless integration with a wide range of field devices and legacy systems. This flexibility makes the ABB GFD563A102 3BHE046836R0102 ideal for multi-vendor automation environments.
Rugged Design: Built to withstand extreme conditions, the module operates reliably in temperatures ranging from -20°C to +70°C and resists vibration and shock. Its robust construction ensures longevity in harsh industrial environments, reducing maintenance costs and downtime.
User-Friendly Configuration: The ABB GFD563A102 3BHE046836R0102 is compatible with ABB’s System 800xA engineering software, providing a unified platform for programming, simulation, and diagnostics. This intuitive interface streamlines system setup and troubleshooting, empowering engineers to optimize performance efficiently.
Application Areas：ABB GFD563A102 3BHE046836R0102
The ABB GFD563A102 3BHE046836R0102 is widely deployed in industries where precise control and high-performance automation are paramount:
-
Power Generation:
- Used in gas and steam turbine control systems to monitor speed, temperature, and pressure, ensuring optimal energy production and grid stability.
- Supports real-time adjustments to turbine operations based on load demands, improving efficiency and reducing emissions.
-
Oil and Gas:
- Integrates with compressor and pump systems to manage fluid flow and pressure in upstream and downstream processes.
- Enables predictive maintenance by analyzing sensor data to detect potential equipment failures before they occur.
-
Manufacturing:
- Controls high-speed production lines, such as those in automotive or pharmaceutical industries, ensuring synchronization and quality control.
- Supports I/O-intensive applications, such as robotics and conveyor systems, leveraging its dual Ethernet ports for redundant communication.
-
Water and Wastewater Treatment:
- Manages pump stations and treatment processes, ensuring consistent water quality and regulatory compliance.
- Provides real-time data logging and remote monitoring, enabling proactive maintenance and resource optimization.
GFD563A102 3BHE046836R0102
Related Products：ABB GFD563A102 3BHE046836R0102
- ABB GFD563A101 3BHE046836R0101: A predecessor model with similar functionality but lower processing power, suitable for less demanding applications.
- ABB PPD113 3BHE023584R2334: A process control module designed for high-speed excitation systems, often used alongside the ABB GFD563A102 3BHE046836R0102 in power generation applications.
- ABB CI871AK01 3BSE092693R1: A Profinet IO communication module that complements the ABB GFD563A102 3BHE046836R0102 in hybrid control systems.
- ABB PM867AK01 3BSE053241R1: A high-performance CPU module for AC 800M systems, providing additional computational resources for complex control applications.
- ABB DI818 3BSE069052R1: A digital input module for handling 24V DC signals, often used in conjunction with the ABB GFD563A102 3BHE046836R0102 in distributed control systems.
Installation and Maintenance：ABB GFD563A102 3BHE046836R0102
Installation Preparation:
Before installing the ABB GFD563A102 3BHE046836R0102, ensure the following:
Before installing the ABB GFD563A102 3BHE046836R0102, ensure the following:
- Verify the power supply meets the module’s requirements (24 VDC ±10%).
- Clean the installation area to prevent dust or debris from affecting performance.
- Align the module with the backplane connectors according to the user manual, ensuring a secure mechanical and electrical connection.
Maintenance Recommendations:
- Regularly inspect the module for physical damage or loose connections, especially in high-vibration environments.
- Monitor the module’s operating temperature and humidity levels to ensure they remain within specified ranges.
- Update firmware and drivers periodically to access the latest features and security patches, using ABB’s dedicated software tools.
- Perform routine diagnostic tests using System 800xA to identify potential issues early, leveraging the module’s built-in LED indicators for quick status checks.
GFD563A102 3BHE046836R0102
Product Warranty：ABB GFD563A102 3BHE046836R0102
Our company provides a one-year quality warranty for the ABB GFD563A102 3BHE046836R0102, covering hardware failures due to non-human factors. During the warranty period, we will replace the product if it exhibits performance anomalies or functional failures. For discontinued models or urgent needs, our global supply chain network ensures rapid response to scarce spare parts requests, supporting the continuous and stable operation of industrial systems.
Note: This product description is based on publicly available technical data and industry applications. For detailed specifications, consult the official ABB datasheet or contact our technical support team.
