GE IS420UCSCH1A-F.V0.1-A Product Specification
Product Overview
The GE IS420UCSCH1A-F.V0.1-A is a high-performance standalone turbine controller designed for GE’s Mark VIe Speedtronic Turbine Control System, serving as the core computational unit for real-time automation in gas turbines, steam turbines, and rotating machinery. Engineered to deliver precise control in mission-critical applications, this controller executes complex algorithms—such as speed regulation, fuel metering, and safety interlocks—with sub-millisecond latency, ensuring operational stability across power generation, oil and gas, and heavy manufacturing sectors.
As part of the Mark VIe distributed architecture, the GE IS420UCSCH1A-F.V0.1-A interfaces with I/O modules via IONET private Ethernet networks, leveraging the IEEE 1588 protocol for clock synchronization within 100 microseconds to coordinate distributed control loops. Its compact form factor—measuring 16.5 cm × 21.0 cm × 3.8 cm and weighing 1.2 kg—mounts directly to control panels without requiring backplanes, optimizing cabinet space. The module operates on 24 VDC power, features no internal fans or batteries, and withstands harsh environments (-30°C to +65°C) with high vibration and electromagnetic interference, making maintenance-free operation possible even in turbine enclosures.
In automation systems, the GE IS420UCSCH1A-F.V0.1-A acts as the decision-making hub, processing inputs from temperature sensors, pressure transmitters, and vibration monitors to adjust turbine governors, compressor anti-surge valves, and generator excitation systems. Its QNX Neutrino real-time operating system supports online logic modifications without system restarts, enabling dynamic optimization of processes like load balancing and emissions control. With Class I Division 2 certification, the GE IS420UCSCH1A-F.V0.1-A ensures compliance in hazardous locations, solidifying its role as a reliable cornerstone of industrial control systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS420UCSCH1A-F.V0.1-A |
| Manufacturer | General Electric (GE) |
| Product Type | Standalone Turbine Controller |
| Series | Mark VIe Speedtronic Turbine Control System |
| Processor | 1.0 GHz dual-core industrial-grade CPU |
| Memory | 512 MB DDR3 RAM, 4 GB flash storage |
| Power Supply | 24 VDC ±10% (1.5 A max) |
| Physical Dimensions | 16.5 cm (height) × 21.0 cm (width) × 3.8 cm (depth) |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Communication Protocol | IONET, IEEE 1588, TCP/IP |

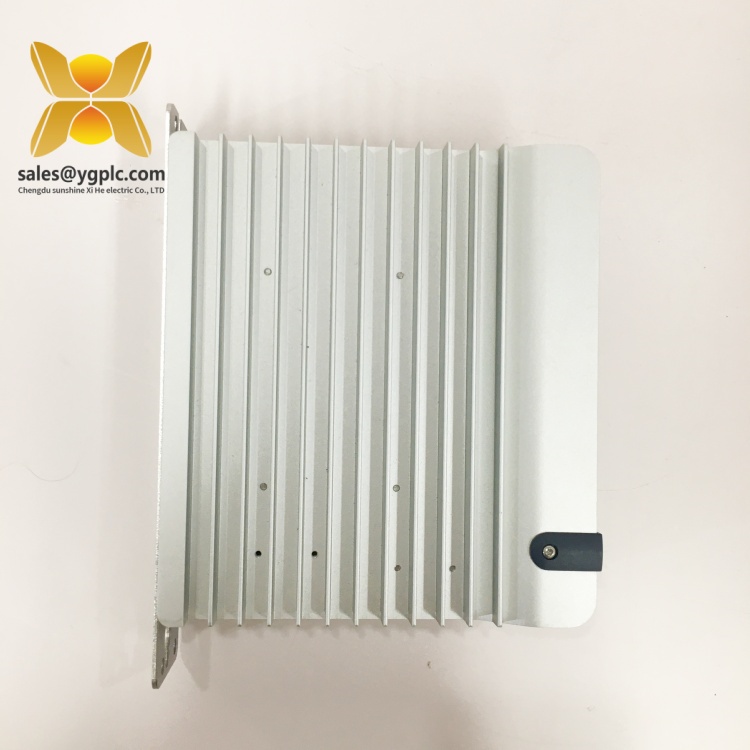

| Mounting Type | Panel-mount with vertical cooling fins |
| Certifications | CE, UL 61010-1, Class I Division 2 (Groups A-D) |
|
Main Features and Advantages
High-Speed Real-Time Processing:
The GE IS420UCSCH1A-F.V0.1-A’s 1.0 GHz dual-core CPU executes control logic with sub-millisecond response times, critical for regulating turbine speed during grid fluctuations or sudden load changes. This processing power ensures precise fuel-air mixture adjustments in gas turbines, minimizing emissions while maximizing efficiency.
The GE IS420UCSCH1A-F.V0.1-A’s 1.0 GHz dual-core CPU executes control logic with sub-millisecond response times, critical for regulating turbine speed during grid fluctuations or sudden load changes. This processing power ensures precise fuel-air mixture adjustments in gas turbines, minimizing emissions while maximizing efficiency.
Rugged environmental resilience:
With a triple-layer conformal coating and IP20-rated enclosure, the GE IS420UCSCH1A-F.V0.1-A resists dust, moisture, and chemical exposure. It operates reliably in temperatures ranging from -30°C (arctic pipelines) to +65°C (desert power plants) and withstands vibration (10–2000 Hz, 10 G rms), making it ideal for harsh industrial settings.
With a triple-layer conformal coating and IP20-rated enclosure, the GE IS420UCSCH1A-F.V0.1-A resists dust, moisture, and chemical exposure. It operates reliably in temperatures ranging from -30°C (arctic pipelines) to +65°C (desert power plants) and withstands vibration (10–2000 Hz, 10 G rms), making it ideal for harsh industrial settings.
Seamless I/O integration:
The controller connects to Mark VIe I/O modules—such as IS220PDIOH1B (discrete I/O) and IS230SRTDH2A (RTD inputs)—via IONET, eliminating the need for external gateways. Its IEEE 1588 synchronization ensures data from distributed sensors aligns within 100 microseconds, critical for coordinating turbine safety systems.
The controller connects to Mark VIe I/O modules—such as IS220PDIOH1B (discrete I/O) and IS230SRTDH2A (RTD inputs)—via IONET, eliminating the need for external gateways. Its IEEE 1588 synchronization ensures data from distributed sensors aligns within 100 microseconds, critical for coordinating turbine safety systems.
Maintenance-free design:

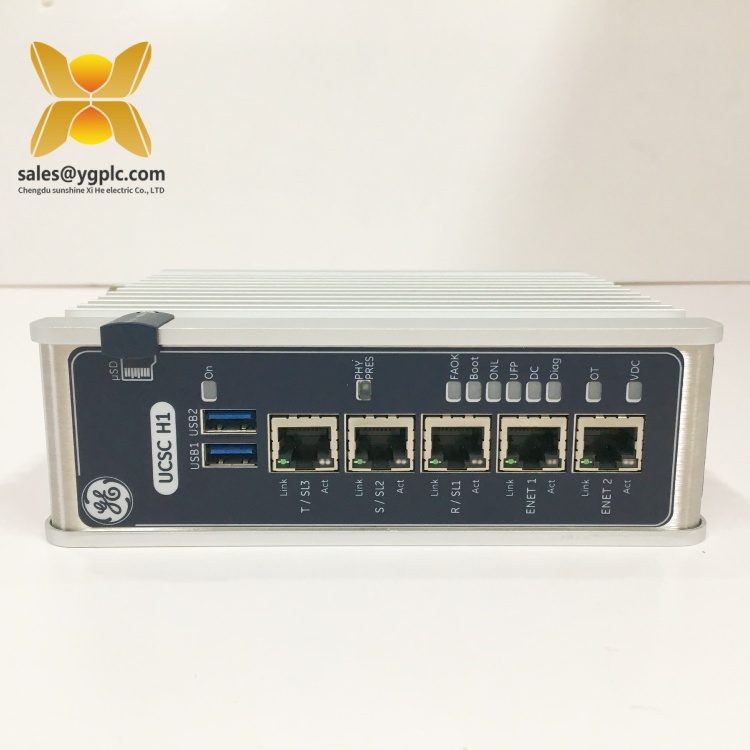

Absence of internal fans or batteries reduces downtime and replacement costs. Front-panel LEDs (Power, Fault, Sync) provide at-a-glance status updates, while remote diagnostics via GE’s Proficy software enable proactive fault detection, such as identifying degraded communication links before failures occur.
Absence of internal fans or batteries reduces downtime and replacement costs. Front-panel LEDs (Power, Fault, Sync) provide at-a-glance status updates, while remote diagnostics via GE’s Proficy software enable proactive fault detection, such as identifying degraded communication links before failures occur.
Flexible in-service updates:
The GE IS420UCSCH1A-F.V0.1-A supports online logic modifications without system restarts, allowing engineers to optimize control algorithms during turbine operation. This feature is invaluable for adjusting to seasonal load changes or implementing efficiency upgrades without disrupting production.
The GE IS420UCSCH1A-F.V0.1-A supports online logic modifications without system restarts, allowing engineers to optimize control algorithms during turbine operation. This feature is invaluable for adjusting to seasonal load changes or implementing efficiency upgrades without disrupting production.
Application Areas
-
Power Generation:
- Regulates gas turbine speed by processing inputs from speed probes and adjusting fuel valves, ensuring stable operation during grid frequency variations.
- Manages steam turbine bypass valves using data from pressure transmitters, preventing overpressure during startup and shutdown phases.
- Integrates with generator excitation systems to maintain voltage stability, supporting grid synchronization in combined-cycle plants.
-
Oil and Gas:
- Controls compressor anti-surge valves in offshore platforms, using pressure sensor data to adjust flow rates and prevent mechanical damage.
- Executes emergency shutdown (ESD) logic in refineries, triggering valve closures within milliseconds of detecting hazardous conditions.
- Monitors pipeline pump vibrations, adjusting motor speeds to avoid cavitation and extend equipment life.
-
Heavy Manufacturing:
- Synchronizes turbine-driven pumps in chemical plants, maintaining consistent flow rates for batch processing.
- Regulates industrial boiler temperatures by adjusting fuel injectors, ensuring compliance with process specifications.
-
Renewable Energy:
- Optimizes biomass turbine operations by adjusting fuel feed rates based on combustion chamber temperature readings.
- Integrates with hybrid power systems, balancing turbine output with solar/wind generation to stabilize microgrids.
Related Products
- GE IS220PDIOH1B: Discrete I/O module that sends valve status signals to GE IS420UCSCH1A-F.V0.1-A for turbine governor control.
- GE IS230SRTDH2A: RTD input module providing temperature data to GE IS420UCSCH1A-F.V0.1-A for bearing health monitoring.
- GE IS420ESWBH3A: Ethernet switch that extends IONET connectivity, enabling GE IS420UCSCH1A-F.V0.1-A to communicate with remote I/O racks.
- GE IS220PPROS1B: Redundant power supply delivering stable 24 VDC to GE IS420UCSCH1A-F.V0.1-A, ensuring uninterrupted operation.
- GE IS220PVIBH1A: Vibration monitoring module whose data is processed by GE IS420UCSCH1A-F.V0.1-A to trigger maintenance alerts.
- GE IS400STCIS2AFF: Analog terminal board that transmits pressure sensor data to GE IS420UCSCH1A-F.V0.1-A for compressor control.
Installation and Maintenance
Pre-installation preparations: Before installing GE IS420UCSCH1A-F.V0.1-A, verify the control panel is grounded to prevent electrostatic discharge. Use an ESD wrist strap during handling. Mount the module vertically with 30 mm clearance around cooling fins to ensure airflow. Connect 24 VDC power to the terminal block, ensuring correct polarity, and link IONET Ethernet cables to I/O modules and the Mark VIe supervisory system. Configure network settings via Proficy software to enable IEEE 1588 synchronization.
Maintenance suggestions: Perform monthly visual checks of GE IS420UCSCH1A-F.V0.1-A front-panel LEDs to confirm normal operation (green Power, steady Sync). Clean dust from cooling fins with compressed air quarterly to maintain thermal efficiency. Annually, use Proficy to update firmware and validate IONET latency (target <5 ms). Test redundancy by temporarily disconnecting one IONET cable, ensuring seamless failover to the backup path. Replace the module every 10 years or if processing latency exceeds 10 ms, as aging components may compromise control precision.
