GE IS420YDIAS1B | Mark VIe Safety Discrete Input Module | IS420UCSBH1A

Description

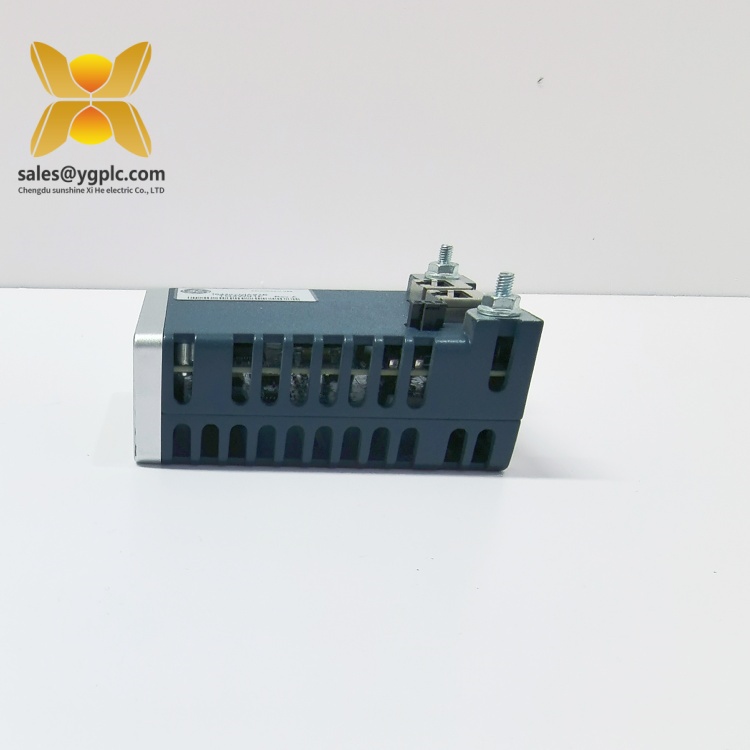

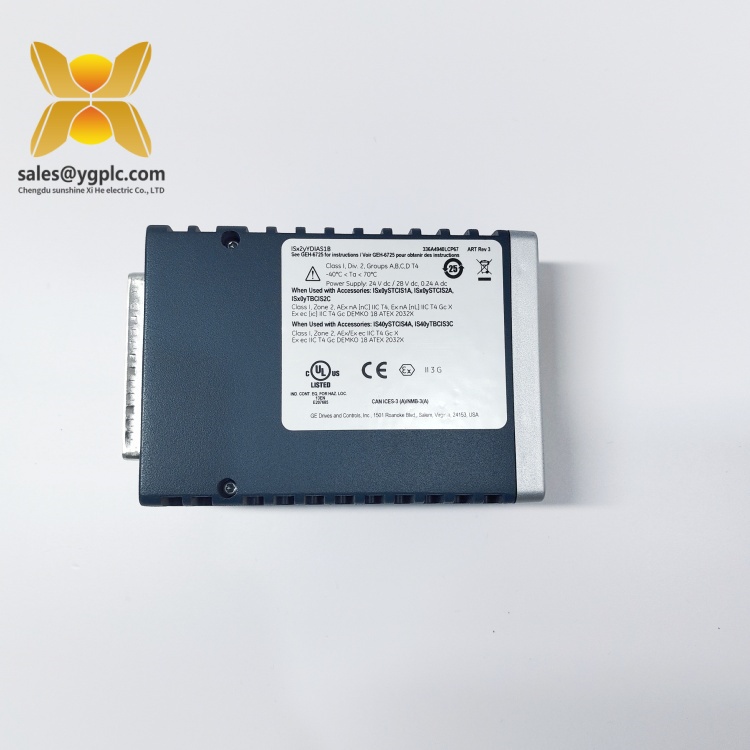

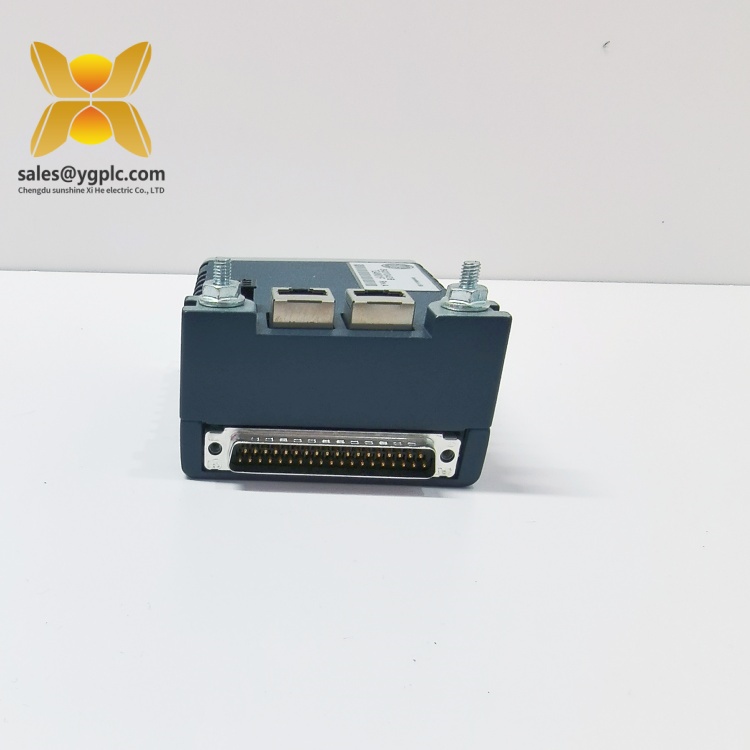

GE IS420YDIAS1B Mark VIe Safety Discrete Input Module

Product Overview

The GE IS420YDIAS1B is a safety-rated discrete input module designed for GE’s Mark VIe and Mark VIeS Speedtronic™ turbine control systems, serving critical roles in power generation, oil and gas, and industrial process automation. As a SIL 2-certified device under IEC 61508, the IS420YDIAS1B delivers fail-safe operation in applications requiring high-integrity safety instrumented systems (SIS), such as turbine overspeed protection, emergency shutdown (ESD) systems, and burner management. It interfaces with GE’s IS420UCSBS1A safety controller and IS420YDOAS1B discrete output module to provide deterministic control over safety-critical processes.

Featuring 24 galvanically isolated discrete input channels, the IS420YDIAS1B accepts contact inputs from field devices like pressure switches, temperature sensors, and emergency stop buttons. Its 24V DC nominal voltage and ±20% tolerance ensure reliable operation in harsh industrial environments. The module supports single-ended or differential input configurations, allowing flexibility in signal conditioning for diverse applications. A conformal-coated circuit board and -40°C to +70°C operating range enable deployment in extreme temperatures, vibration, and corrosive atmospheres common in offshore platforms and refineries.

Within the Mark VIe ecosystem, the IS420YDIAS1B acts as a frontline interface for safety-related signals, converting raw inputs into digital data for processing by the IS420UCSBS1A controller. Its IONet communication protocol ensures low-latency data exchange with the controller and other I/O modules, while LED indicators provide real-time diagnostics for channel status, power health, and fault conditions. Compliance with UL E207685 and IEC 61010 standards underscores its reliability in regulated industrial settings.

Technical Specifications

Main Features and Advantages

SIL 2 Functional Safety: The IS420YDIAS1B is certified to IEC 61508 for SIL 2 applications, making it suitable for safety instrumented systems (SIS) in nuclear power plants, offshore platforms, and chemical facilities. Its hardware and software architecture includes self-diagnostic routines that continuously monitor for faults, ensuring safe operation even in high-risk environments.

Rugged Industrial Design: With a conformal-coated circuit board and -40°C to +70°C operating range, the IS420YDIAS1B withstands extreme temperatures, vibration, and corrosive atmospheres common in refineries and chemical plants. Its metal enclosure resists dust and moisture, maintaining performance in environments where traditional controllers might fail.

Flexible Input Configuration: The module supports 24 discrete inputs configurable for single-ended or differential signals, accommodating a wide range of field devices. Galvanic isolation between channels prevents cross-talk and ensures signal integrity in noisy industrial environments.

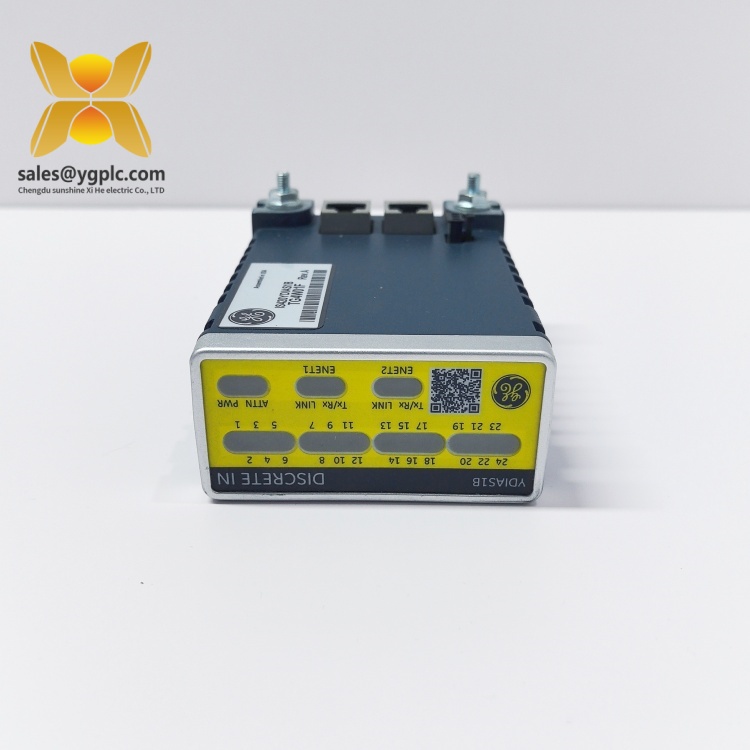

Real-Time Diagnostics: LED indicators provide instant feedback on power status, communication activity, and fault conditions, enabling technicians to quickly identify and resolve issues. The module also supports remote diagnostics via GE’s Proficy software suite, minimizing downtime during maintenance.

Seamless Mark VIe Integration: Engineered specifically for GE’s Mark VIe systems, the IS420YDIAS1B pairs with controllers like the IS420UCSBS1A and I/O modules like the IS420YDOAS1B (discrete output) and IS420YAICS1B (analog I/O), creating a cohesive control network. This compatibility simplifies retrofits, as existing Mark VIe users can integrate the IS420YDIAS1B without extensive reconfiguration.

Application Fields

The GE IS420YDIAS1B is essential in industries where safety and reliability are non-negotiable:

• Power Generation: In nuclear and thermal plants, it monitors turbine trip signals, generator excitation status, and boiler feedwater pump interlocks. Its SIL 2 capability ensures compliance with nuclear safety standards (e.g., 10CFR50), preventing catastrophic failures during transients.
• Oil and Gas: Offshore platforms use the IS420YDIAS1Bto manage ESD valve positions, compressor anti-surge controls, and flare gas system activation. Its hazardous area certification allows installation in Zone 2 environments, reducing the need for explosion-proof enclosures.
• Chemical Processing: Chemical plants deploy the module to monitor reactor temperature switches, emergency depressurization systems, and toxic gas detection sensors. Its real-time diagnostics enable rapid response to process deviations, minimizing environmental risks.
• Marine Propulsion: Shipboard turbine systems rely on the IS420YDIAS1Bto interface engine throttle relays, shaft speed monitoring sensors, and fire suppression system inputs. Its compact size and vibration resistance make it ideal for confined marine environments.

Related Products

1. GE IS420YDOAS1B: A discrete output I/O pack that pairs with the IS420YDIAS1Bto form a complete safety loop, enabling control of actuators and valves in ESD systems.
2. GE IS420UCSBS1A: A SIL 3-certified safety controller that processes inputs from the IS420YDIAS1Band executes critical control logic for turbine protection.
3. GE IS420YAICS1B: An analog I/O pack that complements the IS420YDIAS1Bby providing high-precision signal monitoring for turbine vibration and temperature measurements.
4. GE IS420ESWBH1A: An IONet Ethernet switch that enhances network redundancy by connecting multiple IS420YDIAS1Bmodules and controllers.
5. GE IS220YDIAS1B: A non-safety discrete input module that shares the same form factor as the IS420YDIAS1Bbut lacks SIL certification, suitable for non-critical applications.
6. GE IS410TRLYS1B: A TMR relay output terminal board that integrates with the IS420YDIAS1Bfor hybrid safety control systems.

Installation and Maintenance

Pre-installation preparations: Verify the DIN rail is securely mounted and grounded, with adequate space for the IS420YDIAS1B and any associated modules. Ensure the 28V DC power supply meets voltage tolerances (±2.1%) and is connected to redundant sources. Align the module with the rail, secure it with clips, and torque terminal screws to 0.8–1.0 N·m for reliable connections. Label wires according to the wiring diagram and test continuity before energizing.

Maintenance suggestions: Conduct monthly visual inspections to check for loose terminals, damaged wires, or LED warnings. Clean dust from ventilation slots using compressed air to prevent overheating. Quarterly, verify port connectivity by pinging connected devices and checking LED status. For redundant power systems, test each input individually to ensure failover functionality. When replacing the IS420YDIAS1B, label wires before removal to simplify reinstallation, and retest all channels post-installation to confirm proper operation.

Product Guarantee

Our company offers a one-year quality warranty service for the IS420YDIAS1B, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.

As a leading import and export trade distribution company with 17 years of experience in industrial control, we maintain a large inventory of both common and hard-to-find models, ensuring we meet urgent spare part requirements. Our expertise in GE and other major brands allows us to deliver reliable support for your safety-critical automation systems.
