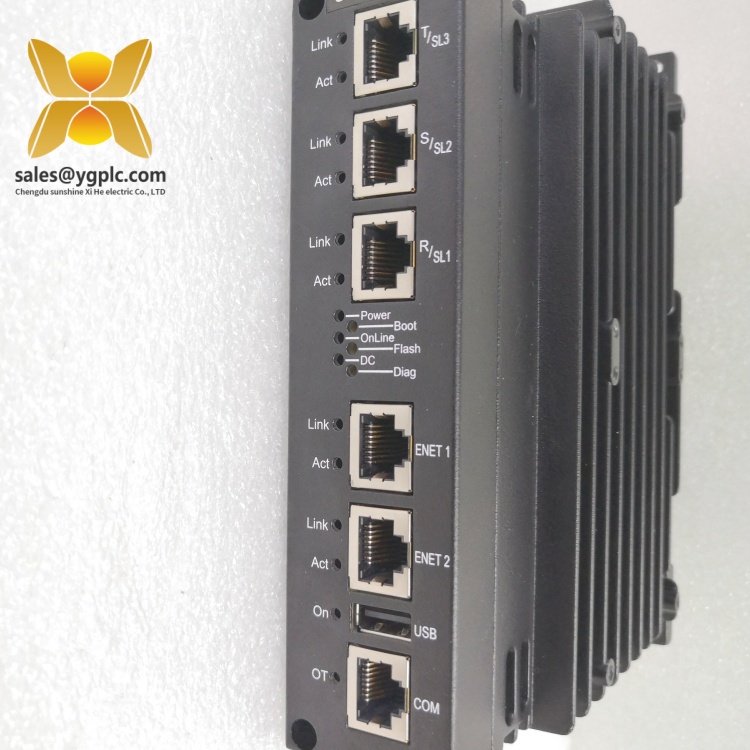

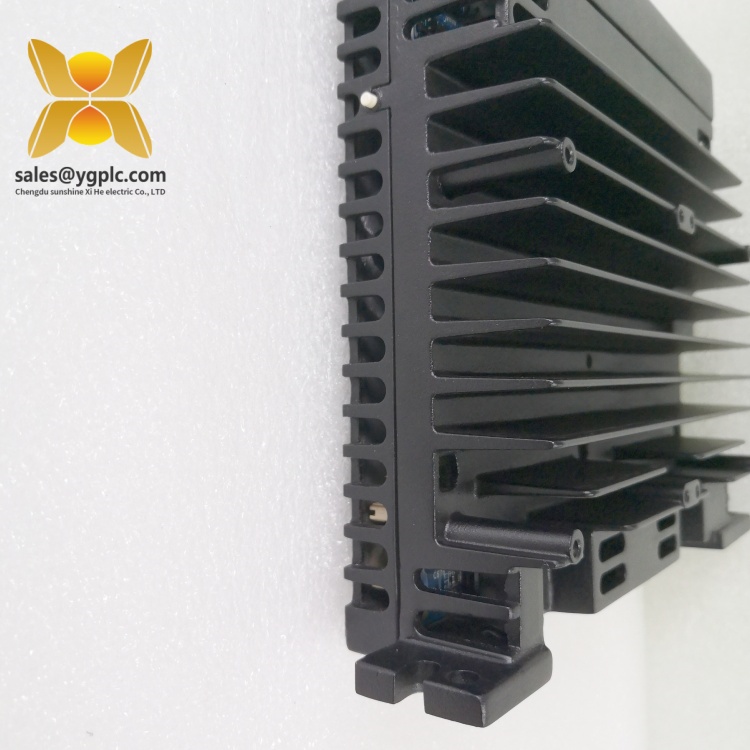

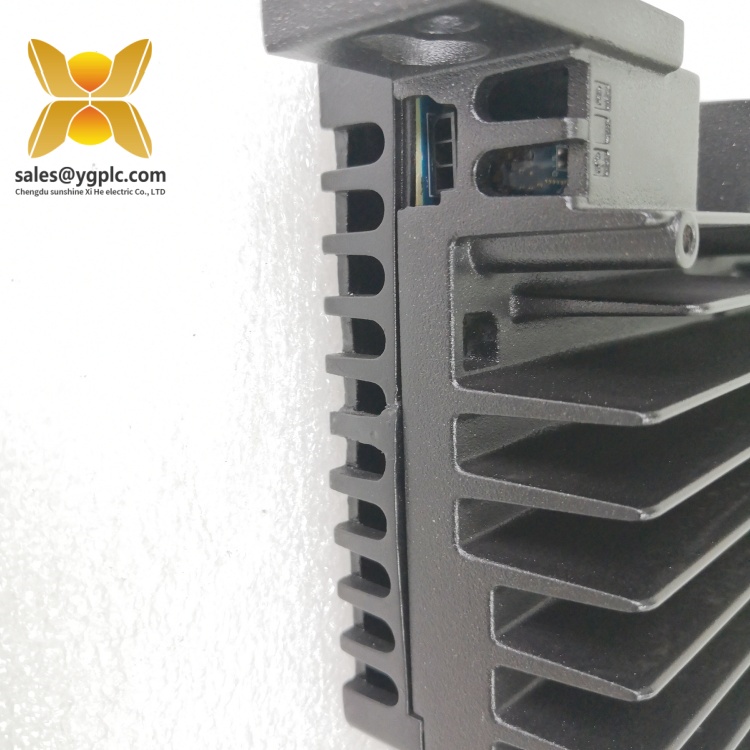

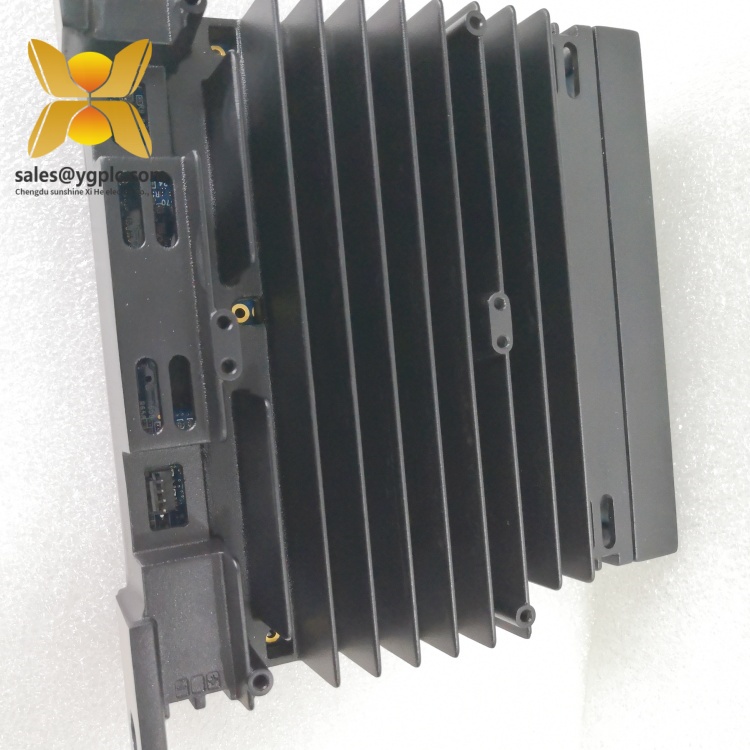

GE IS420UCSBS1A Mark VIeS Safety Controller
Product Overview
The GE IS420UCSBS1A is a high-reliability safety controller module engineered for GE’s Mark VIeS Speedtronic™ turbine control system, a cornerstone of safety-critical automation in power generation, oil and gas, and industrial process control. As a SIL 2/3-certified device under IEC 61508, the IS420UCSBS1A delivers fail-safe operation in applications requiring stringent functional safety, such as turbine overspeed protection, emergency shutdown (ESD) systems, and burner management. It integrates seamlessly with Mark VIeS I/O modules like IS420YDAIH1B and IS220YDAIH1A, providing real-time control and diagnostics for turbine speed, temperature, and pressure loops.
Powered by an Intel EP80579 600 MHz processor and running the QNX Neutrino real-time operating system, the IS420UCSBS1A executes complex control logic with deterministic precision. Its fanless design ensures reliable operation in environments with extreme temperatures (-30°C to +65°C) and high vibration, while UL E207685 certification allows installation in Class I, Division 2 hazardous areas. The controller communicates with I/O modules via IONet, GE’s proprietary industrial Ethernet protocol optimized for low-latency data exchange in distributed control systems.
Within the Mark VIeS ecosystem, the IS420UCSBS1A acts as a standalone computing platform, eliminating the need for a backplane and ensuring no single point of failure. Its flash memory supports field-upgradable firmware, while USB 1.1 connectivity enables easy configuration and diagnostics. Compliance with IEC 61010 and IEEE 802.3 standards underscores its reliability in regulated industrial settings.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS420UCSBS1A |
| Manufacturer | GE |
| Product Type | Safety Controller Module |
| Series | Mark VIeS Speedtronic™ |
| Processor | Intel EP80579 600 MHz |
| Operating System | QNX Neutrino Real-Time OS |
| Power Supply | 28V DC (±2.1%, 27.4–28.6V) |
| Power Consumption | 15.6W nominal / 26.7W peak |
| Physical Dimensions | 42 mm (W) × 204 mm (H) × 5 mm (D) (mounting bracket) |
| Weight | 1 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Panel-mounted (DIN rail optional) |
| Compliance | UL E207685, IEC 61508 (SIL 2/3), IEC 61010 |
| Communication | IONet (10/100Base-TX), USB 1.1 |
| Certifications | Class I, Division 2, Group IIC (hazardous area) |
Main Features and Advantages
SIL 2/3 Functional Safety: The IS420UCSBS1A is certified to IEC 61508 for SIL 2/3 applications, making it suitable for safety instrumented systems (SIS) in nuclear power plants, offshore platforms, and chemical facilities. Its hardware and software architecture includes self-diagnostic routines that continuously monitor for faults, ensuring safe operation even in high-risk environments.
Real-Time Control Capability: The Intel EP80579 processor and QNX Neutrino OS enable deterministic control with sub-millisecond response times, critical for turbine speed regulation and load balancing. The controller supports up to 1,000 I/O points via IONet, allowing seamless integration with GE’s IS420YDAIH1B analog output modules and IS220YDAIH1A analog input modules.
Hazardous Environment Resilience: With UL E207685 certification and a rugged metal enclosure, the IS420UCSBS1A withstands corrosive atmospheres, extreme temperatures, and high vibration—common in oil refineries and marine propulsion systems. Its fanless design eliminates moving parts, reducing maintenance requirements in dusty or humid environments.
Flexible Networking: The IONet interface provides high-speed, deterministic communication with I/O modules and other controllers, supporting redundant ring topologies for fault tolerance. The USB 1.1 port simplifies firmware updates and configuration using GE’s Proficy software suite, minimizing downtime during system upgrades.
Standalone Architecture: Unlike traditional controllers, the IS420UCSBS1A does not rely on a backplane, ensuring no loss of input data during maintenance. This design allows hot-swappable replacements without disrupting critical processes, a key advantage in 24/7 operations like power generation.
Application Fields
The GE IS420UCSBS1A is essential in industries where safety and reliability are non-negotiable:
- Power Generation: In nuclear and thermal plants, it controls turbine trip systems, generator excitation, and boiler feedwater pumps. Its SIL 3 capability ensures compliance with nuclear safety standards (e.g., 10CFR50), preventing catastrophic failures during transients.
- Oil and Gas: Offshore platforms use the IS420UCSBS1A to manage ESD valves, compressor anti-surge controls, and flare gas systems. Its hazardous area certification allows installation in Zone 2 environments, reducing the need for explosion-proof enclosures.
- Chemical Processing: Chemical plants deploy the controller to manage reactor temperature controls, emergency depressurization systems, and toxic gas detection. Its real-time diagnostics enable rapid response to process deviations, minimizing environmental risks.
- Marine Propulsion: Shipboard turbine systems rely on the IS420UCSBS1A to control engine throttle relays, shaft speed monitoring, and fire suppression systems. Its compact size and vibration resistance make it ideal for confined marine environments.
Related Products
- GE IS420YDAIH1B: An analog output I/O pack that pairs with the IS420UCSBS1A for precise control of actuators and valves in safety loops.
- GE IS220YDAIH1A: An analog input I/O pack that provides high-precision signal monitoring for turbine vibration and temperature measurements.
- GE IS420ESWBH1A: An IONet Ethernet switch that enhances network redundancy by connecting multiple IS420UCSBS1A controllers and I/O modules.
- GE IS410TRLYS1B: A TMR relay output terminal board that integrates with the IS420UCSBS1A for hybrid safety control systems.
- GE IS210AEPSG1A: A redundant 24V DC power supply that ensures continuous operation of the IS420UCSBS1A and associated I/O modules.
- GE IS420UCSBS1ABB: A functionally identical variant of the IS420UCSBS1A with alternative mounting options for retrofitting legacy systems.
Installation and Maintenance
Pre-installation preparations: Verify the mounting panel is grounded and rated for the controller’s weight. Ensure the 28V DC power supply meets voltage tolerances and is connected to redundant sources. Align the IS420UCSBS1A with the panel cutout, secure it with mounting brackets, and torque screws to 0.8–1.0 N·m. Connect IONet cables using shielded twisted-pair wiring and terminate with GE-approved connectors. Perform a continuity test on all connections before energizing the system.
Maintenance suggestions: Conduct quarterly visual inspections to check for loose terminals, damaged cables, or abnormal LED indicators. Use GE’s Proficy software to review diagnostic logs and verify firmware versions. Clean dust from ventilation slots using compressed air to prevent overheating. Annually, test the controller’s self-diagnostic routines by simulating a fault condition and confirming the system enters a safe state. When replacing the IS420UCSBS1A, back up configuration files to a USB drive and restore them to the new unit to maintain seamless operation.
Product Guarantee
Our company offers a one-year quality warranty service for the IS420UCSBS1A, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
As a leading import and export trade distribution company with 17 years of experience in industrial control, we maintain a large inventory of both common and hard-to-find models, ensuring we meet urgent spare part requirements. Our expertise in GE and other major brands allows us to deliver reliable support for your safety-critical automation systems.
