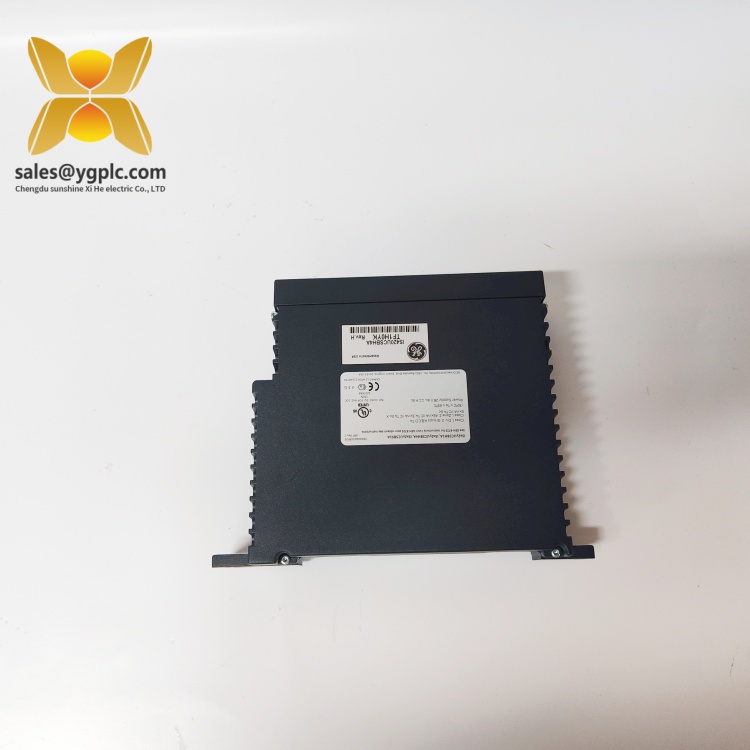

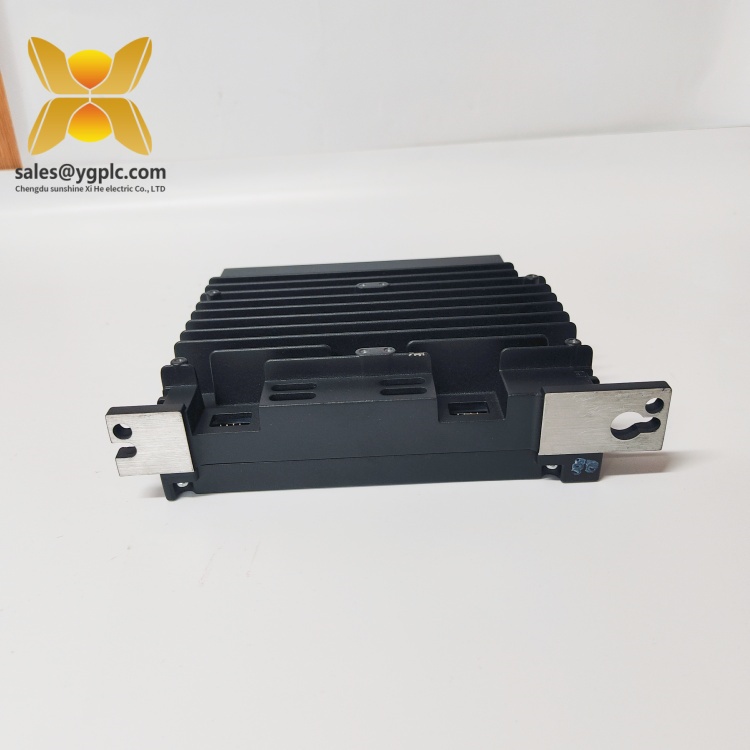

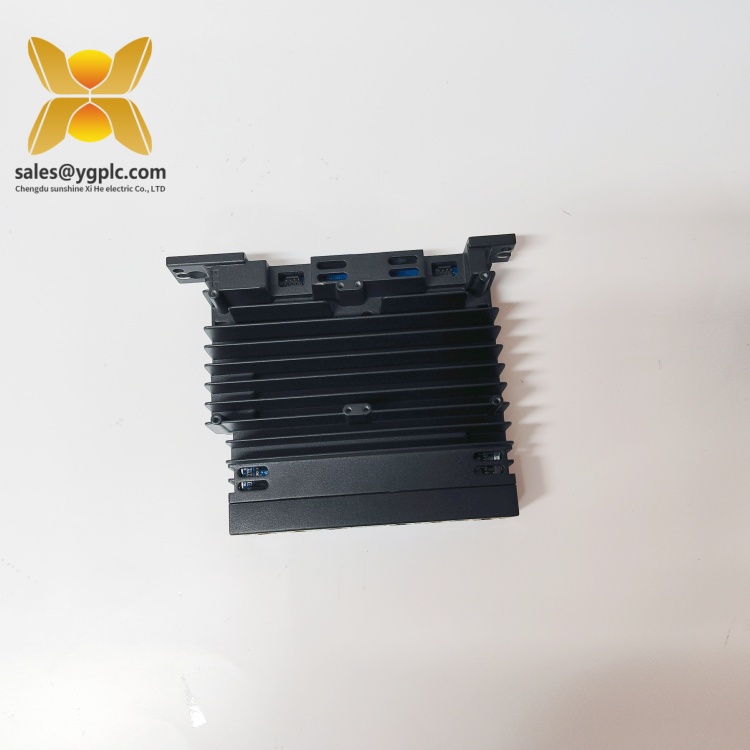

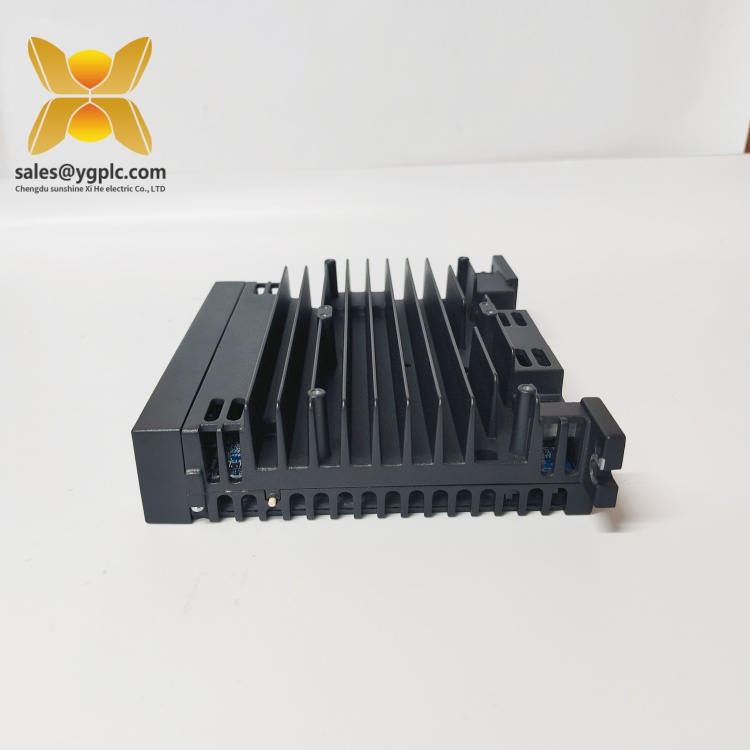

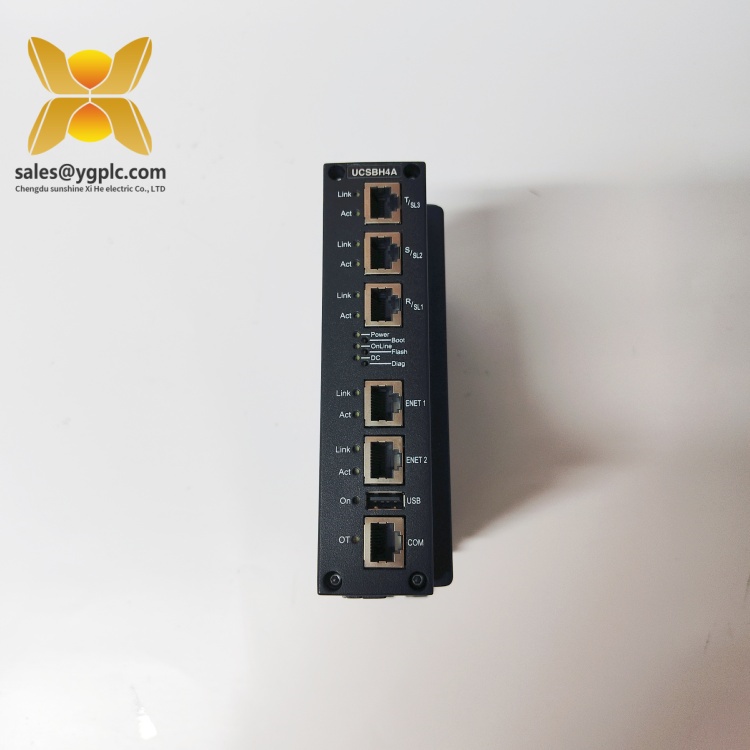

GE IS420UCSBH4A Mark VIe Control Processor Module
Product Overview：GE IS420UCSBH4A
The GE IS420UCSBH4A Mark VIe control processor module is a high-performance industrial component designed as the core computing unit for GE’s Mark VIe Speedtronic turbine control system. As a pivotal part of the IS420 series, this module executes complex control algorithms, manages real-time data processing, and ensures seamless communication between system components, making it indispensable for mission-critical applications in power generation, oil & gas, and heavy industry.
Engineered for precision and reliability, the IS420UCSBH4A features a 32-bit microprocessor and 256 MB of DDR2 RAM, enabling it to handle up to 1,000 control loops simultaneously with sub-millisecond response times. Its dual redundant architecture ensures continuous operation by automatically switching to a backup processor in the event of a fault, minimizing downtime in environments where system availability is critical. The module’s 24V DC power input and compact design (178mm x 127mm x 76mm, 1.3kg) facilitate integration into space-constrained control cabinets, while its -40°C to 70°C operating temperature range ensures stable performance in harsh industrial conditions.
In automation systems, the IS420UCSBH4A serves as the brain of the Mark VIe platform, coordinating between I/O modules, communication gateways, and external devices to maintain precise control over turbine speed, load, and safety systems. Its compatibility with GE’s ToolboxST configuration software allows engineers to customize control strategies, monitor system health, and perform diagnostics remotely, enhancing operational flexibility and reducing maintenance costs. This module is pivotal for industries relying on efficient and safe machinery operation, providing the computational backbone for modern industrial control systems.
Technical Specifications：GE IS420UCSBH4A
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS420UCSBH4A |
| Manufacturer | GE |
| Product Type | Control Processor Module |
| Processor | 32-bit RISC microprocessor |
| Memory | 256 MB DDR2 RAM, 128 MB flash storage |
| Input Voltage | 24V DC ±15% |
| Power Consumption | 20W (typical) |
| Physical Dimensions | 178mm (H) x 127mm (W) x 76mm (D) |
| Weight | 1.3 kg |
| Operating Temperature | -40°C to 70°C |
| Humidity | 5–95% non-condensing |
| Communication Interfaces | Ethernet (10/100 Mbps), RS485, Profibus DP |
| Mounting Type | Rack-mounted (3U height) |
| Country of Origin | United States |
GE IS420UCSBH4A
Key Features and Advantages：GE IS420UCSBH4A
Dual Redundant Architecture: The IS420UCSBH4A incorporates a hot-swappable redundant design, where two identical processors operate in parallel, with the active unit seamlessly transferring control to the standby unit in case of a failure. This feature ensures zero downtime during processor faults, a critical requirement for industries like power generation and oil refining.
High-Speed Processing: With a 32-bit microprocessor and 256 MB RAM, the module handles complex control algorithms and real-time data analysis with exceptional speed, supporting up to 1,000 control loops simultaneously. This capability is essential for managing the intricate dynamics of gas and steam turbines, ensuring precise speed regulation and load sharing.
Flexible Configuration: Compatible with GE’s ToolboxST software, the IS420UCSBH4A allows engineers to configure control strategies, adjust PID parameters, and monitor system performance through an intuitive interface. This flexibility enables customization for diverse applications, from simple pump control to advanced turbine load forecasting.
Robust Environmental Resilience: Built to withstand harsh industrial environments, the module features a stamped aluminum casing and conformal coating on PCBs, protecting against dust, moisture, and electromagnetic interference. Its wide temperature range (-40°C to 70°C) makes it suitable for both arctic oil fields and tropical power plants.
Seamless System Integration: As part of the Mark VIe ecosystem, the IS420UCSBH4A communicates natively with GE’s I/O modules (e.g., IS420PAICH2A analog input cards and IS420DSVOH1A discrete output cards), as well as third-party systems via Profibus and Ethernet. This interoperability reduces integration complexity and enhances system scalability.
GE IS420UCSBH4A
Application Areas：GE IS420UCSBH4A
The GE IS420UCSBH4A Mark VIe control processor module is essential for industries requiring precise, reliable control of high-value rotating equipment:
- Power Generation: Serves as the core controller for gas and steam turbines in combined-cycle power plants, managing speed, voltage, and grid synchronization. For example, in a 500MW gas turbine, the IS420UCSBH4A adjusts fuel flow in real time to maintain optimal efficiency while complying with grid stability standards.
- Oil & Gas: Deployed in offshore platforms and refineries to control compressor trains and pump systems. Its redundant design ensures uninterrupted operation during critical processes like gas extraction and hydrocarbon separation, where downtime could lead to safety hazards or production losses.
- Industrial Manufacturing: Integrates with conveyor systems, robotic arms, and CNC machines in smart factories, enabling real-time process optimization. For instance, in a steel mill, the module coordinates roller speeds and tension control to ensure uniform quality in hot-rolled steel products.
- Water Treatment: Manages pump stations and filtration systems in wastewater treatment plants, adjusting flow rates and chemical dosing based on real-time sensor data. This ensures compliance with environmental regulations while minimizing energy consumption.
- Aerospace Testing: Used in turbine test cells to simulate flight conditions and validate engine performance. The module’s high-speed processing capabilities enable precise control of test parameters, such as altitude pressure and temperature, for accurate performance analysis.
Related Products：GE IS420UCSBH4A
- IS420UCECH1B Mark VIe Controller: A sister model with enhanced I/O capacity, designed for larger-scale systems requiring more control loops and communication interfaces.
- IS420PAICH2A Analog Input Module: Works alongside the IS420UCSBH4A to convert sensor signals (e.g., temperature, pressure) into digital data for processing, supporting up to 16 channels per module.
- IS420DSVOH1A Discrete Output Module: Provides relay outputs for switching high-power devices, such as valves and circuit breakers, under the control of the IS420UCSBH4A.
- IS420ESWBH3AE Managed Ethernet Switch: Enhances network connectivity for the IS420UCSBH4A, enabling high-speed data transfer between multiple controllers and remote monitoring stations.
- IS420PSVCH1A Power Supply Module: Delivers redundant 24V DC power to the IS420UCSBH4A and other Mark VIe components, ensuring stable operation even during power fluctuations.
- IS420TCCVH1A Temperature Control Module: Specializes in thermal management for turbine systems, working with the IS420UCSBH4A to regulate blade and bearing temperatures.
- IS420BPPCH1ACA I/O Processor Card: Acts as a bridge between the IS420UCSBH4A and field devices, supporting triple modular redundancy (TMR) for safety-critical applications.
GE IS420UCSBH4A
Installation and Maintenance：GE IS420UCSBH4A
Installation Preparation:
Before installing the IS420UCSBH4A, verify that the control rack is properly grounded and the power supply matches the module’s 24V DC requirement. Clean the rack slots to remove dust or debris that could interfere with electrical connections. Align the module with the rack guides and secure it using the provided captive screws, ensuring a firm fit to withstand vibration. Connect the power cables to the terminal block, tightening to the specified torque (8–10 N·m), and link the Ethernet and Profibus cables to the corresponding ports, following GE’s wiring diagrams to avoid signal interference.
Before installing the IS420UCSBH4A, verify that the control rack is properly grounded and the power supply matches the module’s 24V DC requirement. Clean the rack slots to remove dust or debris that could interfere with electrical connections. Align the module with the rack guides and secure it using the provided captive screws, ensuring a firm fit to withstand vibration. Connect the power cables to the terminal block, tightening to the specified torque (8–10 N·m), and link the Ethernet and Profibus cables to the corresponding ports, following GE’s wiring diagrams to avoid signal interference.
Maintenance Recommendations:
- Routine Health Checks: Use ToolboxST software monthly to monitor processor load, memory usage, and communication status. Look for warnings such as “Redundancy Status Fault” and address them promptly to maintain system reliability.
- Physical Inspections: Quarterly, visually inspect the module for loose connections, damaged cables, or signs of overheating (e.g., discolored components). Clean the cooling vents with compressed air to prevent dust accumulation that could affect thermal performance.
- Firmware Updates: Periodically download the latest firmware from GE’s support portal and update the IS420UCSBH4A during scheduled outages to access new features and security patches. Always back up configuration files before updating to avoid data loss.
- Redundancy Testing: Biannually, simulate a processor failure by disconnecting the active unit’s power supply to test the failover mechanism. Ensure the standby unit assumes control within 50ms, as specified by GE, to validate redundancy functionality.
GE IS420UCSBH4A
Product Warranty：GE IS420UCSBH4A
We provide a 12-month quality warranty for the GE IS420UCSBH4A control processor module, covering hardware defects arising from non-human factors. During the warranty period, if the module exhibits abnormal behavior, such as unresponsive communication or unstable control outputs, we will promptly replace it at no cost. For customers seeking discontinued models or urgent replacements, our global supply chain—built over 17 years in industrial control distribution—ensures fast delivery of even the rarest spare parts. We stand behind the reliability of our products with 24/7 technical support, assisting with installation, configuration, and troubleshooting to minimize downtime and keep your industrial systems running smoothly.
With a commitment to quality and customer satisfaction, we leverage our extensive inventory and industry expertise to meet the diverse needs of global industrial clients. Whether you require a single module for a maintenance project or a full suite of controls for a new installation, we deliver solutions that combine technical excellence with dependable service.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and safety guidelines.
