Description

GE IS420UCSBH3A Product Specification

Product Overview

The GE IS420UCSBH3A is a high-performance standalone controller module engineered for GE’s Mark VIe Speedtronic Turbine Control System, serving as the computational core for real-time automation in gas turbines, steam turbines, and rotating machinery across power generation, oil and gas, and heavy manufacturing. Equipped with a 1200 MHz Intel EP80579 processor, this controller executes application-specific logic with sub-millisecond precision, ensuring seamless coordination of turbine speed, fuel metering, and safety interlocks.

As a key component of the Mark VIe distributed architecture, the GE IS420UCSBH3A interfaces with I/O modules via IONET private Ethernet networks, supporting IEEE 1588 protocol for clock synchronization within 100 microseconds 3. Its compact design—measuring 16.26 cm (H) × 20.57 cm (W) × 3.56 cm (D) and weighing 1.315 kg—mounts directly to control panels, eliminating the need for backplanes and reducing cabinet space. The module operates on 24/28 VDC power and features no internal battery or fan, ensuring maintenance-free operation in harsh environments (0°C to +65°C) with high vibration and electromagnetic interference 28.

In automation systems, the GE IS420UCSBH3A acts as the decision-making hub, processing inputs from vibration sensors, temperature transmitters, and pressure switches to adjust turbine governors, compressor anti-surge systems, and generator excitation modules. Its QNX Neutrino real-time operating system supports online code modifications without system restart, enabling dynamic optimization of critical processes like load balancing and emissions control. The module’s Class I Division 2 certification ensures compliance with hazardous location requirements in oil refineries and offshore platforms 112.

Technical Specifications

Main Features and Advantages

High-Speed Processing:
The GE IS420UCSBH3A’s 1200 MHz Intel processor delivers real-time control capabilities, handling complex algorithms for turbine dynamics and predictive maintenance. Its QNX Neutrino OS ensures deterministic multitasking, critical for applications like emergency shutdown (ESD) systems where millisecond delays could lead to catastrophic failures 9.

Rugged Industrial Design:
With a triple-layer conformal coating and IP20-rated enclosure, the module resists dust, moisture, and chemical contaminants. Its vibration resistance (10–2000 Hz, 10 G rms) and wide temperature range (0°C to +65°C) make it suitable for turbine halls, offshore platforms, and desert power plants 28.

Seamless Integration:
The controller’s IONET interfaces directly connect to Mark VIe I/O modules like IS220PDIOH1B (discrete I/O) and IS230SRTDH2A (RTD inputs), eliminating the need for external gateways. Its IEEE 1588 synchronization ensures precise data alignment across distributed I/O racks, critical for coordinating turbine speed with grid frequency 39.

Maintenance-Free Operation:
The GE IS420UCSBH3A eliminates batteries and fans, reducing downtime and replacement costs. Front-panel LEDs provide real-time status monitoring (e.g., OT for over-temperature, DC for designated controller status), while remote diagnostic tools enable proactive fault detection 13.

Flexible Configuration:
Online programming allows engineers to modify control logic without disrupting operations, ideal for optimizing fuel efficiency during load changes. The module supports 28–16 AWG wire sizes, accommodating diverse field wiring requirements in retrofitted systems 28.

Application Areas

Power Generation:

1. Controls gas turbine speed via IONET-connected IS220PDIOH1Bmodules, adjusting fuel valves to maintain grid frequency during load fluctuations.
2. Monitors steam turbine vibration data from IS220PVIBH1Amodules, triggering predictive maintenance actions to prevent rotor imbalance.

Oil and Gas:

1. Manages compressor anti-surge systems in offshore platforms, using IS230TCISH6Cdiscrete I/O to modulate inlet guide vanes based on pressure sensor inputs.
2. Executes ESD logic for pipeline shutdowns, ensuring fail-safe operation in hazardous environments 19

Heavy Manufacturing:

1. Synchronizes robotic assembly lines with IS420ESWBH3AEthernet switches, ensuring precise motion control for automotive part welding.
2. Regulates chemical reactor temperatures via IS400TCASH1AFDthermocouple modules, maintaining batch process consistency

Renewable Energy:

1. Optimizes wind turbine blade pitch angles using IS420UCSCS2Acontrollers, maximizing energy capture in varying wind conditions.
2. Manages energy storage systems by integrating IS410JPDHG1Apower supplies with battery state-of-charge data from IS230SRTDH2A

Related Products

• GE IS420UCSCS2A: Redundant controller module for high-availability systems, sharing software compatibility with GE IS420UCSBH3Abut offering dual-core processing.
• GE IS220PDIOH1B: Discrete I/O module that transmits valve status signals to GE IS420UCSBH3Afor turbine governor control.
• GE IS420ESWBH3A: Ethernet switch module that extends IONET connectivity, enabling GE IS420UCSBH3Ato communicate with remote I/O racks 12.
• GE IS220PPROS1B: Redundant power supply module that ensures stable 24 VDC to GE IS420UCSBH3Ain mission-critical applications.
• GE IS230SRTDH2A: RTD input module that provides temperature data for GE IS420UCSBH3A-based turbine health monitoring systems.
• GE IS400TCASH1AFD: Thermocouple input module often paired with GE IS420UCSBH3Afor high-precision temperature control in steam turbines.

Installation and Maintenance

Pre-installation Preparation:

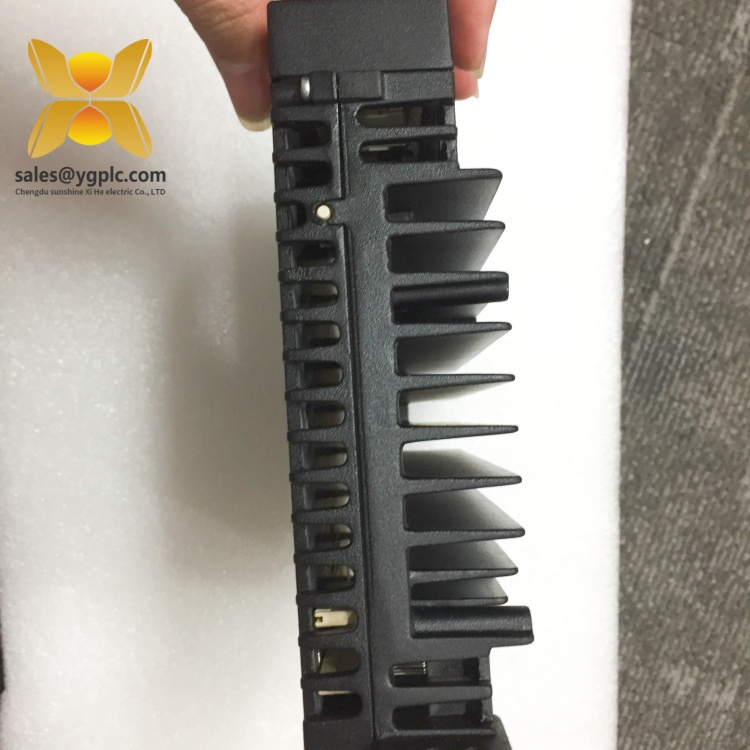

Before installing GE IS420UCSBH3A, verify the control panel’s ambient temperature (0°C to +65°C) and humidity (5–95% non-condensing). Use an ESD wrist strap during handling to prevent electrostatic damage. Mount the module vertically on a flat panel using M4 screws (torque: 0.5–0.7 N·m), ensuring 20 mm clearance for airflow through the fins. Connect shielded Ethernet cables to IONET ports and 24/28 VDC power, checking polarity to avoid reverse voltage 38.

Maintenance Recommendations:
Perform monthly visual inspections to confirm front-panel LEDs (Power, Link, Activity) indicate normal operation. Clean dust from ventilation slots using compressed air to maintain thermal efficiency. Quarterly, use GE’s Proficy software to update firmware and validate IONET communication latency. Annually, test redundancy by temporarily disconnecting one IONET cable, ensuring seamless failover to the backup path. Replace the module every 10 years or if processor performance degrades beyond 5% of nominal specifications 9.

Product Warranty

Our company offers a one-year quality warranty for the GE IS420UCSBH3A, covering hardware malfunctions not caused by human factors. During the warranty period, if the module exhibits processing delays, communication failures, or thermal instability, we will provide replacement services. As a leading import-export distributor with 17 years of experience, we maintain large inventories of industrial control parts, including hard-to-find models like GE IS420UCSBH3A, to meet urgent procurement needs. Our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting the continuous operation of your industrial systems.
