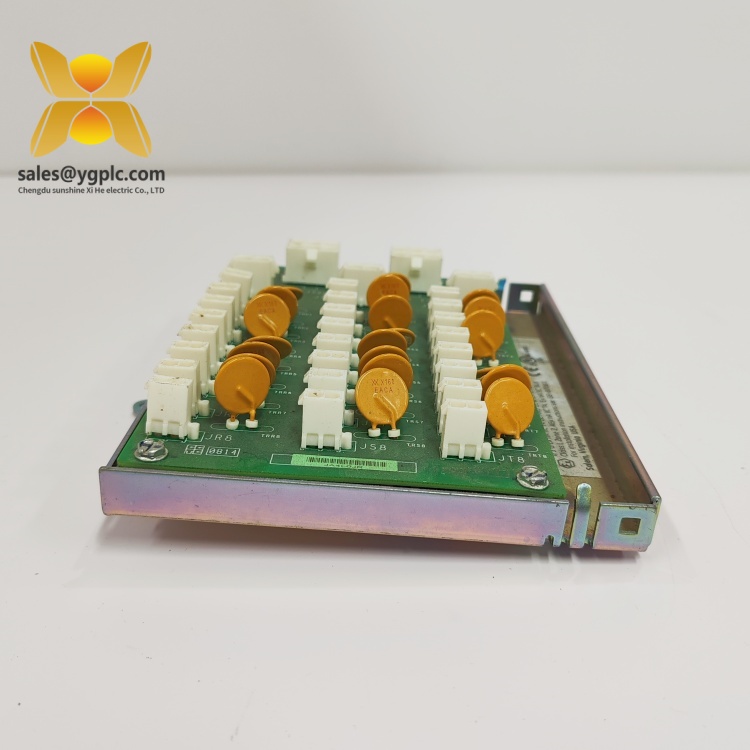

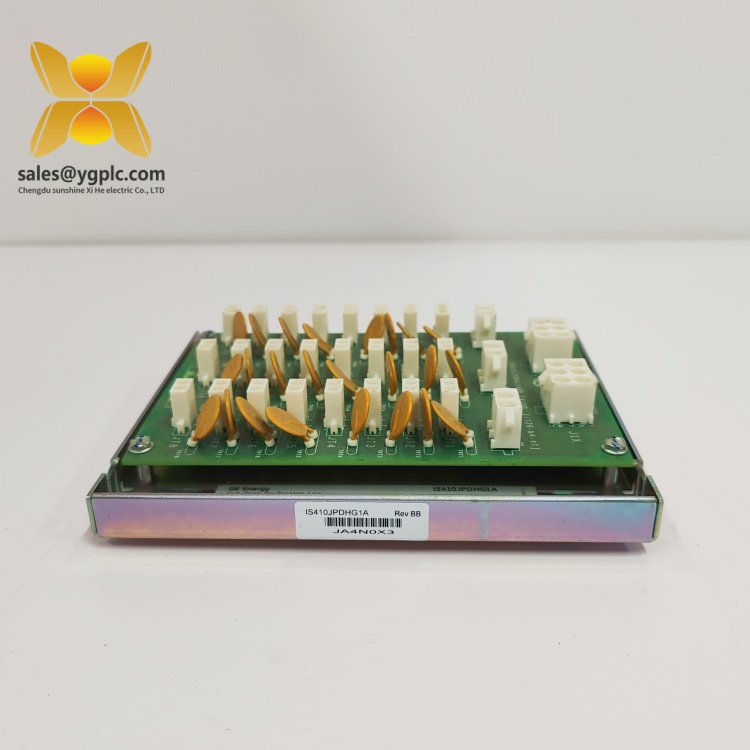

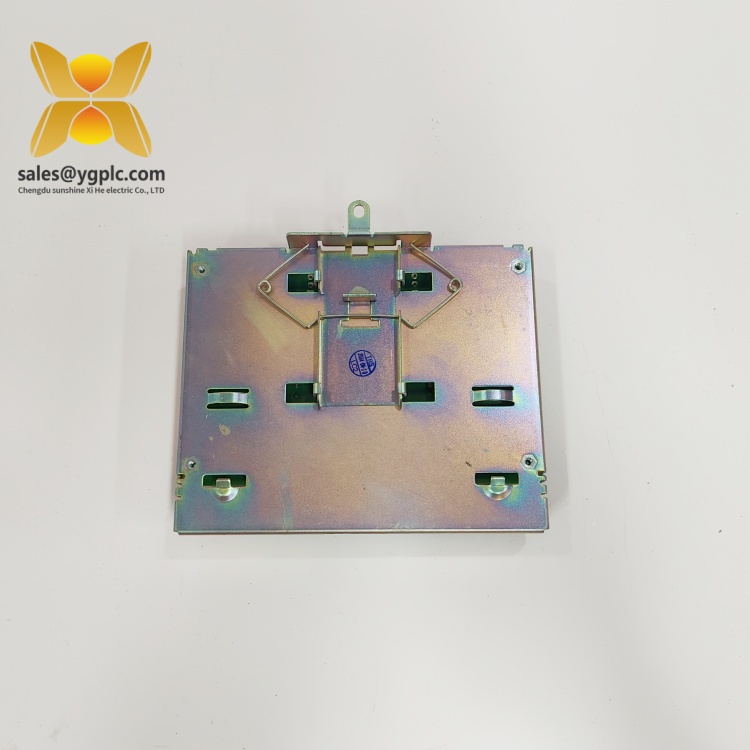

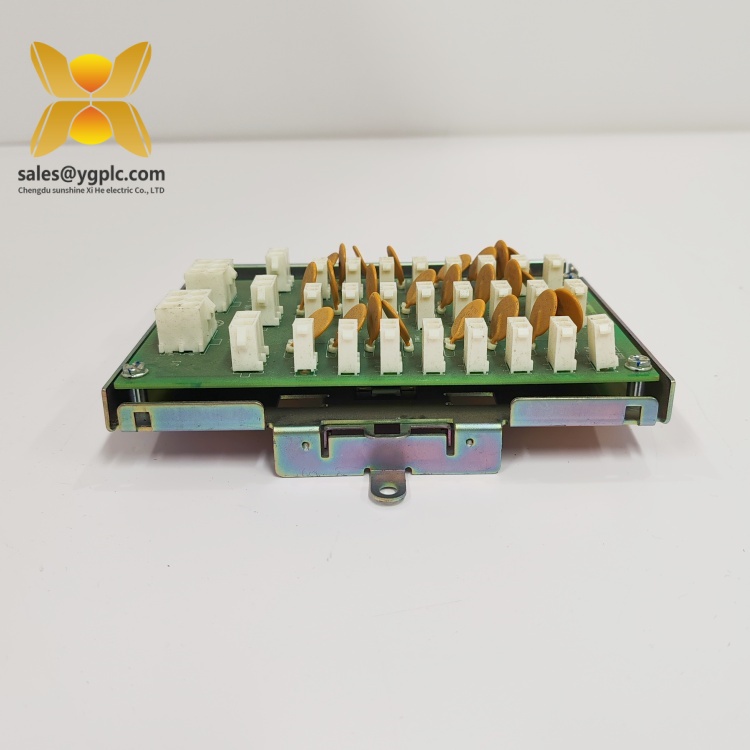

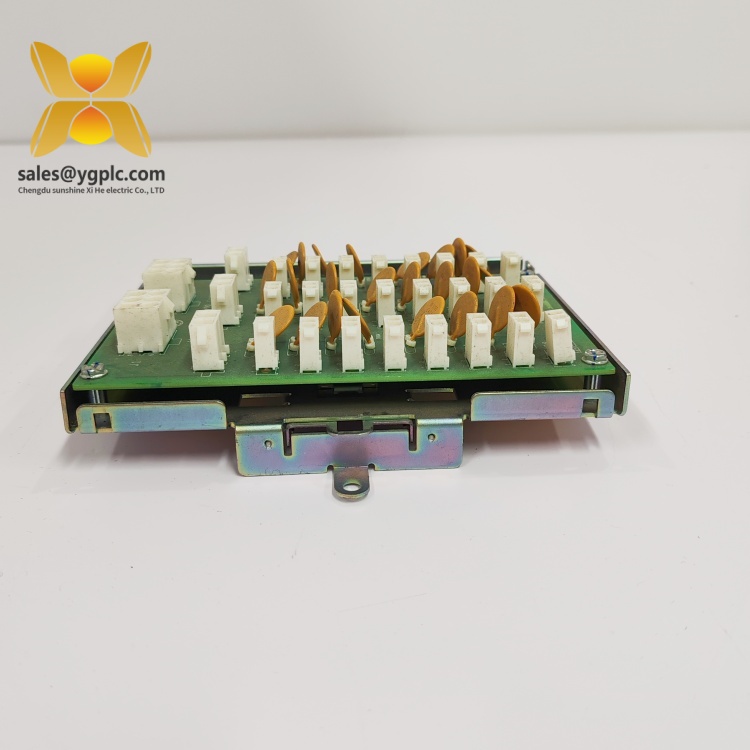

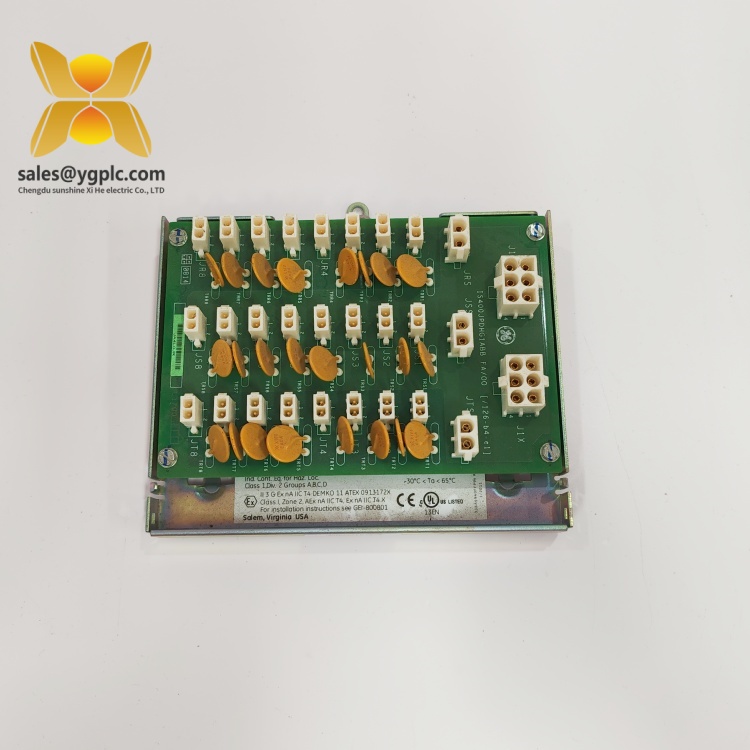

GE IS400JPDHG1ABB Mark VIe Power Distribution Board

Product Overview

The GE IS400JPDHG1ABB is a high-performance power distribution board engineered for GE’s Speedtronic Mark VIe distributed control system, delivering reliable and efficient power management in mission-critical industrial environments. As a core component of the IS400 Series, this board ensures stable electrical distribution to I/O modules, controllers, and field devices, supporting seamless integration within complex automation systems. Designed for durability and precision, the GE IS400JPDHG1ABB plays a vital role in maintaining operational continuity across industries such as power generation, oil & gas, and heavy manufacturing.

Constructed with high-grade aluminum alloy, the IS400JPDHG1ABB offers exceptional heat dissipation and corrosion resistance, critical for prolonged operation in harsh conditions like offshore platforms or thermal power plants. Its 19-inch rack-mountable design optimizes space in control cabinets, while galvanic isolation (500 Vrms) safeguards against voltage spikes and ground loops, ensuring signal integrity even in electrically noisy environments. The board supports 100–240 V AC input and distributes power to up to 8 load channels, each rated for 2 A, providing flexibility for diverse system configurations.

In the Mark VIe ecosystem, the GE IS400JPDHG1ABB interfaces with modules such as the IS400AEBMH3A PLC controller and IS400TCASH1A terminal board, forming a robust power backbone for turbine control systems. Its RS-485 communication interface enables real-time monitoring of power consumption and fault diagnostics, reducing downtime through proactive maintenance. By combining rugged construction, advanced signal processing, and scalable design, the IS400JPDHG1ABB enhances system efficiency and reliability, making it indispensable for 24/7 industrial operations.

Technical Specifications

Main Features and Advantages

Rugged Construction for Harsh Environments:
The IS400JPDHG1ABB’s aluminum alloy enclosure and UL 94 V-0 flame-retardant material resist corrosion, vibration, and extreme temperatures (-40°C to +85°C), ensuring longevity in demanding settings like refineries and nuclear power plants. Its conformal-coated circuit board further protects against dust and moisture, minimizing maintenance requirements.

Precision Power Management:
With 8 individually fused output channels, the board allows granular control over power distribution, preventing overloads and ensuring stable operation of critical components. The 500 Vrms galvanic isolation between input and output circuits shields sensitive electronics from voltage transients, a key advantage in high-power industrial applications.

Real-Time Diagnostics:
Integrated RS-485 communication enables seamless integration with GE’s Proficy software, providing real-time insights into power consumption, voltage stability, and fault conditions. This feature supports predictive maintenance, reducing downtime by identifying potential issues before they escalate.

Scalable Design:
The 19-inch rack-mountable form factor allows easy integration into existing control systems, while the modular architecture supports future expansions. For example, multiple IS400JPDHG1ABB boards can be daisy-chained to meet the power demands of large-scale automation projects, such as gas turbine control systems in combined-cycle power plants.

Efficient Heat Dissipation:
The board’s extruded aluminum heatsinks and optimized layout ensure effective thermal management, even under full load. This design reduces the risk of overheating, extending component lifespan and maintaining consistent performance in high-temperature environments.

Compliance with Global Standards:
Certified to CE, UL, and IEC standards, the IS400JPDHG1ABB meets rigorous safety and quality requirements, making it suitable for installations worldwide. Its compatibility with Modbus RTU protocols simplifies integration with third-party monitoring systems, enhancing operational flexibility.

Application Areas

The GE IS400JPDHG1ABB is ideally suited for industries requiring reliable power distribution in complex control systems:

• Power Generation:
  Used in thermal, hydro, and nuclear plants to supply power to turbine control modules (e.g., IS230TNPAH2A DIO modules) and generator protection systems. Its isolation features ensure stable operation during grid synchronization and load fluctuations.
• Oil & Gas:
  Integrates into offshore platforms and refineries to power emergency shutdown (ESD) systems, compressor controls, and distributed I/O networks. The board’s rugged design withstands saltwater corrosion and high vibration from rotating equipment.
• Heavy Manufacturing:
  Supports robotics, conveyor systems, and process automation in automotive and chemical plants. Its modular channels allow for flexible power allocation to motor drives, sensors, and actuators, optimizing production line efficiency.
• Marine Propulsion:
  Installed in naval vessels and commercial ships to manage power distribution for engine control units (ECUs) and navigation systems. The board’s wide temperature tolerance ensures reliable performance in extreme marine environments.

Specific applications include gas turbine fuel system power management, refinery ESD system actuation, and automotive assembly line robotics.

Related Products

1. GE IS410JPDHG1A(Mark VIe Power Distribution Board):
   A higher-capacity variant with 12 output channels, suitable for large-scale systems requiring more power distribution points. Shares the same rack-mount form factor as the IS400JPDHG1ABB.
2. GE IS400AEBMH3A(Mark VIe PLC Controller):
   Works alongside the IS400JPDHG1ABB to provide centralized control and monitoring of power distribution networks, leveraging the board’s RS-485 interface for real-time data exchange.
3. GE IS400TCASH1A(Mark VIe Terminal Board):
   Connects field devices to the Mark VIe system, complementing the IS400JPDHG1ABB by consolidating wiring and ensuring secure signal transmission.
4. GE IS230TNPAH2A(Mark VIe DIO Module):
   Receives power from the IS400JPDHG1ABB to control discrete devices like solenoids and relays, forming a complete automation loop.
5. GE IS220PSCAH1A 336A4940CSP9(Mark VIe Power Supply Module):
   Provides redundant 24 V DC power to the IS400JPDHG1ABB, ensuring uninterrupted operation in mission-critical systems.
6. GE IS200TDBTH1A(Mark Vle Terminal Board):
   A legacy model compatible with older Mark Vle systems, serving as a replacement for aging installations requiring power distribution.

Installation and Maintenance

Pre-installation preparations:
Verify the rack’s mechanical stability and grounding before mounting the IS400JPDHG1ABB. Ensure the input voltage matches the board’s 100–240 V AC range and use stranded copper wires (14–22 AWG) for connections. Configure the RS-485 address using GE’s Proficy software to avoid conflicts with other devices on the network. Inspect the board for physical damage and confirm all fuses are intact before powering up.

Maintenance suggestions:
Perform quarterly visual inspections to check for loose connections, corrosion, or overheating signs. Replace fuses with GE-approved replacements (e.g., 2 A fast-acting) if tripped. Clean dust from vents biannually using compressed air, especially in dusty environments like cement plants. Test the board’s isolation resistance (≥500 MΩ) annually using a megohmmeter to ensure compliance with safety standards. Store spare IS400JPDHG1ABB boards in anti-static packaging at 10–30°C with <50% humidity, and test functionality every six months.
