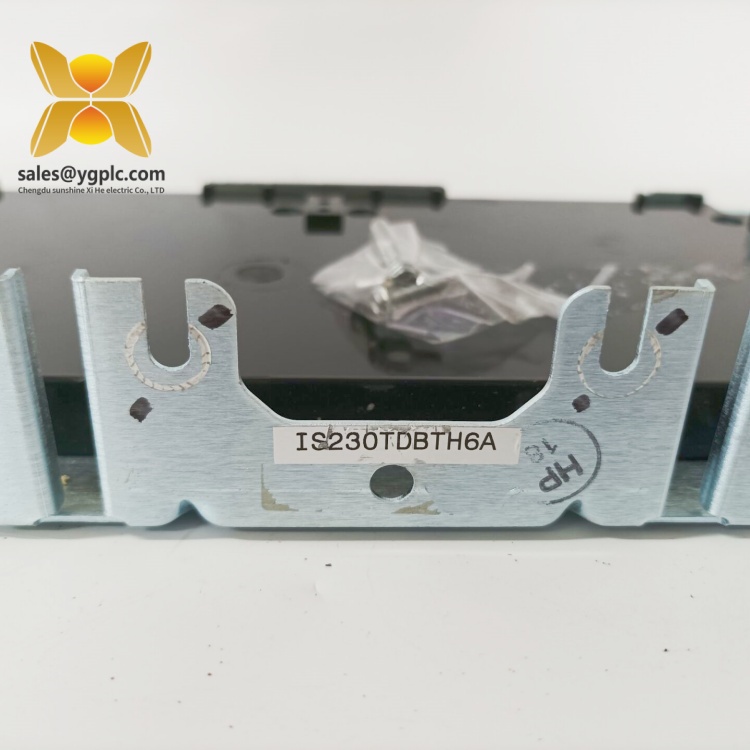

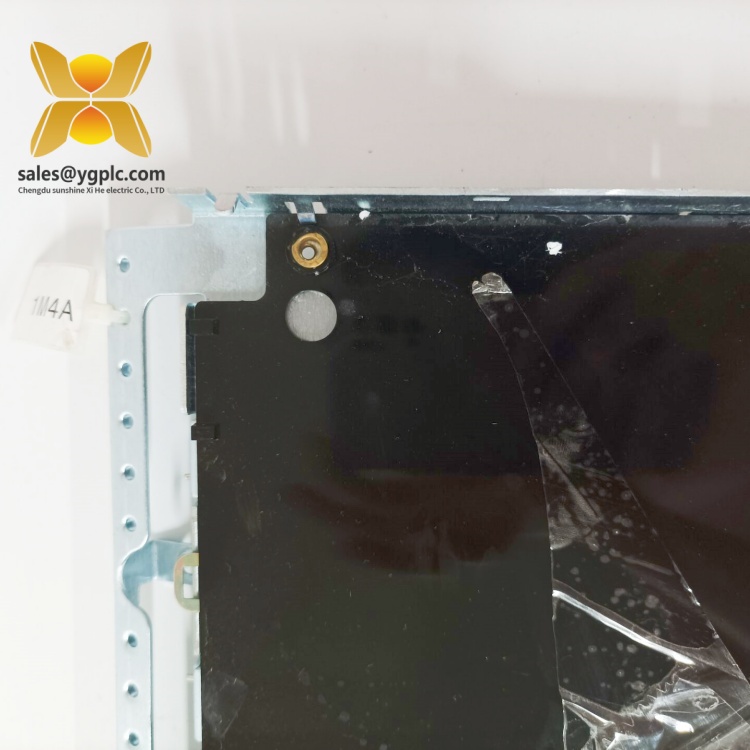

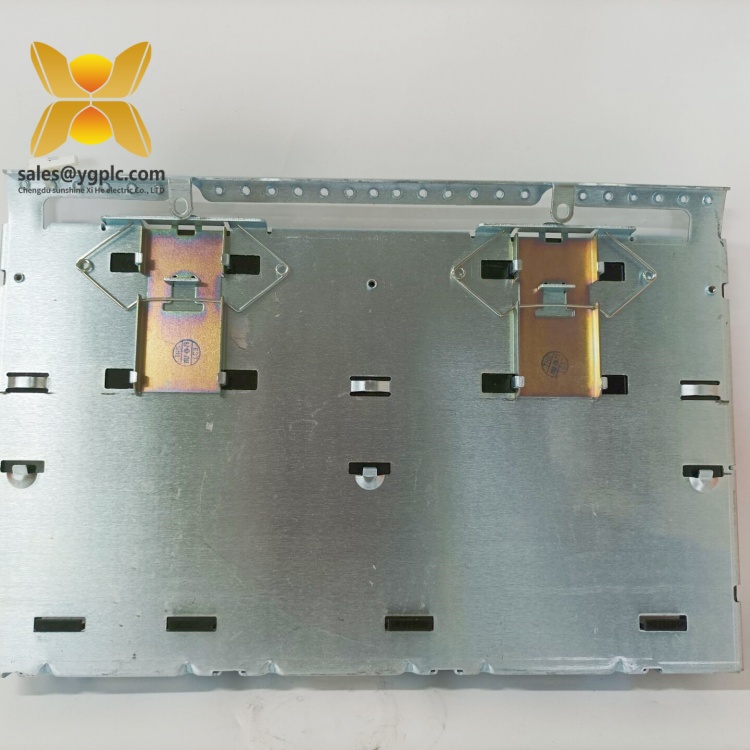

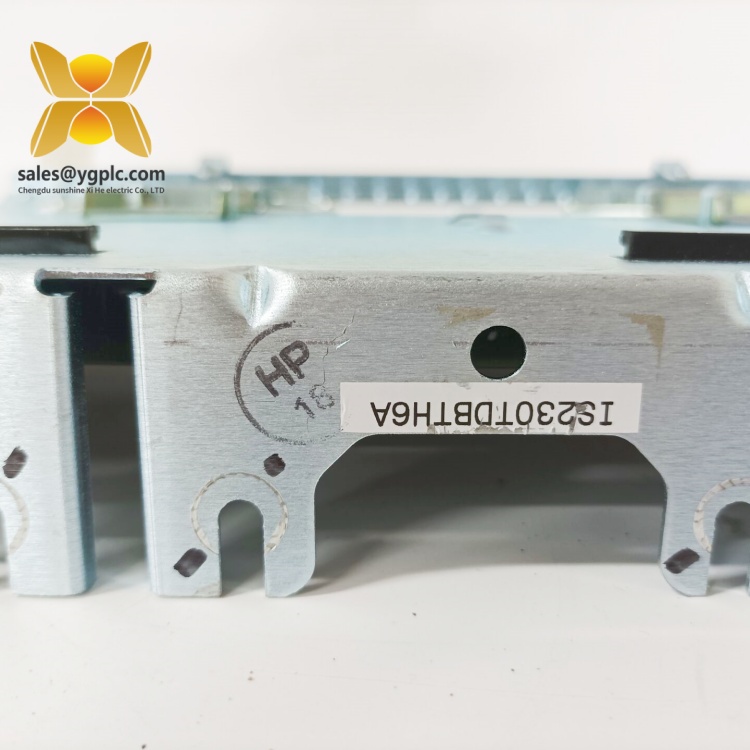

GE IS230TDBTH6A Mark VIe Terminal Board
Product Overview
The GE IS230TDBTH6A is a high-reliability terminal board designed as a critical interface component in GE’s Mark VIe distributed control system, facilitating secure and organized connections between field devices and I/O modules. As part of the IS230 Series, this terminal board serves as a bridge, consolidating wiring from sensors, actuators, and switches into a single, manageable interface that integrates seamlessly with Mark VIe modules such as the IS230STAOH2A analog output module and IS230SNIDH1A digital input module.
Engineered for rugged industrial environments, the GE IS230TDBTH6A features a compact, DIN-rail mountable design that simplifies installation in control cabinets, reducing wiring complexity and minimizing the risk of connection errors. Its screw terminal blocks accommodate 14–22 AWG wires, ensuring secure connections even in high-vibration settings. The board’s galvanic isolation (500 Vrms) between signal paths protects sensitive electronics from voltage spikes and ground loops, a key requirement in power generation and oil & gas facilities.
In the Mark VIe ecosystem, the IS230TDBTH6A plays a vital role in turbine control systems, where it connects RTDs, thermocouples, and pressure transducers to input modules, ensuring accurate signal transmission. Its labeled terminal positions and color-coded wiring guides streamline commissioning and maintenance, reducing human error during installation. By combining durability, organization, and protective features, the IS230TDBTH6A enhances the reliability of industrial control systems, supporting 24/7 operations in harsh environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS230TDBTH6A |
| Manufacturer | GE |
| Product Type | Terminal Board |
| Series | Mark VIe |
| Terminal Type | Screw terminals (14–22 AWG) |
| Number of Terminals | 32 |
| Isolation Rating | 500 Vrms |
| Physical Dimensions | 102 mm (H) × 152 mm (W) × 51 mm (D) |
| Weight | 0.35 kg |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | DIN rail (35 mm standard) |
| Certifications | CE, UL, IEC 61131-2 |
| Material | Flame-retardant plastic (UL 94 V-0) |
Main Features and Advantages
Secure Wiring Management:
The IS230TDBTH6A features 32 screw terminals rated for 14–22 AWG wires, ensuring tight, vibration-resistant connections that prevent signal loss in high-motion environments like turbine halls. Each terminal is clearly labeled with corresponding I/O channel numbers, simplifying wiring tracing during maintenance.
The IS230TDBTH6A features 32 screw terminals rated for 14–22 AWG wires, ensuring tight, vibration-resistant connections that prevent signal loss in high-motion environments like turbine halls. Each terminal is clearly labeled with corresponding I/O channel numbers, simplifying wiring tracing during maintenance.
Galvanic Isolation:
500 Vrms isolation between signal paths protects sensitive Mark VIe I/O modules from voltage transients and ground loops, common in industrial settings with multiple power sources. This isolation enhances system reliability by reducing the risk of electrical interference corrupting critical control signals.
500 Vrms isolation between signal paths protects sensitive Mark VIe I/O modules from voltage transients and ground loops, common in industrial settings with multiple power sources. This isolation enhances system reliability by reducing the risk of electrical interference corrupting critical control signals.
Compact DIN-Rail Design:
With dimensions of 102 mm × 152 mm × 51 mm, the terminal board optimizes space in control cabinets, a critical advantage in crowded industrial environments. Its DIN-rail mounting allows for quick installation and repositioning, adapting to evolving system layouts.
With dimensions of 102 mm × 152 mm × 51 mm, the terminal board optimizes space in control cabinets, a critical advantage in crowded industrial environments. Its DIN-rail mounting allows for quick installation and repositioning, adapting to evolving system layouts.
Flame-Retardant Construction:
Made from UL 94 V-0 rated plastic, the IS230TDBTH6A resists ignition and slows flame spread, enhancing safety in facilities where flammable materials are present—such as refineries and chemical plants.
Made from UL 94 V-0 rated plastic, the IS230TDBTH6A resists ignition and slows flame spread, enhancing safety in facilities where flammable materials are present—such as refineries and chemical plants.
Seamless Integration with Mark VIe:
Designed to pair with Mark VIe I/O modules (e.g., IS220PRTDH1A RTD input modules), the terminal board ensures compatibility with GE’s proprietary wiring standards. This integration reduces installation time by eliminating the need for custom adapters or cross-wiring.
Designed to pair with Mark VIe I/O modules (e.g., IS220PRTDH1A RTD input modules), the terminal board ensures compatibility with GE’s proprietary wiring standards. This integration reduces installation time by eliminating the need for custom adapters or cross-wiring.
Color-Coded Wiring Guides:
Embedded color coding on the terminal block identifies signal types (e.g., analog, digital, power), guiding technicians during wiring and reducing errors. For example, blue terminals may denote analog inputs, while red terminals indicate power connections.
Embedded color coding on the terminal block identifies signal types (e.g., analog, digital, power), guiding technicians during wiring and reducing errors. For example, blue terminals may denote analog inputs, while red terminals indicate power connections.
Application Areas
The GE IS230TDBTH6A is indispensable in industries requiring organized, reliable wiring in control systems:
- Power Generation:
Used in thermal, hydro, and nuclear plants to connect RTDs, thermocouples, and pressure sensors to Mark VIe I/O modules. It streamlines wiring in turbine control cabinets, where dozens of sensors monitor bearing temperatures, steam pressure, and generator output. - Oil & Gas:
Integrates into offshore platforms and refineries, linking field devices (e.g., flow meters, level switches) to distributed control systems. Its rugged design withstands corrosive saltwater environments and high vibration from compressors. - Chemical Processing:
Organizes wiring for reactor sensors, valve actuators, and safety interlocks in chemical plants. The terminal board’s isolation features prevent interference from nearby high-voltage equipment, ensuring accurate process monitoring. - Manufacturing:
Supports automation systems in automotive and electronics factories, connecting proximity sensors, limit switches, and robotic encoders to PLCs. Its compact size saves space in tightly packed control enclosures.
Specific applications include gas turbine sensor wiring, refinery ESD system connections, and chemical reactor temperature probe interfaces.
Related Products
- GE IS230STAOH2A (Mark VIe Analog Output Module):
Paired with the IS230TDBTH6A to connect analog actuators (e.g., control valves) to the Mark VIe system, using the terminal board for organized wiring. - GE IS230SNIDH1A MRP689579 (Mark VIe Digital Input Module):
Uses the terminal board to consolidate wiring from limit switches and proximity sensors, simplifying installation in high-channel-count systems. - GE IS220PRTDH1A (Mark VIe RTD Input Module):
Relies on the IS230TDBTH6A to connect RTD sensors, ensuring secure, isolated connections for accurate temperature measurement. - GE IS220PSCAH1A 336A4940CSP9 (Mark VIe Power Supply Module):
Connects to the terminal board to distribute 24 V DC power to field devices, leveraging the board’s power terminals for organized power wiring. - GE IS230TDBTH6B (Mark VIe Terminal Board):
An upgraded variant with 48 terminals, suitable for large-scale systems requiring more connections than the IS230TDBTH6A. - GE IS200TDBTH1A (Mark Vle Terminal Board):
A legacy model compatible with older Mark Vle systems, serving as a replacement for aging installations.
Installation and Maintenance
Pre-installation preparations:
Ensure the DIN rail is securely mounted and grounded in the control cabinet. Verify the terminal board’s voltage rating (500 Vrms) matches the system’s signal levels. Use 14–22 AWG shielded cables for field connections to minimize EMI. Refer to GE’s wiring diagrams to match terminal positions with corresponding I/O module channels, using the board’s color coding as a guide.
Ensure the DIN rail is securely mounted and grounded in the control cabinet. Verify the terminal board’s voltage rating (500 Vrms) matches the system’s signal levels. Use 14–22 AWG shielded cables for field connections to minimize EMI. Refer to GE’s wiring diagrams to match terminal positions with corresponding I/O module channels, using the board’s color coding as a guide.
Maintenance suggestions:
Perform quarterly visual inspections to check for loose terminals or damaged wires. Tighten screw terminals with a torque wrench (per GE’s specifications, typically 0.5–0.8 Nm) to prevent signal loss. Clean the terminal block annually with a dry cloth to remove dust, avoiding moisture that could cause shorts. Store spare IS230TDBTH6A boards in anti-static packaging at 10–30°C with <50% humidity, and test continuity between terminals annually to ensure functionality.
Perform quarterly visual inspections to check for loose terminals or damaged wires. Tighten screw terminals with a torque wrench (per GE’s specifications, typically 0.5–0.8 Nm) to prevent signal loss. Clean the terminal block annually with a dry cloth to remove dust, avoiding moisture that could cause shorts. Store spare IS230TDBTH6A boards in anti-static packaging at 10–30°C with <50% humidity, and test continuity between terminals annually to ensure functionality.
Product Guarantee
Our company offers a one-year quality warranty service for the IS230TDBTH6A, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. As a leading import-export trade distribution company established in 2007 with 17 years of experience, we maintain large stocks of industrial control parts, including unpopular and discontinued models like the IS230TDBTH6A, ensuring timely access for our customers.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
