Product Overview
The IS230PCAAH1A is a GE Mark VIe Core Analog module used to process a substantial portion of the analog I/O required in gas turbine control applications. The PCAA assembly works with compatible TCAS and TCAT terminal hardware to handle signals including thermocouples, 4–20 mA current loops, seismic inputs, LVDT excitation and feedback, pulse-rate signals, and servo-coil outputs. It can be applied in simplex, dual, and TMR system architectures, making it suitable for different Mark VIe control configurations. The assembly incorporates a processor board, two application I/O boards, and associated terminal hardware. Field connections are supported through Euro-style terminals, while the module interfaces with the TCAT terminal board through two 68-pin connections.
Technical Specifications — IS230PCAAH1A
| Parameter | Value |
|---|---|
| Product Model | IS230PCAAH1A |
| Manufacturer | General Electric (GE) |
| Product Type | Core Analog I/O Module / PCAA Assembly |
| System | Mark VIe / Mark VIeS |
| Application | Gas Turbine Control |
| Architecture | Simplex, Dual, TMR |
| Signal Types | Thermocouple, 4–20 mA, seismic, LVDT, pulse rate, servo output |
| Power Input | 28 VDC |
| Communication | IONet / Ethernet |
| Field Interface | 120 Euro-style terminals |
| TCAT Interface | Two 68-pin cable connections |
| Mounting | Non-DIN-rail modular installation |
| Operating Temperature | Approx. -30°C to +65°C |
| Dimensions (HxWxD) | Approx. 177 × 138 × 79 mm |
| Weight | Approx. 4.5 kg, depending on assembly configuration |
| Terminal Board | TCAS; compatible TCAT configurations |
| Compliance | Refer to applicable GE Mark VIe installation documentation |
The core PCAA assembly is treated as a complete replaceable unit rather than as individual internal boards.

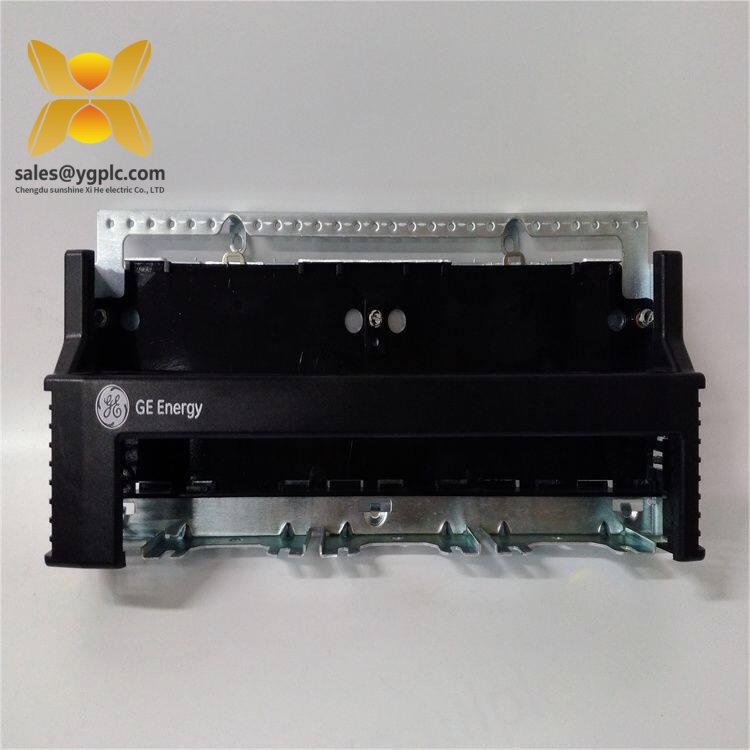

GE IS230PCAAH1A
Key Features and Benefits — IS230PCAAH1A
- Handles multiple analog and specialized turbine-control signal types.
- Supports simplex, dual, and TMR control architectures.
- Interfaces directly with compatible TCAT terminal hardware.
- Provides 28 VDC-powered distributed I/O functionality.
- Uses Ethernet-based IONet communication within the Mark VIe architecture.
- Suitable for turbine instrumentation and final-control signal processing.
- Consolidates processor and application I/O hardware into a replaceable assembly.
For maintenance teams, the main advantage is broad signal coverage in one Mark VIe assembly. It also means that replacement should be based on the exact system configuration rather than simply matching the enclosure.
Related Models
IS230PCAAH1B: Related PCAA core analog configuration listed for Mark VIe applications, with the exact architecture requiring verification before substitution.
IS400TCASH1A: Associated core analog terminal-board hardware used with PCAA-based I/O arrangements.
IS220PAICG1A: Mark VIe analog input/output I/O Pack used for conventional distributed analog I/O applications.
IS220PRTDH1A: Mark VIe RTD input/output I/O Pack intended for temperature measurement applications.
GE IS230PCAAH1A
Installation and Maintenance — IS230PCAAH1A
Before replacement, confirm the Mark VIe system architecture, terminal-board type, IONet connections, power supply, and site-specific configuration. The PCAA connects to compatible TCAT hardware through two 68-pin cables, so connector seating and cable retention should be checked carefully during installation.
Inspect the module for damaged connectors, loose mounting hardware, contamination, or overheating. Record existing network and field connections before removal. After installation, verify the expected I/O status and controller communication before returning the turbine control system to service.
Personally, I would verify the associated TCAT and JGPA hardware before condemning the module. A field-signal or terminal-board problem can easily resemble a failed core analog assembly.
Product Warranty — IS230PCAAH1A
Warranty terms should be confirmed with the supplier according to the actual condition supplied, such as new, unused surplus, refurbished, or repaired. For critical turbine-control spares, procurement records should include the complete part number, revision where applicable, serial information, inspection status, and warranty period.
When sourcing the GE IS230PCAAH1A, confirm the complete Mark VIe configuration and associated terminal hardware before purchase, especially when replacing an installed PCAA assembly.
