Product Overview
The GE IS220YSILS1B is a Core Safety Protection I/O Pack designed for GE Mark VIeS turbine control and protection architectures. It forms part of the YSIL safety protection assembly and works with compatible TCSA, WCSA, and SCSA hardware. Its primary role is independent monitoring and protection of critical turbine functions, including speed and trip-system status. In a fault condition, the protection logic can initiate the appropriate backup trip response while also providing watchdog supervision of the primary control system. GE certification documentation specifically identifies this hardware as a Mark VIeS Core Safety Protection Module and lists it with associated TCSA/SCSA assemblies.
For maintenance teams, this is a safety-related component rather than a general-purpose I/O module. Replacement should therefore be based on the complete system configuration, hardware revision, and terminal-board compatibility.
Technical Specifications — GE IS220YSILS1B
| Parameter | Value |
|---|---|
| Product Model | IS220YSILS1B |
| Manufacturer | GE |
| Product Type | Mark VIeS Core Safety Protection I/O Pack |
| Power | System-dependent; verify installed configuration |
| Communication / Protocol | Mark VIeS I/O Ethernet architecture |
| Operating Temperature | -30 to +65°C for certified applications |
| Mounting | Compatible TCSA terminal board / associated assembly |
| Dimensions (H × W × D) | Approx. 83 × 42 × 122 mm, depending on measurement method |
| Weight | Approx. 0.34–0.5 kg, depending on configuration |
| Typical Interfaces | Ethernet, terminal-board interface, safety monitoring connections |
| Safety Function | Core safety / independent protection |
| Compliance | IEC 61508 SIL-certified variant; applicable hazardous-location approvals |
GE’s certification documentation lists this model under Mark VIeS Core Safety Protection Modules and specifies a -30°C to +65°C certified temperature range.

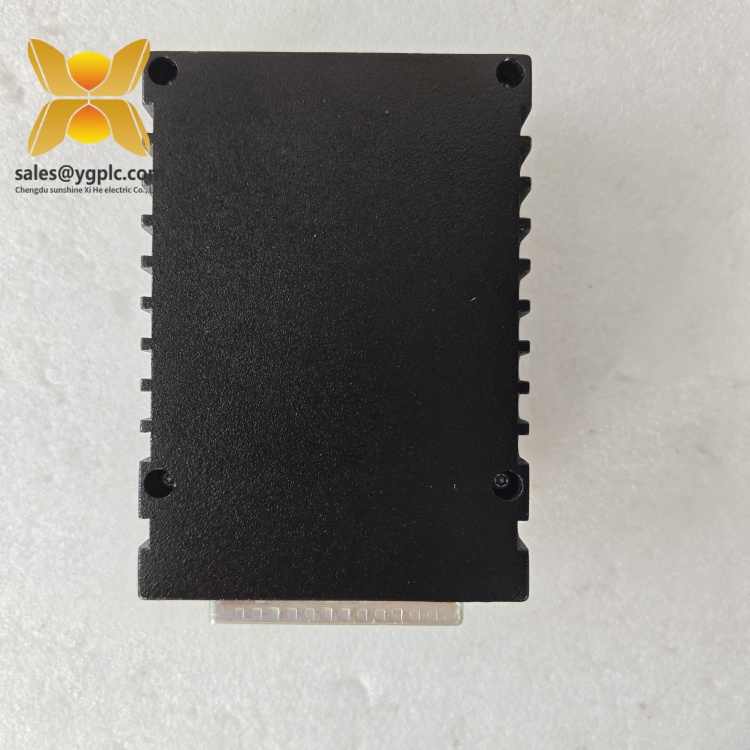

GE IS220YSILS1B
Key Features and Benefits — GE IS220YSILS1B
- Designed for critical turbine protection applications
- Supports independent backup overspeed protection
- Provides watchdog monitoring of the primary control system
- Interfaces with compatible TCSA terminal-board architecture
- Supports three speed inputs in the documented YSIL configuration
- Front-panel LEDs provide useful operational and diagnostic indications
- Intended for safety-related Mark VIeS installations
- Suitable for turbine maintenance and controlled MRO replacement
The YSIL architecture is particularly important where a plant requires an independent protective layer alongside the primary control system. Three YSIL packs can be installed on a TCSA terminal board, according to available technical documentation.
Related Models
GE IS220YSILS1A: The preceding YSIL Core Safety Protection I/O Pack variant, sharing the same general Mark VIeS safety-protection function.
GE IS200TCSAS1A: A compatible TCSA safety terminal-board assembly associated with the YSIL protection architecture.
GE IS200WCSAS1A: A related safety-system board used within the Mark VIeS protection arrangement.
GE IS200SCSAS1A: An SCSA assembly associated with the YSIL Core Safety Protection configuration.
GE IS220YSILS1B
Installation and Maintenance — GE IS220YSILS1B
Before replacement, verify the complete part number, revision, terminal-board type, and installed safety-system configuration. Do not treat this unit as a conventional plug-and-play I/O module.
Follow the site’s electrical isolation and ESD procedures. Inspect connectors and terminal-board contacts before installation, then verify power, Ethernet communication, speed-input signals, and safety diagnostics after commissioning. Record the original hardware revision and configuration before removing the existing unit.
Personally, I would perform a documented functional check after replacement rather than relying only on successful power-up. For turbine protection equipment, diagnostic confirmation is a much stronger acceptance criterion.
Product Warranty — GE IS220YSILS1B
Warranty terms depend on the supplier, equipment condition, and purchase agreement. For new, surplus, or refurbished inventory, confirm the serial number, hardware revision, inspection status, test documentation, and warranty period before purchase.
The GE IS220YSILS1B should be sourced against the complete Mark VIeS protection configuration. Correct terminal-board compatibility and safety-system verification are essential before returning the equipment to service.
