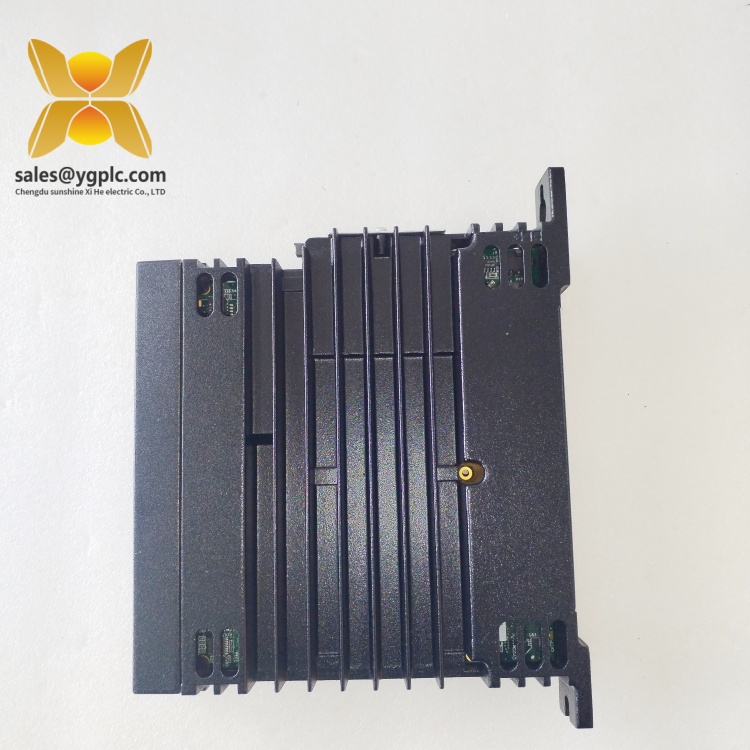

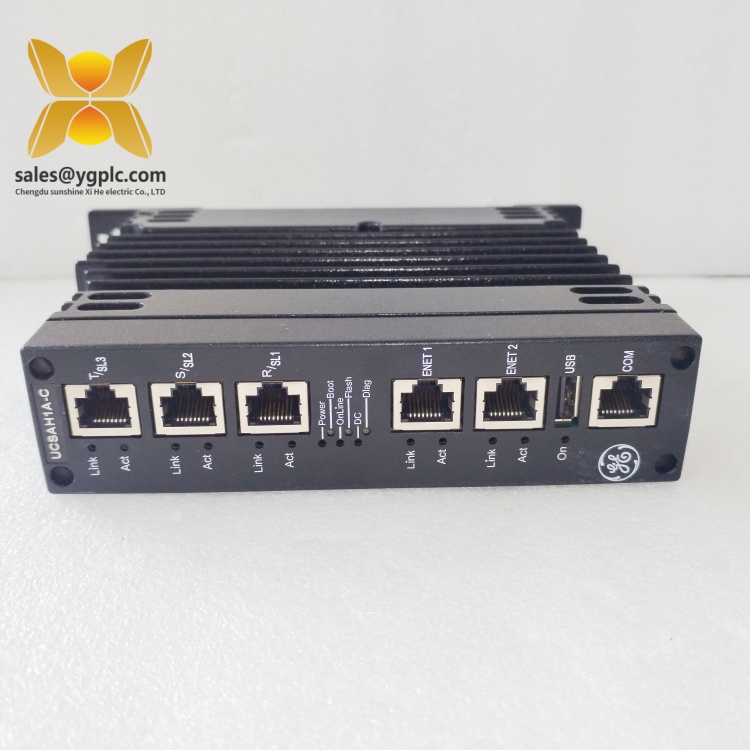

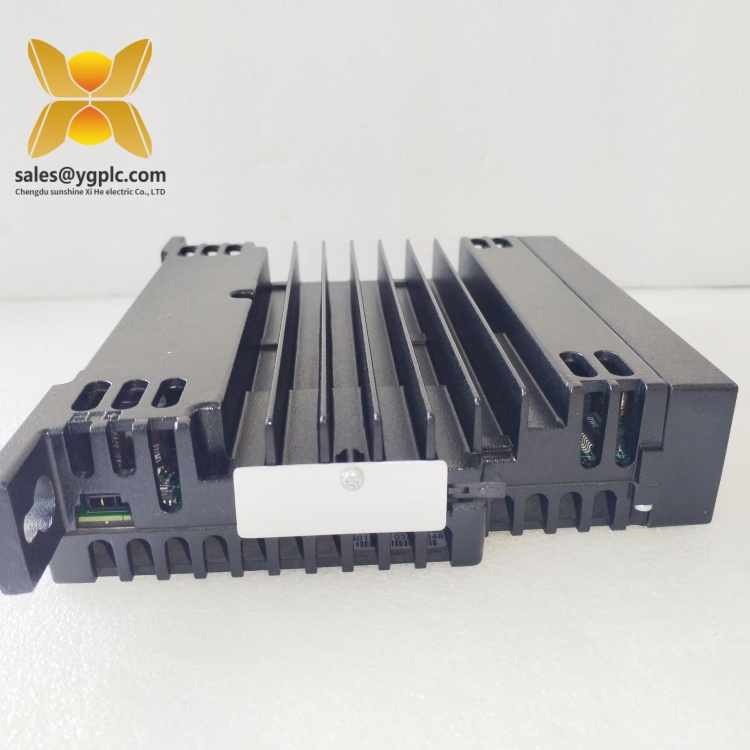

GE IS220UCSAH1A Mark VIe PAMC Acoustic Monitor Processor
Product Overview
The GE IS220UCSAH1A is a high-performance acoustic monitor processor designed as the core of GE’s Mark VIe control system, specializing in real-time monitoring and diagnostics of gas and steam turbines in industrial automation. As part of the IS220 Series, this module integrates advanced signal processing, communication, and control capabilities to detect anomalies in turbine operations through acoustic analysis, enabling predictive maintenance and optimizing efficiency. The IS220UCSAH1A plays a critical role in power generation, oil & gas, and heavy manufacturing, where precise turbine health monitoring is essential to prevent catastrophic failures and reduce downtime.
Featuring a Freescale 8349 667 MHz processor and QNX Neutrino real-time operating system, the GE IS220UCSAH1A processes acoustic signals with sub-millisecond latency, identifying subtle changes in turbine performance—such as bearing wear or blade damage—that traditional sensors may miss. Its six Ethernet ports support redundant communication with other Mark VIe components (controllers, I/O modules, HMIs) and external systems, ensuring data integrity in distributed control environments. The module’s conformal coating and MIL-STD-810G compliance protect against dust, moisture, and vibration, making it suitable for harsh industrial settings like offshore platforms and power plant turbine halls.
In the Mark VIe ecosystem, the IS220UCSAH1A acts as a standalone controller, running application code to manage turbine startup, load balancing, and shutdown sequences. Its dual 18–36 V DC power inputs ensure continuous operation even during voltage fluctuations, while front-panel LEDs provide real-time status updates for diagnostics. The module’s hot-swappable design allows replacement without system downtime, a critical feature for 24/7 operations. By combining acoustic monitoring, predictive analytics, and robust hardware, the IS220UCSAH1A elevates turbine reliability and extends equipment lifespan.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220UCSAH1A |
| Manufacturer | GE |
| Product Type | Acoustic Monitor Processor |
| Series | Mark VIe |
| Processor | Freescale 8349, 667 MHz |
| Operating System | QNX Neutrino RTOS |
| Communication Interfaces | 6x Ethernet TCP/IP, IONet |
| Power Requirements | 18–36 V DC, 12 W |
| Physical Dimensions | 130 mm (H) × 85 mm (W) × 180 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Redundancy Support | Dual power inputs, redundant Ethernet configurations |
| Certifications | MIL-STD-810G, CE, UL, IEC 61131-2 |
Main Features and Advantages
Real-Time Acoustic Monitoring:
The IS220UCSAH1A uses advanced algorithms to analyze acoustic emissions from turbines, detecting early signs of mechanical degradation (e.g., loose components, cavitation) with <2 ms response time2. This proactive approach reduces unplanned maintenance and extends turbine service intervals.
The IS220UCSAH1A uses advanced algorithms to analyze acoustic emissions from turbines, detecting early signs of mechanical degradation (e.g., loose components, cavitation) with <2 ms response time2. This proactive approach reduces unplanned maintenance and extends turbine service intervals.
High-Performance Processing:
The Freescale 8349 processor and QNX RTOS enable simultaneous execution of signal processing, control logic, and communication tasks, ensuring deterministic performance in time-critical applications like turbine speed regulation and load shedding.
The Freescale 8349 processor and QNX RTOS enable simultaneous execution of signal processing, control logic, and communication tasks, ensuring deterministic performance in time-critical applications like turbine speed regulation and load shedding.
Redundant Communication Architecture:
Six Ethernet ports support redundant connections to other Mark VIe modules (e.g., IS220VCMIH2CA communication cards) and HMIs, preventing single points of failure in distributed control systems. This redundancy is vital for safety-critical operations in nuclear or offshore environments.
Six Ethernet ports support redundant connections to other Mark VIe modules (e.g., IS220VCMIH2CA communication cards) and HMIs, preventing single points of failure in distributed control systems. This redundancy is vital for safety-critical operations in nuclear or offshore environments.
Dual Power Inputs:
With dual 18–36 V DC inputs, the IS220UCSAH1A maintains operation during voltage dips or primary power supply failures, ensuring continuous turbine monitoring and control.
With dual 18–36 V DC inputs, the IS220UCSAH1A maintains operation during voltage dips or primary power supply failures, ensuring continuous turbine monitoring and control.
Hot-Swappable Design:
Facilitates module replacement without disrupting system operation, minimizing downtime during maintenance—a key advantage for power plants and refineries where even short outages can incur significant costs.
Facilitates module replacement without disrupting system operation, minimizing downtime during maintenance—a key advantage for power plants and refineries where even short outages can incur significant costs.
Rugged Environmental Tolerance:
Conformal coating and MIL-STD-810G compliance allow reliable operation in extreme temperatures (-30°C to +65°C), high humidity, and vibration-prone environments, making it suitable for desert power plants or offshore platforms.
Conformal coating and MIL-STD-810G compliance allow reliable operation in extreme temperatures (-30°C to +65°C), high humidity, and vibration-prone environments, making it suitable for desert power plants or offshore platforms.
Integrated Diagnostics:
Front-panel LEDs and QNX-based software provide real-time status updates for power, network connectivity, and processor health, streamlining troubleshooting and reducing mean time to repair (MTTR).
Front-panel LEDs and QNX-based software provide real-time status updates for power, network connectivity, and processor health, streamlining troubleshooting and reducing mean time to repair (MTTR).
Application Areas
The GE IS220UCSAH1A is indispensable in industries where turbine health monitoring is critical:
- Power Generation:
Monitors gas and steam turbines in thermal, hydro, and nuclear plants, analyzing acoustic signals to optimize combustion efficiency, detect blade erosion, and prevent overheating. - Oil & Gas:
Used in offshore platforms and refineries to monitor compressor turbines, ensuring safe operation and predicting failures in ESD (Emergency Shutdown) systems. - Heavy Manufacturing:
Supports predictive maintenance in steel mills and cement plants by analyzing acoustic signatures of large rotating machinery like crushers and conveyors. - Marine Propulsion:
Installed in naval vessels and commercial ships to monitor engine turbines, enhancing fuel efficiency and reducing maintenance costs during long voyages.
Specific applications include gas turbine bearing wear detection, steam turbine blade crack monitoring, and compressor surge prevention in refinery processes.
Related Products
- GE IS220VCMIH2CA (Mark VIe Communication Card):
Provides Ethernet/IP connectivity for the IS220UCSAH1A, enabling integration with SCADA systems and remote operators. - GE IS220PRTDH1A (Mark VIe RTD Input Module):
Works alongside the IS220UCSAH1A to combine acoustic data with temperature readings for comprehensive turbine health analysis. - GE IS220PDOAH1A 336A4940CSP2 (Mark VIe Discrete Output Module):
Translates control commands from the IS220UCSAH1A into relay signals for actuating turbine valves and dampers. - GE IS220PSCAH1A 336A4940CSP9 (Mark VIe Power Supply Module):
Ensures stable 24 V DC power for the IS220UCSAH1A, supporting its dual input redundancy and continuous operation. - GE IS220PPRFH1B (Mark VIe PROFIBUS Gateway):
Extends the IS220UCSAH1A’s communication capabilities to PROFIBUS networks, ideal for retrofitting older industrial systems. - GE IS220UCSAH1B (Mark VIe Acoustic Monitor Processor):
An upgraded variant with enhanced processing power, suitable for large-scale turbine clusters requiring higher data throughput.
Installation and Maintenance
Pre-installation preparations:
Verify the Mark VIe rack is grounded and ventilated, with a stable 18–36 V DC power supply. Mount the IS220UCSAH1A on a DIN rail or panel using anti-vibration brackets, ensuring adequate airflow around the module’s grill openings. Configure Ethernet settings via GE’s Proficy software, enabling redundant connections for critical applications.
Verify the Mark VIe rack is grounded and ventilated, with a stable 18–36 V DC power supply. Mount the IS220UCSAH1A on a DIN rail or panel using anti-vibration brackets, ensuring adequate airflow around the module’s grill openings. Configure Ethernet settings via GE’s Proficy software, enabling redundant connections for critical applications.
Maintenance suggestions:
Perform quarterly inspections of front-panel LEDs to check for fault indicators. Use GE’s diagnostic tools to monitor processor load and network latency, ensuring optimal performance. Clean dust from vents biannually with compressed air, especially in dusty environments. Replace the module’s battery (if applicable) every five years to maintain real-time clock accuracy. Store spare IS220UCSAH1A modules in anti-static packaging at 10–30°C with <50% humidity, testing them annually to confirm functionality.
Perform quarterly inspections of front-panel LEDs to check for fault indicators. Use GE’s diagnostic tools to monitor processor load and network latency, ensuring optimal performance. Clean dust from vents biannually with compressed air, especially in dusty environments. Replace the module’s battery (if applicable) every five years to maintain real-time clock accuracy. Store spare IS220UCSAH1A modules in anti-static packaging at 10–30°C with <50% humidity, testing them annually to confirm functionality.
Product Guarantee
Our company offers a one-year quality warranty service for the IS220UCSAH1A, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. As a leading import-export distributor with 17 years of experience, we maintain large stocks of Mark VIe components, ensuring timely access to critical processors like the IS220UCSAH1A.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
