GE IS220PRTDH1BC 336A5026ADP13 Product Specification
Product Overview：GE IS220PRTDH1BC 336A5026ADP13
The GE IS220PRTDH1BC 336A5026ADP13 is a high-precision Resistance Temperature Device (RTD) input module engineered for GE’s Mark VIe Speedtronic Turbine Control System, serving as a critical component in industrial temperature monitoring and control. Designed to interface with RTD sensors, this module converts analog temperature signals into digital data for real-time analysis, ensuring optimal performance and safety in gas turbines, steam turbines, and other mission-critical equipment across power generation, oil and gas, and heavy manufacturing.
As part of the Mark VIe distributed control architecture, the GE IS220PRTDH1BC supports 8-channel RTD inputs with 14-bit analog-to-digital conversion, delivering ±0.1°C accuracy across a wide temperature range (-200°C to +850°C) 710. Its dual redundant 100 Mbps Ethernet ports enable seamless communication with the Mark VIe controller, while the hot-swappable design allows module replacement without system downtime. The module’s rugged construction—featuring a triple-layer conformal coating and IP20-rated enclosure—ensures reliable operation in harsh environments with high vibration, humidity, and temperature fluctuations (-30°C to +65°C) 713.
In automation systems, the GE IS220PRTDH1BC acts as the temperature monitoring backbone for turbine control loops, providing critical data for processes like bearing temperature regulation, exhaust gas analysis, and steam path optimization. Its compatibility with IS200TRTDH2D and IS200SRTDH1A terminal boards allows deployment in hazardous locations, adhering to industry standards for safety and reliability 710.
Technical Specifications：GE IS220PRTDH1BC 336A5026ADP13
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS220PRTDH1BC 336A5026ADP13 |
| Manufacturer | General Electric (GE) |
| Product Type | RTD Input Module |
| Series | Mark VIe Speedtronic Turbine Control System |
| Input Channels | 8-channel RTD inputs (3-wire or 4-wire configuration) |
| Temperature Range | -200°C to +850°C |
| Accuracy | ±0.1°C (at 25°C) |
| Analog-to-Digital Converter | 14-bit |
| Communication Interface | Dual 100 Mbps Ethernet ports (IONET protocol) |
| Physical Dimensions | 220 mm (H) × 100 mm (W) × 160 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Power Supply | 24 VDC ±5% (internal redundant power input) |
| Certifications | CE, UL 61010-1, IEC 60950-1 |
Main Features and Advantages：GE IS220PRTDH1BC 336A5026ADP13
Precision Temperature Measurement:
The GE IS220PRTDH1BC integrates a 14-bit ADC and advanced signal conditioning to deliver ±0.1°C accuracy, critical for monitoring turbine bearings, stator windings, and exhaust systems. Its wide temperature range supports both low-temperature applications (e.g., cryogenic processes) and high-temperature environments (e.g., gas turbine combustion chambers) 710.
The GE IS220PRTDH1BC integrates a 14-bit ADC and advanced signal conditioning to deliver ±0.1°C accuracy, critical for monitoring turbine bearings, stator windings, and exhaust systems. Its wide temperature range supports both low-temperature applications (e.g., cryogenic processes) and high-temperature environments (e.g., gas turbine combustion chambers) 710.
Redundant Communication:
Dual Ethernet ports provide redundant connectivity to the Mark VIe controller, ensuring uninterrupted data transmission. This redundancy minimizes downtime risks in safety-critical systems, such as turbine emergency shutdowns triggered by 异常温度波动 13.
Dual Ethernet ports provide redundant connectivity to the Mark VIe controller, ensuring uninterrupted data transmission. This redundancy minimizes downtime risks in safety-critical systems, such as turbine emergency shutdowns triggered by 异常温度波动 13.
Rugged Industrial Design:
A triple-layer conformal coating protects against dust, moisture, and chemical exposure, while the module’s vibration resistance (10–2000 Hz, 10 G rms) and wide operating temperature range make it suitable for offshore platforms, refineries, and power plants 713.
A triple-layer conformal coating protects against dust, moisture, and chemical exposure, while the module’s vibration resistance (10–2000 Hz, 10 G rms) and wide operating temperature range make it suitable for offshore platforms, refineries, and power plants 713.
Hot-Swappable Operation:
The GE IS220PRTDH1BC supports hot swapping, allowing replacement of a faulty unit without powering down the control system. This feature reduces mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications 13.
The GE IS220PRTDH1BC supports hot swapping, allowing replacement of a faulty unit without powering down the control system. This feature reduces mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications 13.
Flexible Compatibility:
Compatible with IS200TRTDH2D, IS200SRTDH1A, and other RTD terminal boards, the module can be configured for hazardous locations (Class I, Division 2) when paired with appropriate accessories. This flexibility ensures compliance with industry standards while accommodating diverse sensor types 710.
Compatible with IS200TRTDH2D, IS200SRTDH1A, and other RTD terminal boards, the module can be configured for hazardous locations (Class I, Division 2) when paired with appropriate accessories. This flexibility ensures compliance with industry standards while accommodating diverse sensor types 710.
Application Areas：GE IS220PRTDH1BC 336A5026ADP13
-
Power Generation:
- Monitors turbine bearing temperatures to prevent overheating and mechanical failure in combined cycle plants.
- Analyzes exhaust gas temperatures to optimize combustion efficiency and reduce emissions in gas turbine systems.
-
Oil and Gas:
- Measures pipeline fluid temperatures to ensure optimal viscosity and flow rates in offshore platforms.
- Supports compressor control systems by monitoring motor winding temperatures to prevent thermal runaway.
-
Manufacturing:
- Regulates oven temperatures in automotive paint shops to ensure uniform coating quality.
- Monitors reactor temperatures in chemical plants to maintain process stability and safety.
-
Renewable Energy:
- Tracks wind turbine gearbox temperatures to enable predictive maintenance and extend component lifespan.
- Measures solar panel junction box temperatures to optimize energy production in utility-scale solar farms.
Related Products：GE IS220PRTDH1BC 336A5026ADP13
- GE IS220PRTDH1A: Earlier variant of the IS220PRTDH1BC with 8-channel RTD input, suitable for legacy Mark VI systems.
- GE IS200TRTDH2D: RTD terminal board compatible with IS220PRTDH1BC, designed for hazardous location applications.
- GE IS200SRTDH1A: High-precision RTD terminal board for platinum RTD sensors, enhancing measurement accuracy in critical processes.
- GE IS220PDIOH1B: Discrete I/O module often paired with IS220PRTDH1BC for integrated turbine control and monitoring.
- GE IS220PAICH1A: Analog input module used alongside IS220PRTDH1BC to handle additional process variables like pressure and flow.
- GE IS220VCMIH1A: Communication module ensuring seamless data transmission between IS220PRTDH1BC and the Mark VIe controller.
Installation and Maintenance：GE IS220PRTDH1BC 336A5026ADP13
Pre-installation Preparation:
Before installing the GE IS220PRTDH1BC, verify the input voltage matches the module’s requirements (24 VDC ±5%) and ensure the control cabinet is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling. Mount the module in a 3U VME rack with at least 50 mm clearance for airflow, securing it with anti-vibration brackets to minimize mechanical stress. Connect RTD sensors to the IS200TRTDH2D terminal board, ensuring proper 3-wire or 4-wire configuration, and link the module’s Ethernet ports to the Mark VIe controller via redundant cables
Before installing the GE IS220PRTDH1BC, verify the input voltage matches the module’s requirements (24 VDC ±5%) and ensure the control cabinet is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling. Mount the module in a 3U VME rack with at least 50 mm clearance for airflow, securing it with anti-vibration brackets to minimize mechanical stress. Connect RTD sensors to the IS200TRTDH2D terminal board, ensuring proper 3-wire or 4-wire configuration, and link the module’s Ethernet ports to the Mark VIe controller via redundant cables
Maintenance Recommendations:

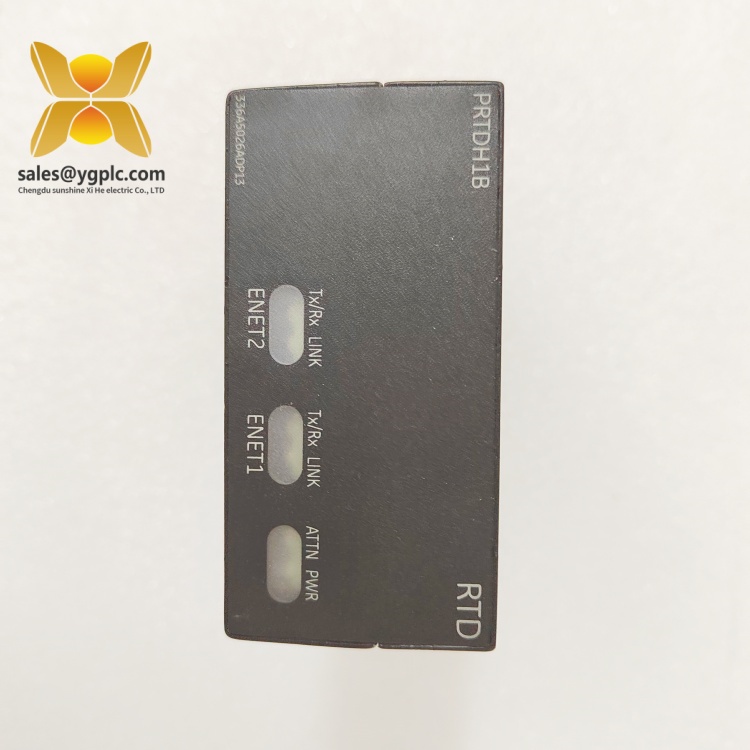

Perform monthly visual inspections to confirm front-panel LEDs (Power, Ethernet Link, Fault) indicate normal operation. Clean dust from ventilation slots using compressed air to maintain cooling efficiency. Quarterly, use a multimeter to verify output voltage (24 VDC ±5%) and check terminal connections for corrosion. Annually, update firmware via GE’s Proficy software to access bug fixes and compatibility enhancements. Test redundancy by disconnecting one Ethernet port and confirming seamless switchover to the secondary channel
Perform monthly visual inspections to confirm front-panel LEDs (Power, Ethernet Link, Fault) indicate normal operation. Clean dust from ventilation slots using compressed air to maintain cooling efficiency. Quarterly, use a multimeter to verify output voltage (24 VDC ±5%) and check terminal connections for corrosion. Annually, update firmware via GE’s Proficy software to access bug fixes and compatibility enhancements. Test redundancy by disconnecting one Ethernet port and confirming seamless switchover to the secondary channel
Product Warranty：GE IS220PRTDH1BC 336A5026ADP13
Our company offers a one-year quality warranty for the GE IS220PRTDH1BC 336A5026ADP13, covering hardware malfunctions not caused by human factors. During the warranty period, if the module exhibits abnormal temperature readings, communication failures, or functional defects, we will provide replacement services. For discontinued models or urgent demands, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting the continuous operation of your industrial systems. As a leading import-export distributor with 17 years of experience, we maintain large inventories of industrial control parts, including hard-to-find models, to meet your urgent needs 16.
