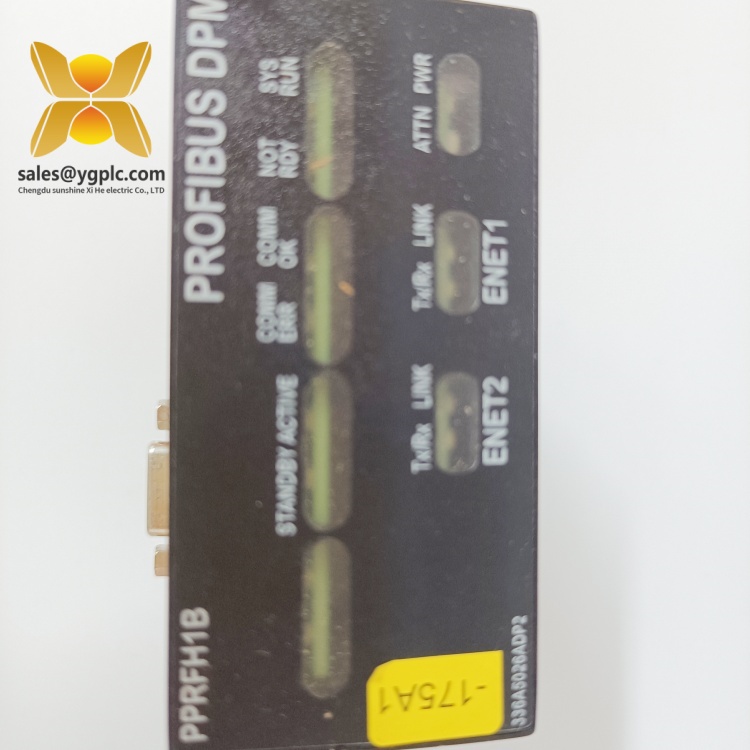

GE IS220PPRFH1B Mark VIe PROFIBUS Master Gateway I/O Module
Product Overview：GE IS220PPRFH1
The GE IS220PPRFH1B is a high-performance PROFIBUS master gateway I/O module designed for GE’s Mark VIe control system, serving as a critical interface for seamless integration between industrial automation systems and PROFIBUS networks. As part of the IS220 Series, this module bridges the Mark VIe controller with PROFIBUS DP slave devices, enabling real-time data exchange and control command execution in power generation, oil & gas, and process industries. The IS220PPRFH1B supports PROFIBUS DP V0 communication, delivering reliable connectivity for sensors, actuators, and other field devices in mission-critical applications.
Featuring a PROFIBUS DP Class 1 master architecture, the GE IS220PPRFH1B handles up to 125 slave devices, each with 244 bytes of input/output data, at transmission rates ranging from 9.6 kbps to 12 Mbps 2. Its dual Ethernet ports enable redundant communication paths, ensuring high availability in systems where downtime is unacceptable. The module integrates a Hilscher COM-C PROFIBUS communication module, providing robust protocol handling and diagnostics, while its hot-swappable design allows maintenance without system shutdowns.
In automation ecosystems, the IS220PPRFH1B plays a pivotal role in turbine control systems, where it interfaces with distributed I/O modules and field devices to manage valve actuators, pressure sensors, and safety interlocks. Its ATEX Zone 2 certification (UL DEMKO 12 ATEX 1114875X) ensures safe operation in hazardous environments, while MIL-STD-810G compliance guarantees resilience against vibration, shock, and extreme temperatures (-20°C to +55°C) 3. This makes it ideal for offshore platforms, refineries, and power plants where reliability and safety are paramount.
Technical Specifications：GE IS220PPRFH1
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PPRFH1B |
| Manufacturer | GE |
| Product Type | PROFIBUS Master Gateway I/O Module |
| Series | Mark VIe |
| Communication Protocol | PROFIBUS DP V0 (Class 1 master) |
| Input Voltage | 28 V DC ±10% |
| Input Current | Max 18 A DC |
| Number of Slaves | Up to 125 slaves (244 bytes I/O per slave) |
| Transmission Rate | 9.6 kbps to 12 Mbps |
| Physical Dimensions | 110 mm (H) × 60 mm (W) × 67 mm (D) |
| Weight | 0.14 kg |
| Operating Temperature | -20°C to +55°C |
| Certifications | ATEX Zone 2 (Group IIC), UL E207685, MIL-STD-810G |
| Redundancy Support | Hot-backup Ethernet connections with dual ports |
| Mounting | 6U VMEbus rack-mounted |
Key Features and Advantages：GE IS220PPRFH1
High-Speed PROFIBUS Connectivity:
The IS220PPRFH1B supports PROFIBUS DP V0 with transmission rates up to 12 Mbps, ensuring rapid data exchange between the Mark VIe controller and field devices. Its 244 bytes I/O per slave capacity allows simultaneous monitoring and control of multiple parameters, such as pressure, temperature, and valve positions, in complex industrial processes.
The IS220PPRFH1B supports PROFIBUS DP V0 with transmission rates up to 12 Mbps, ensuring rapid data exchange between the Mark VIe controller and field devices. Its 244 bytes I/O per slave capacity allows simultaneous monitoring and control of multiple parameters, such as pressure, temperature, and valve positions, in complex industrial processes.
Redundant Architecture:
Dual Ethernet ports and hot-backup redundancy ensure continuous operation by automatically switching to a standby module in case of failure. This redundancy is critical in safety-critical applications like emergency shutdown (ESD) systems, where downtime could lead to catastrophic consequences.
Dual Ethernet ports and hot-backup redundancy ensure continuous operation by automatically switching to a standby module in case of failure. This redundancy is critical in safety-critical applications like emergency shutdown (ESD) systems, where downtime could lead to catastrophic consequences.
Hazardous Environment Compliance:
With ATEX Zone 2 certification, the module safely operates in explosive atmospheres common in oil & gas facilities. Its conformal coating and rugged design protect against dust, moisture, and corrosive elements, extending lifespan in harsh industrial settings.
With ATEX Zone 2 certification, the module safely operates in explosive atmospheres common in oil & gas facilities. Its conformal coating and rugged design protect against dust, moisture, and corrosive elements, extending lifespan in harsh industrial settings.
Advanced Diagnostics:
Built-in diagnostics via front-panel LEDs and firmware-level monitoring enable real-time status updates, fault detection, and predictive maintenance. The module’s Hilscher COM-C module provides detailed PROFIBUS network diagnostics, reducing mean time to repair (MTTR) and improving operational efficiency.
Built-in diagnostics via front-panel LEDs and firmware-level monitoring enable real-time status updates, fault detection, and predictive maintenance. The module’s Hilscher COM-C module provides detailed PROFIBUS network diagnostics, reducing mean time to repair (MTTR) and improving operational efficiency.
Flexible Configuration:
The IS220PPRFH1B supports multiple control modes, including simplex (single I/O pack) and hot-backup (dual I/O packs), allowing scalability for both small-scale and large industrial systems. It seamlessly integrates with other Mark VIe modules, such as analog input/output cards, to form a cohesive control architecture.
The IS220PPRFH1B supports multiple control modes, including simplex (single I/O pack) and hot-backup (dual I/O packs), allowing scalability for both small-scale and large industrial systems. It seamlessly integrates with other Mark VIe modules, such as analog input/output cards, to form a cohesive control architecture.
Ease of Integration:
Designed for plug-and-play compatibility with the IS200SPIDG1A terminal board, the module simplifies wiring and installation. Its user-friendly configuration toolset (e.g., GE’s Proficy Machine Edition) streamlines setup, reducing commissioning time and costs.
Designed for plug-and-play compatibility with the IS200SPIDG1A terminal board, the module simplifies wiring and installation. Its user-friendly configuration toolset (e.g., GE’s Proficy Machine Edition) streamlines setup, reducing commissioning time and costs.
Application Areas：GE IS220PPRFH1
The GE IS220PPRFH1B excels in industries requiring reliable PROFIBUS communication and high-performance control:
- Power Generation:
Controls gas turbine auxiliary systems, such as fuel valves and cooling pumps, in thermal and nuclear power plants. Integrates with Mark VIe controllers to optimize turbine efficiency and ensure safe shutdowns. - Oil & Gas:
Manages offshore platform ESD networks, pipeline pressure sensors, and refinery valve actuators. Its ATEX certification makes it suitable for hazardous zones where explosive gases are present. - Chemical Processing:
Monitors reactor temperature and pressure via PROFIBUS-connected sensors, enabling precise process control. Supports real-time data exchange with distributed control systems (DCS) for batch and continuous manufacturing. - Manufacturing:
Interfaces with robotic arms, conveyor belts, and assembly line actuators in automotive and food processing facilities. Ensures synchronization between PLCs and industrial robots for seamless production.
Related Products：GE IS220PPRFH1
- GE IS220PDIOH1A (Mark VIe Discrete I/O Module):
Provides discrete input/output capabilities for integrating low-voltage signals (e.g., switches, relays) with the IS220PPRFH1B. - GE IS220PPRCH1A (Mark VIe PROFIBUS Communication Module):
A higher-channel variant supporting PROFIBUS DP V1 for advanced diagnostics and alarm handling. - GE IS200SPIDG1A (Terminal Board):
Required for physical connectivity between the IS220PPRFH1B and PROFIBUS field devices, providing electrical isolation and signal conditioning. - GE IS220VCMIH2CA (Mark VIe Communication Interface Card):
Enables integration with Ethernet/IP networks, extending the IS220PPRFH1B’s connectivity to SCADA and cloud-based systems. - GE IS220TSVCH2ADC (Mark VIe Temperature Input Module):
Complementary module for analog temperature monitoring, often used alongside the IS220PPRFH1B in turbine control systems. - GE IS220PAOCH1A (Mark VIe Analog Output Module):
Provides analog control signals for proportional valves and variable-speed drives, enhancing the IS220PPRFH1B’s control capabilities.
Installation and Maintenance：GE IS220PPRFH1
Pre-installation preparations:
Verify compatibility with the Mark VIe system firmware using GE’s Proficy Machine Edition. Mount the IS220PPRFH1B in a 6U VMEbus rack, ensuring proper grounding and ventilation. Connect the IS200SPIDG1A terminal board to the module, routing PROFIBUS cables via the DE-9 D-sub connector. Configure redundant Ethernet ports for high availability, following GE’s recommended wiring practices to minimize electromagnetic interference.
Verify compatibility with the Mark VIe system firmware using GE’s Proficy Machine Edition. Mount the IS220PPRFH1B in a 6U VMEbus rack, ensuring proper grounding and ventilation. Connect the IS200SPIDG1A terminal board to the module, routing PROFIBUS cables via the DE-9 D-sub connector. Configure redundant Ethernet ports for high availability, following GE’s recommended wiring practices to minimize electromagnetic interference.
Maintenance suggestions:
Perform quarterly visual inspections to check for loose connections or signs of physical damage. Use GE’s diagnostic tools to monitor PROFIBUS network health, including signal strength and slave device status. Clean dust from vents using compressed air, particularly in dusty environments. Replace the module if firmware updates fail or if hardware faults persist, ensuring compatibility with the latest Mark VIe software releases. Store spare IS220PPRFH1B modules in anti-static packaging at 10–30°C with <50% humidity to maintain functionality.
Perform quarterly visual inspections to check for loose connections or signs of physical damage. Use GE’s diagnostic tools to monitor PROFIBUS network health, including signal strength and slave device status. Clean dust from vents using compressed air, particularly in dusty environments. Replace the module if firmware updates fail or if hardware faults persist, ensuring compatibility with the latest Mark VIe software releases. Store spare IS220PPRFH1B modules in anti-static packaging at 10–30°C with <50% humidity to maintain functionality.
