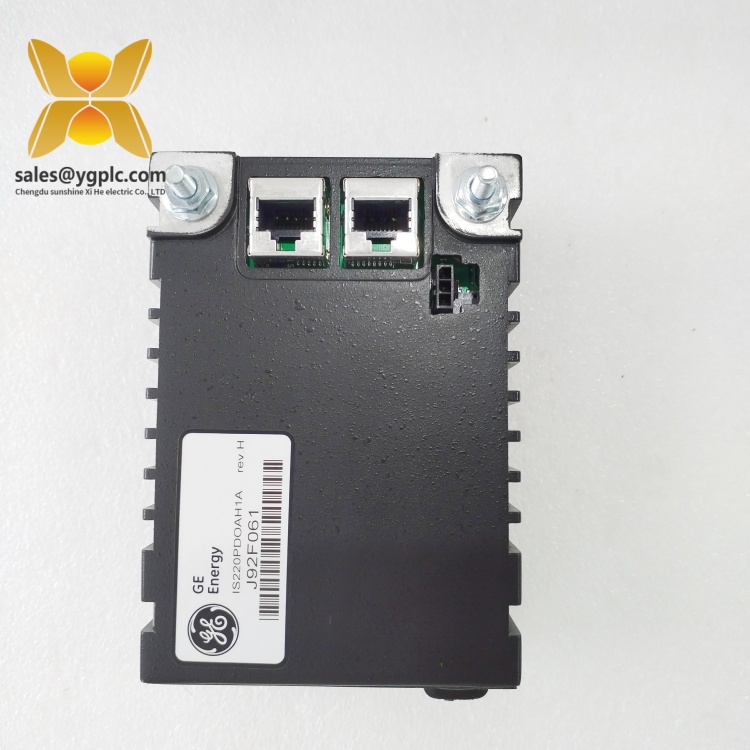

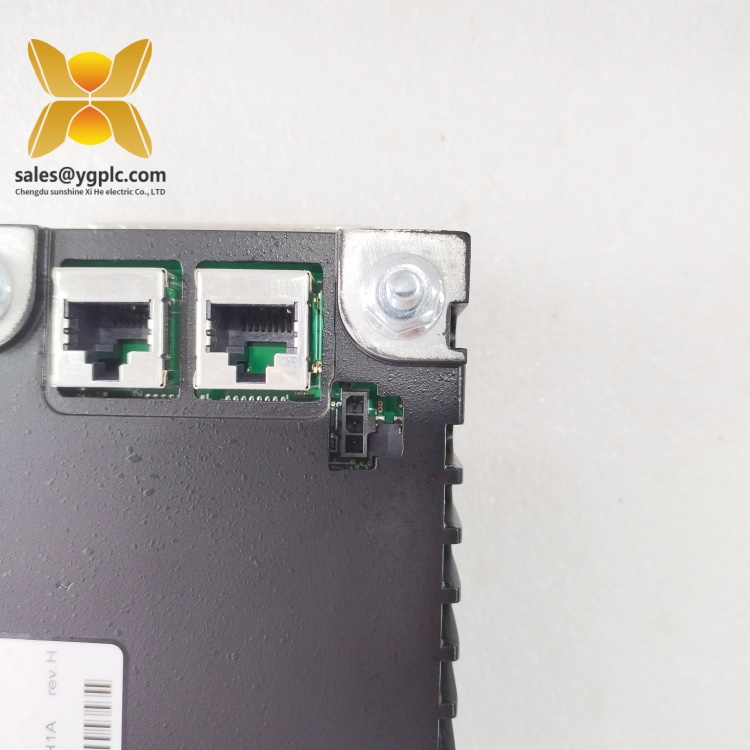

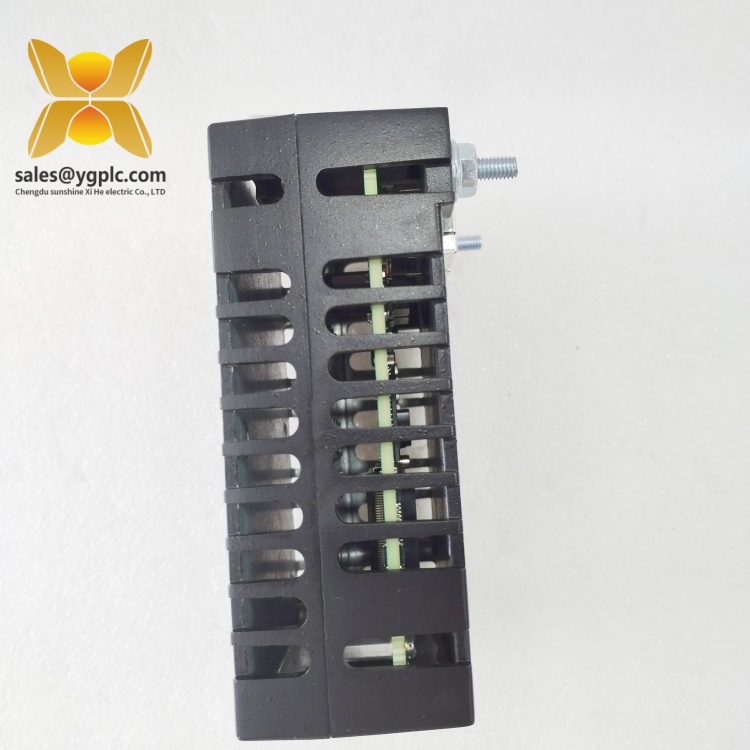

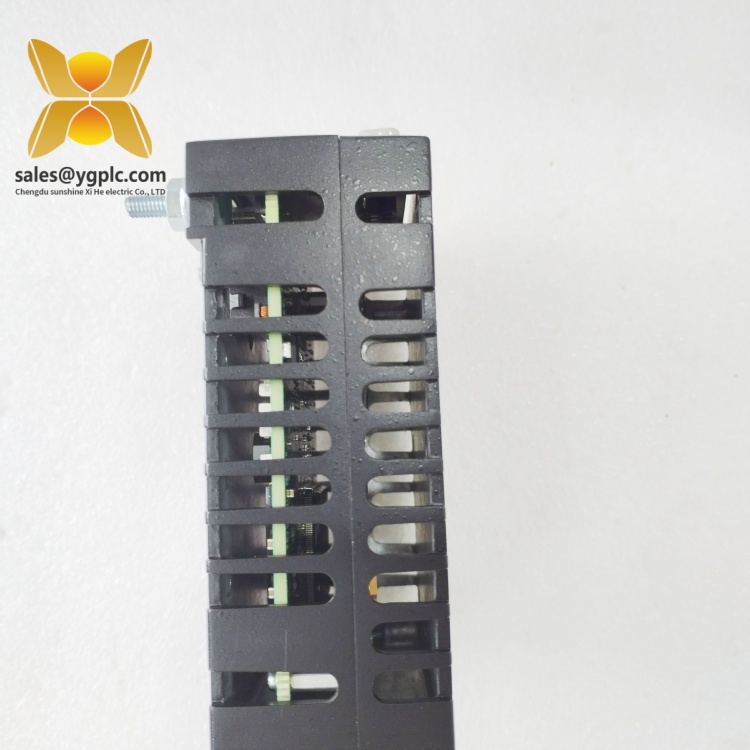

GE IS220PDOAH1B Mark VIe Discrete Output I/O Pack
Product Overview
The GE IS220PDOAH1B is a high-performance discrete output module engineered for GE’s Mark VIe Speedtronic™ turbine control system, widely deployed in power generation, oil and gas, and heavy industrial sectors. As a critical component of the Mark VIe I/O architecture, this module interfaces with field devices such as solenoids, motor starters, and valves to convert digital control signals into binary outputs, ensuring precise and reliable operation of turbine systems. Engineered for rugged industrial environments, the IS220PDOAH1B supports 16 isolated discrete outputs, redundant power supplies, and advanced diagnostics, making it ideal for mission-critical applications where downtime is unacceptable.
Featuring dual-channel 28V DC power inputs with automatic failover, the module ensures continuous operation even if one power source fails. Its -40°C to +70°C operating range and IP20-certified metal enclosure make it suitable for extreme conditions, including offshore platforms and chemical plants . The IS220PDOAH1B supports hot-swappable installation, allowing maintenance without system shutdown, and integrates with GE’s Proficy™ software for remote monitoring of output status and fault diagnostics.
Within the Mark VIe ecosystem, the IS220PDOAH1B pairs with terminal boards like TRLYH1B or TRLYH1E to interface with field devices, while its 32-bit ARM processor enables high-speed signal processing and data buffering . Compliance with UL 508 and IEC 61010 standards ensures safety and reliability in regulated industrial settings.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PDOAH1B |
| Manufacturer | GE |
| Product Type | Discrete Output Module |
| Series | Mark VIe Speedtronic™ |
| Output Channels | 16 isolated discrete outputs |
| Output Voltage | 24–28V DC (nominal) |
| Contact Output Current | 1A per channel (resistive load) |
| Power Supply | Dual 28V DC inputs (±10%) |
| Signal Isolation | 500V DC (channel-to-channel, channel-to-ground) |
| Response Time | <10ms |
| Physical Dimensions | 263 mm (L) × 58 mm (W) × 28 mm (D) |
| Weight | 1.42 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (Mark VIe I/O rack compatible) |
| Compliance | UL 508, IEC 61010, CE |
| Country of Origin | United States |
Main Features and Advantages
High-Density Isolated Outputs: The IS220PDOAH1B supports 16 discrete outputs, each isolated to prevent ground loops and electromagnetic interference. This density reduces the need for additional modules, simplifying system architecture in turbine control cabinets . Its fail-safe output configuration ensures outputs default to a safe state during power loss or fault conditions, critical for maintaining process safety in applications like emergency shutdown systems.
Redundant Power Design: With dual 28V DC inputs and automatic failover, the module ensures uninterrupted operation in applications where power outages could trigger turbine trips. Built-in overvoltage protection (OVP) safeguards against voltage spikes, while reverse polarity protection prevents damage from incorrect wiring .
Hazardous Location Certification: UL-listed for both non-hazardous and hazardous locations (Class I, Division 2), the IS220PDOAH1B is ideal for offshore platforms, refineries, and chemical plants where explosive atmospheres are present. Its metal enclosure and wide temperature range ensure reliability in corrosive and high-vibration environments .

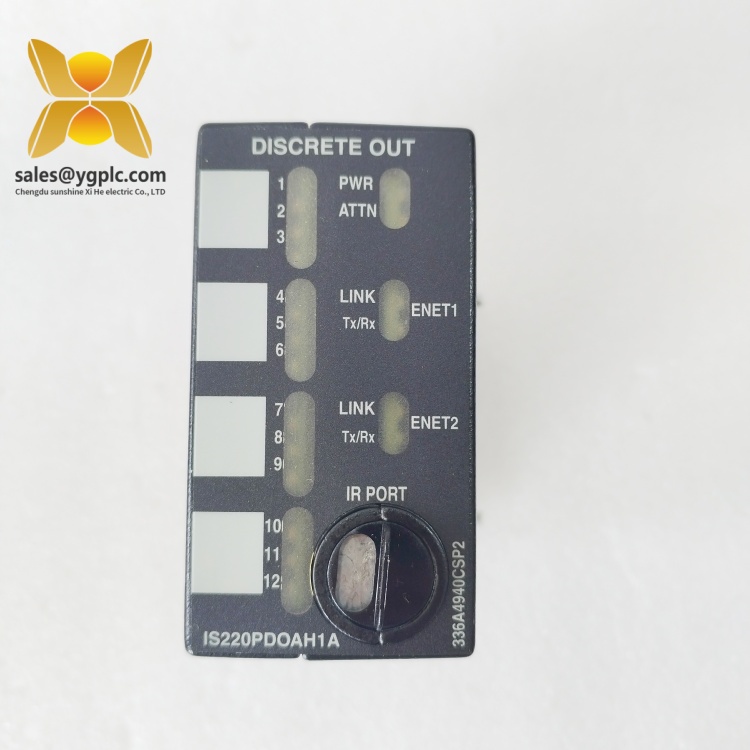

Real-Time Diagnostics: LED indicators provide instant feedback on output status, power health, and communication activity. Integration with Proficy™ software enables remote monitoring of output signals, fault logging, and firmware updates, enhancing maintenance efficiency. The module also supports predictive diagnostics, allowing proactive identification of potential failures before they impact operations .
Flexible Terminal Board Compatibility: The module works with a range of GE terminal boards (e.g., TRLYH1B, TRLYH1E), allowing customization for specific actuator types (e.g., relays, solid-state switches). This flexibility enables seamless integration with existing field devices, reducing retrofitting costs .
Application Areas
The GE IS220PDOAH1B is critical for industries requiring reliable turbine control and safety systems:
- Power Generation: Controls steam and fuel valves in thermal, combined-cycle, and nuclear power plants, ensuring stable grid synchronization and load balancing. Its fail-safe design supports real-time load shedding and grid protection mechanisms .
- Oil and Gas: Manages compressor anti-surge valves, pump controls, and emergency shutdown (ESD) systems in offshore platforms and refineries. The module’s hazardous location certification ensures compliance with safety standards in explosive environments .
- Industrial Manufacturing: Used in chemical plants and paper mills to control process-critical valves, motor starters, and conveyor belts. Its rugged design withstands vibration and temperature fluctuations in heavy industrial environments .
- Marine Propulsion: Integrates with shipboard turbine control systems to manage propulsion valves, ensuring reliable operation in harsh marine conditions. The module’s compact size and high density optimize space in shipboard control cabinets .
Related Products
- GE IS220PDIAH1BE Discrete Input Module: Paired with the IS220PDOAH1B to form a complete I/O solution, monitoring field sensors and providing feedback to the turbine control system .
- GE IS220PAICH2A Redundant Power Supply: Provides dual 24V DC power to the IS220PDOAH1B, ensuring fail-safe operation in critical applications .
- GE TRLYH1B Terminal Board: Connects field actuators to the IS220PDOAH1B, offering configurable voltage thresholds and signal conditioning for electromagnetic relays .
- GE TRLYH1E Terminal Board: Supports solid-state relays for high-speed switching applications, complementing the IS220PDOAH1B in high-frequency control scenarios .
- GE IS220ACIOH1A Communication Module: Enables data exchange between the IS220PDOAH1B and SCADA networks, enhancing remote monitoring capabilities .
Installation and Maintenance
Pre-installation Preparations:
- Verify the Mark VIe I/O rack is grounded and powered (28V DC).
- Align the IS220PDOAH1B with the backplane connectors, securing it with captive screws.
- Connect field actuators to the terminal board (e.g., TRLYH1B), ensuring proper voltage matching (24–28V DC).
- Configure output parameters (e.g., signal type, fail-safe mode) via Proficy™ software, following GE’s wiring diagrams to avoid polarity errors .
Maintenance Recommendations:
- Monthly Inspections: Check LED indicators for output status and power faults. Clean dust from ventilation slots using compressed air to prevent overheating.
- Quarterly Testing: Use a multimeter to verify output voltage thresholds and signal isolation. Test redundant power failover by disconnecting the primary input and confirming seamless switchover .
- Annual Updates: Update firmware to the latest version to address security vulnerabilities and improve compatibility. Perform functional tests to validate output response times .
- Spare Parts Management: Maintain a spare IS220PDOAH1B in inventory, leveraging our global supply chain for rapid replacement. Regularly test spare modules to ensure operational readiness .
Product Guarantee
Our company provides a 12-month quality warranty for the GE IS220PDOAH1B, covering hardware defects not caused by misuse or improper installation. During the warranty period, we offer free replacement for faulty modules and prioritize urgent orders through our extensive inventory and logistics network. With 17 years of industry experience, we ensure reliable support for your critical turbine control needs, even for specialized components like the IS220PDOAH1B .
Note: All product names, logos, and brands are property of their respective owners. This document is informational and does not substitute for GE’s official technical manuals.
