Product Overview

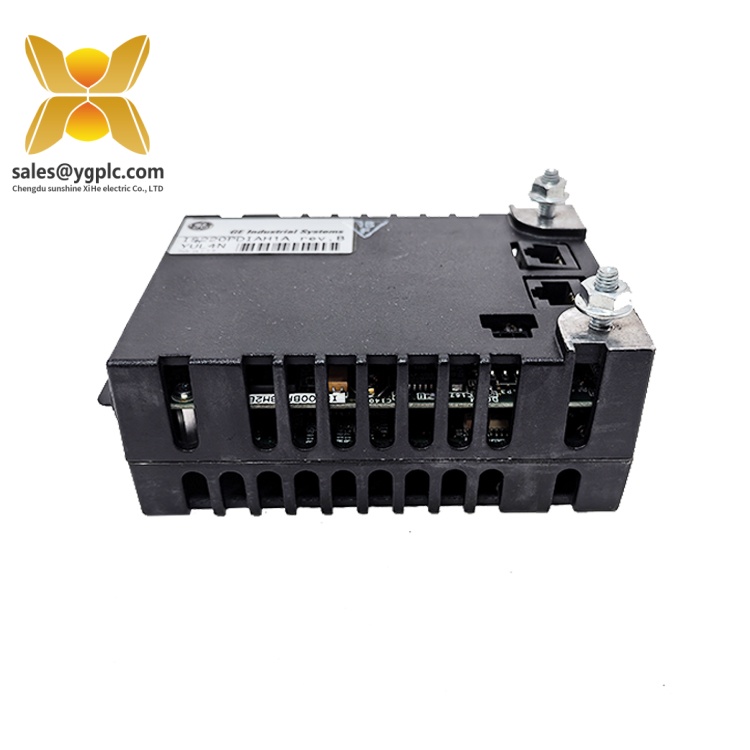

The GE IS220PDIAH1A is a high-performance discrete input module designed for critical industrial control applications, engineered by GE—a global leader in power generation and automation solutions. As part of the renowned Mark VI Turbine Control System Series, the IS220PDIAH1A serves as a vital interface for monitoring and controlling discrete signals in hazardous environments, ensuring reliable operation in power plants, oil refineries, and industrial facilities.
The GE IS220PDIAH1A is a galvanically isolated discrete input pack that converts field-level binary signals (e.g., switches, relays) into digital data compatible with GE’s Mark VI control systems. Its core functionality lies in providing secure signal conditioning and isolation for up to 16 discrete inputs, supporting voltages ranging from 24 VDC to 32 VDC. The module is specifically designed for use in Class I, Division 2 hazardous areas, making it ideal for applications where explosive gases or vapors may be present, such as gas turbine control systems, petrochemical processing units, and offshore platforms.
Within industrial automation systems, the GE IS220PDIAH1A acts as a bridge between field devices and the Mark VI controller, enabling real-time monitoring of critical parameters like turbine speed, valve positions, and safety interlocks. Its rugged construction and advanced diagnostic capabilities ensure continuous signal integrity even in harsh environments, while compliance with global safety standards (e.g., UL, ATEX) guarantees safe operation in hazardous zones. By integrating the IS220PDIAH1A into safety-critical systems, users achieve enhanced operational reliability, reduced downtime, and compliance with stringent regulatory requirements, making it an indispensable component for industries where precision and safety are paramount.

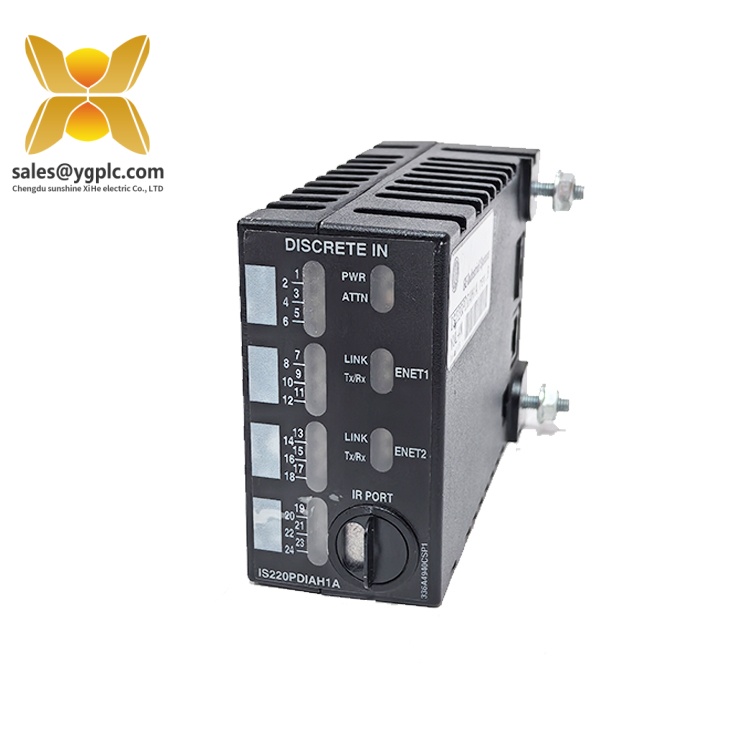

IS220PDIAH1A
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PDIAH1A |
| Manufacturer | GE (General Electric) |
| Product Type | Discrete Input Module (Hazardous Area Certified) |
| Input Signal Type | 24–32 VDC discrete inputs (16 channels) |
| Power Supply | 27.4–32 VDC (isolated) |
| Current Consumption | ≤50 mA per channel (max) |
| Isolation Rating | 2.5 kV AC (input-to-ground, input-to-output) |
| Explosion-Proof Certifications | UL (Class I, Div. 2, Groups A/B/C/D), ATEX (II 2G Ex db IIC T6), IECEx (Ex db IIC T6) |
| Operating Temperature | -30°C to +65°C (ambient) |
| Storage Temperature | -40°C to +85°C |
| Humidity Resistance | 10%–95% non-condensing |
| Physical Dimensions | 140 mm (width) × 180 mm (height) × 120 mm (depth) |
| Mounting Method | DIN-rail mountable (35 mm standard rail) |
| Communication Interface | Ethernet (RJ45) for configuration and diagnostics |
| Diagnostic Features | LED indicators for power, signal status, and fault conditions (e.g., open circuit, overvoltage) |

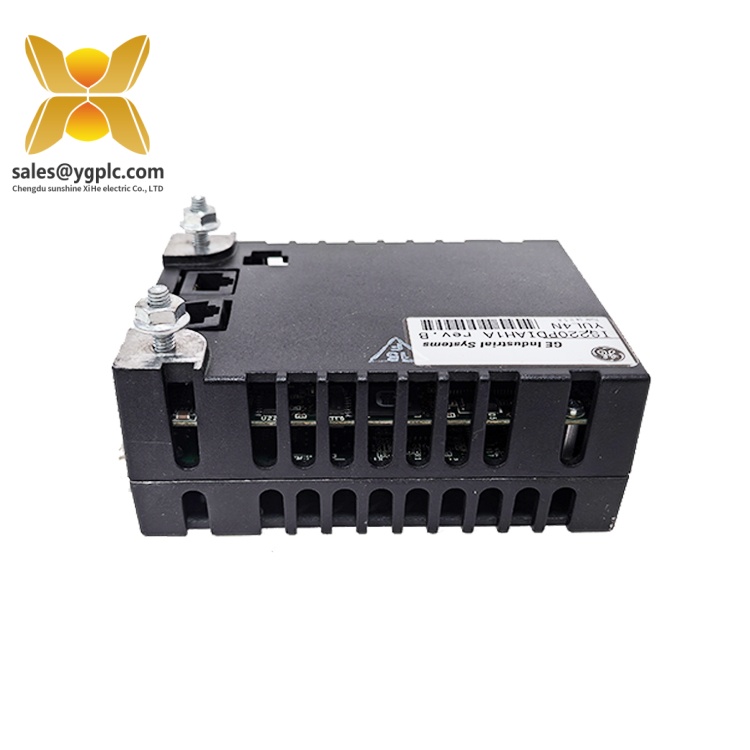

IS220PDIAH1A
Main Features and Advantages
The GE IS220PDIAH1A stands out for its robust safety features, high signal integrity, and adaptability to harsh industrial environments, making it a trusted choice for mission-critical applications.
Hazardous Area Compliance
Certified for use in Class I, Division 2 hazardous areas, the IS220PDIAH1A ensures safe operation in explosive atmospheres by limiting energy transmission to non-ignitable levels. Its intrinsic safety design and flameproof enclosure (Ex db) protect against sparks or heat generation, meeting the strictest global standards like ATEX and IECEx. This compliance is essential for industries handling flammable gases or volatile liquids, such as oil and gas production or chemical processing.
High-Precision Signal Conditioning
The module supports 16 isolated discrete input channels, each capable of detecting binary signals with minimal noise interference. Its advanced filtering and signal conditioning circuitry ensure accurate signal transmission even in high-electromagnetic environments, critical for maintaining precise control over turbine operations, emergency shutdown systems, and process automation.

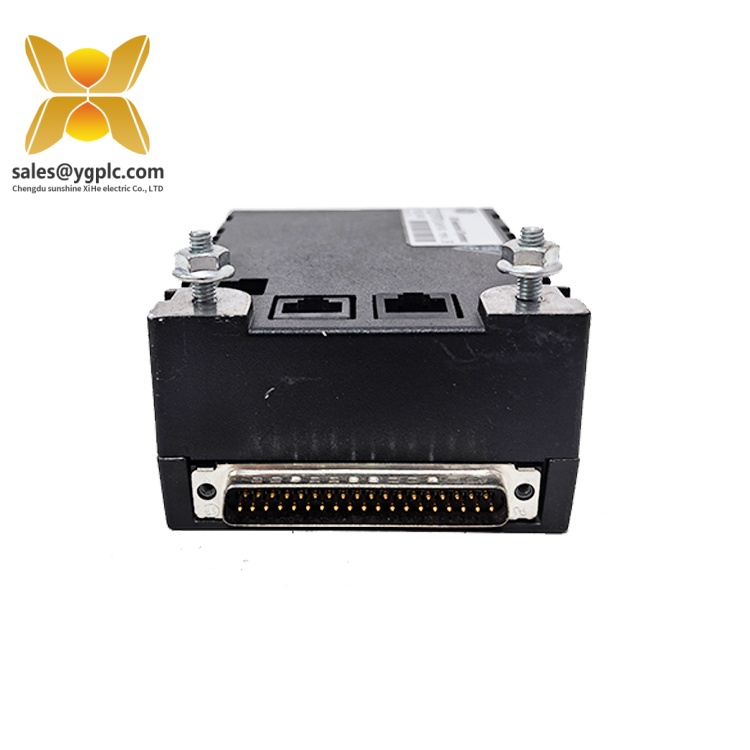

IS220PDIAH1A
Rugged and Reliable Design
Engineered for durability, the IS220PDIAH1A features a rugged aluminum enclosure that resists vibration, 冲击，and corrosion. Its wide operating temperature range (-30°C to +65°C) and humidity resistance make it suitable for extreme industrial environments, including offshore platforms and desert-based power plants. The module’s redundant power supply inputs further enhance reliability by ensuring continuous operation during transient voltage fluctuations.
Ethernet-Based Diagnostics
Equipped with an Ethernet interface, the IS220PDIAH1A enables remote configuration, monitoring, and troubleshooting. Real-time status updates via LED indicators and integrated diagnostics allow operators to identify and resolve issues proactively, reducing downtime and maintenance costs. This connectivity also supports predictive maintenance strategies by providing actionable insights into module health and performance.
Flexible Integration
The IS220PDIAH1A seamlessly integrates with GE’s Mark VI control systems and compatible terminal boards (e.g., IS200TBcih4C, IS200STcih1A), enabling scalable I/O configurations. Its modular design simplifies system expansion, while pluggable terminals facilitate quick wiring and replacement, minimizing installation time and complexity.
Application Areas
The GE IS220PDIAH1A is purpose-built for industries and applications requiring safe and reliable discrete signal monitoring in hazardous environments:

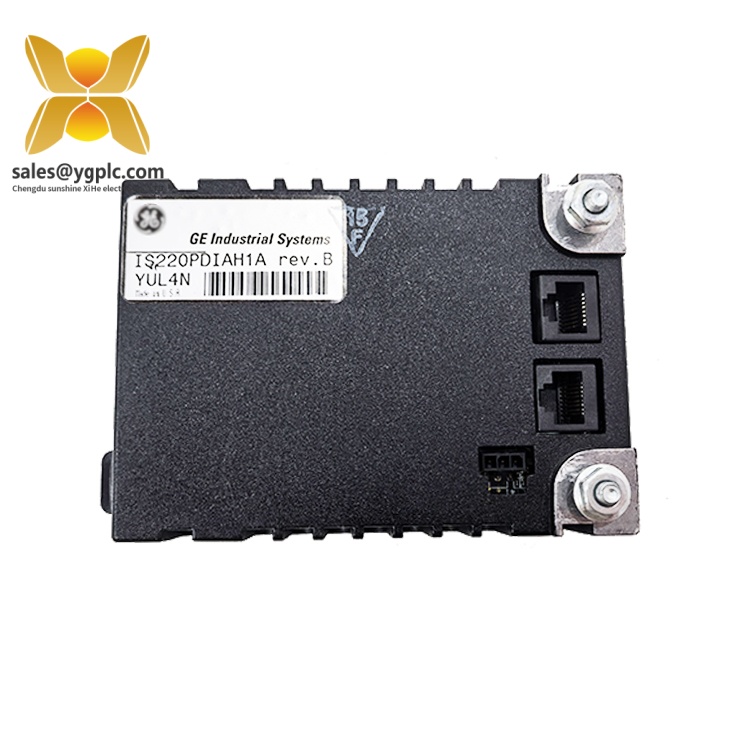

IS220PDIAH1A
Oil and Gas Industry
In upstream and downstream oil and gas facilities, the IS220PDIAH1A monitors critical discrete signals from valves, pressure switches, and emergency shutdown systems in explosive zones. It ensures real-time data transmission to the Mark VI controller, enabling precise control of wellheads, pipelines, and refinery processes while adhering to strict safety protocols.
Power Generation
Within gas and steam turbine control systems, the module tracks turbine speed, blade position, and lubrication system status. Its hazardous-area certification allows direct integration into turbine control panels located in high-risk environments, ensuring reliable operation and compliance with power plant safety standards.
Chemical and Petrochemical Processing
In chemical plants, the IS220PDIAH1A interfaces with safety interlocks, motor starters, and process sensors in volatile production areas. It provides fail-safe signal monitoring for reactors, distillation columns, and storage tanks, helping prevent catastrophic events and ensuring regulatory compliance.
Mining and Minerals Processing
In underground mines, the module monitors ventilation system status, conveyor belt safety switches, and gas detection sensors in dust-explosive zones. Its rugged design and wide temperature tolerance make it suitable for harsh mining environments, supporting safe and efficient mineral extraction operations.
Industrial Safety Systems
As part of safety instrumented systems (SIS), the IS220PDIAH1A connects emergency stop buttons, fire detectors, and gas sensors to safety controllers. Its intrinsic safety design ensures reliable signal transfer in high-risk scenarios, triggering protective actions to mitigate hazards and safeguard personnel.
IS220PDIAH1A
Related Products
The GE IS220PDIAH1A is part of a comprehensive ecosystem of Mark VI control system components and accessories:
- GE IS220PDIAH1B: An upgraded version of the IS220PDIAH1A with enhanced diagnostic capabilities and support for higher voltage inputs (up to 48 VDC).
- GE IS200TBcih4C: A terminal block designed for hazardous areas, providing secure connectivity between the IS220PDIAH1A and field devices.
- GE IS200STcih1A: A surge protection terminal block that safeguards the IS220PDIAH1A from voltage spikes in harsh industrial environments.
- GE IS220PAICH1B: A complementary analog input/output module for integrated process control in Mark VI systems.
- GE IS220VSIVH1A: A valve control module that works alongside the IS220PDIAH1A to manage turbine steam valves in power generation applications.
- GE Mark VI Controller: The central processing unit of the Mark VI system, which coordinates data from the IS220PDIAH1A and other I/O modules for turbine control.
Installation and Maintenance
Installation Preparations:
Before installing the GE IS220PDIAH1A, ensure the power supply is disconnected and the control system is in a safe state. Verify that the module’s voltage specifications match your system requirements (27.4–32 VDC). Mount the module on a 35 mm DIN rail in a suitable explosion-proof enclosure, ensuring adequate ventilation and compliance with hazardous-area installation guidelines. Connect field device signals to the input terminals and the Mark VI controller to the Ethernet port, using shielded cables to minimize EMI. Apply power and check the LED indicators: a steady green light confirms normal operation, while a red light signals a fault requiring investigation.
Before installing the GE IS220PDIAH1A, ensure the power supply is disconnected and the control system is in a safe state. Verify that the module’s voltage specifications match your system requirements (27.4–32 VDC). Mount the module on a 35 mm DIN rail in a suitable explosion-proof enclosure, ensuring adequate ventilation and compliance with hazardous-area installation guidelines. Connect field device signals to the input terminals and the Mark VI controller to the Ethernet port, using shielded cables to minimize EMI. Apply power and check the LED indicators: a steady green light confirms normal operation, while a red light signals a fault requiring investigation.
Maintenance Recommendations:
Regularly inspect the IS220PDIAH1A for physical damage, loose connections, or signs of environmental stress (e.g., corrosion, dust accumulation). Clean the module with a dry, static-free cloth to maintain optimal heat dissipation. Monitor the Ethernet interface for firmware updates and diagnostic alerts, such as signal loss or overvoltage warnings. Use GE’s Mark VI configuration software to perform periodic health checks and recalibrate inputs if necessary. For complex issues, consult GE’s technical documentation or contact our support team for assistance. Replace worn terminal blocks or damaged components promptly to ensure continued reliability.
Regularly inspect the IS220PDIAH1A for physical damage, loose connections, or signs of environmental stress (e.g., corrosion, dust accumulation). Clean the module with a dry, static-free cloth to maintain optimal heat dissipation. Monitor the Ethernet interface for firmware updates and diagnostic alerts, such as signal loss or overvoltage warnings. Use GE’s Mark VI configuration software to perform periodic health checks and recalibrate inputs if necessary. For complex issues, consult GE’s technical documentation or contact our support team for assistance. Replace worn terminal blocks or damaged components promptly to ensure continued reliability.

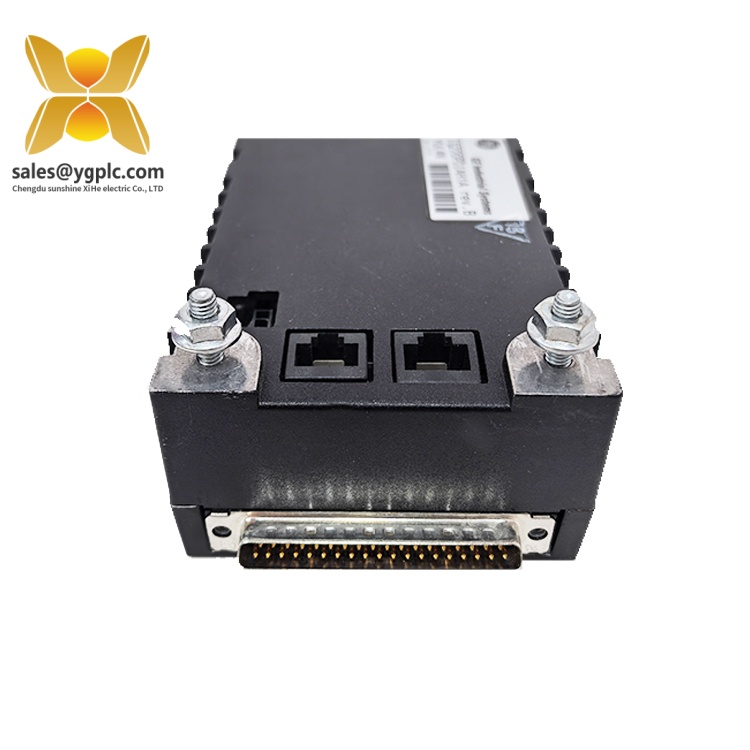

IS220PDIAH1A
Product Assurance
Our company provides a one-year quality warranty for the GE IS220PDIAH1A, covering hardware failures due to non-human factors. During the warranty period, we will promptly replace any module experiencing performance anomalies or functional issues. For discontinued models or urgent requirements, our global supply chain network ensures fast access to scarce spare parts, minimizing downtime for your critical systems. With 17 years of expertise in industrial control distribution, we are committed to delivering reliable products and support, ensuring your operations benefit from the IS220PDIAH1A’s advanced safety features and our dedicated service. Trust us to be your partner in maintaining safe, efficient, and compliant industrial automation systems.
