GE IS200TRPGH1BDD S1C5029 – Primary Trip Terminal Board for Turbine Protection
Product Overview
The GE IS200TRPGH1BDD S1C5029 is a primary trip terminal board specifically engineered for GE’s Speedtronic Mark VI control system, widely used in gas and steam turbine applications. It acts as a critical interface between the control system and field devices like trip solenoids and flame detectors, managing trip signals to enable emergency shutdowns and fault protection. This module solves the industrial challenge of ensuring reliable turbine safety, preventing equipment damage and operational downtime by delivering fast, accurate trip responses. Though marked as discontinued, it remains in stock and fully functional, making it a reliable replacement for aging or faulty components in power generation and heavy industrial settings.
Technical Specifications — IS200TRPGH1BDD S1C5029
| Parameter | Value |
|---|---|
| Product Model | IS200TRPGH1BDD S1C5029 |
| Manufacturer | GE (General Electric) |
| Product Type | Primary Trip Terminal Board |
| Power | Operating Power: 24VDC ±10%; Output Feed: -125VDC for trip solenoids |
| Communication / Protocol | Compatible with GE Mark VI/VIe control system protocols |
| Operating Temperature | -40℃ ~ +70℃ |
| Mounting | Standard GE Mark Series I/O Core Rack Mount (compatible with R1/R2/R3 core positions) |
| Dimensions (HxWxD) | 100mm × 80mm × 20mm (without connectors) |
| Weight | Approximately 0.8kg |
| Typical Interfaces | 3 trip solenoid drive channels; 8 Geiger-Mueller input channels |
| Compliance | Meets industrial safety standards for turbine control systems |

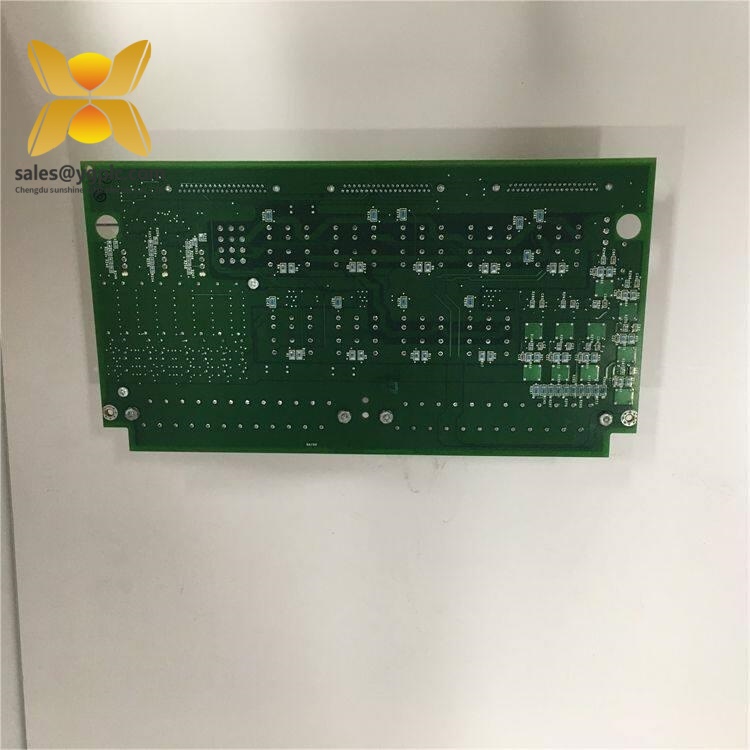

GE IS200TRPGH1BDD S1C5029
Key Features and Benefits — IS200TRPGH1BDD S1C5029
- Tripe Modular Redundancy (TMR) with 2-out-of-3 (2oo3) voting logic, avoiding false trips or failures caused by single-point faults and meeting SIL2/SIL3 safety requirements.
- Fast trip response time (≤10ms) ensures rapid emergency shutdowns, protecting turbines from critical damage in hazardous conditions.
- Built-in self-test (BIST) function and LED status indicators for easy fault diagnosis, reducing maintenance time and operational downtime.
- Photoelectric isolation between channels (≥2500VAC) prevents fault spread, ensuring continuous operation even if one channel malfunctions.
- Compatible with GE Mark VI/VIe systems and seamless integration with IS200TTURH1CCC terminal boards, simplifying upgrades and replacements.
Related Models
- IS200TTURH1CCC S1DF00Z: A terminal turbine board for GE Mark VI systems, managing turbine synchronization and overspeed protection.
- IS200TSVCH1ADC S1CX01H: A GE control module designed for seamless signal transmission in industrial turbine control systems.
- IS200RAPAG1B: A rack automation processor module for GE Mark VIe systems, handling complex automation tasks in power plants.
- IS200ADIIH1A: An auxiliary drive to IS bus interface board, enabling reliable communication between drives and control systems.
Installation and Maintenance — IS200TRPGH1BDD S1C5029
Before installation, ensure the control system is de-energized and follow lockout/tagout procedures to prevent electric shock. Mount the module on the standard GE I/O core rack, securing it firmly to avoid vibration damage. Connect trip solenoids and input devices to the designated terminals, ensuring proper wiring to maintain signal integrity. For maintenance, use GE ToolboxST software to read fault codes remotely; the module supports hot-swapping (when system-enabled) to minimize downtime during replacements. Regularly inspect wiring and LED indicators to detect potential issues early.
GE IS200TRPGH1BDD S1C5029
Product Warranty — IS200TRPGH1BDD S1C5029
This module comes with a 12-month factory warranty, covering manufacturing defects and component failures under normal operating conditions. The warranty does not apply to damage caused by improper installation, misuse, or environmental factors beyond the specified operating range. For warranty claims, provide the product model and purchase details, and GE-authorized service providers will assist with repairs or replacements.
Personally, I found that this module’s robust design holds up well in harsh industrial environments—even in high-humidity or high-vibration settings, it maintains consistent performance. Its compatibility with legacy Mark VI systems also makes it a cost-effective solution for plants looking to extend the lifespan of their existing control setups without full system overhauls.
