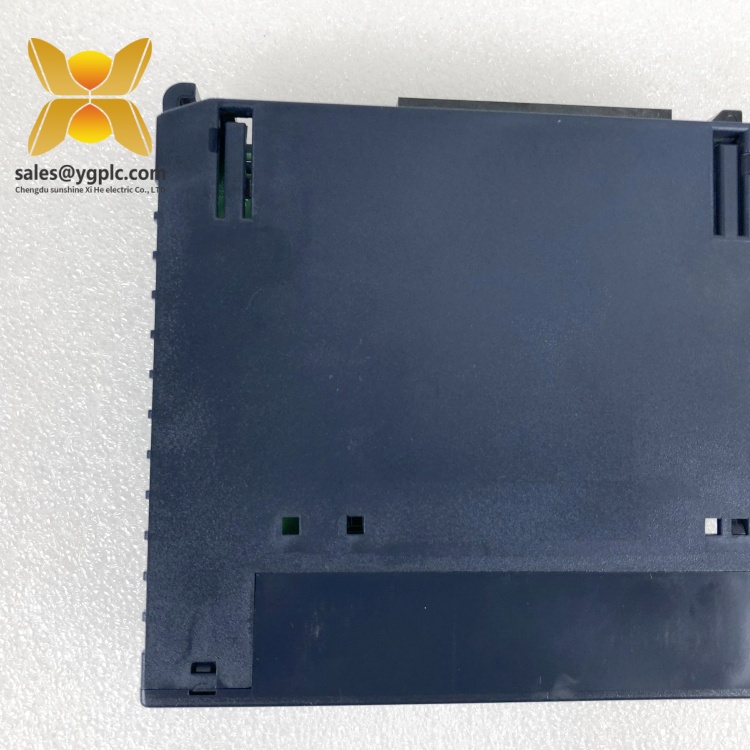

GE IC697PWR711 90-70 Series Redundant Power Supply Module
Product Overview
The GE IC697PWR711 is a high-reliability 90-70 Series Redundant Power Supply Module designed to deliver stable and uninterrupted power to GE’s industrial automation systems. Engineered as a core component of the 90-70 PLC platform, this module ensures continuous operation of CPU, I/O, and communication modules in mission-critical applications. As part of the IC697 Series, the IC697PWR711 integrates seamlessly with other 90-70 components, providing redundant power support to minimize downtime in industries such as power generation, oil & gas, and manufacturing.
Featuring a rugged industrial design, the GE IC697PWR711 converts incoming 100–240 V AC power into regulated 24 V DC output, with a maximum capacity of 75 W. Its redundant architecture allows parallel operation with another IC697PWR711 module, ensuring fault tolerance: if one module fails, the other assumes full load without interrupting system operation. The module’s advanced power factor correction (PFC) and overvoltage/overcurrent protection mechanisms safeguard connected equipment from electrical disturbances, while real-time diagnostic feedback via LED indicators simplifies maintenance.
In automation ecosystems, the IC697PWR711 serves as a critical backbone for reliable power distribution. Its wide input voltage range (85–264 V AC) and compatibility with global power grids make it suitable for international deployments, while the compact form factor (228.6 mm × 177.8 mm × 76.2 mm) optimizes space in control panels. By combining high-efficiency power conversion with robust redundancy, this module enhances system availability and reduces the risk of unplanned outages in demanding industrial environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697PWR711 |
| Manufacturer | GE |
| Product Type | Redundant Power Supply Module |
| Platform | 90-70 Series |
| Input Voltage | 85–264 V AC, 50/60 Hz |
| Output Voltage | 24 V DC ±0.5% |
| Output Power | 75 W maximum |
| Efficiency | Up to 90% at full load |
| Redundancy Support | Hot-swappable, parallel operation with another IC697PWR711 |
| Physical Dimensions | 228.6 mm (H) × 177.8 mm (W) × 76.2 mm (D) |
| Weight | 1.8 kg |
| Operating Temperature | -20°C to +70°C |
| Mounting | Rack-mounted in 90-70 Series chassis |
| Certifications | CE, UL, cUL, IEC 60950-1 |
Key Features and Advantages
Redundant Power Architecture: The IC697PWR711 supports true hot-swappable redundancy, allowing two modules to operate in parallel. This design eliminates single points of failure, ensuring continuous power supply even if one module fails, which is critical for 24/7 industrial operations.
Wide Input Voltage Range: With compatibility from 85 to 264 V AC, the module adapts to fluctuating power grids in different regions, reducing the need for external voltage regulators and simplifying global deployments.
High Efficiency and Reliability: The module’s 90% power conversion efficiency minimizes heat generation and energy waste, while built-in overvoltage, overcurrent, and short-circuit protection safeguards connected equipment from electrical faults.
Real-Time Diagnostics: LED indicators for power status, overload, and fault conditions provide immediate visual feedback, enabling quick troubleshooting. The module also communicates diagnostic data to the PLC via the 90-70 Series bus, supporting remote monitoring.
Rugged Industrial Design: Engineered to withstand harsh environments, the IC697PWR711 operates reliably from -20°C to +70°C and resists vibration (up to 5 g) and electromagnetic interference, making it suitable for offshore platforms, refineries, and heavy manufacturing sites.
Easy Integration and Maintenance: The module installs directly into 90-70 Series chassis without additional hardware, and its hot-swappable design allows replacement without powering down the system, reducing maintenance downtime.
Application Areas
The GE IC697PWR711 is essential for industries requiring uninterrupted power in automation systems:
- Power Generation: Supports control systems in thermal, hydro, and wind power plants, ensuring stable operation of turbine controllers, generator exciters, and auxiliary equipment.
- Oil & Gas: Powers PLCs and I/O modules in pipeline compression stations, offshore drilling platforms, and refineries, where power interruptions could lead to safety hazards or production losses.
- Manufacturing: Maintains continuous operation of production lines in automotive, pharmaceutical, and food & beverage facilities, preventing costly downtime during material processing or packaging.
- Water/Wastewater Treatment: Powers pumps, valves, and monitoring systems in water treatment plants, ensuring consistent water quality and flow regulation.
- Mining and Metals: Supports control systems in mining equipment, crushers, and smelters, where reliable power is crucial for efficient mineral extraction and processing.
Specific applications include:
- Critical Process Control: Powers CPU modules in safety instrumented systems (SIS) for emergency shutdowns in chemical plants.
- High-Availability Systems: Ensures uninterrupted operation of robotic arms and conveyor systems in automotive assembly lines.
- Remote Monitoring Stations: Provides reliable power to remote I/O racks in pipeline monitoring systems, even in areas with unstable grid power.
Related Products
- IC697PWR721 High-Power Redundant Power Supply: A 150 W variant of the IC697PWR711, suitable for systems requiring higher power density.
- IC697CPU320-BB 90-70 Series CPU Module: Works in tandem with the IC697PWR711 to form the core of a PLC system, requiring stable power for high-speed processing.
- IC697ALG392 Analog Input Module: Relies on the IC697PWR711 for power, enabling high-precision data acquisition in process control applications.
- IC697ETM001 Ethernet Module: Integrates with the IC697PWR711 to enable remote monitoring via Ethernet, requiring consistent power for network connectivity.
- IC697CHS001 Chassis: Houses the IC697PWR711 and other 90-70 Series modules, providing a structured platform for system integration.
- IC697PWR710 Single Power Supply Module: A non-redundant variant for less critical applications, serving as a cost-effective alternative to the IC697PWR711.
Installation and Maintenance
Pre-installation Preparations:
Before installing the GE IC697PWR711, verify the input power source (85–264 V AC) and ensure the 90-70 Series chassis is properly grounded. Mount the module in a designated power slot within the chassis, securing it with captive screws. Connect the input power cable using the provided terminal block, ensuring proper wire gauging (10–14 AWG). For redundant configurations, install a second IC697PWR711 in parallel, following GE’s wiring diagrams to ensure correct redundancy setup.
Before installing the GE IC697PWR711, verify the input power source (85–264 V AC) and ensure the 90-70 Series chassis is properly grounded. Mount the module in a designated power slot within the chassis, securing it with captive screws. Connect the input power cable using the provided terminal block, ensuring proper wire gauging (10–14 AWG). For redundant configurations, install a second IC697PWR711 in parallel, following GE’s wiring diagrams to ensure correct redundancy setup.
Maintenance Suggestions:
- Routine Inspections: Monthly visual checks of LED indicators to confirm normal operation (green power light, no fault alerts). Use the PLC’s diagnostic software to monitor power supply health and load distribution in redundant setups.
- Cleaning: Quarterly cleaning of the module’s vents with compressed air to prevent dust accumulation, which could affect heat dissipation. Ensure the control panel’s ventilation system is unobstructed.
- Redundancy Testing: Annually test redundant operation by simulating a module failure (e.g., disconnecting one module) to verify the remaining module assumes full load without system disruption.
- Spare Parts Management: Store spare IC697PWR711 modules in a controlled environment (10–30°C, <50% humidity) to ensure rapid replacement during failures. Rotate spares periodically to maintain viability.
Product Guarantee
Our company provides a 12-month quality warranty for the GE IC697PWR711, covering hardware defects under normal use. In the event of power output anomalies or functional failures, we offer prompt replacement services to minimize downtime. For legacy or discontinued models like the IC697PWR711, our global supply chain network specializes in sourcing rare industrial power components, ensuring quick delivery for urgent needs. Our technical support team is available 24/7 to assist with installation, redundancy configuration, and troubleshooting, delivering reliable solutions to maintain your system’s power integrity.
For sales inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
