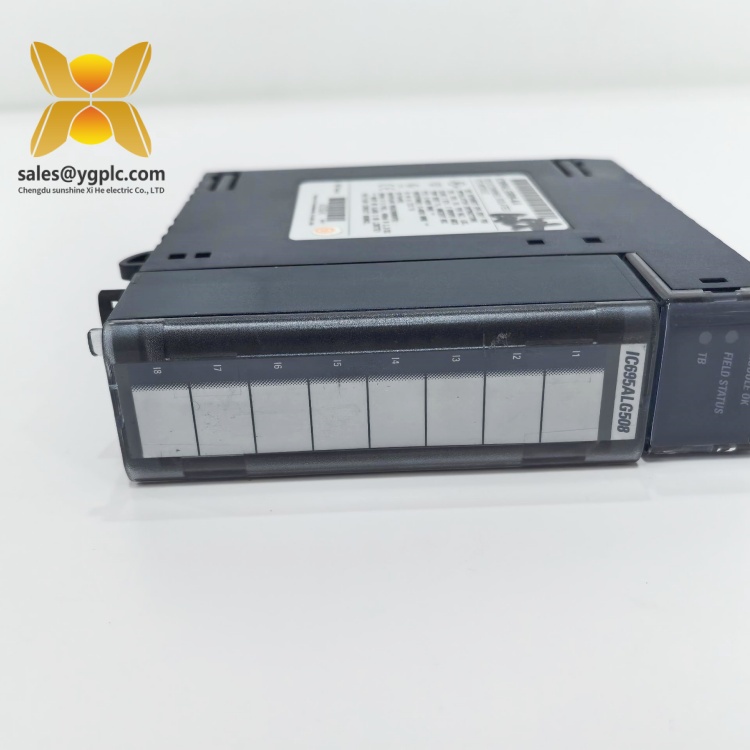

GE IC695ALG508 PACSystems RX3i High-Density Analog Input Module
Product Overview
The GE IC695ALG508 is a high-performance analog input module designed for GE’s PACSystems RX3i programmable automation controllers, serving as a critical component in industrial automation systems across manufacturing, energy, and process industries. As part of the IC695 Series, this module specializes in converting continuous physical signals—such as pressure, temperature, and flow—from field sensors into digital data that the RX3i controller can process, enabling precise real-time monitoring and closed-loop control.
Featuring 16 differential analog input channels, the GE IC695ALG508 supports a wide range of input types, including 4–20 mA, 0–20 mA, 0–10 V DC, and ±10 V DC, making it compatible with diverse industrial sensors. Its 16-bit resolution and ±0.1% full-scale accuracy (at 25°C) ensure precise signal conversion, critical for applications like turbine speed regulation or chemical reactor temperature control. The module’s 2500 Vrms galvanic isolation between channels and backplane protects the RX3i controller from voltage spikes and electromagnetic interference (EMI), ensuring signal integrity in electrically noisy environments.
In automation systems, the IC695ALG508 integrates seamlessly with the RX3i backplane, communicating via the controller’s high-speed bus to minimize latency. Its compact design (fitting within standard RX3i racks) maximizes space efficiency, while onboard diagnostics—including open-circuit detection and overrange alerts—enable proactive fault resolution. By combining high channel density, flexibility, and reliability, the GE IC695ALG508 enhances system performance, reduces wiring complexity, and simplifies scalability in industrial settings where precision and uptime are paramount.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC695ALG508 |
| Manufacturer | GE |
| Product Type | High-Density Analog Input Module (PACSystems RX3i) |
| Series | IC695 (PACSystems RX3i) |
| Input Channels | 16 (differential) |
| Input Ranges | 4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale @ 25°C; ±0.2% over operating temperature range |
| Update Rate | 2 ms per channel (32 ms for all 16 channels) |
| Isolation | 2500 Vrms galvanic isolation (channel-to-channel, channel-to-backplane) |
| Input Impedance | 250 Ω (current); 100 kΩ (voltage) |
| Physical Dimensions | 120 mm (H) × 165 mm (W) × 80 mm (D) |
| Weight | 0.6 kg |
| Operating Temperature | -25°C to +70°C |
| Power Requirements | 5 V DC (backplane, 300 mA); 24 V DC (external, 100 mA) |
| Certifications | CE, UL 508, CSA C22.2 No. 142, ATEX Zone 2 |
Main Features and Advantages
High measurement precision:
The IC695ALG508 delivers ±0.1% full-scale accuracy at 25°C, ensuring precise conversion of sensor signals—critical for applications like pharmaceutical batch processing, where even minor deviations in temperature or pressure can compromise product quality. Over its extended operating temperature range (-25°C to +70°C), accuracy remains within ±0.2%, maintaining reliability in extreme environments such as Arctic oil fields or desert power plants.
The IC695ALG508 delivers ±0.1% full-scale accuracy at 25°C, ensuring precise conversion of sensor signals—critical for applications like pharmaceutical batch processing, where even minor deviations in temperature or pressure can compromise product quality. Over its extended operating temperature range (-25°C to +70°C), accuracy remains within ±0.2%, maintaining reliability in extreme environments such as Arctic oil fields or desert power plants.
High channel density:
With 16 differential channels in a compact form factor, the module maximizes rack space efficiency, ideal for large-scale systems requiring multiple sensor inputs. For example, in an automotive paint shop, it can simultaneously monitor temperature, pressure, and flow rates across 16 spray booths, reducing the number of modules needed and lowering overall system costs.
With 16 differential channels in a compact form factor, the module maximizes rack space efficiency, ideal for large-scale systems requiring multiple sensor inputs. For example, in an automotive paint shop, it can simultaneously monitor temperature, pressure, and flow rates across 16 spray booths, reducing the number of modules needed and lowering overall system costs.
Flexible input compatibility:
Support for multiple input types (4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC) adapts to diverse sensors—from pressure transducers in water treatment plants to thermocouple amplifiers in steel mills. This flexibility eliminates the need for specialized modules, simplifying inventory management and reducing installation complexity.
Support for multiple input types (4–20 mA, 0–20 mA, 0–10 V DC, ±10 V DC) adapts to diverse sensors—from pressure transducers in water treatment plants to thermocouple amplifiers in steel mills. This flexibility eliminates the need for specialized modules, simplifying inventory management and reducing installation complexity.
Robust galvanic isolation:
2500 Vrms isolation between channels and the backplane protects the RX3i controller from ground loops, voltage transients, and EMI—common in facilities with high-voltage machinery. This isolation ensures signal integrity in environments with welders, motor drives, or variable frequency drives, preventing erroneous control actions.
2500 Vrms isolation between channels and the backplane protects the RX3i controller from ground loops, voltage transients, and EMI—common in facilities with high-voltage machinery. This isolation ensures signal integrity in environments with welders, motor drives, or variable frequency drives, preventing erroneous control actions.
Rapid update rates:
A 2 ms per channel update rate ensures real-time data acquisition, enabling the RX3i controller to respond quickly to dynamic process changes. In energy production, this speed allows immediate adjustments to turbine fuel flow based on incoming pressure readings, optimizing efficiency and grid stability.
A 2 ms per channel update rate ensures real-time data acquisition, enabling the RX3i controller to respond quickly to dynamic process changes. In energy production, this speed allows immediate adjustments to turbine fuel flow based on incoming pressure readings, optimizing efficiency and grid stability.
Advanced diagnostics:
Onboard diagnostics detect open circuits, short circuits, and overrange conditions, alerting operators via the RX3i controller and front-panel LEDs. This proactive fault detection reduces mean time to repair (MTTR), minimizing unplanned downtime in critical processes like chemical batch mixing.
Onboard diagnostics detect open circuits, short circuits, and overrange conditions, alerting operators via the RX3i controller and front-panel LEDs. This proactive fault detection reduces mean time to repair (MTTR), minimizing unplanned downtime in critical processes like chemical batch mixing.
Seamless RX3i integration:
Designed exclusively for the PACSystems RX3i platform, the IC695ALG508 plugs directly into the RX3i backplane, eliminating the need for external adapters. It works with GE’s Proficy Machine Edition software for configuration, calibration, and trend analysis, simplifying setup and reducing commissioning time by up to 30%.
Designed exclusively for the PACSystems RX3i platform, the IC695ALG508 plugs directly into the RX3i backplane, eliminating the need for external adapters. It works with GE’s Proficy Machine Edition software for configuration, calibration, and trend analysis, simplifying setup and reducing commissioning time by up to 30%.
Application Areas
The GE IC695ALG508 excels in industries requiring precise analog signal monitoring and control:
- Energy sector:
Monitors steam pressure in thermal power plants, generator winding temperatures, and fuel flow rates in gas turbines. Its accuracy ensures efficient energy conversion and compliance with grid stability standards, while its wide temperature range suits remote renewable energy facilities. - Chemical processing:
Measures reactor vessel pressure, chemical concentration, and jacket temperature in batch and continuous processing. The module’s isolation protects against corrosive environment-induced electrical noise, ensuring consistent product quality and safety compliance. - Manufacturing:
Integrates with robotic systems to monitor hydraulic pressure, motor torque, and material feed rates in automotive and electronics production lines. Rapid update rates enable immediate adjustments to prevent equipment wear and maintain production tolerances. - Water and wastewater:
Tracks flow rates in pipelines, pH levels in treatment tanks, and pump discharge pressure. Its differential input design rejects common-mode noise, ensuring reliable readings even in wet, electrically noisy environments.
Specific applications include monitoring boiler feedwater flow in combined-cycle power plants, regulating reactor temperature in pharmaceutical production, and controlling adhesive application pressure in packaging lines.
Related Products
- GE IC695ALG510 (PACSystems RX3i Analog Input Module):
A 8-channel variant with enhanced 24-bit resolution, suitable for laboratory-grade precision applications where ±0.05% accuracy is required. Differs from the IC695ALG508 in channel count and resolution. - GE IC695CPU310 (PACSystems RX3i Controller):
The central processing unit that processes data from the IC695ALG508, executing control logic for industrial processes and communicating with HMIs. - GE IC695AOG500 (PACSystems RX3i Analog Output Module):
Complements the IC695ALG508 by converting digital controller signals into analog outputs (4–20 mA, 0–10 V), driving valves or variable-speed drives in closed-loop systems. - GE IC695PSD140 (PACSystems RX3i Power Supply):
Provides regulated 5 V DC and 24 V DC power to the IC695ALG508 and other RX3i modules, ensuring stable operation in fluctuating mains environments. - GE IC695BEM331 (PACSystems RX3i Ethernet Interface):
Enables remote monitoring of IC695ALG508 data via Ethernet/IP, integrating with SCADA systems for centralized plant management and predictive maintenance. - GE IC695MDL754 (PACSystems RX3i Digital Output Module):
Works alongside the IC695ALG508 to actuate alarms or shutdown systems when analog readings exceed threshold limits—e.g., high pressure in a chemical reactor. - GE IC695CBL001 (PACSystems RX3i Backplane Cable):
Connects the IC695ALG508 to expansion racks in large-scale systems, extending analog input capabilities across distributed control cabinets.
Installation and Maintenance
Pre-installation preparations:
Ensure the PACSystems RX3i rack is securely mounted, grounded, and ventilated (ambient temperature -25°C to +70°C). Verify compatibility with the RX3i controller firmware (v9.0 or later) using Proficy Machine Edition. Insert the IC695ALG508 into an empty slot, securing it with the front panel screw to prevent vibration-induced disconnections. Connect field sensors using shielded twisted-pair cables, routing them away from high-voltage lines to minimize EMI. Configure input types and ranges via Proficy software, calibrating with a precision signal generator for optimal accuracy.
Ensure the PACSystems RX3i rack is securely mounted, grounded, and ventilated (ambient temperature -25°C to +70°C). Verify compatibility with the RX3i controller firmware (v9.0 or later) using Proficy Machine Edition. Insert the IC695ALG508 into an empty slot, securing it with the front panel screw to prevent vibration-induced disconnections. Connect field sensors using shielded twisted-pair cables, routing them away from high-voltage lines to minimize EMI. Configure input types and ranges via Proficy software, calibrating with a precision signal generator for optimal accuracy.
Maintenance suggestions:
Perform quarterly visual inspections to check for loose terminal connections or damaged cables. Calibrate the IC695ALG508 annually using a certified calibrator to maintain ±0.1% accuracy—critical for regulated industries like pharmaceuticals. Clean dust from the module’s vents biannually with compressed air, especially in dusty environments like cement plants. Monitor Proficy diagnostics for sensor faults (e.g., open loops), addressing issues promptly to avoid process disruptions. Store spare IC695ALG508 modules in anti-static packaging at 10–30°C with <60% humidity, testing them yearly to confirm functionality.
Perform quarterly visual inspections to check for loose terminal connections or damaged cables. Calibrate the IC695ALG508 annually using a certified calibrator to maintain ±0.1% accuracy—critical for regulated industries like pharmaceuticals. Clean dust from the module’s vents biannually with compressed air, especially in dusty environments like cement plants. Monitor Proficy diagnostics for sensor faults (e.g., open loops), addressing issues promptly to avoid process disruptions. Store spare IC695ALG508 modules in anti-static packaging at 10–30°C with <60% humidity, testing them yearly to confirm functionality.
Product Guarantee
Our company offers a one-year quality warranty service for the IC695ALG508, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems.
