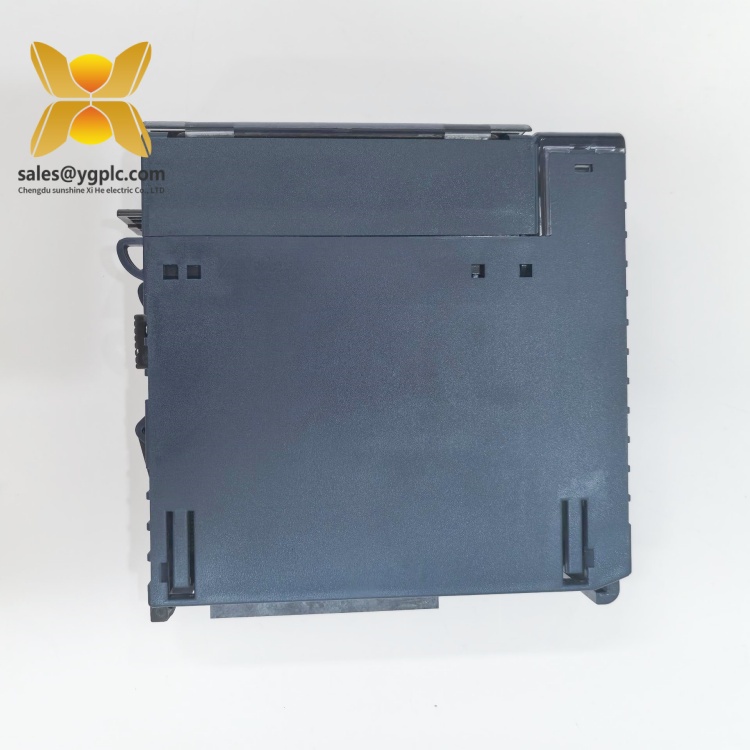

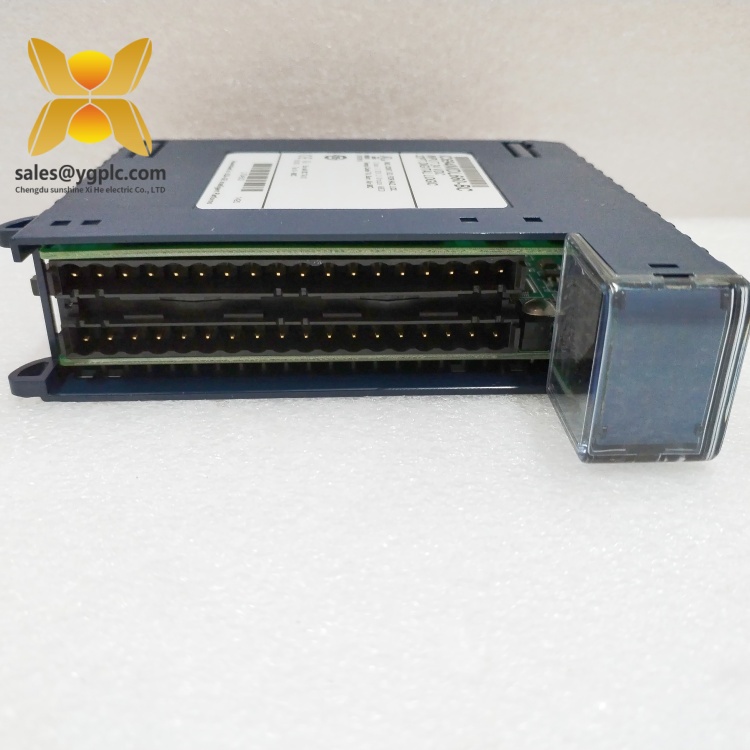

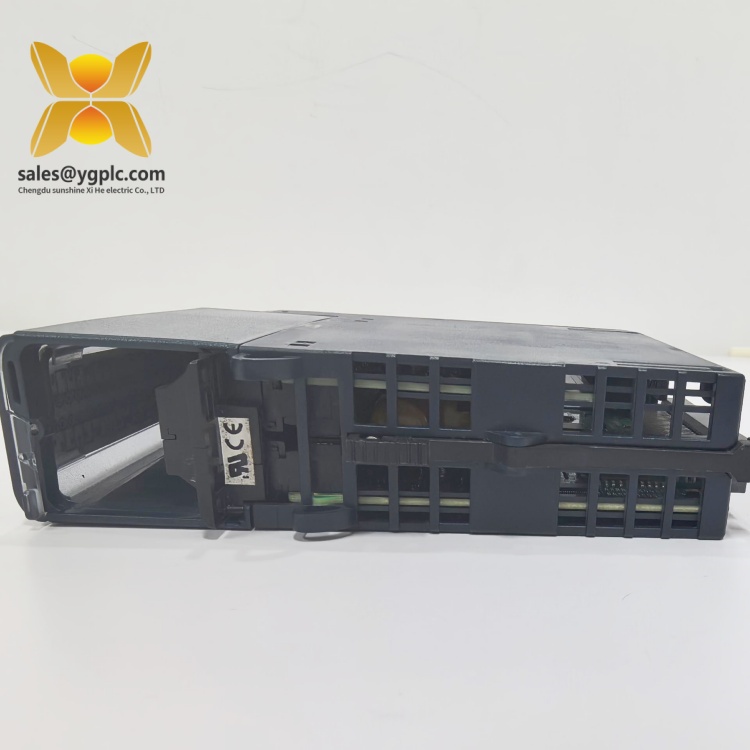

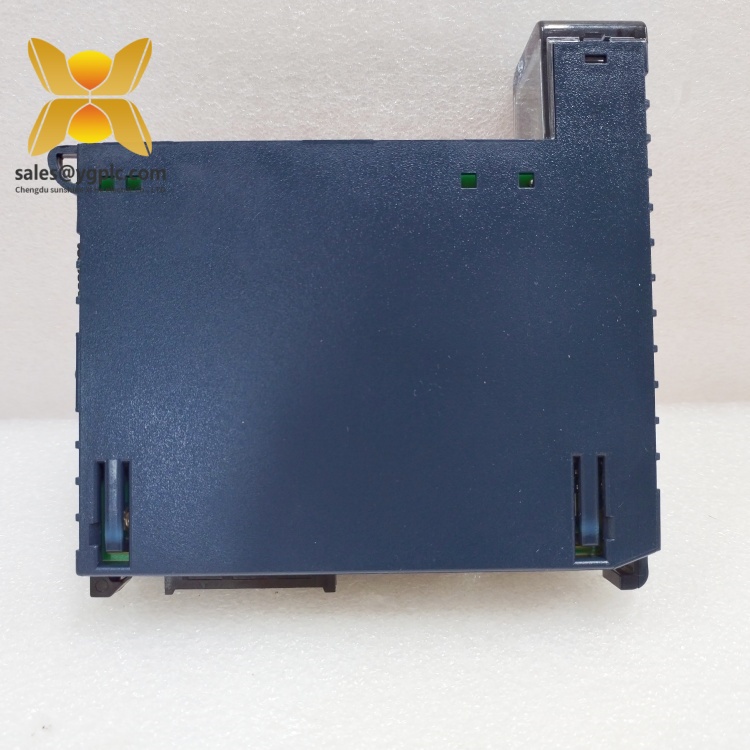

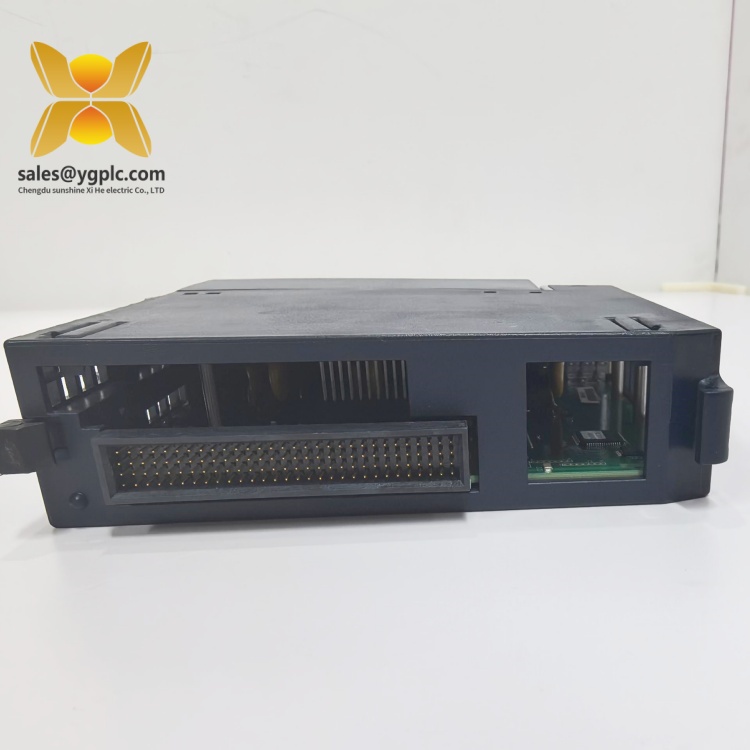

GE IC694MDL660 Product Specification
Product Overview
The GE IC694MDL660 is a high-performance 16-point discrete output module engineered for GE’s Series 90-40 PLC platform, designed to interface with field actuators, valves, and motors in industrial automation, manufacturing, and process control applications. As a key component of the Series 90-40 distributed architecture, this module converts digital commands from the PLC controller into 24 VDC output signals, enabling precise control of external devices in mission-critical systems.
Integrated into the Series 90-40 system, the GE IC694MDL660 features two isolated groups of 8 outputs each, providing 250 VAC/VDC isolation between groups to protect against electrical surges and electromagnetic interference (EMI) in high-noise industrial environments such as factory floors and power plants. Each output channel delivers up to 0.5 A of current, making it suitable for driving solenoid valves, small motors, and indicator lights.
The GE IC694MDL660’s compact design (115 mm × 220 mm × 125 mm) and rugged construction—including a conformal coating and IP20-rated enclosure—ensure reliable operation in temperatures ranging from 0°C to 60°C, with resistance to vibration (10–2000 Hz, 10 G rms) and humidity (5–95% non-condensing). Front-panel LEDs provide real-time status monitoring for individual channels, simplifying troubleshooting, while compatibility with GE’s Proficy software allows easy configuration of output behavior (e.g., fail-safe states) to match application needs. Its hot-swappable design minimizes downtime during maintenance, a critical advantage in continuous-process industries like automotive manufacturing and chemical processing.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC694MDL660 |
| Manufacturer | General Electric (GE) |
| Product Type | Discrete Output Module |
| Series | Series 90-40 PLC Platform |
| Output Channels | 16 (2 isolated groups of 8) |
| Output Voltage | 24 VDC ±10% |
| Max Current per Channel | 0.5 A |
| Isolation | 2500 Vrms (between groups and field/logic) |
| Physical Dimensions | 115 mm (H) × 220 mm (W) × 125 mm (D) |
| Weight | 0.8 kg |
| Operating Temperature | 0°C to +60°C |
| Humidity | 5–95% non-condensing |
| Power Supply | 5 VDC (from backplane) + 24 VDC (external) |
| Mounting Type | DIN rail or Series 90-40 rack mount |
| Certifications | CE, UL 508, IEC 61131-2 |
Main Features and Advantages
Rugged Isolation and Noise Immunity:
The GE IC694MDL660’s dual isolated groups prevent electrical interference between channels, critical in environments with motors, welders, or high-voltage equipment. Its 2500 Vrms isolation rating safeguards against voltage spikes from transient events like lightning strikes or equipment startup, reducing the risk of signal corruption and ensuring stable operation in noisy industrial settings.
The GE IC694MDL660’s dual isolated groups prevent electrical interference between channels, critical in environments with motors, welders, or high-voltage equipment. Its 2500 Vrms isolation rating safeguards against voltage spikes from transient events like lightning strikes or equipment startup, reducing the risk of signal corruption and ensuring stable operation in noisy industrial settings.
High-current output capability:
Each channel of the GE IC694MDL660 delivers up to 0.5 A, enabling direct control of devices such as solenoid valves, relay coils, and small DC motors without external amplifiers. This eliminates the need for intermediate components, simplifying system design and reducing points of failure in applications like conveyor belt control or packaging machine actuation.
Each channel of the GE IC694MDL660 delivers up to 0.5 A, enabling direct control of devices such as solenoid valves, relay coils, and small DC motors without external amplifiers. This eliminates the need for intermediate components, simplifying system design and reducing points of failure in applications like conveyor belt control or packaging machine actuation.
Real-time diagnostics:
Front-panel LEDs (one per channel) provide instant visual feedback of output status—illuminating green when active—allowing technicians to quickly identify faults such as open circuits or overcurrent conditions. The module’s built-in overcurrent protection triggers within 10 ms of a fault, preventing damage to outputs and connected devices, while faults can be reset remotely via the PLC or GE’s Proficy software.
Front-panel LEDs (one per channel) provide instant visual feedback of output status—illuminating green when active—allowing technicians to quickly identify faults such as open circuits or overcurrent conditions. The module’s built-in overcurrent protection triggers within 10 ms of a fault, preventing damage to outputs and connected devices, while faults can be reset remotely via the PLC or GE’s Proficy software.
Seamless integration:
The GE IC694MDL660 interfaces directly with GE IC694CPU331 (Series 90-40 CPU) and GE IC694CHS442 (10-slot rack), enabling plug-and-play compatibility in distributed control systems. Its support for the Series 90-40 backplane protocol ensures high-speed data exchange (up to 5 Mbps) with the controller, supporting real-time control in time-sensitive applications like automotive assembly lines.
The GE IC694MDL660 interfaces directly with GE IC694CPU331 (Series 90-40 CPU) and GE IC694CHS442 (10-slot rack), enabling plug-and-play compatibility in distributed control systems. Its support for the Series 90-40 backplane protocol ensures high-speed data exchange (up to 5 Mbps) with the controller, supporting real-time control in time-sensitive applications like automotive assembly lines.
Flexible configuration:
The module supports both sourcing and sinking output modes, allowing compatibility with diverse field devices—from NPN to PNP sensors—without hardware modifications. Engineers can configure fail-safe behavior (e.g., outputs default to “off” or “last state” during power loss) via Proficy software, tailoring the system to safety requirements in industries like pharmaceuticals or food processing.
The module supports both sourcing and sinking output modes, allowing compatibility with diverse field devices—from NPN to PNP sensors—without hardware modifications. Engineers can configure fail-safe behavior (e.g., outputs default to “off” or “last state” during power loss) via Proficy software, tailoring the system to safety requirements in industries like pharmaceuticals or food processing.
Hot-swappable design:
The GE IC694MDL660 supports hot swapping, enabling replacement without powering down the PLC rack. This feature reduces mean time to repair (MTTR) to under 10 minutes, critical for maintaining productivity in continuous processes such as chemical batch production or power plant auxiliary systems.
The GE IC694MDL660 supports hot swapping, enabling replacement without powering down the PLC rack. This feature reduces mean time to repair (MTTR) to under 10 minutes, critical for maintaining productivity in continuous processes such as chemical batch production or power plant auxiliary systems.
Application Areas
-
Manufacturing:
- Controls pneumatic actuators in automotive assembly lines, triggering welding robots or part transfer mechanisms based on PLC logic.
- Operates conveyor belt motors in packaging facilities, starting/stopping belts to align products with labeling or sealing equipment.
-
Power Generation:
- Actuates damper motors in boiler systems, adjusting airflow to maintain optimal combustion efficiency based on temperature sensor inputs.
- Controls cooling fan relays in turbine enclosures, activating fans when temperature thresholds are exceeded to prevent overheating.
-
Oil and Gas:
- Operates valve solenoids in pipeline systems, opening/closing isolation valves to regulate flow during well testing or maintenance.
- Triggers alarm sirens and indicator lights in offshore platforms, responding to PLC commands from emergency shutdown (ESD) systems.
-
Food and Beverage:
- Controls filling machine nozzles in bottling plants, activating solenoids to start/stop liquid flow based on bottle position sensors.
- Operates door locks on refrigerated storage units, ensuring secure closure when temperature deviations are detected.
-
Water/Wastewater:
- Activates pump motors in treatment plants, starting/stopping based on level sensor data to maintain consistent water flow through filtration systems.
- Controls sluice gate actuators in irrigation networks, adjusting positions to manage water distribution across agricultural fields.
Related Products
- GE IC694CPU331: Series 90-40 CPU module that sends control commands to GE IC694MDL660, serving as the system’s processing core.
- GE IC694CHS442: 10-slot rack that houses GE IC694MDL660 and other Series 90-40 modules, providing mechanical stability and backplane connectivity.
- GE IC694PSD140: 24 VDC power supply module that delivers external power to GE IC694MDL660, ensuring stable output operation.
- GE IC694MDL340: 32-point discrete input module paired with GE IC694MDL660 to create complete input/output loops in automation systems.
- GE IC694CBL301: Backplane cable that connects GE IC694MDL660 to the CPU in distributed rack configurations, extending system reach.
- GE IC694BEM333: Ethernet communication module that enables remote monitoring of GE IC694MDL660 status via SCADA systems.
Installation and Maintenance
Pre-installation preparations: Before installing GE IC694MDL660, verify the control rack or DIN rail is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling to protect sensitive components. Mount the module in a GE IC694CHS442 rack or on a 35 mm DIN rail with at least 30 mm clearance for airflow, securing it with M3 screws (torque: 0.5 N·m). Connect 24 VDC external power to the terminal block, ensuring correct polarity, and link the module to the PLC backplane via the rack’s internal connectors.
Maintenance suggestions: Perform monthly visual inspections of GE IC694MDL660 front-panel LEDs to confirm normal operation—active channels should display steady green. Clean dust from ventilation slots using compressed air to maintain cooling efficiency. Quarterly, use a multimeter to verify output voltage (24 VDC ±5%) and check terminal connections for corrosion, especially in humid environments. Annually, update firmware via Proficy software to access bug fixes and enhance compatibility with newer Series 90-40 components. Test output functionality by simulating PLC commands to ensure reliable actuation of connected devices.
Product Guarantee
Our company offers a one-year quality warranty service for GE IC694MDL660, covering hardware malfunctions not caused by human factors. During the warranty period, if GE IC694MDL660 shows abnormal performance—such as unresponsive outputs or persistent fault lights—we will provide replacement services. As a leading enterprise in the industrial control industry established in 2007, with 17 years of experience, we are an import and export trade distribution company specializing in major brands of industrial control parts. We maintain a large stock of unpopular and discontinued models, including GE IC694MDL660, and our global supply chain network allows us to quickly meet customers’ urgent needs for spare parts. Whether for routine replacements or hard-to-find components, we ensure reliable support to keep your industrial systems operating continuously and stably.
