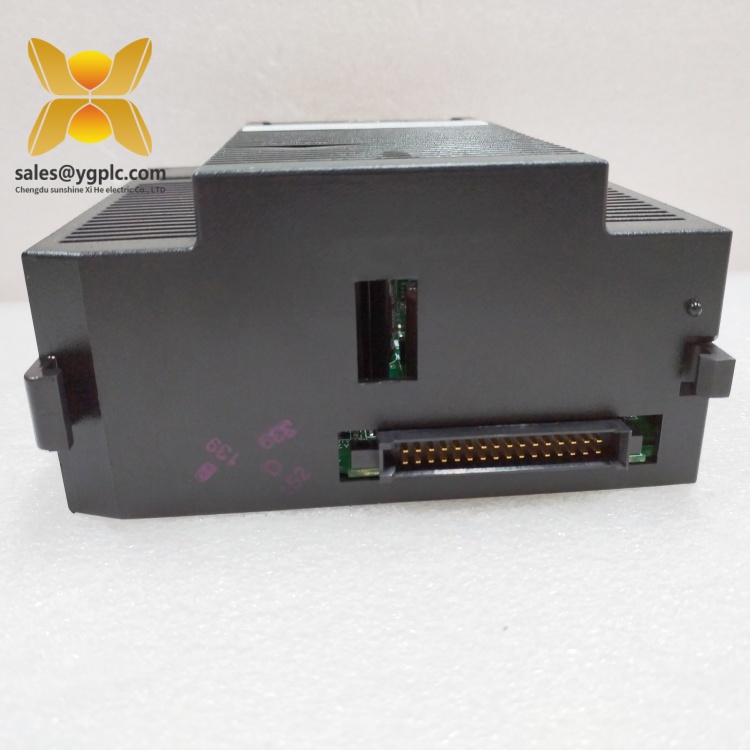

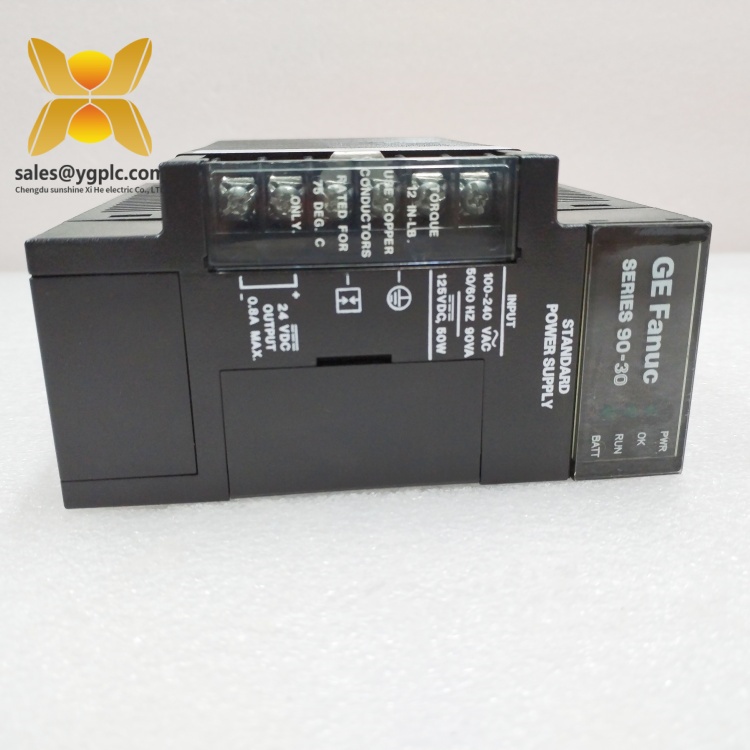

GE IC693APU301 Power Supply Module
Product Overview
The GE IC693APU301 is a high-reliability Power Supply Module designed as a critical component of GE’s 90-30 Series Programmable Logic Controller (PLC) platform. Engineered to deliver stable DC power to PLC racks and field devices, this module ensures consistent operation of industrial control systems in manufacturing, power generation, and process industries. As part of the IC693 Series, the IC693APU301 offers seamless integration with other 90-30 Series components, such as CPU modules and I/O cards, enabling robust and scalable automation solutions.
Featuring a rugged industrial design, the GE IC693APU301 converts 100–240 V AC input to 24 V DC output, supporting up to 3 A of continuous current. Its wide input voltage range and built-in surge protection make it suitable for unstable power environments, while the modular design allows easy installation and replacement. The module’s intelligent thermal management system prevents overheating, and LED indicators provide real-time status feedback for power output and fault detection. With an operating temperature range of -25°C to +70°C and compliance with industry standards like IEC 61131-2, the IC693APU301 ensures reliable performance in harsh industrial settings, including factories, refineries, and offshore platforms.
In automation ecosystems, the IC693APU301 serves as the power backbone for 90-30 Series PLC systems, maintaining stable voltage levels for critical control components. Its redundant power capability (when paired with another APU301) enhances system resilience, minimizing downtime in mission-critical applications. By combining high-efficiency power conversion with advanced diagnostic features, this module optimizes energy usage and reduces maintenance costs, making it an essential component for reliable industrial automation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693APU301 |
| Manufacturer | GE |
| Product Type | Power Supply Module |
| Platform | 90-30 Series PLC |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC ±0.5% |
| Output Current | 3 A continuous |
| Efficiency | Up to 85% |
| Physical Dimensions | 101.6 mm (H) × 152.4 mm (W) × 127 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -25°C to +70°C |
| Mounting | DIN rail or panel-mounted |
| Certifications | CE, UL, cUL |
Key Features and Advantages
Wide Input Voltage Range: The IC693APU301 adapts to diverse power sources (100–240 V AC), eliminating the need for voltage converters and simplifying installation in global industrial setups. This flexibility reduces hardware costs and streamlines system design.
Redundancy Support: The module supports parallel operation with another IC693APU301 for redundant power supply, ensuring continuous operation if one unit fails. This feature is critical for 24/7 applications where downtime is unacceptable.
High-Efficiency Power Conversion: With up to 85% efficiency, the IC693APU301 minimizes energy waste and heat generation, contributing to lower operational costs and a smaller environmental footprint. Its thermal protection mechanism prevents overheating in high-load scenarios.
Real-Time Diagnostics: Built-in LED indicators monitor power status, output voltage, and fault conditions, enabling quick troubleshooting. The module’s diagnostic feedback via the PLC’s programming software reduces mean time to repair (MTTR).
Rugged Industrial Design: Constructed with a metal enclosure and conformal-coated circuitry, the IC693APU301 withstands vibration, humidity, and electromagnetic interference (EMI), ensuring reliable performance in harsh environments.
Seamless System Integration: Compatible with GE’s 90-30 Series PLCs and programming tools (e.g., VersaPro), the module integrates effortlessly with existing control systems. Its hot-swappable design allows replacement without powering down the PLC, minimizing disruption.
Application Areas
The GE IC693APU301 is widely deployed in industries requiring stable power for control systems:
- Manufacturing: Powers PLCs in automotive assembly lines, food processing plants, and pharmaceutical facilities, ensuring consistent operation of robotic arms, conveyors, and packaging machinery.
- Power Generation: Supports control systems in thermal, hydro, and renewable energy plants, managing turbine operations, generator synchronization, and auxiliary systems.
- Oil & Gas: Powers PLCs in refineries, pipeline stations, and offshore platforms, enabling safe operation of pumps, compressors, and safety interlocks.
- Water/Wastewater Treatment: Controls pumps, valves, and filtration systems in water treatment plants, adapting to fluctuating flow demands while maintaining regulatory compliance.
- Material Handling: Drives automated storage and retrieval systems in warehouses, ensuring efficient inventory management and order fulfillment.
Specific applications include:
- Critical Load Support: Maintains power for safety-critical systems like emergency shutdown (ESD) panels and fire alarm controls, adhering to industry safety standards.
- Process Automation: Powers I/O modules and CPU units in complex manufacturing processes, enabling real-time data acquisition and control.
- Remote Operations: Supports PLCs in remote or harsh environments, such as mining sites or agricultural facilities, where reliable power is essential.
Related Products
- IC693APU302 Power Supply Module: A higher-capacity variant (5 A output) for systems requiring more power, compatible with the IC693APU301 in redundant configurations.
- IC693CPU363 CPU Module: High-performance processor for 90-30 Series PLCs, working in tandem with the IC693APU301 to manage control logic.
- IC693MDL645 Digital Input Module: Connects to the IC693APU301 for discrete signal acquisition, ideal for monitoring switch states in industrial setups.
- IC693MDL740 Digital Output Module: Drives actuators using power from the IC693APU301, enabling precise control of valves and motors.
- IC693ACC300 Communication Module: Enables Ethernet connectivity for the IC693APU301-powered system, supporting remote monitoring via SCADA platforms.
- IC693CHS392 Rack Chassis: Houses the IC693APU301 and other 90-30 Series modules, providing a structured and protected environment.
- IC693BEM331 Battery Module: Maintains PLC memory during power outages, complementing the IC693APU301 in applications requiring data retention.
Installation and Maintenance
Pre-installation Preparations:
Before installing the GE IC693APU301, ensure the PLC rack is properly grounded and ventilated. Verify input voltage compatibility (100–240 V AC) and use shielded cables for power connections to minimize EMI. Mount the module on a DIN rail or panel using the provided hardware, leaving sufficient space for heat dissipation. If configuring redundancy, install a second IC693APU301 in parallel and connect redundant power wiring as per GE’s guidelines.
Before installing the GE IC693APU301, ensure the PLC rack is properly grounded and ventilated. Verify input voltage compatibility (100–240 V AC) and use shielded cables for power connections to minimize EMI. Mount the module on a DIN rail or panel using the provided hardware, leaving sufficient space for heat dissipation. If configuring redundancy, install a second IC693APU301 in parallel and connect redundant power wiring as per GE’s guidelines.
Maintenance Suggestions:
- Routine Checks: Monthly, inspect LED indicators to confirm stable power output and no fault alarms. Use GE’s VersaPro software to monitor voltage levels and module health.
- Cleaning: Quarterly, remove dust from the module’s vents using compressed air to prevent overheating. Ensure the control panel’s ventilation system is unobstructed.
- Redundancy Testing: Annually, simulate a power failure to verify redundant operation with a paired IC693APU301, ensuring seamless failover.
- Component Replacement: If voltage output deviates beyond ±0.5%, replace the IC693APU301 promptly. Store spare modules in a controlled environment (10–30°C, <50% humidity) for quick replacement.
Product Guarantee
Our company provides a 12-month quality warranty for the GE IC693APU301, covering hardware defects under normal use. In the event of power output issues or component failure, we offer prompt replacement services to minimize downtime. For legacy models like the IC693APU301, our global supply chain network sources rare and obsolete parts, ensuring rapid delivery for urgent needs. Our technical support team is available 24/7 to assist with installation, redundancy setup, and troubleshooting, delivering reliable solutions to maintain your automation system’s stability.
For sales inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
