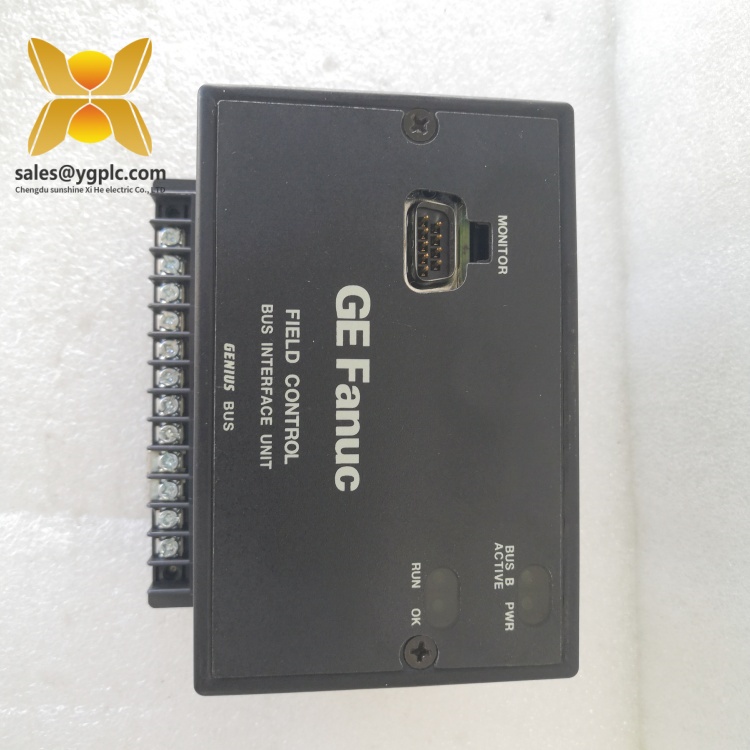

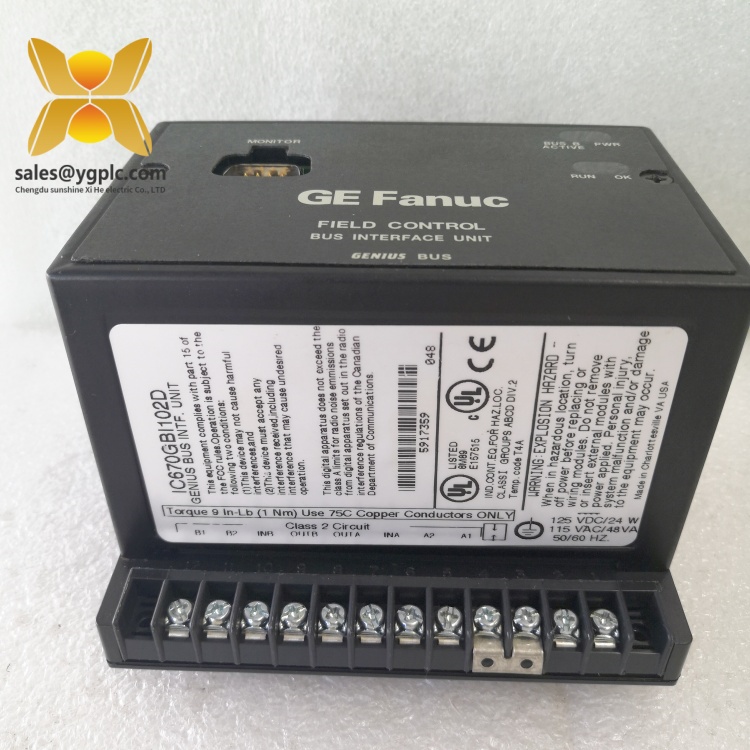

GE IC670GBI102D Digital Input Module
Product Overview: GE IC670GBI102D
The GE IC670GBI102D digital input module is a high-reliability industrial component designed for GE’s 90-70 Series PLC system, delivering precise signal acquisition and processing for automation environments. As a key component of this advanced platform, the IC670GBI102D translates physical switch states and sensor signals into digital data compatible with PLC controllers, enabling real-time monitoring and control of industrial processes. Engineered for rugged industrial use, this module combines robust hardware with flexible configuration to support mission-critical applications in manufacturing, energy, and process industries.
Featuring 16 isolated digital input channels, the IC670GBI102D accepts a wide range of input voltages (24V DC to 125V AC), making it compatible with diverse field devices such as proximity switches, limit switches, and sensors. Its 光电隔离 (opto-isolation) technology safeguards the PLC system from electrical transients and ground loops, ensuring reliable operation in noisy environments. The module’s hot-swappable design allows replacement without system shutdown, reducing downtime, while its LED status indicators provide real-time feedback on input states and module health.
Within automation systems, the IC670GBI102D serves as a vital interface between field devices and the PLC controller, enabling precise monitoring of machine status, safety interlocks, and process conditions. Its compatibility with GE’s 90-70 Series racks (e.g., IC670CHS721) and support for Modbus RTU/TCP communication make it a versatile choice for both standalone setups and large-scale networks. By ensuring accurate and reliable signal acquisition, this module enhances system stability, reduces maintenance costs, and optimizes operational efficiency.
Technical Specifications: GE IC670GBI102D
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC670GBI102D |
| Manufacturer | GE |
| Product Type | Digital Input Module |
| Input Channels | 16 channels (isolated) |
| Input Voltage Range | 24V DC to 125V AC |
| Input Current | 10mA (per channel at 24V DC) |
| Opto-Isolation | 2500V RMS between channels and system |
| Physical Dimensions | 101.6 mm (H) × 152.4 mm (W) × 76.2 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Communication Protocol | Modbus RTU/TCP, Genius Bus |
| Mounting Type | Rack-mounted (GE 90-70 Series) |
| Country of Origin | United States |
Main Features and Advantages: GE IC670GBI102D
Wide-Range Input Compatibility: The IC670GBI102D supports both DC and AC input voltages (24V–125V), eliminating the need for separate modules for different field devices. This versatility simplifies inventory management and reduces installation complexity in mixed-voltage systems.
Robust Electrical Isolation: Each input channel features 2500V RMS opto-isolation, protecting the PLC from voltage spikes and ground loops. This isolation ensures reliable operation in harsh industrial environments with high electromagnetic interference, such as manufacturing plants or power stations.
Hot-Swappable Design: The module’s hot-swappable capability allows replacement while the system is running, the need for downtime during maintenance or component failure. This feature is critical for continuous processes in industries like pharmaceuticals and food & beverage, where production interruptions are costly.
Real-Time Diagnostics: Built-in LED indicators provide instant visibility into input states and module health, reducing troubleshooting time. The module also supports diagnostic feedback via the PLC, enabling proactive maintenance and minimizing unplanned downtime.
High-Density Channel Configuration: With 16 isolated channels in a compact form factor, the IC670GBI102D optimizes rack space in large systems, allowing more I/O modules to be installed in a smaller footprint. This density is ideal for complex automation setups with numerous field devices.
Application Areas: GE IC670GBI102D
The GE IC670GBI102D digital input module is widely used in industries requiring reliable signal acquisition and processing:
- Manufacturing: Monitors machine status, limit switches, and safety interlocks in automotive assembly lines, robotic cells, and CNC machines, ensuring precise control and preventing operational errors.
- Power Generation: Tracks switchgear positions, valve states, and safety signals in thermal, hydro, and renewable energy plants, supporting seamless integration with SCADA systems for grid management.
- Oil and Gas: Deployed in refineries, pipelines, and offshore platforms to monitor pressure switches, flow sensors, and emergency shutdown signals in harsh, hazardous environments.
- Water Treatment: Manages input signals from level sensors, pressure transducers, and control valves in water/wastewater plants, ensuring continuous operation and regulatory compliance.
- Material Handling: Controls conveyor systems, hoists, and automated storage systems in warehouses, providing real-time feedback on load positions and system status.
Related Products: GE IC670GBI102D
- GE IC670GBD102D Digital Output Module: Complements the IC670GBI102D with 16 isolated digital outputs, enabling complete control of relays and solenoids in automation systems.
- GE IC670CHS721 Rack Chassis: Houses the IC670GBI102D and other 90-70 Series modules, providing mechanical support and power distribution for complex setups.
- GE IC670ALG222 Analog Input Module: Expands system capabilities with analog signal acquisition, working alongside the IC670GBI102D for mixed-signal applications.
- GE IC670PWR711 Power Supply Module: Provides reliable power to the rack, ensuring stable operation of the IC670GBI102D and other modules in the system.
- GE IC670CPU780 Controller Module: The central processing unit for the 90-70 Series, integrating with the IC670GBI102D to execute control logic and process input data.
- GE IC670CMM711 Communication Module: Enables Ethernet/IP or Profibus communication for the IC670GBI102D, facilitating integration with higher-level systems and remote monitoring.
Installation and Maintenance: GE IC670GBI102D
Pre-installation Preparations:
Before installing the IC670GBI102D, ensure the GE 90-70 Series rack is properly grounded and powered off. Verify that the input voltage of field devices matches the module’s range (24V DC–125V AC). Clean the rack slot and inspect for debris, then slide the module into the designated position, securing it with the provided brackets. Connect input wires to the terminal block, labeling each channel for easy identification, and ensure proper wire gauges (14–22 AWG) are used. Finally, power on the system and configure the module via the PLC programming software.
Before installing the IC670GBI102D, ensure the GE 90-70 Series rack is properly grounded and powered off. Verify that the input voltage of field devices matches the module’s range (24V DC–125V AC). Clean the rack slot and inspect for debris, then slide the module into the designated position, securing it with the provided brackets. Connect input wires to the terminal block, labeling each channel for easy identification, and ensure proper wire gauges (14–22 AWG) are used. Finally, power on the system and configure the module via the PLC programming software.
Maintenance Recommendations:
- Routine Inspections: Monthly checks should include verifying LED indicators for proper input states, tightening terminal connections, and cleaning dust from the module’s surface to maintain thermal performance.
- Function Testing: Quarterly testing of each input channel using a calibrated signal source ensures accurate signal acquisition. Replace any faulty channels promptly to maintain system reliability.
- Environmental Monitoring: Monitor ambient temperature to ensure it stays within 0°C–60°C, as higher temperatures may reduce component lifespan. Install additional cooling if necessary.
- Firmware Updates: Periodically check GE’s official website for firmware updates to ensure the IC670GBI102D operates with the latest features and bug fixes.
Product Guarantee: GE IC670GBI102D
Our company provides a 12-month quality warranty for the GE IC670GBI102D digital input module, covering hardware defects from non-human causes. During the warranty period, we will replace any module with faulty isolation, unresponsive inputs, or physical damage at no cost. For discontinued models or urgent needs, our global supply chain network ensures prompt fulfillment, minimizing downtime and supporting continuous industrial operation.
With 17 years of expertise in industrial control distribution, we are committed to delivering reliable solutions and exceptional service. The IC670GBI102D exemplifies our dedication to quality, offering the stability and flexibility required for critical automation systems. Contact us today to optimize your signal acquisition with this robust module.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not substitute for GE’s official technical documentation.
