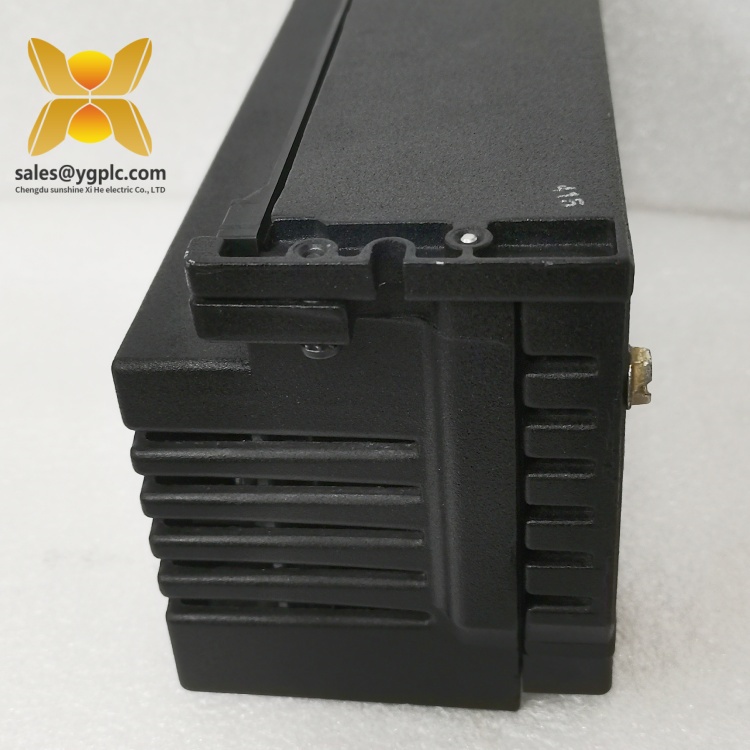

GE IC660ELD100A Electronic Line Driver Module
Product Overview
The GE IC660ELD100A is a high-performance Electronic Line Driver Module designed for industrial automation systems, specifically as part of GE’s Series 6000 control platform. Engineered to amplify and condition analog signals for reliable long-distance transmission, this module plays a critical role in maintaining signal integrity across distributed control systems (DCS) and programmable logic controllers (PLCs) in industries such as power generation, manufacturing, and oil & gas. By converting low-level input signals into robust outputs, the IC660ELD100A ensures seamless communication between field instruments and control systems, minimizing noise interference and signal degradation.
Featuring a rugged industrial design, the GE IC660ELD100A supports multiple signal types, including 4–20 mA current loops and 0–10 V DC voltages, with configurable gain and offset settings to adapt to diverse application requirements. Its advanced circuitry includes built-in surge protection and electromagnetic interference (EMI) filtering, making it suitable for harsh environments with high electrical noise. The module’s compatibility with GE’s Series 6000 I/O racks enables straightforward integration into existing control systems, reducing installation complexity and maintenance costs.
In automation ecosystems, the IC660ELD100A serves as a vital interface between sensors/actuators and the control layer, ensuring that analog signals (e.g., temperature, pressure, flow) are transmitted accurately over extended distances (up to 1,000 meters). Its dual-channel architecture supports independent signal processing, allowing simultaneous conditioning of two separate signals for enhanced system flexibility. By prioritizing signal reliability and durability, this module ensures continuous operation in mission-critical applications where data loss could lead to operational inefficiencies or safety risks.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC660ELD100A |
| Manufacturer | GE |
| Product Type | Electronic Line Driver Module |
| Signal Types | 4–20 mA, 0–10 V DC, ±10 V DC |
| Input Impedance | 10 kΩ (voltage), 250 Ω (current) |
| Output Drive Capacity | 20 mA (current), 10 V DC (voltage) |
| Signal Transmission Range | Up to 1,000 meters |
| Power Supply | 24 V DC ±10% |
| Physical Dimensions | 101.6 mm (H) × 152.4 mm (W) × 76.2 mm (D) |
| Weight | 0.9 kg |
| Operating Temperature | -25°C to +70°C |
| Mounting | Rack-mounted in GE Series 6000 I/O chassis |
| Certifications | CE, UL, cUL |
Key Features and Advantages
Dual-Channel Signal Conditioning: The IC660ELD100A features two independent channels, each capable of amplifying and conditioning analog signals simultaneously. This dual functionality reduces hardware requirements and simplifies wiring in multi-sensor applications, enhancing system efficiency.
Wide Signal Compatibility: Supporting both current and voltage signals, the module adapts to various field instruments, from pressure transmitters to flow meters. Configurable gain (0.5–2x) and offset (-10 to +10 V/0 to 20 mA) allow precise customization for specific sensor outputs.
Robust Noise Immunity: Built-in EMI/RFI filtering and surge protection (up to 2 kV) safeguard signals against electrical interference, ensuring accurate data transmission even in environments with motors, transformers, or other noisy equipment.
Long-Distance Transmission: With the ability to drive signals over 1,000 meters, the IC660ELD100A is ideal for large-scale industrial plants where control rooms are distant from field devices. This reduces the need for intermediate signal repeaters, cutting costs and complexity.
Hot-Swappable Design: The module can be replaced without powering down the system, enabling maintenance during operation. This feature is critical for 24/7 industries, minimizing downtime and improving overall system availability.
Modular System Integration: As part of GE’s Series 6000, the IC660ELD100A seamlessly integrates with other GE I/O modules (e.g., analog inputs, digital outputs) and control processors, supporting unified configuration via GE’s Proficy software.
Application Areas
The GE IC660ELD100A is widely deployed in industries requiring reliable analog signal transmission:
- Power Generation: Conditions signals from temperature RTDs, pressure transducers, and flow meters in steam turbines, generators, and boiler systems, ensuring real-time data delivery to DCS for process optimization.
- Oil & Gas: Amplifies signals from wellhead sensors, pipeline pressure gauges, and refinery process instruments, enabling remote monitoring and control in onshore/offshore facilities.
- Manufacturing: Supports signal conditioning for conveyor speed sensors, mixing equipment, and quality control instruments in automotive, chemical, and food processing plants, maintaining production consistency.
- Water/Wastewater Treatment: Transmits analog signals from level sensors, pH meters, and chlorine detectors to control systems, facilitating automated adjustment of pumps and valves for efficient treatment processes.
Specific applications include:
- Process Control Loops: Maintains stable signal levels in closed-loop systems, such as those regulating cooling water flow in power plants or chemical reactor pressure.
- Remote Monitoring: Enables signal transmission from remote sensors (e.g., in wastewater treatment ponds or offshore platforms) to central control rooms without degradation.
- Machine Safety Systems: Conditions signals from emergency stop buttons and safety interlocks, ensuring rapid response to critical events.
Related Products
- IC660ELA100A Analog Input Module: Works alongside the IC660ELD100A to acquire conditioned signals, offering 16-channel analog input capability for large-scale data acquisition.
- IC660EBD100A Backplane Distribution Module: Provides power and communication pathways for the IC660ELD100A within GE Series 6000 racks, ensuring stable operation.
- IC660EFD100A Frequency to Digital Converter: Converts frequency signals to digital data, complementing the IC660ELD100A in applications requiring speed or flow rate monitoring.
- IC660EVD100A Voltage Drive Module: A single-channel variant of the IC660ELD100A, suitable for smaller systems needing basic signal amplification.
- IC660EHD100A High-Density I/O Module: Integrates multiple signal conditioning functions, ideal for compact setups where space is limited.
- IC660ECD100A Current Drive Module: Specialized for 4–20 mA signals, offering higher current drive capacity for demanding industrial sensors.
Installation and Maintenance
Pre-installation Preparations:
Before installing the GE IC660ELD100A, ensure the Series 6000 rack is properly grounded and powered (24 V DC). Verify that input signals match the module’s supported types (current/voltage) and use shielded cables to minimize EMI. Mount the module in an I/O rack slot, securing it with captive screws. Configure gain/offset settings via the module’s dip switches or GE’s Proficy software to match sensor outputs, and connect field wires to the terminal blocks, labeling connections for clarity.
Before installing the GE IC660ELD100A, ensure the Series 6000 rack is properly grounded and powered (24 V DC). Verify that input signals match the module’s supported types (current/voltage) and use shielded cables to minimize EMI. Mount the module in an I/O rack slot, securing it with captive screws. Configure gain/offset settings via the module’s dip switches or GE’s Proficy software to match sensor outputs, and connect field wires to the terminal blocks, labeling connections for clarity.
Maintenance Suggestions:
- Routine Checks: Monthly visual inspections should confirm secure wiring, functional LED indicators (power/operation), and no signs of overheating. Use Proficy software to monitor signal integrity and detect any deviations from normal operation.
- Calibration: Annually calibrate the module using a precision signal source to ensure accuracy. Adjust gain/offset as needed and document results for compliance.
- Environmental Upkeep: Clean the module’s vents quarterly to prevent dust accumulation, especially in harsh environments. Ensure operating temperatures remain within -25°C to +70°C to avoid performance degradation.
- Spare Parts Management: Keep a spare IC660ELD100A in a static-free, temperature-controlled environment for rapid replacement during failures, minimizing downtime.
Product Warranty
Our company provides a 12-month quality warranty for the GE IC660ELD100A, covering hardware defects under normal use. In case of performance issues—such as signal distortion or power failure—we offer prompt replacement services. For discontinued or urgent needs, our global supply chain network sources rare components to support your industrial system’s continuous operation. Our technical team is available 24/7 for installation guidance, troubleshooting, and configuration support, ensuring reliable performance throughout the product lifecycle.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
