Product Overview
The GE DS3800HSCG is a high-level isolator board used in GE Mark IV Speedtronic turbine control systems. Its primary function is to provide electrical isolation and signal conditioning between field-level signals and the control electronics, helping protect sensitive circuitry while maintaining reliable signal transfer. Available technical references identify this board as a High Level Isolator Board within the DS3800 Mark IV family.
The board uses a modular connector arrangement and incorporates a 34-pin connector with retention hardware, multiple configuration jumpers, a trimmer resistor, and programmable interrupt-control circuitry. These features make it a system-specific component rather than a generic signal-conditioning card. Revision identification is important because the DS3800HSCG family includes several hardware variants.
Technical Specifications — DS3800HSCG
| Parameter | Value |
|---|---|
| Product Model | DS3800HSCG |
| Manufacturer | GE |
| Product Type | High-Level Isolator Board |
| System | Mark IV Speedtronic |
| Primary Function | Signal isolation and conditioning |
| Power | System supplied |
| Communication / Protocol | Application-specific |
| Operating Temperature | Verify Mark IV system documentation |
| Mounting | DS3800 Mark IV control rack |
| Dimensions (HxWxD) | Verify original GE mechanical drawing |
| Weight | Verify from physical unit |
| Typical Interfaces | Modular and 34-pin board connectors |
| Configuration | Multiple jumpers and trimmer resistor |
| Hardware Variants | 1C1C, 1D1D, 1D1E, 1E1F and other revisions |

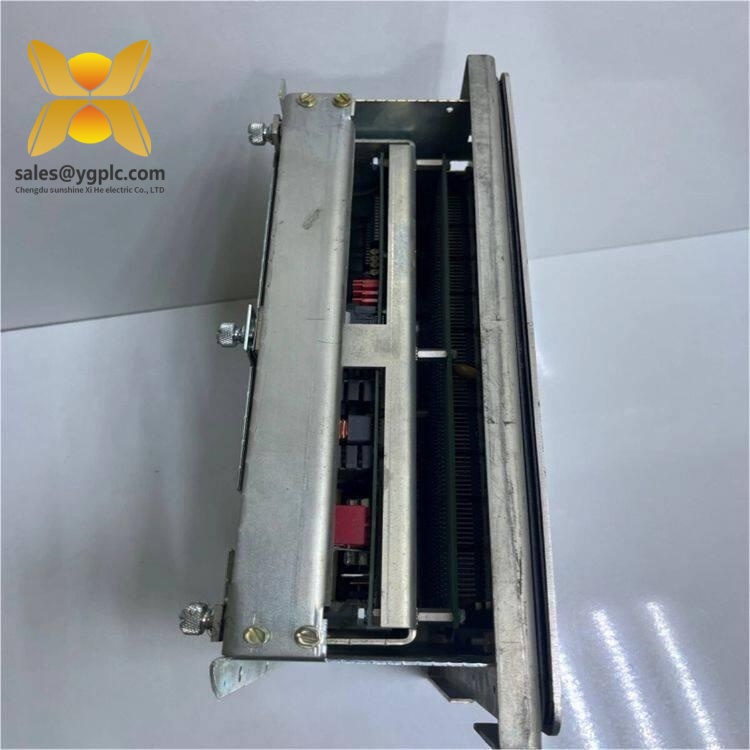

GE DS3800HSCG
Key Features and Benefits — DS3800HSCG
- High-level electrical isolation for compatible Mark IV turbine-control signals.
- Modular board construction designed for rapid installation within the associated control system.
- 34-pin interface with retention hardware for secure electrical connection.
- Multiple jumpers allow application-specific hardware configuration.
- Includes a trimmer resistor for circuit adjustment.
- Intended for legacy GE Speedtronic turbine-control maintenance and lifecycle support.
- Static-sensitive circuitry requires appropriate ESD handling during inspection and replacement.
The DS3800HSCG family has documented revision variants, so the suffix and board revision should be checked before ordering. A matching base model alone may not establish full interchangeability.
Related Models
DS3800HSCC — 28 VDC non-isolated input board used in the Mark IV control family.
DS3800HSCD — High-level non-isolated input board for compatible turbine-control applications.
DS3800HSCJ — Another high-level isolator card within the DS3800 Mark IV family.
DS3800HSCG1D1E — A documented revision variant with a high-level isolator configuration and board revision 1D1E.
Installation and Maintenance — DS3800HSCG
Before replacement, isolate the applicable Mark IV control equipment and follow site electrical safety procedures. Record the board revision, jumper positions, connector locations, and wiring before removal. Because the board is static-sensitive, use an ESD-safe workstation, wrist strap, and suitable protective packaging.
Personally, I would verify the complete board number and revision against the existing turbine documentation before accepting a replacement. This is especially important for legacy Mark IV systems, where several visually similar DS3800 boards can have different functions or configuration requirements.
Product Warranty — DS3800HSCG
Warranty terms depend on the supplier, condition, and purchase agreement. For critical turbine-control spares, procurement records should include the exact GE part number, board revision, condition, inspection or test documentation, and warranty period. The GE DS3800HSCG should be matched to the installed Mark IV configuration before installation.
