FOXBORO FCP270 P0917YZ Process Controller Module
Product Overview ：FOXBORO FCP270 P0917YZ
The FOXBORO FCP270 P0917YZ process controller module is a high-performance industrial automation component designed to deliver precise control and real-time data management for complex process systems. As a core component of FOXBORO’s I/A Series® distributed control system (DCS), this module serves as the central hub for integrating field devices, monitoring process variables, and executing control strategies in mission-critical industrial environments.
Engineered for reliability and scalability, the FCP270 P0917YZ supports modular configuration with up to 128 I/O points, enabling seamless integration with sensors, valves, and other field instruments. Its 32-bit RISC processor ensures fast data processing and deterministic control, while the redundant power supply and communication interfaces minimize downtime in applications where continuous operation is essential. The module’s compact design (280mm x 210mm x 80mm, 2.3kg) and DIN rail mounting make it suitable for space-constrained control cabinets, while its -40°C to +70°C operating temperature range ensures resilience in harsh industrial conditions.
In automation systems, the FCP270 P0917YZ plays a pivotal role in enabling real-time process optimization, safety interlocking, and predictive maintenance. It supports standardized communication protocols (Modbus TCP/IP, Profibus DP, HART) to interface with third-party systems, facilitating data exchange with SCADA, PLCs, and enterprise-level software. This module is widely adopted in industries such as oil & gas, power generation, chemical processing, and pharmaceuticals, where precise control, data integrity, and system flexibility are critical to operational efficiency.
Technical Specifications ：FOXBORO FCP270 P0917YZ
| Parameter Name | Parameter Value |
|---|---|
| Product Model | FCP270 P0917YZ |
| Manufacturer | FOXBORO |
| Product Type | Process Controller Module |
| Processor | 32-bit RISC, 200 MHz |
| Memory | 512 MB RAM, 1 GB Flash |
| I/O Capacity | Up to 128 points (configurable as analog/digital) |
| Communication Protocols | Modbus TCP/IP, Profibus DP, HART, Ethernet/IP |
| Power Supply | 24V DC ±15% (redundant input supported) |
| Physical Dimensions | 280mm (H) x 210mm (W) x 80mm (D) |
| Weight | 2.3 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | DIN rail or panel-mounted |
| Protection Rating | IP20 |
| Country of Origin | United States |

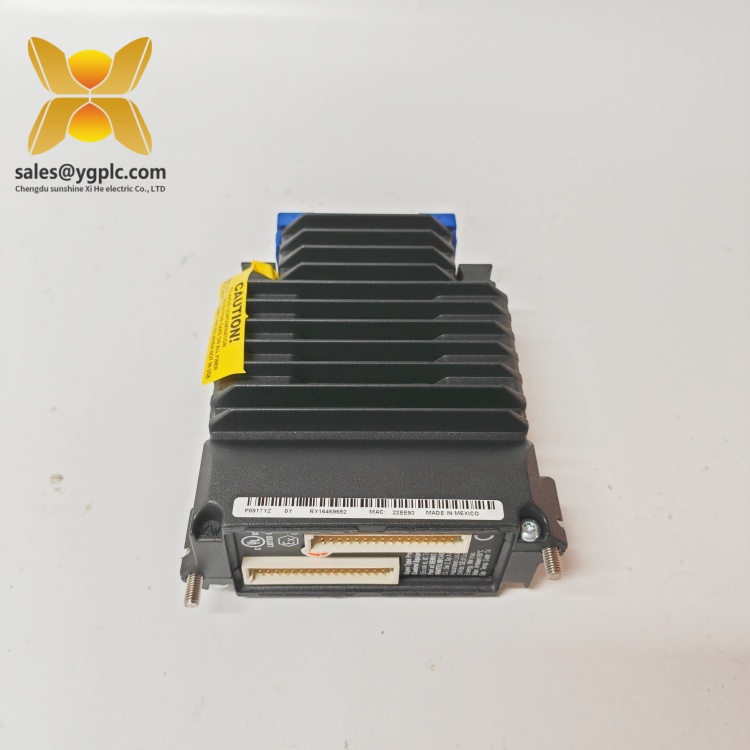

FCP270 P0917YZ
Key Features and Advantages ：FOXBORO FCP270 P0917YZ
High-Performance Processing: The FCP270 P0917YZ leverages a 200 MHz 32-bit RISC processor to handle complex control algorithms and real-time data analytics, ensuring fast response times and precise regulation of process variables. This capability is essential for applications requiring tight control over temperature, pressure, and flow rates in chemical reactors or distillation columns.
Modular and Scalable Design: With support for up to 128 I/O points, the module allows users to configure systems ranging from small-scale processes to large industrial plants. Its hot-swappable components enable maintenance without disrupting operation, while the standardized I/O interfaces simplify integration with legacy and modern field devices.
Redundant Architecture: The module features dual redundant power supplies and communication paths, ensuring continuous operation even in the event of a single component failure. This redundancy is critical for safety-critical applications in oil refineries or nuclear power plants, where system downtime could lead to significant operational risks.
Multi-Protocol Connectivity: By supporting Modbus TCP/IP, Profibus DP, and HART, the FCP270 P0917YZ seamlessly integrates with a diverse range of devices, from smart sensors to legacy control systems. This versatility reduces the need for additional gateways, streamlining system design and lowering integration costs.
Robust Environmental Resistance: Built to withstand -40°C to +70°C temperatures and 95% humidity, the module performs reliably in harsh industrial settings, including offshore platforms, cement plants, and pulp mills. Its IP20 protection rating safeguards against dust and light water splashes, enhancing long-term durability.

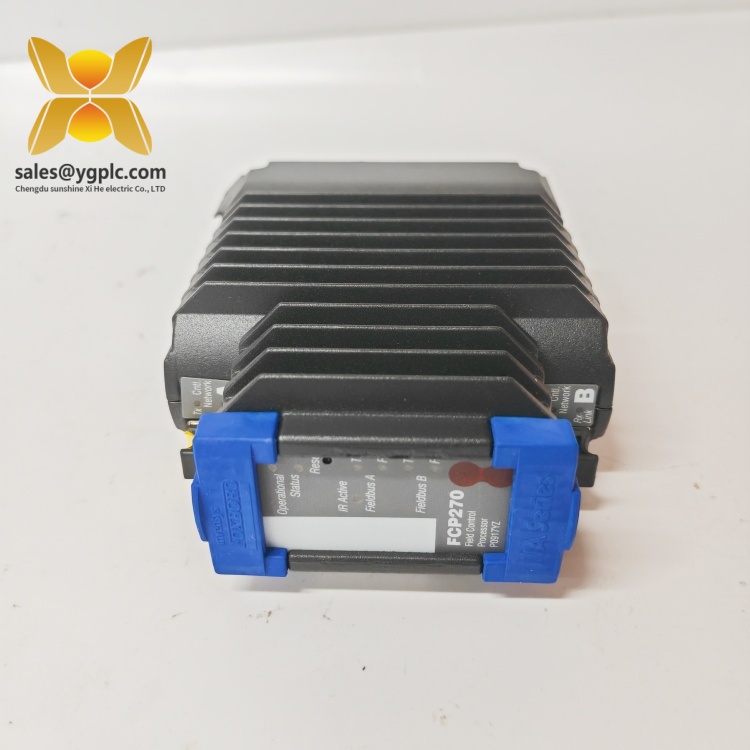

FCP270 P0917YZ
Application Areas ：FOXBORO FCP270 P0917YZ
The FOXBORO FCP270 P0917YZ process controller module excels in industries requiring precise process control and scalable automation solutions:
- Oil & Gas: Deployed in refineries and petrochemical plants to manage distillation units, compressor stations, and pipeline networks. The module’s redundant design ensures uninterrupted control during peak production, while its real-time data analytics help optimize energy consumption and reduce waste.
- Power Generation: Integrates with steam turbines, gas generators, and boiler systems to maintain stable power output and grid synchronization. It supports safety interlock functions, preventing overloads and ensuring compliance with strict regulatory standards.
- Chemical Processing: Used in batch and continuous production lines to control reactor temperatures, pump speeds, and material flow. The module’s high-speed data processing enables rapid adjustment to process variations, minimizing product quality deviations.
- Pharmaceuticals: Ensures precise control over sterilization processes, fermentation tanks, and packaging lines, where consistency and traceability are critical. Its modular I/O configuration adapts to changing production requirements, supporting both small-scale R&D and large-scale manufacturing.
- Water and Wastewater: Manages pump stations, treatment reactors, and filtration systems to maintain water quality and flow efficiency. The module’s HART protocol support enables seamless integration with smart water meters and analytical instruments, enhancing operational visibility.
Related Products ：FOXBORO FCP270 P0917YZ
- FCP280 P0917YK: An upgraded version of the FCP270 P0917YZ, offering higher processing speed (300 MHz) and expanded I/O capacity (up to 256 points) for large-scale industrial applications.
- P0961BC I/O Terminal Block: A sets that connects the FCP270 P0917YZ to field devices, providing secure termination for analog and digital signals.
- P0904CA Power Supply Module: A redundant power supply designed for the I/A Series, ensuring stable 24V DC input for the FCP270 P0917YZ and adjacent modules.
- FBM207 P0914XY Fieldbus Module: Works alongside the FCP270 P0917YZ to enable Profibus DP communication with remote I/O devices, expanding system connectivity in distributed control setups.
- P0950BA Communication Card: Enhances the module’s network capabilities with Ethernet/IP support, facilitating integration with industrial IoT platforms and cloud-based monitoring systems.
- FCP270 P0917YV: A variant with enhanced cybersecurity features, including encrypted data transmission and secure firmware updates, suitable for industries with strict data protection requirements.
- P0916AA Rack Enclosure: A hardware platform that houses the FCP270 P0917YZ and associated modules, providing mechanical support and cable management for compact control systems.

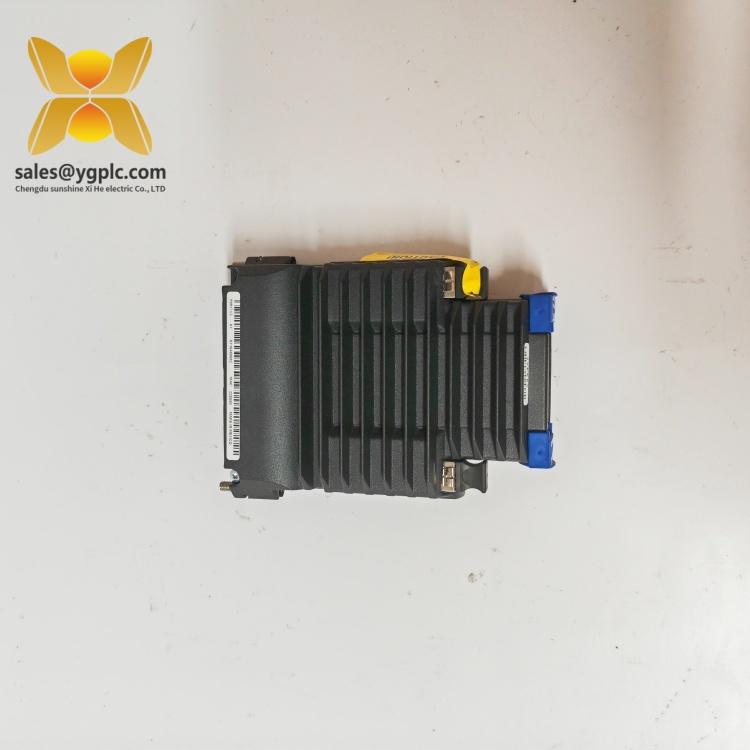

FCP270 P0917YZ
Installation and Maintenance ：FOXBORO FCP270 P0917YZ
Installation Preparation:
Before installing the FCP270 P0917YZ, verify that the 24V DC power supply meets the module’s specifications and that the control cabinet provides adequate ventilation. Clean the DIN rail or mounting panel to remove debris, then secure the module using the provided brackets. Connect the power cables to the redundant terminals, ensuring proper grounding to minimize electromagnetic interference. Finally, link the module to field devices and 上级控制系统 (supervisory control systems) via the appropriate communication cables, following FOXBORO’s wiring guidelines.
Before installing the FCP270 P0917YZ, verify that the 24V DC power supply meets the module’s specifications and that the control cabinet provides adequate ventilation. Clean the DIN rail or mounting panel to remove debris, then secure the module using the provided brackets. Connect the power cables to the redundant terminals, ensuring proper grounding to minimize electromagnetic interference. Finally, link the module to field devices and 上级控制系统 (supervisory control systems) via the appropriate communication cables, following FOXBORO’s wiring guidelines.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly checks for loose connections, abnormal temperature readings, or error indicators on the module’s LED display. Clean the enclosure vents quarterly to prevent dust accumulation that could affect heat dissipation.
- Firmware Updates: Periodically update the module’s firmware using FOXBORO’s I/A Series Engineering Workstation to access new features, security patches, and performance optimizations. Backup configuration files before updating to avoid data loss.
- Redundancy Testing: Test the redundant power supplies and communication paths bi-annually to ensure failover functionality. Replace any faulty components immediately using genuine FOXBORO spares to maintain system reliability.
- Environmental Checks: In harsh environments, inspect the module for signs of corrosion or physical damage every six months. Ensure the operating temperature and humidity levels remain within specified ranges to prevent premature wear.

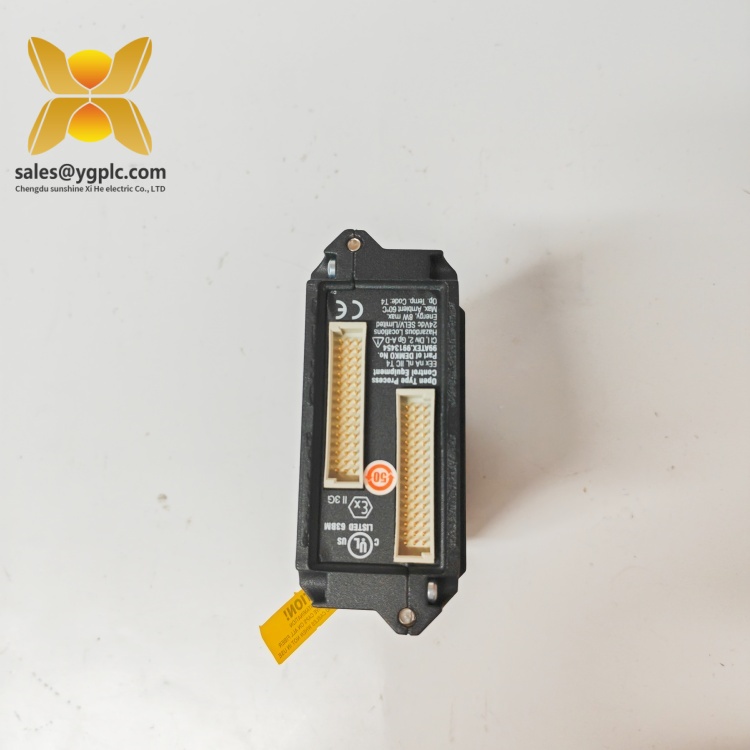

FCP270 P0917YZ
Product Warranty ：FOXBORO FCP270 P0917YZ
We provide a 12-month quality warranty for the FOXBORO FCP270 P0917YZ process controller module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge, ensuring minimal disruption to your operations. For discontinued models or urgent requirements, our global supply chain network—built over 17 years of expertise in industrial control distribution—enables rapid sourcing of 稀缺备件 (rare spare parts), even for legacy systems.
Our commitment to customer support extends beyond the warranty period, with dedicated technical teams available to assist with installation, configuration, and troubleshooting. We understand the critical role that reliable automation plays in industrial processes, and we strive to deliver solutions that enhance system uptime, safety, and efficiency. Contact us today to leverage the FCP270 P0917YZ module’s advanced capabilities for your process control needs.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
