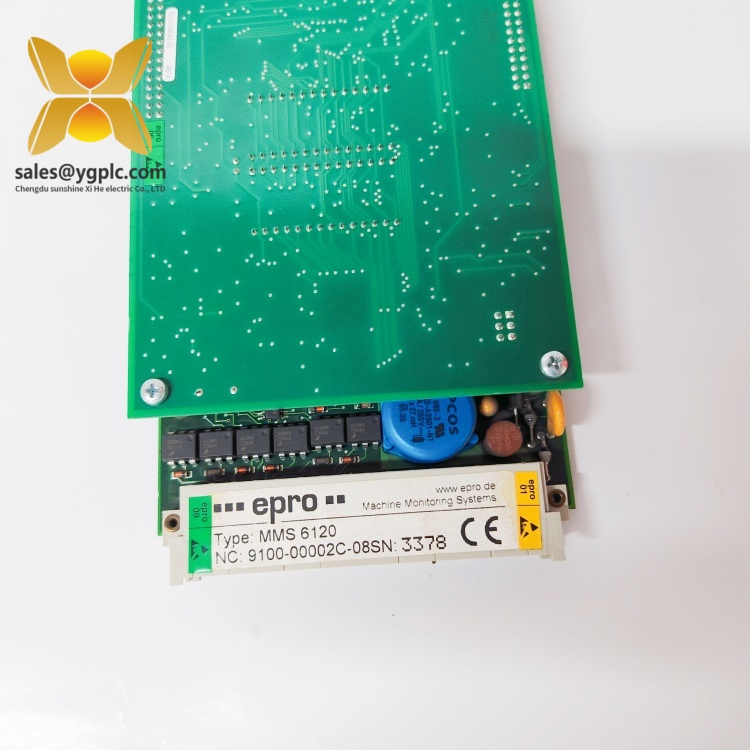

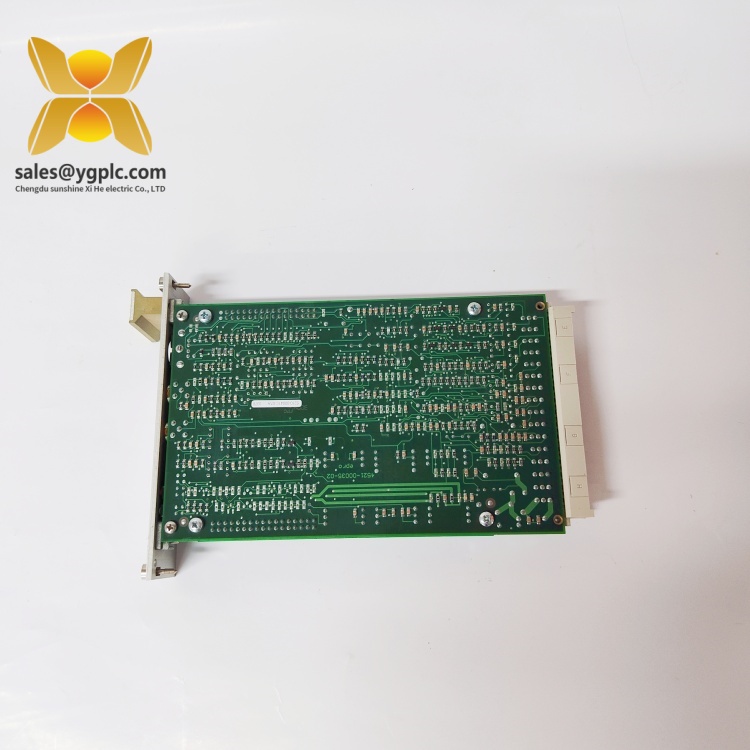

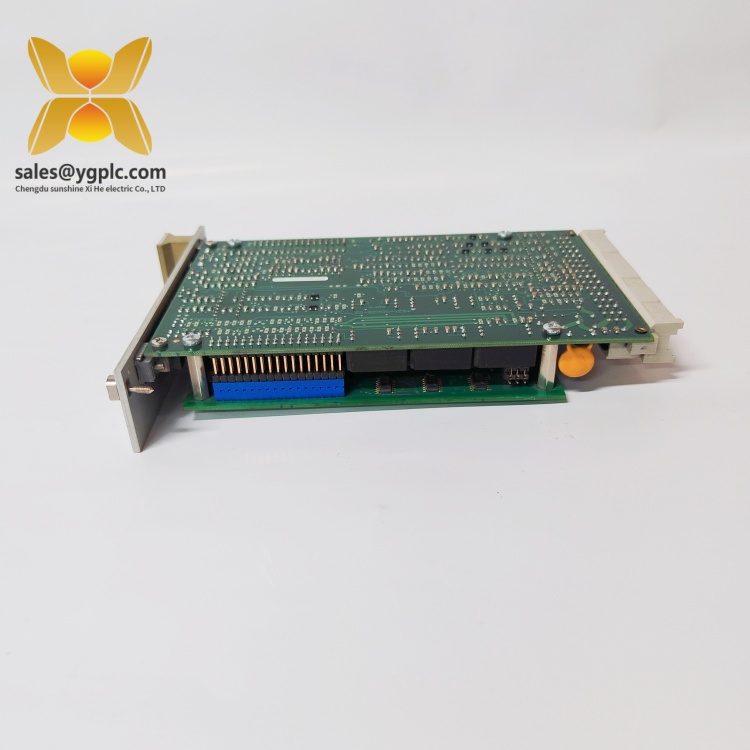

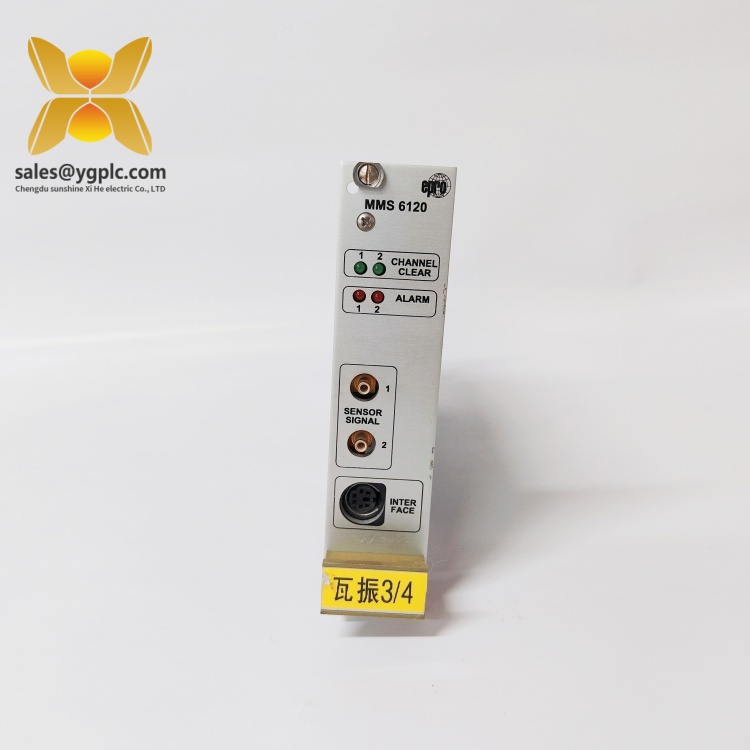

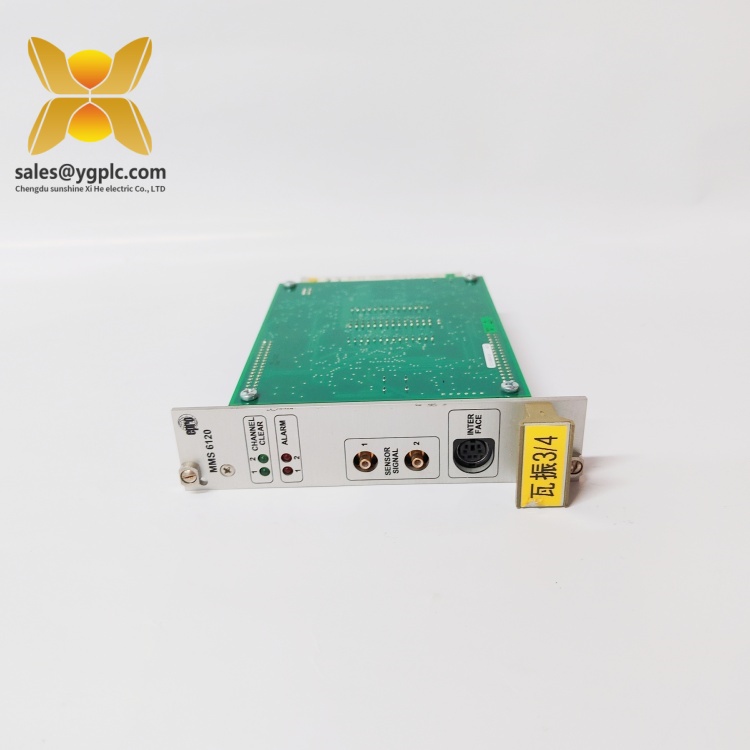

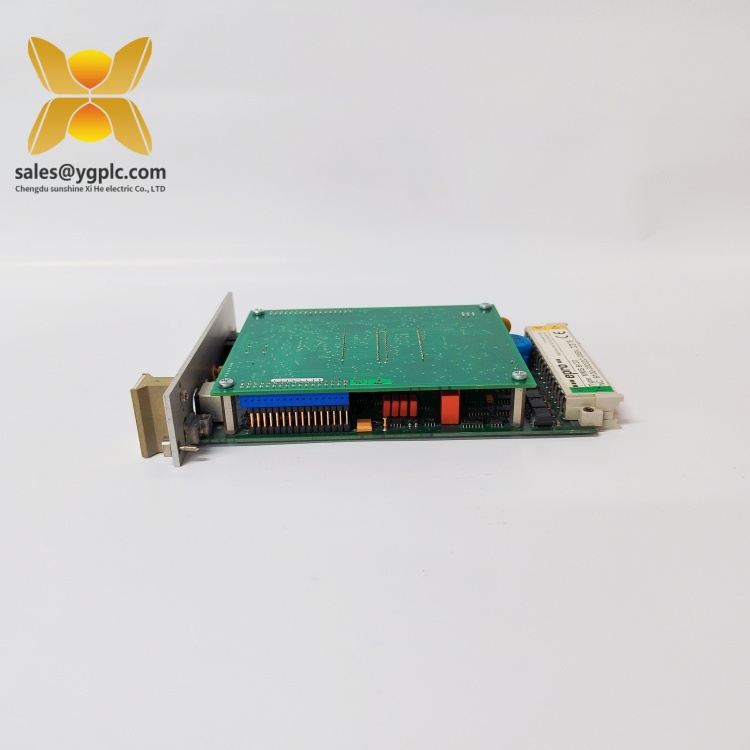

EPRO MMS6120 9100-00002C-08 Vibration Monitoring Module
Product Overview：EPRO MMS6120 9100-00002C-08
The EPRO MMS6120 9100-00002C-08 is a high-precision Vibration Monitoring Module designed for critical rotating machinery in industrial automation systems. As a core component of EPRO’s MMS6000 Series, this module plays a pivotal role in ensuring the reliability and safety of turbines, compressors, and generators across industries such as oil & gas, power generation, and manufacturing. By integrating advanced signal processing and dual-channel measurement capabilities, the MMS6120 9100-00002C-08 delivers real-time vibration analysis, enabling predictive maintenance and preventing catastrophic failures.
Key functionalities of the EPRO MMS6120 9100-00002C-08 include continuous monitoring of acceleration, velocity, and displacement parameters, with user-configurable alarm setpoints to trigger protective actions. The module supports both single-ended and differential input configurations, accommodating proximity probes, accelerometers, and velocity sensors. Its robust design, compliant with ISO 10816 and API 670 standards, ensures stable performance in harsh environments with temperatures ranging from -40°C to +85°C. As part of a distributed control system (DCS) or programmable logic controller (PLC) ecosystem, the MMS6120 9100-00002C-08 acts as a critical interface between sensors and control systems, converting raw vibration data into actionable insights for maintenance teams.
In industrial automation frameworks, the MMS6120 9100-00002C-08 stands out for its modular architecture, allowing seamless integration into existing monitoring systems. Its dual-channel design supports redundant operation, minimizing single points of failure and enhancing system resilience. Whether deployed in standalone applications or multi-module setups, this module ensures continuous machinery health monitoring, reducing unplanned downtime and optimizing operational efficiency.
Technical Specifications：EPRO MMS6120 9100-00002C-08
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MMS6120 9100-00002C-08 |
| Manufacturer | EPRO |
| Product Type | Vibration Monitoring Module |
| Measurement Channels | 2 independent channels |
| Input Types | Proximity probes (8–24 VDC), accelerometers (IEPE), velocity sensors |
| Measurement Range | Acceleration: 0–50 g (peak); Velocity: 0–250 mm/s (RMS); Displacement: 0–50 mils |
| Output Signals | 4–20 mA analog, relay contacts for alarms, RS485 (Modbus RTU) |
| Power Supply | 19.2–26.4 VDC (redundant) |
| Physical Dimensions | 100 mm (H) × 160 mm (W) × 60 mm (D) |
| Weight | 0.7 kg |
| Operating Temperature | -40°C to +85°C |
| Mounting | DIN rail or rack-mounted |
| Certifications | CE, ATEX (for hazardous areas), IEC 61000-4-2/3/4 |
EPRO MMS6120 9100-00002C-08
Key Features and Advantages：EPRO MMS6120 9100-00002C-08
High-Precision Vibration Analysis: The MMS6120 9100-00002C-08 offers industry-leading resolution (0.1% of full scale) and noise immunity, ensuring accurate detection of early signs of machinery degradation, such as unbalance, misalignment, or bearing wear. Its advanced FFT-based frequency analysis enables detailed vibration pattern recognition, supporting root cause analysis.
Modular and Redundant Design: With dual independent channels, the module allows simultaneous monitoring of two critical parameters (e.g., radial vibration on two planes of a rotor). Redundant power inputs and galvanic isolation (2.5 kV RMS) protect against voltage surges and ground loops, enhancing reliability in high-noise environments.
Flexible Configuration: Users can customize measurement ranges, alarm thresholds, and filter settings via EPRO’s MMS Configuration Software, ensuring adaptability to diverse machinery types and operational conditions. The module’s plug-and-play design simplifies replacement in legacy systems, reducing downtime during upgrades.
Compliance with Industry Standards: Built to meet API 670 and ISO 10816 requirements, the MMS6120 9100-00002C-08 is certified for use in safety-critical applications, including safety instrumented systems (SIS). Its rugged enclosure and conformal coating protect against dust, moisture, and corrosive elements, making it suitable for offshore platforms and industrial facilities.
Seamless Integration: The module’s Modbus RTU interface enables integration with PLCs, DCS systems, or condition monitoring software (e.g., EPRO’s MMS6000 Suite), facilitating centralized data management and remote diagnostics. This interoperability streamlines maintenance workflows and supports predictive maintenance strategies.
EPRO MMS6120 9100-00002C-08
Application Areas：EPRO MMS6120 9100-00002C-08
The EPRO MMS6120 9100-00002C-08 is widely deployed in industries where machinery reliability is non-negotiable:
- Oil & Gas: Monitoring vibrations in subsea pumps, pipeline compressors, and offshore turbines to detect mechanical faults before they escalate into costly failures.
- Power Generation: Ensuring the safe operation of steam turbines, gas turbines, and generators in thermal, hydro, and nuclear plants by providing real-time data on rotor dynamics.
- Manufacturing: Protecting high-speed rotating equipment such as motors, fans, and gearboxes in automotive, chemical, and food processing facilities, minimizing production interruptions.
- Mining and Metals: Monitoring conveyor systems, crushers, and mills to optimize equipment lifespan and reduce downtime in mineral extraction and processing operations.
Specific applications include:
- Bearing Condition Monitoring: Detecting early-stage bearing defects through high-frequency vibration analysis, enabling timely replacement and preventing unexpected breakdowns.
- Rotor Dynamic Analysis: Tracking shaft vibrations to identify misalignment or imbalance issues, supporting precision maintenance in critical rotating machinery.
- Safety System Integration: Providing fail-safe vibration data to emergency shutdown systems (ESD), ensuring rapid response to abnormal conditions.
EPRO MMS6120 9100-00002C-08
Related Products：EPRO MMS6120 9100-00002C-08
- MMS6110 9100-00001C-08: A single-channel variant of the MMS6120 9100-00002C-08, suitable for less complex monitoring applications with lower channel requirements.
- MMS6210 9100-00003C-08: A dual-channel module with additional temperature monitoring capabilities, ideal for comprehensive machinery health assessment.
- MMS6820 Power Supply Module: A redundant 24 VDC power supply designed to support MMS6000 Series modules, ensuring uninterrupted operation in mission-critical systems.
- MMS6900 Communication Gateway: Enables integration of the MMS6120 9100-00002C-08 with enterprise-level SCADA systems via Ethernet/IP or Profibus DP.
- MMS6310 Process Monitoring Module: Complements vibration data with process variables (e.g., temperature, pressure) for holistic machinery diagnostics.
- PR6423 Proximity Probe: A high-precision probe designed to pair with the MMS6120 9100-00002C-08 for non-contact displacement and vibration measurements.
- CON021 Condition Monitoring Software: Provides advanced analytics and trend visualization for data from the MMS6120 9100-00002C-08, enhancing predictive maintenance capabilities.
Installation and Maintenance：EPRO MMS6120 9100-00002C-08
Installation Preparation:
Before installing the EPRO MMS6120 9100-00002C-08, ensure the control cabinet is properly grounded and ventilated. Verify compatibility with selected sensors (e.g., proximity probes or accelerometers) and use shielded cables to minimize electromagnetic interference. Mount the module on a DIN rail or rack, ensuring secure connections for power (19.2–26.4 VDC) and sensor inputs. Use EPRO’s configuration software to set up measurement parameters, alarm thresholds, and communication protocols (e.g., Modbus RTU baud rate).
Before installing the EPRO MMS6120 9100-00002C-08, ensure the control cabinet is properly grounded and ventilated. Verify compatibility with selected sensors (e.g., proximity probes or accelerometers) and use shielded cables to minimize electromagnetic interference. Mount the module on a DIN rail or rack, ensuring secure connections for power (19.2–26.4 VDC) and sensor inputs. Use EPRO’s configuration software to set up measurement parameters, alarm thresholds, and communication protocols (e.g., Modbus RTU baud rate).
Maintenance Recommendations:
- Routine Inspections: Conduct quarterly visual checks for loose connections, damaged cables, or physical wear on the module. Clean the enclosure with a dry cloth to prevent dust accumulation that could affect heat dissipation.
- Calibration: Perform annual calibration using EPRO’s certified test equipment to ensure measurement accuracy. Document calibration results for compliance with industry standards.
- Firmware Updates: Periodically update the module’s firmware to access new features, security patches, and compatibility enhancements, following the manufacturer’s detailed guidelines.
- Spare Parts Management: Maintain a spare MMS6120 9100-00002C-08 module in a controlled environment (temperature: 10–30°C, humidity: 20–80% RH) to quickly replace faulty units and minimize downtime.
EPRO MMS6120 9100-00002C-08
Product Warranty：EPRO MMS6120 9100-00002C-08
Our company provides a 12-month quality warranty for the EPRO MMS6120 9100-00002C-08, covering hardware defects under normal operating conditions. In the event of performance issues or functional failures unrelated to misuse, we offer prompt replacement services. For discontinued models or urgent requirements, our global supply chain network ensures rapid sourcing of rare components, supporting continuous operation of industrial systems. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, ensuring seamless integration and long-term reliability.
