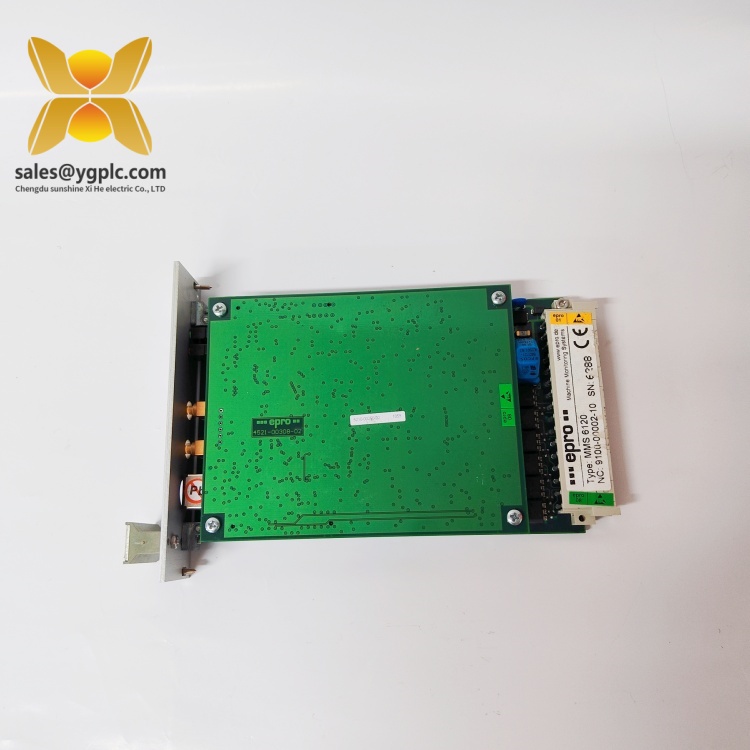

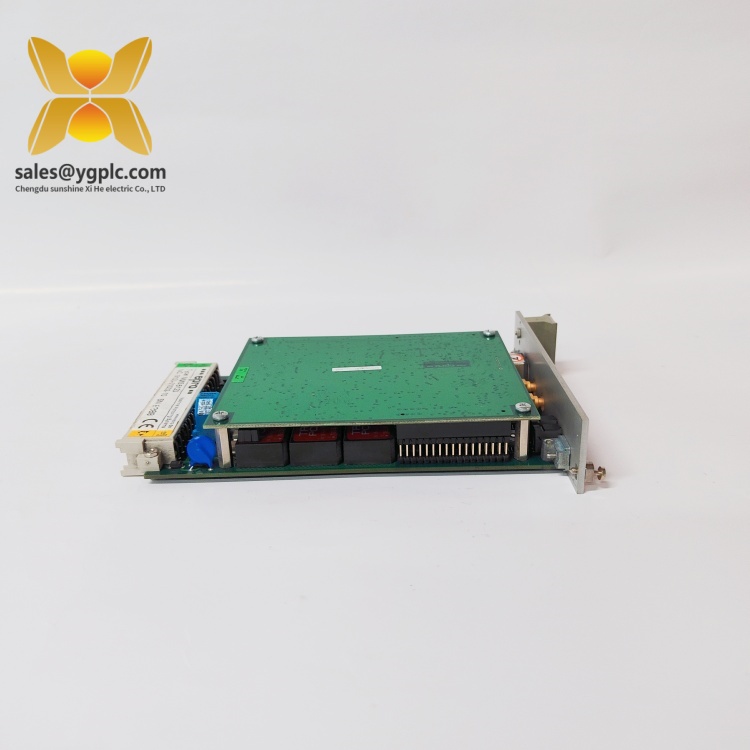

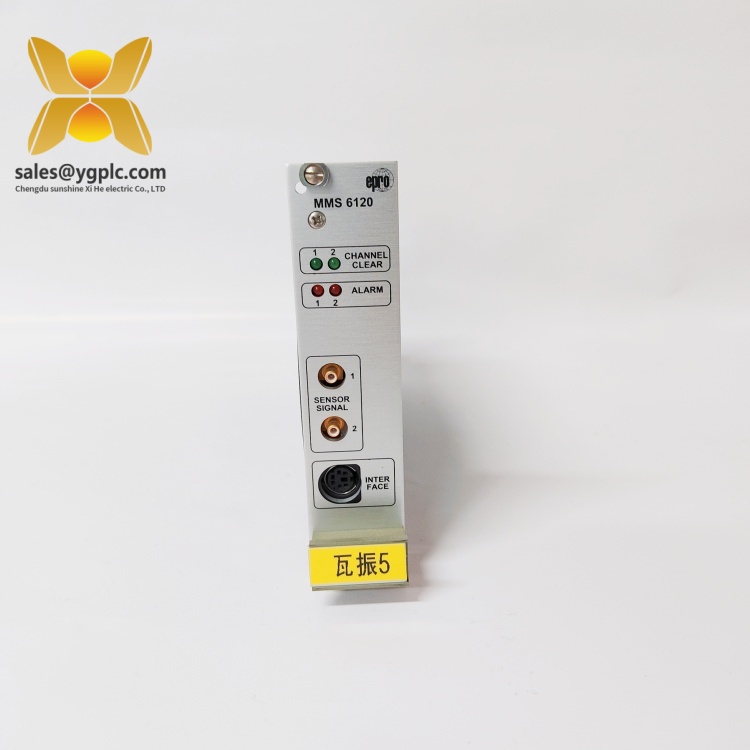

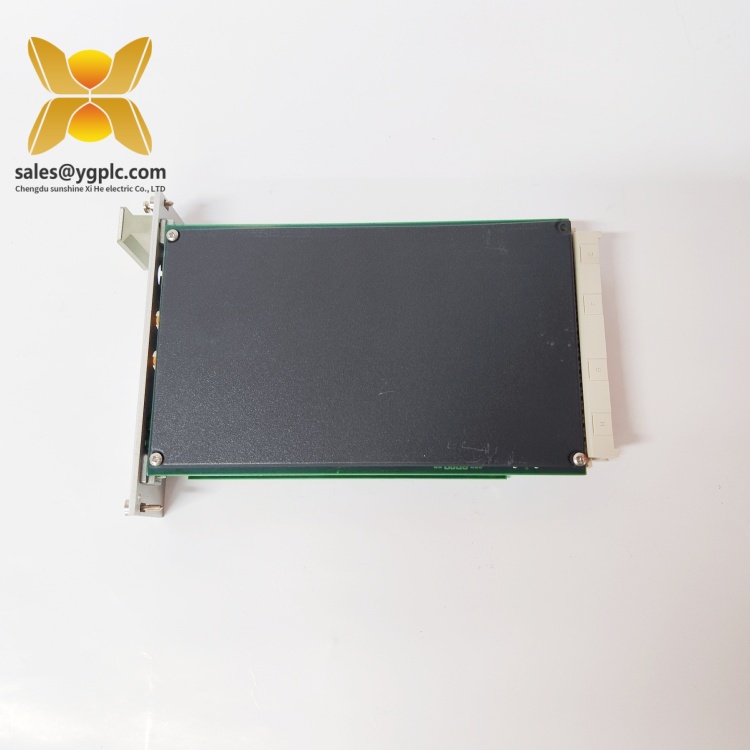

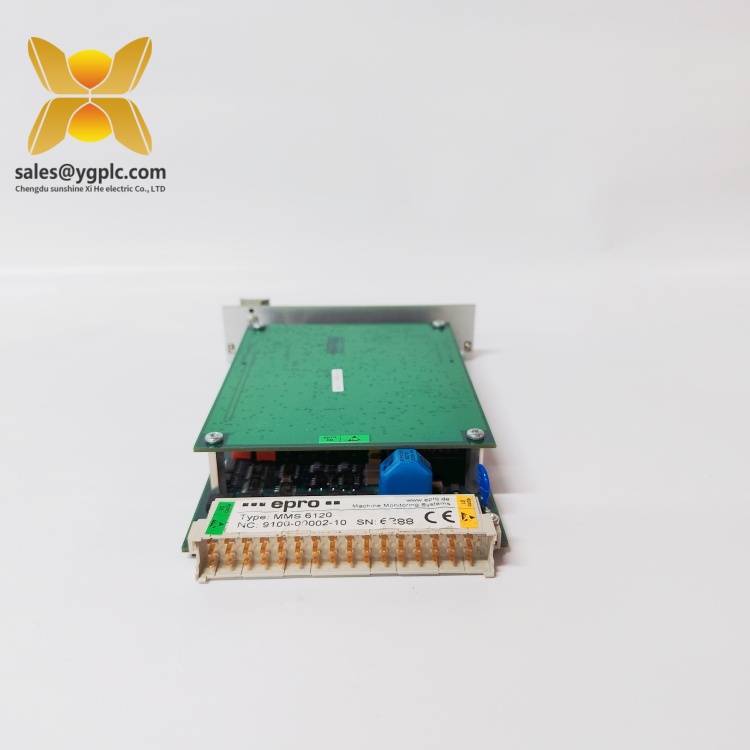

EPRO MMS6120 9100-00002-10 Vibration Monitoring Module
Product Overview：EPRO MMS6120 9100-00002-10
The EPRO MMS6120 9100-00002-10 vibration monitoring module is a high-precision industrial device designed for real-time condition monitoring of rotating machinery, serving as a critical component in predictive maintenance strategies. As part of EPRO’s MMS6000 Series, this module is engineered to measure and analyze vibration parameters with exceptional accuracy, ensuring the reliable operation of turbines, compressors, pumps, and other high-value industrial assets.
Featuring a dual-channel design, the MMS6120 9100-00002-10 accepts input signals from proximity probes or accelerometers, converting them into actionable data such as vibration amplitude, velocity, and displacement. Its advanced signal processing capabilities enable early detection of mechanical faults, including unbalance, misalignment, and bearing wear—common issues that can lead to costly downtime if left undetected. The module’s robust construction and wide operational range make it suitable for harsh industrial environments, while its modular design ensures seamless integration with existing automation systems.
In industrial automation frameworks, the MMS6120 9100-00002-10 acts as a vital link between field sensors and control systems, providing real-time data to SCADA, DCS, or PLC platforms. By enabling proactive maintenance through precise vibration analysis, it helps optimize equipment lifecycle management, reduce repair costs, and enhance overall operational efficiency. Whether deployed in power generation, oil & gas, or manufacturing sectors, this module delivers unparalleled reliability and performance, making it a trusted choice for mission-critical machinery monitoring.
Technical Specifications：EPRO MMS6120 9100-00002-10
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MMS6120 9100-00002-10 |
| Manufacturer | EPRO |
| Product Type | Vibration Monitoring Module |
| Input Channels | 2 (configurable for proximity probes/accelerometers) |
| Input Voltage | 24V DC ±10% |
| Frequency Range | 0.1 Hz to 10 kHz |
| Measurement Parameters | Vibration amplitude (peak-to-peak, RMS), velocity, displacement |
| Communication Protocol | Modbus RTU/TCP, 4–20 mA analog output |
| Physical Dimensions | 160 mm (H) × 100 mm (W) × 220 mm (D) |
| Weight | 1.5 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (3U size) |
| Country of Origin | Germany |
EPRO MMS6120 9100-00002-10
Key Features and Advantages：EPRO MMS6120 9100-00002-10
Dual-Channel Precision Measurement: The MMS6120 9100-00002-10 supports simultaneous monitoring of two independent channels, allowing users to track multiple mechanical parameters (e.g., radial vibration on two axes) in real time. Each channel offers high-resolution sampling (16-bit ADC), ensuring accurate detection of even subtle vibration anomalies.
Wide Sensor Compatibility: Designed to work with both proximity probes (for shaft vibration) and accelerometers (for casing vibration), the module adapts to diverse machinery setups. This flexibility eliminates the need for multiple specialized devices, simplifying system design and reducing inventory costs.
Advanced Fault Detection: Equipped with built-in signal conditioning and filtering algorithms, the module can distinguish between normal operational vibrations and fault-related patterns. It supports configurable alarm thresholds and relay outputs, enabling immediate response to critical conditions and preventing catastrophic failures.
Rugged Industrial Design: Encased in a metal housing with IP20 protection, the MMS6120 9100-00002-10 withstands harsh environmental factors such as electromagnetic interference, temperature fluctuations, and mechanical shocks. Its -40°C to +70°C operating range makes it suitable for extreme industrial environments, from arctic oil rigs to high-temperature refineries.
Seamless System Integration: The module’s dual communication interfaces (Modbus RTU/TCP and analog outputs) facilitate integration with both legacy and modern control systems. It supports hot-swappable functionality, allowing maintenance or replacement without powering down the entire system—a critical feature for industries where downtime is costly.
EPRO MMS6120 9100-00002-10
Application Areas：EPRO MMS6120 9100-00002-10
The EPRO MMS6120 9100-00002-10 vibration monitoring module is widely deployed across industries to ensure the reliability of rotating machinery:
- Power Generation: In thermal, hydro, or gas turbine plants, the module monitors shaft vibration and bearing health, preventing unplanned outages and optimizing energy production. For example, it can detect early signs of blade damage in steam turbines, enabling timely maintenance to avoid costly repairs.
- Oil & Gas: Used in offshore platforms, refineries, and pipelines, the MMS6120 9100-00002-10 tracks vibrations in compressors, pumps, and motors. Its ability to operate in corrosive and high-vibration environments makes it essential for maintaining production continuity in harsh offshore conditions.
- Industrial Manufacturing: In manufacturing facilities, the module ensures the smooth operation of CNC machines, conveyor systems, and rotating presses. By monitoring vibration levels, it helps maintain product quality, reduce material waste, and extend the lifespan of expensive machinery.
- Water Treatment: Deployed in wastewater treatment plants, the module monitors pumps and aerators, ensuring consistent performance and compliance with environmental regulations. It can detect misalignment in pump shafts, preventing leaks and operational disruptions.
- Mining and Metals: In mining operations, the MMS6120 9100-00002-10 monitors crushers, grinders, and conveyor belts, enhancing safety and productivity by identifying mechanical issues before they escalate into costly breakdowns.
Related Products：EPRO MMS6120 9100-00002-10
- MMS6210 Temperature Monitoring Module: A complementary module for the MMS6120 9100-00002-10, designed to monitor bearing and stator temperatures, providing a comprehensive view of machinery health when used together.
- MMS6310 Speed/Tachometer Module: Works alongside the MMS6120 9100-00002-10 to measure rotational speed and phase angle, critical for analyzing vibration data in relation to shaft rotation.
- MMS6410 Process Variable Module: Expands system capabilities by integrating process parameters (e.g., pressure, flow) with vibration data, enabling cross-correlation analysis for complex machinery setups.
- PR6423 Proximity Probe: A high-precision sensor compatible with the MMS6120 9100-00002-10, used to measure shaft displacement and vibration with micron-level accuracy.
- CON021 Converter: A signal conditioner that interfaces with the module, converting raw sensor signals into standardized outputs for seamless integration with control systems.
- MMS6000 Rack System: A hardware platform that houses the MMS6120 9100-00002-10 and other MMS6000 Series modules, providing a unified solution for multi-channel machinery monitoring.
- MMS6110 Single-Channel Vibration Module: A cost-effective alternative for simpler applications, offering similar functionality to the MMS6120 9100-00002-10 but with a single input channel.
EPRO MMS6120 9100-00002-10
Installation and Maintenance：EPRO MMS6120 9100-00002-10
Installation Preparation:
Before installing the MMS6120 9100-00002-10, verify that the power supply matches the module’s requirements (24V DC ±10%) and that the mounting rack is properly grounded to minimize electromagnetic interference. Clean the rack slots and align the module securely, ensuring all connectors are free of debris. Connect the sensor cables to the designated input terminals, following EPRO’s wiring guidelines to prevent signal loss or noise. Finally, configure the module’s communication parameters (e.g., Modbus address, baud rate) using the dedicated software to match the host system’s settings.
Before installing the MMS6120 9100-00002-10, verify that the power supply matches the module’s requirements (24V DC ±10%) and that the mounting rack is properly grounded to minimize electromagnetic interference. Clean the rack slots and align the module securely, ensuring all connectors are free of debris. Connect the sensor cables to the designated input terminals, following EPRO’s wiring guidelines to prevent signal loss or noise. Finally, configure the module’s communication parameters (e.g., Modbus address, baud rate) using the dedicated software to match the host system’s settings.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, damaged cables, or abnormal indicator lights. Use a dry cloth to clean the module’s surface and ventilation slots, preventing dust accumulation that could affect heat dissipation.
- Sensor Calibration: Annually calibrate connected sensors (e.g., proximity probes, accelerometers) using EPRO’s certified calibration tools to ensure measurement accuracy. Document calibration results and compare them against baseline data to identify drift or degradation.
- Firmware Updates: Periodically check EPRO’s official website for firmware updates for the MMS6120 9100-00002-10, installing them during scheduled maintenance windows to access new features and bug fixes.
- Functional Testing: Quarterly test the module’s alarm and relay outputs by simulating fault conditions (e.g., exceeding vibration thresholds) to ensure prompt response and system integration.
EPRO MMS6120 9100-00002-10
Product Warranty：EPRO MMS6120 9100-00002-10
We provide a 12-month quality warranty for the EPRO MMS6120 9100-00002-10 vibration monitoring module, covering hardware defects arising from non-human factors. During the warranty period, any module found to have performance issues or functional failures will be replaced at no charge. For discontinued models or urgent requirements, our global supply chain network is equipped to source even the rarest industrial control parts, ensuring minimal downtime for your operations.
With 17 years of experience in industrial control distribution, we pride ourselves on delivering not just products, but reliable solutions. Our team of experts is available to assist with technical inquiries, installation guidance, and post-sales support, ensuring that the MMS6120 9100-00002-10 integrates seamlessly into your machinery monitoring strategy. Trust us to keep your industrial systems running smoothly, today and into the future.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not substitute for the manufacturer’s official technical documentation. Always refer to EPRO’s guidelines for detailed installation, operation, and maintenance procedures.
