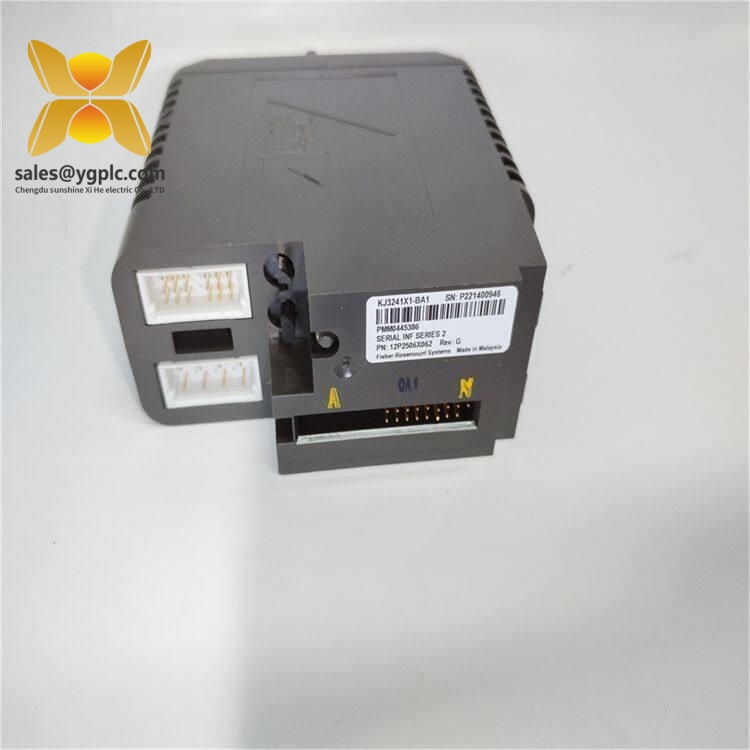

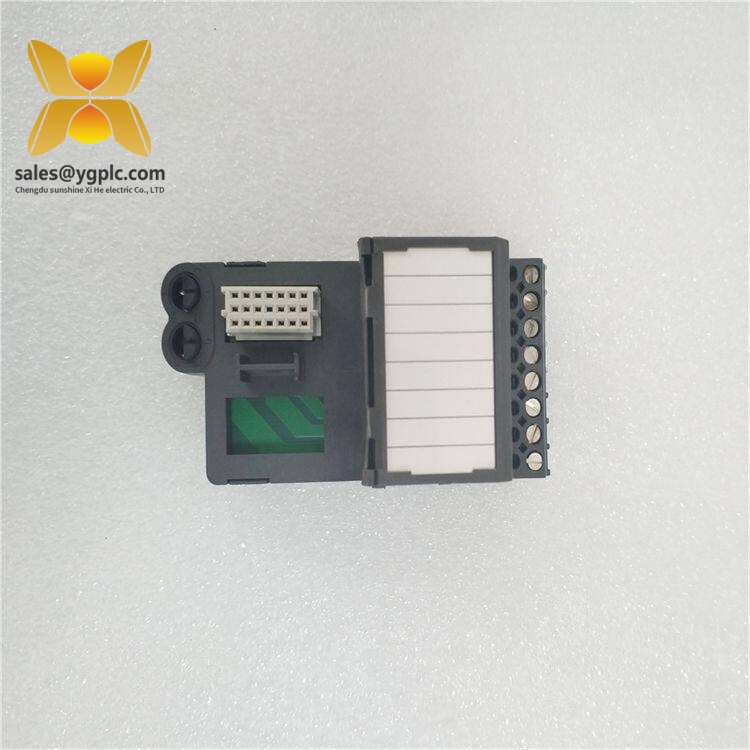

Emerson VE4006P2 – DeltaV M-Series Serial Interface Card

Product Overview

The Emerson VE4006P2 is a DeltaV M-Series Serial Interface Card designed to connect serial field devices and external systems to an Emerson DeltaV control platform. It provides two serial communication ports and is supplied for simplex operation with the associated terminal-block arrangement. The card is commonly used where instruments, packaged equipment, analyzers, or other controllers communicate through serial protocols rather than conventional analog or discrete I/O. Emerson identifies the VE4006P2 within its M-Series Serial Interface product family and documents Modbus communication support for suitable DeltaV applications. It is intended for M-Series architecture, making controller, carrier, terminal-block, and system-generation compatibility important when selecting a replacement. For spare-parts management, the complete catalog number should be matched against the installed hardware rather than relying on the general description of a two-port serial card.

Technical Specifications

Emerson VE4006P2

Key Features and Benefits

• Two-port serial communication capability in one M-Series interface card.
• Supports integration of serial instruments and external control equipment into DeltaV.
• Suitable for Modbus-based serial applications where supported by the installed DeltaV configuration.
• Simplex architecture provides a straightforward replacement path for standard serial interfaces.
• Designed for cabinet-mounted process-control environments.
• Useful for maintaining legacy M-Series DeltaV installations without changing the overall control architecture.
• Exact hardware identification helps reduce the risk of installing an incompatible serial interface.

Personally, I would check the existing carrier and terminal block before ordering. DeltaV hardware can share similar physical characteristics while still requiring different system compatibility.

Emerson VE4006P2

Related Models

VE4036P2 — Redundant M-Series serial interface arrangement intended for applications requiring communication-interface redundancy.

VE4022 — M-Series PROFIBUS DP interface used for integrating compatible PROFIBUS field devices into DeltaV.

VE4017P0 — M-Series H1 Fieldbus interface for DeltaV fieldbus applications.

VE4009 — M-Series AS-i Bus interface used with compatible distributed field devices.

Installation and Maintenance

Before installation, verify the DeltaV M-Series controller, I/O carrier, terminal block, card revision, and configured communication parameters. Confirm the required baud rate, parity, stop bits, slave address, and protocol settings before reconnecting field equipment.

Inspect the card edge connector, terminal block, serial wiring, shielding, and grounding points during preventive maintenance. Loose connections and incorrect serial parameters are common causes of communication failures. Follow the plant’s approved isolation and change-control procedures before removing or replacing the interface card.

After installation, verify card diagnostics, port status, communication counters, and the health of connected serial devices. A loop or device-level communication test should be completed before the system is returned to normal operation.

Product Warranty

Warranty coverage depends on supplier, stock condition, and purchase agreement. Before procurement, confirm whether the unit is new, unused original stock, refurbished, or tested surplus. The exact model number, revision, terminal-block configuration, test status, and warranty period should be documented on the purchase record.

The Emerson VE4006P2 remains a practical spare for DeltaV M-Series serial communication applications, particularly where existing serial devices must be maintained without redesigning the control system.
