Emerson VE4005S2B1 – DeltaV 8-Channel Analog Output Card
Product Overview
The Emerson VE4005S2B1 is a DeltaV M-series traditional I/O analog output card designed for process-control applications requiring eight 4–20 mA output channels with HART support. Emerson’s product data sheet identifies this configuration as an 8-channel analog output solution used with a standard I/O termination block. It is intended to provide controlled analog signals from the DeltaV control system to field devices such as control valves, actuators, positioners, and other current-driven equipment. The standard termination arrangement makes it suitable for established M-series installations where maintaining the existing cabinet architecture is important. Emerson specifies support on DeltaV v10.3.1 and later for this configuration; earlier systems may require the corresponding KJ3221X1-BA2 option.
Technical Specifications — VE4005S2B1
| Parameter | Value |
|---|---|
| Product Model | VE4005S2B1 |
| Manufacturer | Emerson |
| Product Type | DeltaV M-series Analog Output Card |
| Channels | 8 |
| Output Signal | 4–20 mA |
| Communication / Protocol | HART |
| Termination | Standard I/O Termination Block |
| System | DeltaV M-series Traditional I/O |
| Mounting | DeltaV I/O carrier / system installation |
| Dimensions | Configuration dependent |
| Weight | Approx. 0.2 kg net, supplier-dependent |
| Power | DeltaV system supplied |
| Operating Temperature | Refer to applicable DeltaV hardware documentation |
| Compatibility | DeltaV v10.3.1 and later |
Emerson’s current M-series documentation clearly classifies this part as an 8-channel 4–20 mA HART analog output solution with a standard termination block.

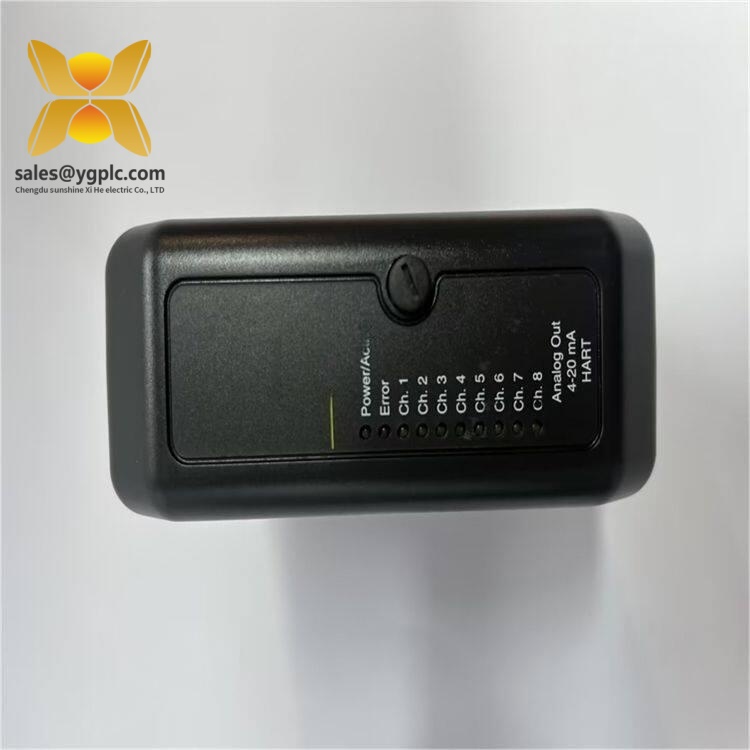

Emerson VE4005S2B1
Key Features and Benefits — VE4005S2B1
- Eight analog output channels
- 4–20 mA signal capability
- HART communication support
- Standard I/O termination arrangement
- Designed for DeltaV M-series traditional I/O
- Suitable for control valves and other analog field devices
- Useful for maintaining established DeltaV installations
- Supports process-control applications requiring reliable analog command signals
The standard termination block is an important selection detail. A redundant or fused termination configuration should not be substituted without checking the existing cabinet design and wiring.
Related Models
VE4035S2B1: Redundant standard I/O termination configuration for the corresponding 8-channel analog output architecture.
VE4005S2B2: Fused I/O termination version intended for installations requiring fused field connections.
VE4005S2B3: 16-pin mass termination version for alternative cabinet and wiring arrangements.
KJ3221X1-BA1: Alternate Emerson identification associated with this analog output card configuration.
Installation and Maintenance — VE4005S2B1
Before replacement, verify the DeltaV version, I/O carrier, termination block, channel assignment, and field wiring. Record the existing configuration before removing the card.
Use appropriate ESD precautions when handling the module. Inspect the termination connections for loose wiring, oxidation, or damaged contacts. After installation, confirm all eight channels are recognized correctly and verify the 4–20 mA output against the expected control command.
For HART-enabled loops, I would also check that the field device communicates correctly after commissioning. A correct current output does not necessarily confirm successful digital communication.

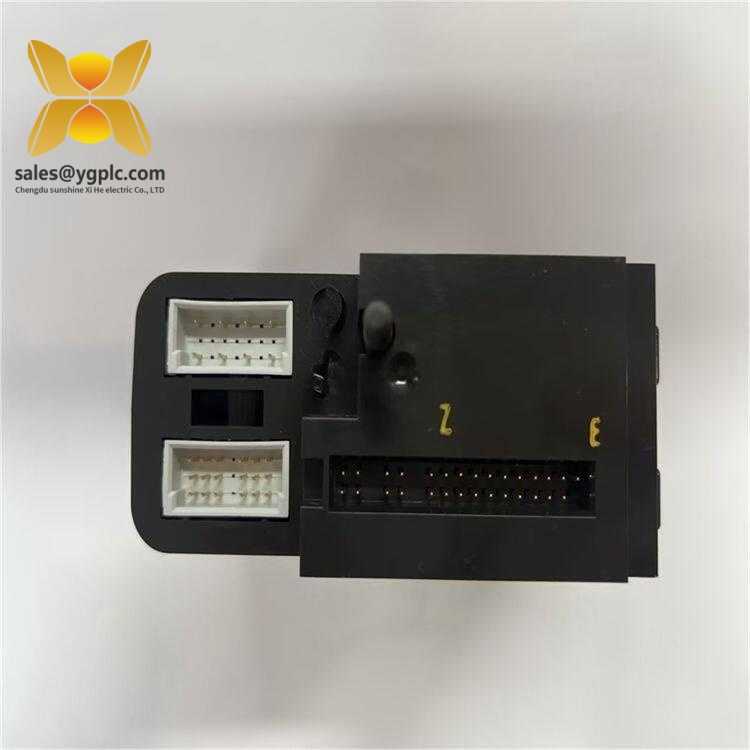

Emerson VE4005S2B1
Product Warranty — VE4005S2B1
Warranty terms depend on the supplier, equipment condition, and purchase agreement. For new, surplus, or refurbished inventory, confirm the hardware revision, serial number, testing status, and warranty period before purchase.
The VE4005S2B1 is best specified together with the DeltaV version and termination-block configuration. Emerson’s documentation notes that this model is supported on DeltaV v10.3.1 and later, while earlier versions require a different card option.
